Sennheiser EW100 G4 ME4 (1G8) Wireless Lavalier Set

Product code: 3270

£545.00 inc VAT
£454.17 ex VAT

SKU: 509925
3 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
2 Year Manufacturer Warranty Included
Optional Add-Ons

About this Product

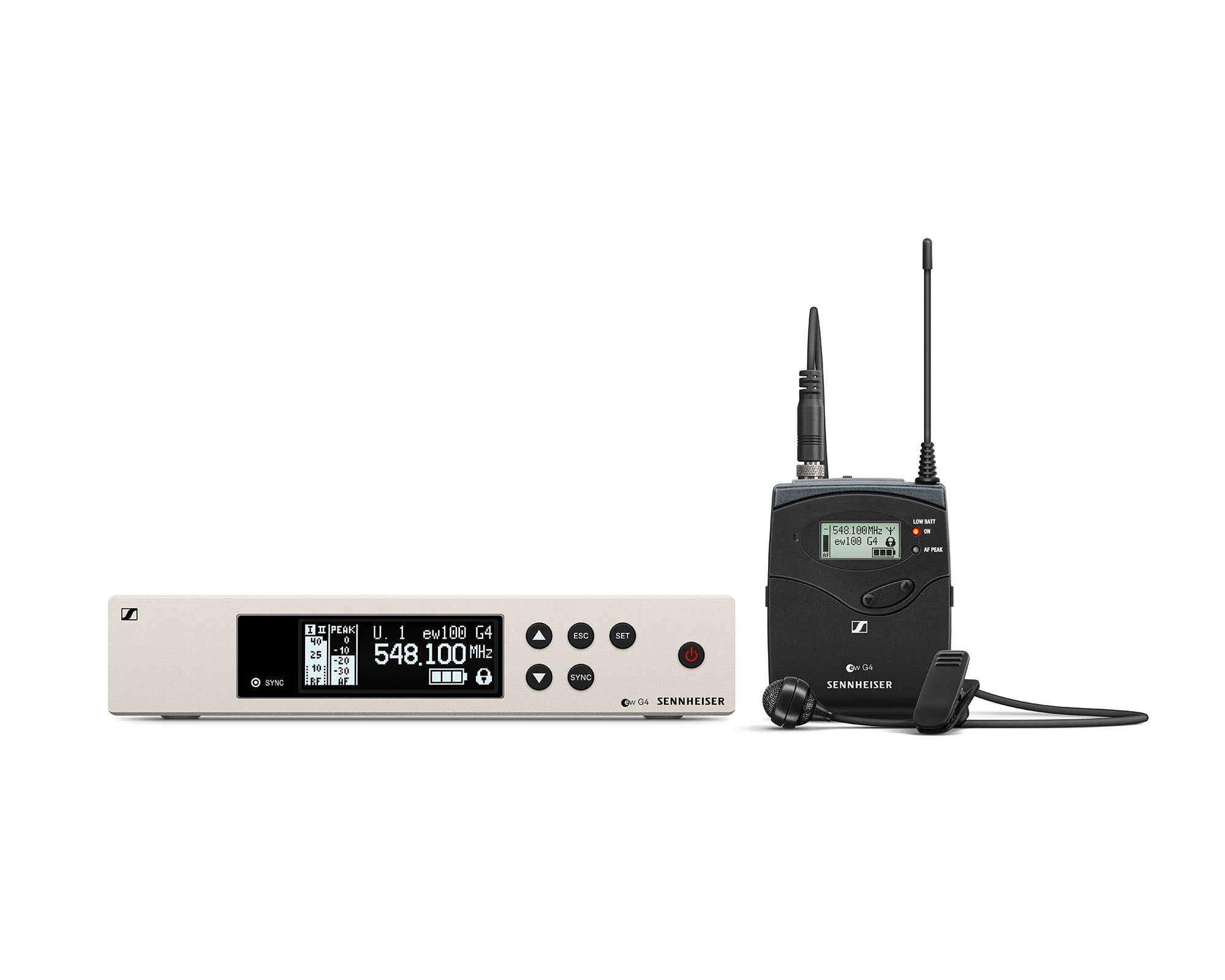

Evolution Wireless G4 100 series is Sennheiser’s analogue UHF workhorse platform for live sound, presentation and broadcast, with tunable frequencies across a wide bandwidth and true-diversity reception. This set ships as a complete lavalier radio mic system with bodypack transmitter, clip-on lav capsule, rack receiver, PSU and rackmount hardware. Band variant: 1G8, 1785 – 1800 MHz. Licence-exempt in the UK since 29 April 2026 (Ofcom IR 2030; applies UK-wide, including Northern Ireland).

Key Features

Analogue UHF system with up to 42 MHz switching bandwidth
20 frequency banks, 12 of them with factory-preset compatible channels
Auto-scan with one-button remote sync from receiver to transmitter
True-diversity half-rack metal receiver with detachable BNC antennas
HDX compander for low noise floor and wide dynamic range
UK band 1G8: 1785 – 1800 MHz
ME4 capsule: cardioid condenser clip-on lavalier
RF output: Max. 30 mW
Switching bandwidth: up to 42 MHz
Battery runtime: 8 h

Specifications

Sennheiser EW100 G4 ME4 (1G8) Wireless Lavalier Set specifications
EM 100 G4 – General: Modulation Wideband FM
EM 100 G4 – General Frequency ranges
EM 100 G4 – General: A 516 – 558 MHz
EM 100 G4 – General: AS 520 – 558 MHz
EM 100 G4 – General: G 566 – 608 MHz
EM 100 G4 – General: GB 606 – 648 MHz
EM 100 G4 – General: B 626 – 668 MHz
EM 100 G4 – General: C 734 – 776 MHz
EM 100 G4 – General: D 780 – 822 MHz
EM 100 G4 – General: E 823 – 865 MHz
EM 100 G4 – General: JB 806 – 810 MHz
EM 100 G4 – General: K+ 925 – 937.5 MHz
EM 100 G4 – General: 1G8 1785 – 1800 MHz
EM 100 G4 – General: Switching bandwidth up to 42 MHz
EM 100 G4 – General: Nominal/peak deviation ±24 kHz / ±48 kHz
EM 100 G4 – General: Receiver principle True diversity
EM 100 G4 – General: Sensitivity (with HDX, peak deviation) < 2.5 μV for 52 dBA eff S/N
EM 100 G4 – General: Adjacent channel selection Typically ≥ 65 dB
EM 100 G4 – General: Intermodulation attenuation Typically ≥ 65 dB
EM 100 G4 – General: Blocking ≥ 70 dB
EM 100 G4 – General: middle 15 dBμV
EM 100 G4 – General: high 25 dBμV
EM 100 G4 – General: Pilot tone squelch Can be switched off
EM 100 G4 – General: Antenna inputs 2 BNC sockets
EM 100 G4 – General: Compander system Sennheiser HDX
EM 100 G4 – General: Preset 2 Low Cut (-3 dB at 180 Hz)
EM 100 G4 – General: Preset 3 Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
EM 100 G4 – General: Preset 4 High Boost (+6 dB at 10 kHz)
Sennheiser part number 509925
UK band 1G8 (1785 – 1800 MHz)

Full features

  • Engineered for professional live sound: Rugged all-in-one wireless system for presenters and moderators

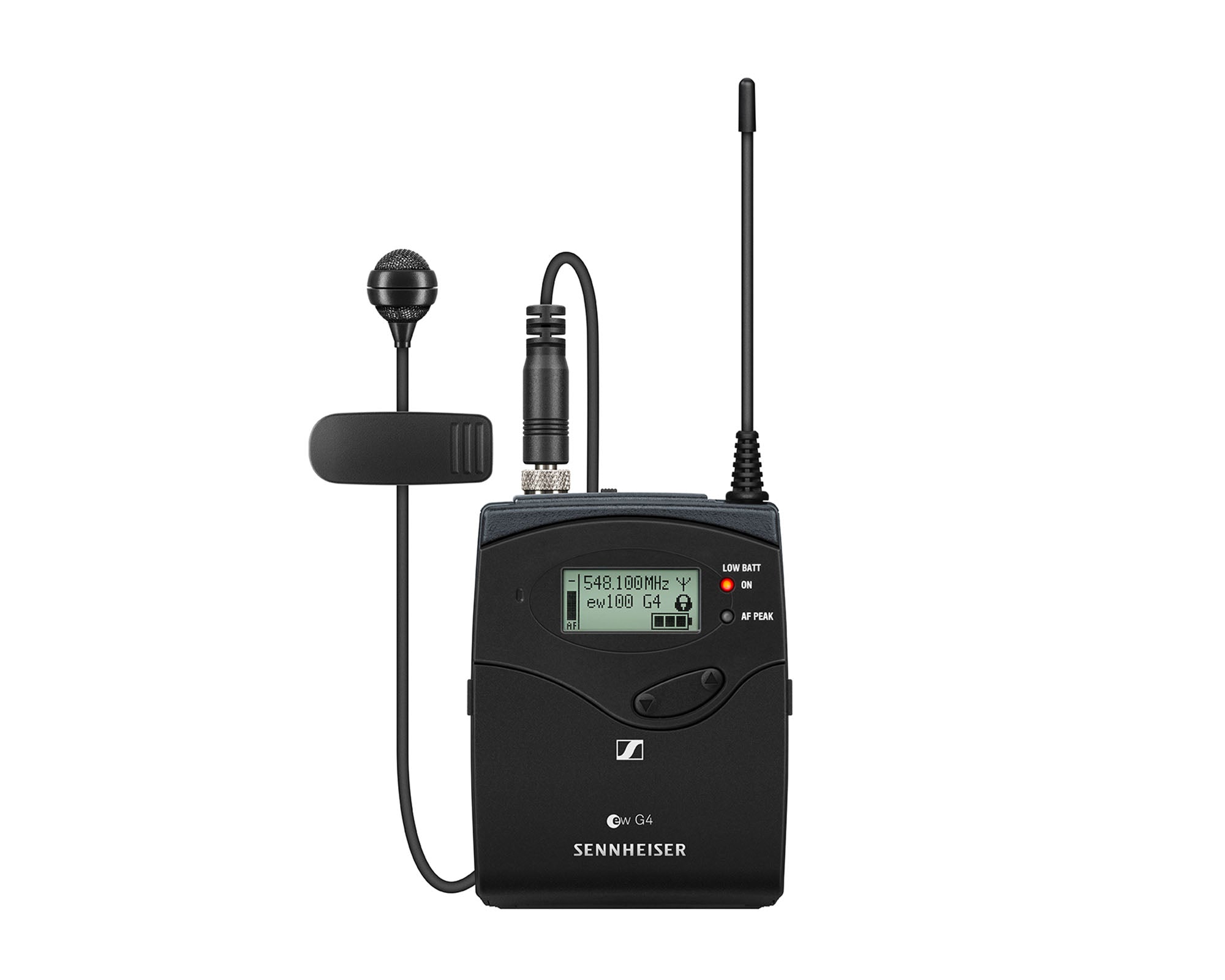

  • Robust bodypack transmitter and unobstrusive clip-on microphone ME 4 (cardioid) with high speech intelligibility for daily use on stage

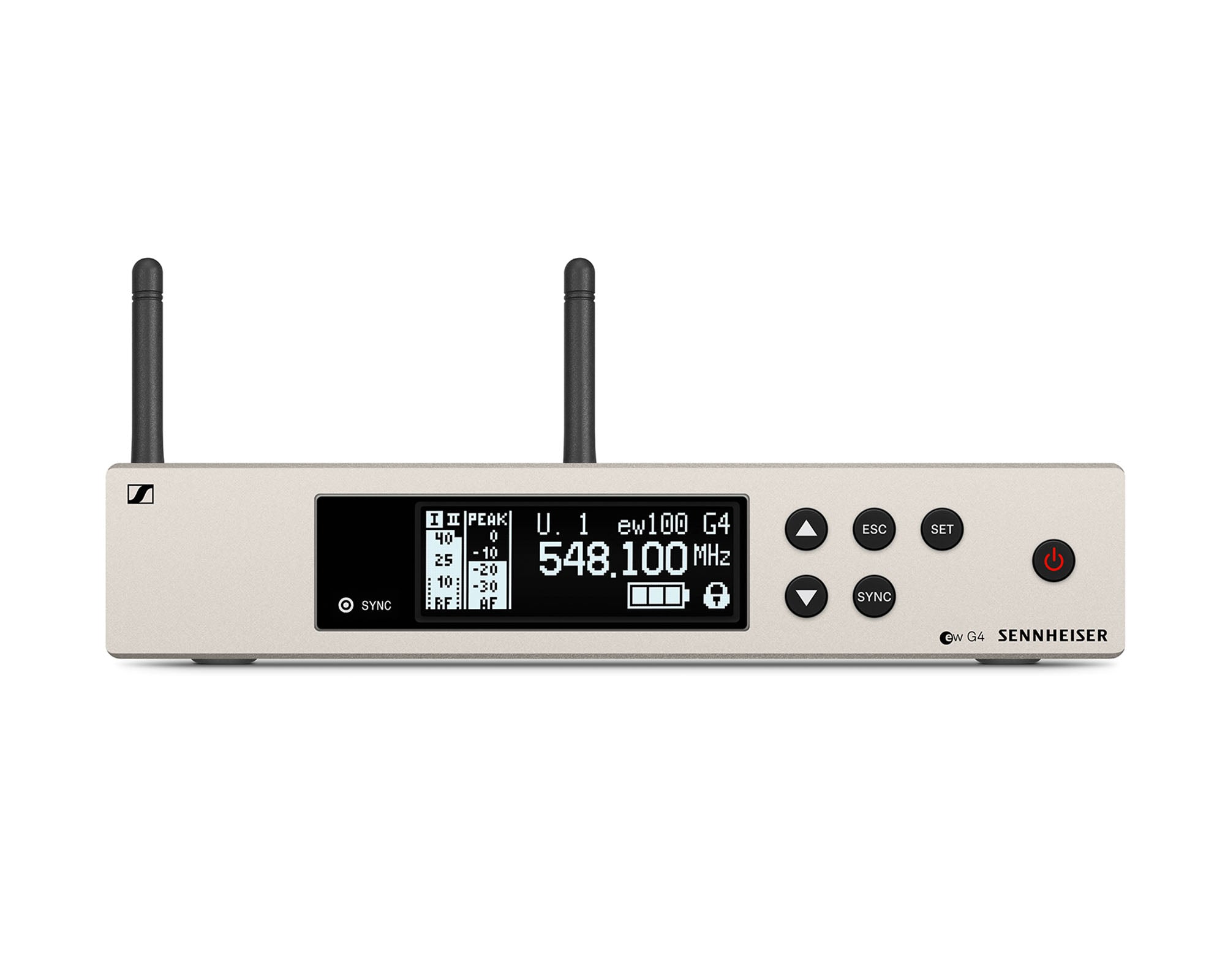

  • True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100 meters / 300 feet
  • High RF output power (up to 30 mW) depending on country regulations

Full specifications

THIS ITEM (NO.509925) OPERATES ON 1G8 (1G8: 1785 - 1800 MHz)

EM 100 G4 - General

  • Modulation: Wideband FM
  • Frequency ranges
    • A1: 470 - 516 MHz
    • A: 516 - 558 MHz
    • AS: 520 - 558 MHz
    • G: 566 - 608 MHz
    • GB: 606 - 648 MHz
    • B: 626 - 668 MHz
    • C: 734 - 776 MHz
    • D: 780 - 822 MHz
    • E: 823 - 865 MHz
    • JB: 806 - 810 MHz
    • K+: 925 - 937.5 MHz
    • 1G8: 1785 - 1800 MHz
  • Receiving frequencies
    • Max. 1680 receiving frequencies, adjustable in 25 kHz steps
    • 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
    • 1 frequency bank with up to 12 programmable channels
  • Switching bandwidth: up to 42 MHz
  • Nominal/peak deviation: ¬±24 kHz / ¬±48 kHz
  • Receiver principle: True diversity
  • Sensitivity (with HDX, peak deviation): < 2.5 μV for 52 dBA eff S/N
  • Adjacent channel selection: Typically ≥ 65 dB
  • Intermodulation attenuation: Typically ≥ 65 dB
  • Blocking: ≥ 70 dB
  • Squelch
    • low: 5 dBμV
    • middle: 15 dBμV
    • high: 25 dBμV
  • Pilot tone squelch: Can be switched off
  • Antenna inputs: 2 BNC sockets
  • Compander system: Sennheiser HDX
  • EQ presets (switchable, act on line and monitor outputs)
    • Preset 1: Flat
    • Preset 2: Low Cut (-3 dB at 180 Hz)
    • Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
    • Preset 4: High Boost (+6 dB at 10 kHz)
  • Signal-to-noise ratio (1 mV, peak deviation): ≥ 110 dBA
  • Total harmonic distortion (THD): ‚â§ 0.9 %
  • AF output voltage (at peak deviation, 1 kHz AF)
  • 6.3 mm jack socket (unbalanced): +12 dBu
  • XLR socket (balanced): +18 dBu
  • Setting range "AF Out": 48 dB (3 dB steps)
  • Temperature range -10 °C to +55 °C
  • Power supply 12 V DC
  • Current consumption 300 mA

EM 100 G4 - Physical & Dimensions

  • Height: 43mmm
  • Width: 212mm
  • Depth: 190mm
  • Weight: 980g

SK 100 G4 - General

  • Modulation: Wideband FM
  • Frequency ranges
    • A1: 470 - 516 MHz
    • A: 516 - 558 MHz
    • AS: 520 - 558 MHz
    • G: 566 - 608 MHz
    • GB: 606 - 648 MHz
    • B: 626 - 668 MHz
    • C: 734 - 776 MHz
    • D: 780 - 822 MHz
    • E: 823 - 865 MHz
    • JB: 806 - 810 MHz
    • K+: 925 - 937.5 MHz
    • 1G8: 1785 - 1800 MHz
  • Transmission frequencies
    • Max. 1680 receiving frequencies, adjustable in 25 kHz steps
    • 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
    • 1 frequency bank with up to 12 programmable channels
  • Switching bandwidth: up to 42 MHz
  • Nominal/peak deviation: ¬±24 kHz / ¬±48 kHz
  • Frequency stability: ‚â§ ¬±15 ppm
  • RF output power at 50 Ω: Max. 30 mW
  • Pilot tone squelch: Can be switched off
  • Compander system: Sennheiser HDX
  • AF frequency response
    • Mic: 80 - 18,000 Hz
    • Line: 25 - 18,000 Hz
  • Signal-to-noise ratio (1 mV, peak deviation): ≥ 110 dBA
  • Total harmonic distortion (THD): ‚â§ 0.9 %
  • Max. microphone/line input voltage: 3 Veff
  • Microphone/line input impedance: 40 kΩ, unbalanced / 1 MΩ
  • Input capacitance: Switchable
  • Setting range for input sensitivity: 60 dB, adjustable in 3 dB steps
  • Temperature range: -10 °C to +55 °C
  • Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
  • Nominal voltage: 3 V battery / 2.4 V rechargeable battery
  • Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ‚â§ 25 μA
  • Operating time Typically: 8 h

SK 100 G4 - Physical & Dimensions

  • Height: 82mm
  • Width: 64mm
  • Depth: 24mm
  • Weight: 160g

ME 4 - General

  • Transducer principle pre-polarized condensor microphone
  • Pick-up pattern cardioid
  • Sensitivity (free field, no load) (1 kHz) 40 mV/Pa
  • Max. SPL at 1 kHz 120 dB
  • Frequency response 50 to 18,000 Hz "Equivalent noise level A-weighted (DIN IEC 651)" 31 dB
  • Connector 3.5 mm jack
  • Cable length approx. 1.60 m
  • Supply voltage 7.5 V
