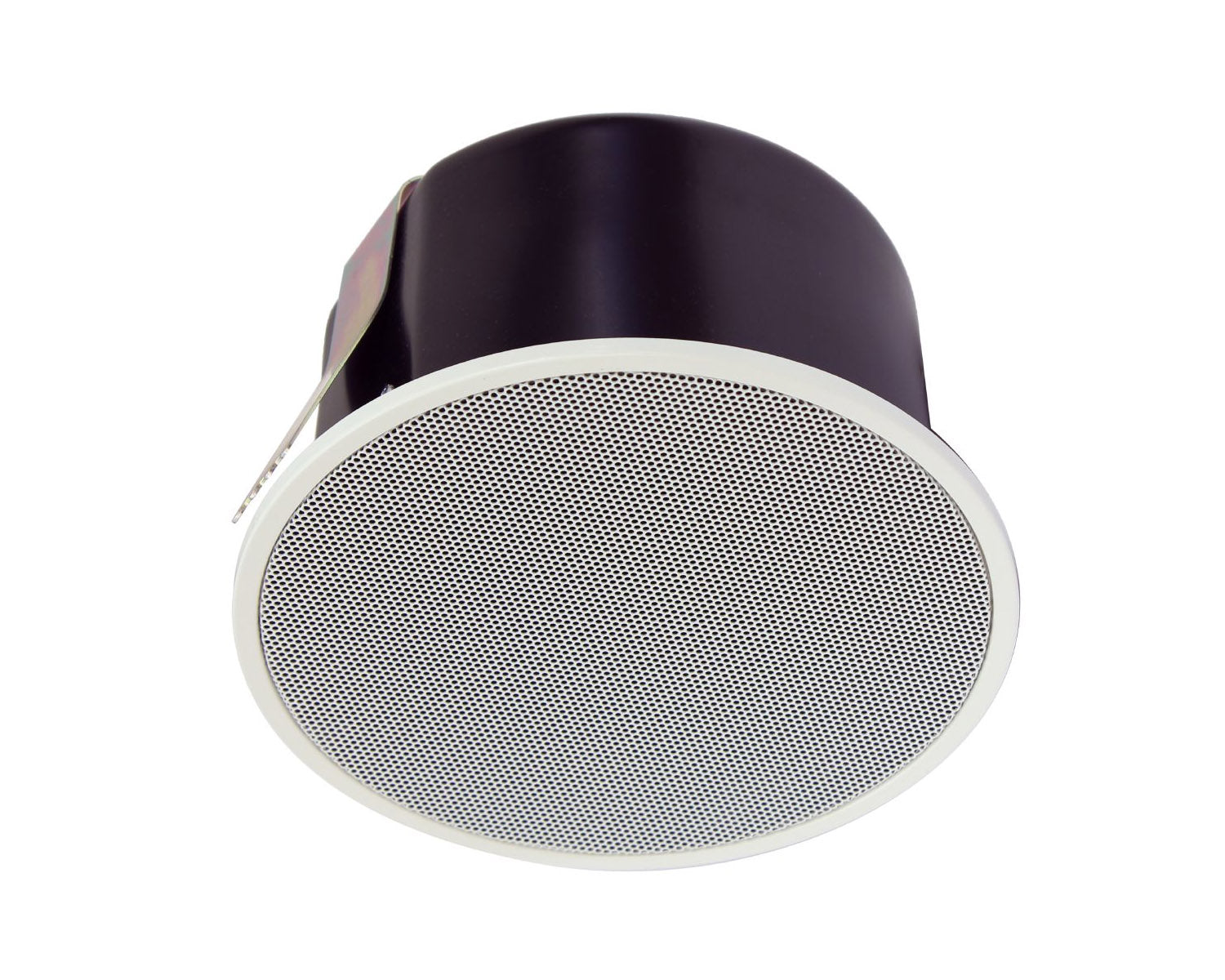

The TOA PC-1860BS is a 6W ceiling speaker for 100V and 70V lines with a 12 cm driver, steel fire dome, ceramic terminal block and thermal fuse. It is certified to EN 54-24 and designed to BS 5839-8, so it can be used on voice alarm systems as well as for paging and background music. Typical sites are schools, hospitals, hotels, public buildings and shopping centres.
6W
100V line
EN 54-24
Certified
156 mm
Cut-out
95 dB
Sensitivity
Voice alarm useEN 54-24 certification covers the speaker only. A compliant voice alarm system also needs EN 54-16 control equipment and a design to BS 5839-8.
Features
EN 54-24 certified, designed to BS 5839-8:2008
Steel fire dome to limit fire spread through the ceiling void
Ceramic (steatite) terminal block and thermal fuse
6W on 100V lines, taps at 6W, 3W, 1.5W and 0.8W
12 cm cone driver

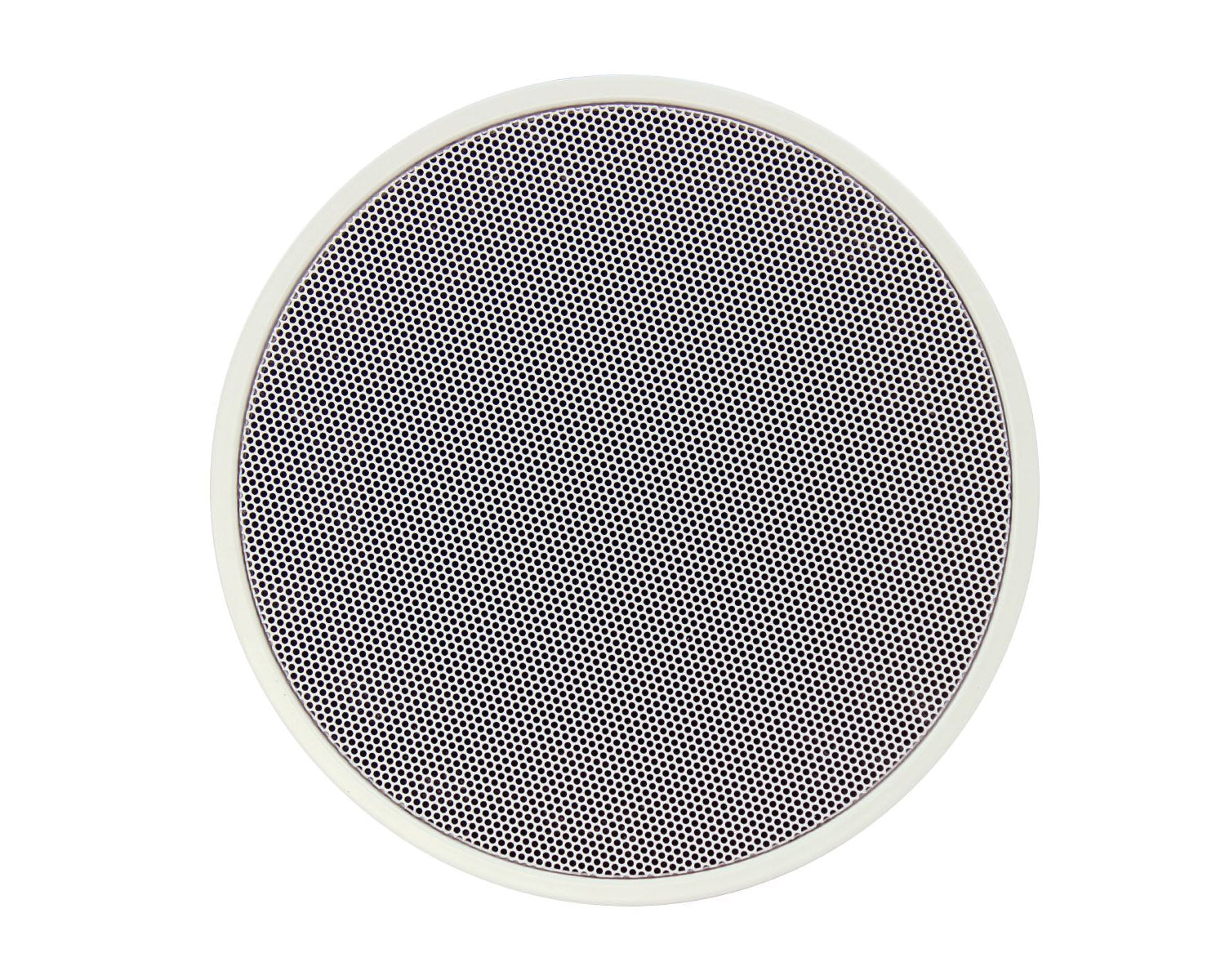

Flat front panel with steel mesh grille
156 mm cut-out
Specifications
| Rated input | 6W (100V), 3W (70V) |
| Taps, 100V | 1.7 kΩ (6W), 3.3 kΩ (3W), 6.7 kΩ (1.5W), 13 kΩ (0.8W) |
| Taps, 70V | 1.7 kΩ (3W), 3.3 kΩ (1.5W), 6.7 kΩ (0.8W), 13 kΩ (0.4W) |
| Sensitivity | 95 dB (1W, 1m, 500 Hz to 5 kHz pink noise) |
| Frequency response | 170 Hz to 20 kHz (peak -20 dB) |
| Driver | 12 cm cone |
| Connection | Steatite terminal block (3 pole) |
| Cut-out | 156 mm |
| Dimensions (ø x D) | 180 x 105 mm |
| Finish | Steel, traffic white (RAL 9016 or equivalent) |
| Operating temperature | -10 to +50°C |
| Certification | EN 54-24; designed to BS 5839-8:2008 |
