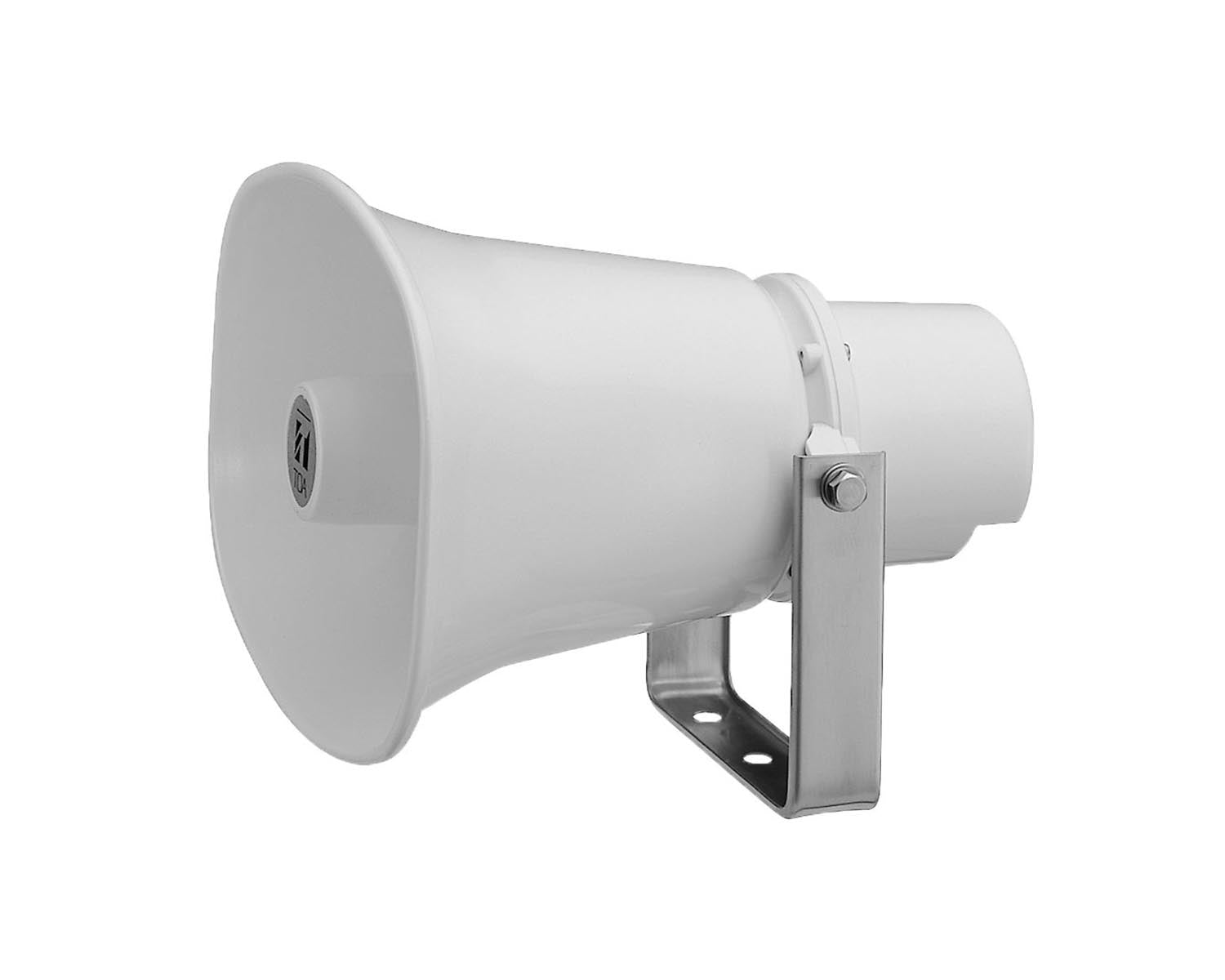

The TOA SC-P620 is a weatherproof horn speaker with a built-in 20W Class D amplifier, powered from 12V DC and fed from a line-level source. It accepts an unbalanced RCA line signal, so it can be connected directly to the audio output of most IP CCTV cameras or encoders for remote talk-down and announcements. It is rated IP65 and used at secure sites, car parks, depots, stations and airports.
20W
Class D built in
12V DC
Power
RCA line
Input
IP65
Weatherproof
Power supply not includedThe SC-P620 needs a 12V DC supply (2.1 A at maximum output). TOA lists the AD-5000-2 AC adapter as an option.
Features
Built-in 20W Class D amplifier
Line-level RCA input, 0 dBV, for IP CCTV camera or encoder audio outputs
Switchable gain: 8, 16, 24 or 32 dB
Internal volume control for setting up on site
12V DC power
IP65 with powder-coated finish and stainless steel screws
Rated for -20 to +55°C
Specifications
| Amplifier | 20W Class D, built in |
| Power source | 12V DC |
| Power consumption | 15W (1.25 A) rated, 25W (2.1 A) maximum |
| Input | 0 dBV, 10 kΩ, unbalanced, RCA plug |
| Gain | 8, 16, 24 or 32 dB, switchable |
| Sensitivity (1W, 1m) | 113 dB |
| Frequency response | 250 Hz to 10 kHz |
| Protection | IP65 |
| Operating temperature | -20 to +55°C |
| Finish | Off-white (RAL 9010 or equivalent), stainless steel screws |
| Dimensions (W x H x D) | 292 x 234 x 280 mm |
| Weight | 1.8 kg |
