The dLive C2500 is the mid-size C Class control surface, packing 20 faders across 6 layers into a compact frame with built-in audio I/O and networking. It brings the full dLive mixing engine to venues, houses of worship, and production companies that need more physical faders than the C1500 without stepping up to a full S Class desk.
20
Faders · 120 strips across 6 layers
12″
Touchscreen · Capacitive multitouch
19
SoftKeys · Fully assignable
6 in / 6 out
Local I/O · Mic/line in, line out

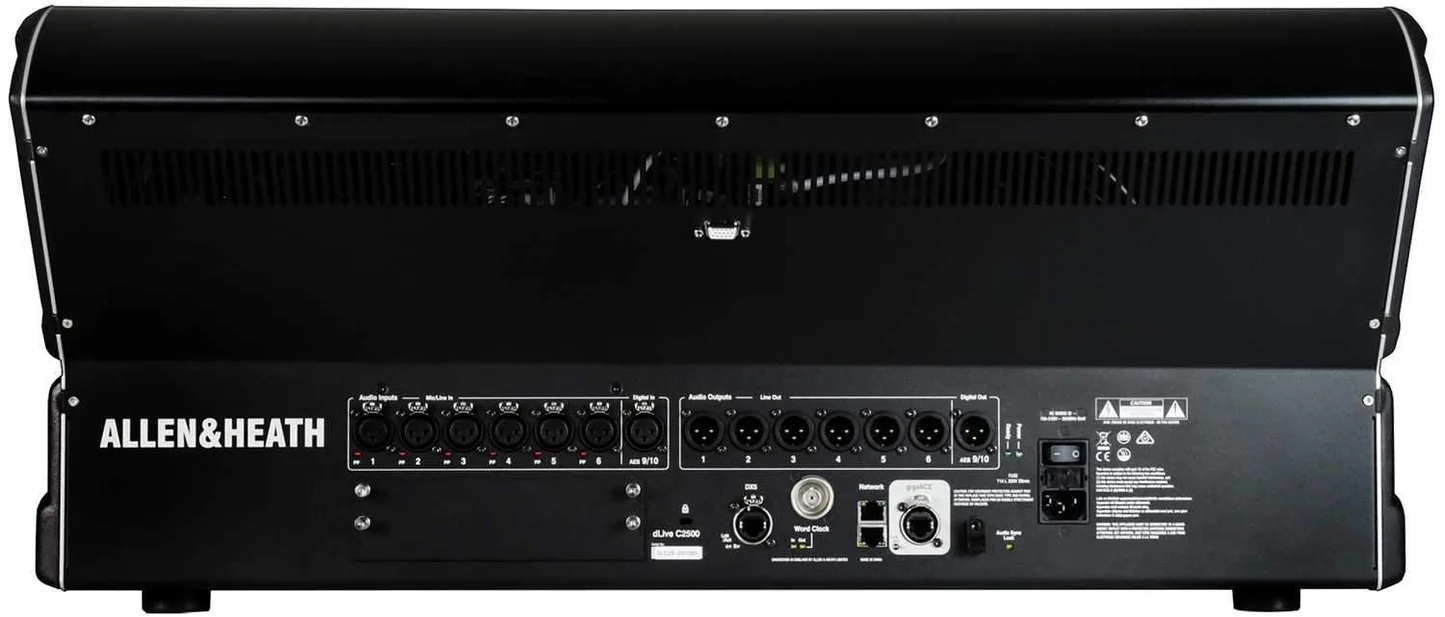

System ArchitectureThe C2500 connects to any dLive MixRack via gigaACE with a DX link for I/O expansion. Built-in I/O includes 6 mic/line inputs, 6 line outputs, AES3 stereo digital I/O, a 128-channel 96 kHz I/O port, 2 network ports, Wordclock BNC I/O, and a video output. The integrated PSU keeps the footprint compact for fixed installations.
Features
12″ capacitive touchscreen with Harmony UI
20 faders, same count as the S3000 in a more compact frame
6 mic/line inputs and 6 line outputs built in
AES3 stereo digital input and output
Fully customisable fader layout across all 6 layers
RGB-illuminated rotary controls with colour-mapped functions
Configurable widget areas for scenes, meters, FX and custom controls
Integrated power supply
Specifications
| Faders | 20 motorised (120 strips across 6 layers) |
| Touchscreen | 1 x 12″ capacitive multitouch |
| Assignable SoftKeys | 19 |
| Local Analogue Inputs | 6 mic/line |
| Local Analogue Outputs | 6 line |
| Digital I/O | 1 stereo AES3 in / 1 stereo AES3 out |
| I/O Port | 128 channel, 96 kHz |
| MixRack Connection | gigaACE |
| Power Supply | Integrated |
| SKU | DLIVE-DLC25/240X |
