Rated 4.9 (79 reviews)

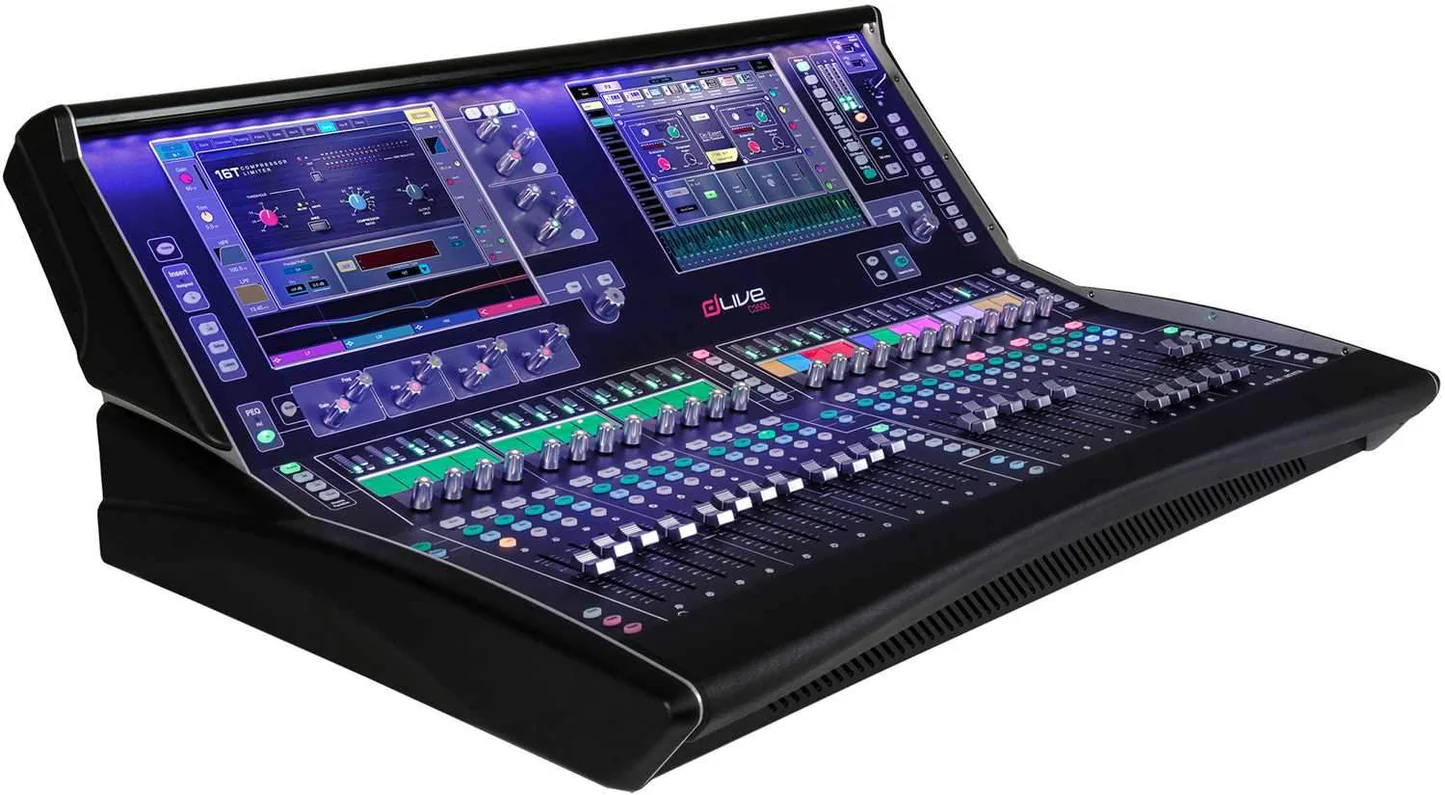

The dLive C3500 is the largest C Class control surface, offering 24 faders across 6 layers and dual 12″ capacitive touchscreens. It bridges the gap between the compact C Class range and the full-size S Class, making it a strong choice for venues, touring systems, and production environments that want the dual-screen workflow and higher fader count of a larger desk with the cost efficiency of the C Class platform.
24
Faders · 144 strips across 6 layers
2 x 12″
Touchscreens · Capacitive multitouch
19
SoftKeys · Fully assignable
6 in / 6 out
Local I/O · Mic/line in, line out

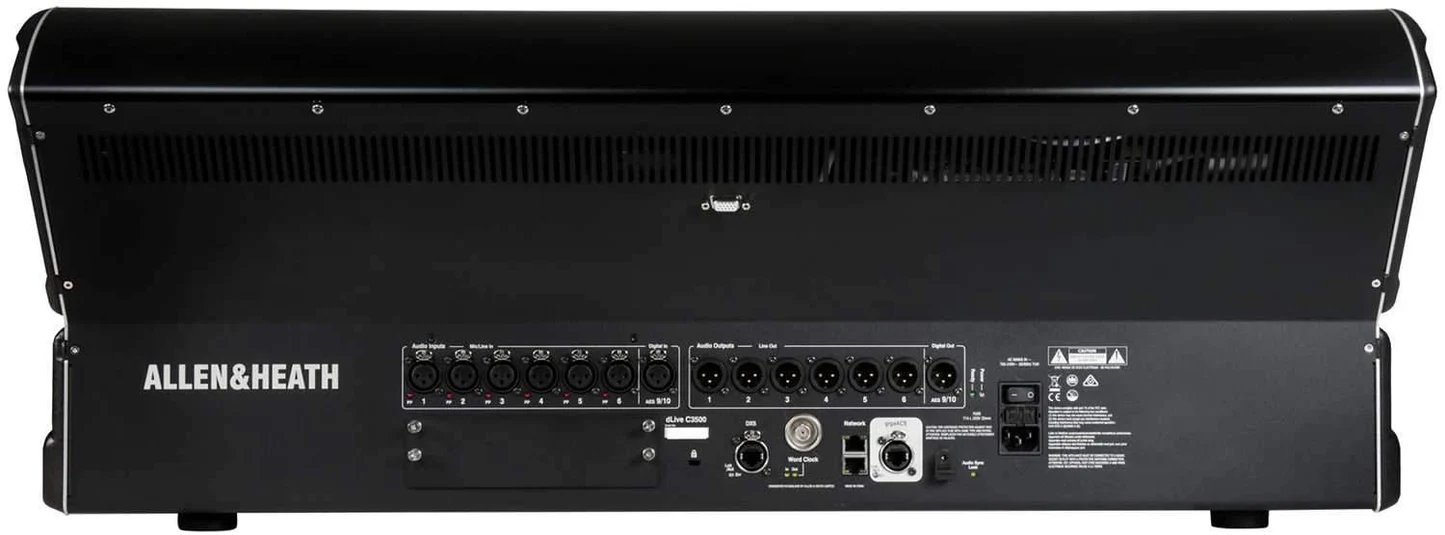

System ArchitectureThe C3500 connects to any dLive MixRack via gigaACE with a DX link for I/O expansion. Built-in I/O includes 6 mic/line inputs, 6 line outputs, AES3 stereo digital I/O, a 128-channel 96 kHz I/O port, 2 network ports, Wordclock BNC I/O, and a video output. Dual touchscreens enable independent layouts, channel processing on one screen and meters, scenes, or FX on the other.
Features
Dual 12″ capacitive touchscreens with Harmony UI
24 faders, largest C Class surface
6 mic/line inputs and 6 line outputs built in
AES3 stereo digital input and output
Fully customisable fader layout across all 6 layers
RGB-illuminated rotary controls with colour-mapped functions
Configurable widget areas for scenes, meters, FX and custom controls
Integrated power supply
Specifications
| Faders | 24 motorised (144 strips across 6 layers) |
| Touchscreens | 2 x 12″ capacitive multitouch |
| Assignable SoftKeys | 19 |
| Local Analogue Inputs | 6 mic/line |
| Local Analogue Outputs | 6 line |
| Digital I/O | 1 stereo AES3 in / 1 stereo AES3 out |
| I/O Port | 128 channel, 96 kHz |
| MixRack Connection | gigaACE |
| Power Supply | Integrated |
| SKU | DLIVE-DLC35/240X |
