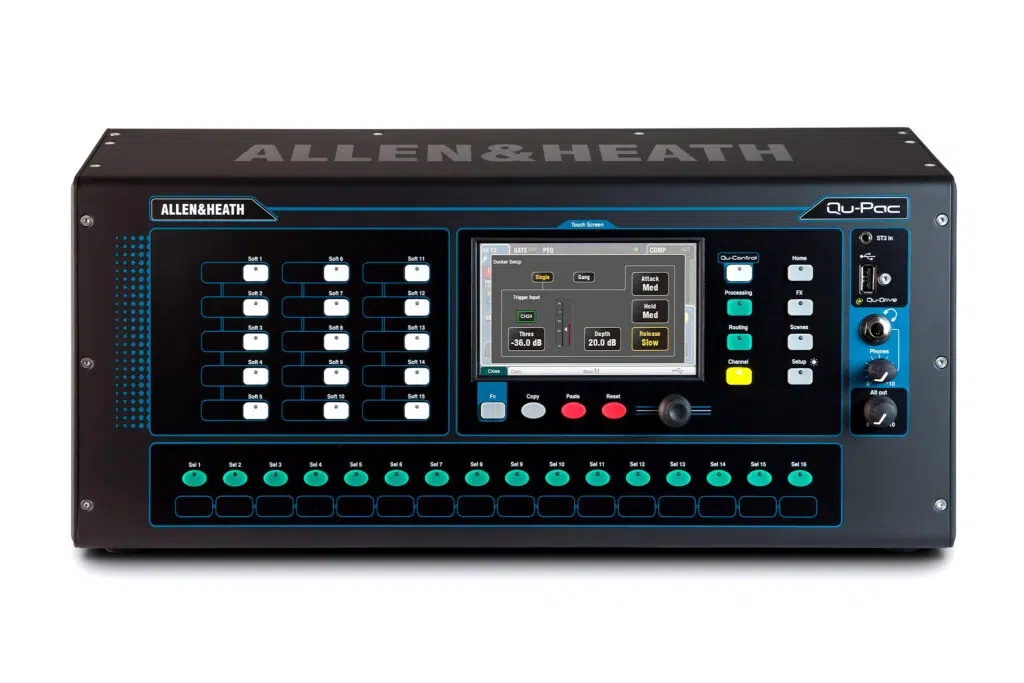

The Allen & Heath Qu-Pac puts the full Qu mix engine into a compact rack or desktop chassis with no physical faders, driven instead by an 800 x 480 colour touchscreen and the Qu-Pad iPad app. It suits installs, houses of worship, conference rooms and any production where the mixer lives in a rack and the engineer works from a tablet. It is part of the Qu Classic line alongside the Qu-16, Qu-24 and Qu-32, and uses the same AnalogiQ preamps and RackFX processing as the rest of that family.
22 in / 12 out
CHANNELS · 16 mono mic/line
32 x 32
USB INTERFACE · Mac / PC
18-track
QU-DRIVE · 48kHz / 24-bit
800 x 480
TOUCHSCREEN · 16m colour
No physical fadersQu-Pac is controlled entirely from its touchscreen or the Qu-Pad iPad app. Qu-Pac is the right choice when the mixer is racked, wall-mounted or operated remotely. If you need motorised faders at the mix position, the current-generation Qu-5, Qu-6 and Qu-7 are the alternative.
Remote Control
Free Allen & Heath apps for engineer and performer control.
Qu-Pad (iPad)
Qu-You
Qu-Control
Expansion
dSNAKE port for remote stageboxes and personal monitoring.
AB168
AR2412
AR84
ME-1
ME-500
ME-U
Features
16 AnalogiQ digitally controlled mic preamps
Zero-crossing detection, padless 1dB-step gain
4 stereo RackFX engines with dedicated returns
4-band PEQ on each stereo FX return
Automatic Mic Mixer (AMM) for up to 16 sources
D-Classic gain-sharing with per-channel priority

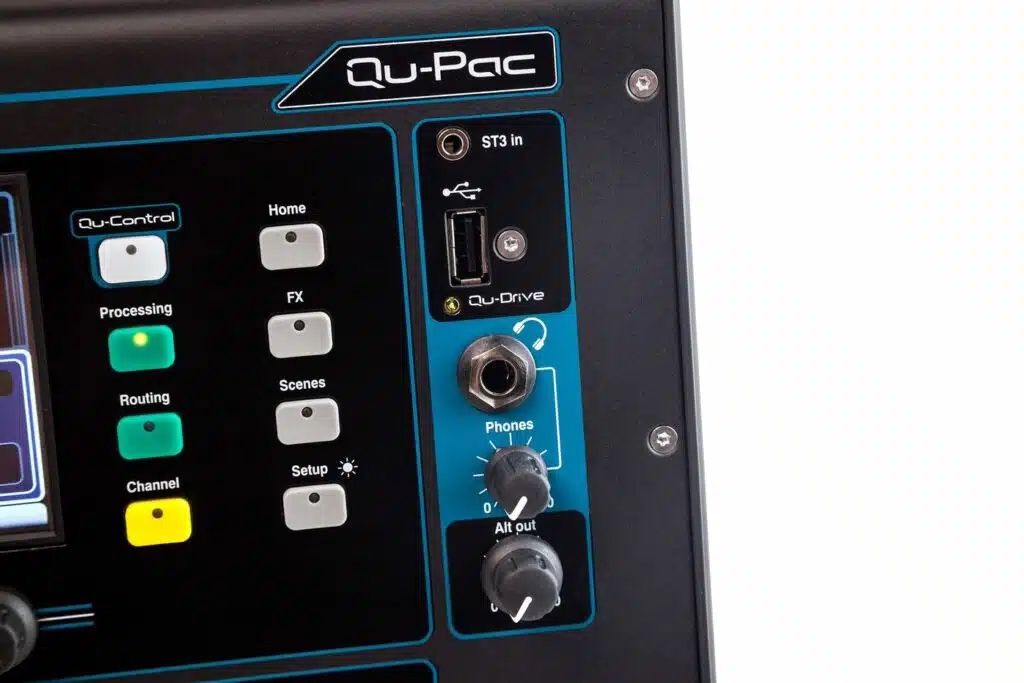

Qu-Drive 18-track recording to USB, no computer
Stereo recording from any Mix pair, Main LR or PAFL
Customisable Qu-Control screen with assignable widgets
MIDI over USB and network, HUI / Mackie Control emulation
18-gauge cold-rolled Zintec steel chassis
Fanless convection cooling, silent in operation
NoteA tablet is not supplied. Qu-Pad requires an iPad, and the mixer needs a wireless router on the same network for app control. Plan the network as part of the install.
Specifications
| Configuration | 22 in / 12 out |
| Mic preamps | 16 AnalogiQ, digitally controlled |
| Touchscreen | 800 x 480, 16 million colour |
| USB audio interface | 32 x 32, Mac / PC |
| Qu-Drive recording | 18 tracks, 48kHz / 24-bit |
| FX engines | 4 stereo RackFX |
| Remote I/O | dSNAKE (AB168, AR2412, AR84) |
| Chassis | 18-gauge cold-rolled Zintec steel, fanless |
| Dimensions (W x D x H) | 31 x 63 x 31 cm (packed) |
| Gross weight | 9.2 kg (packed) |
