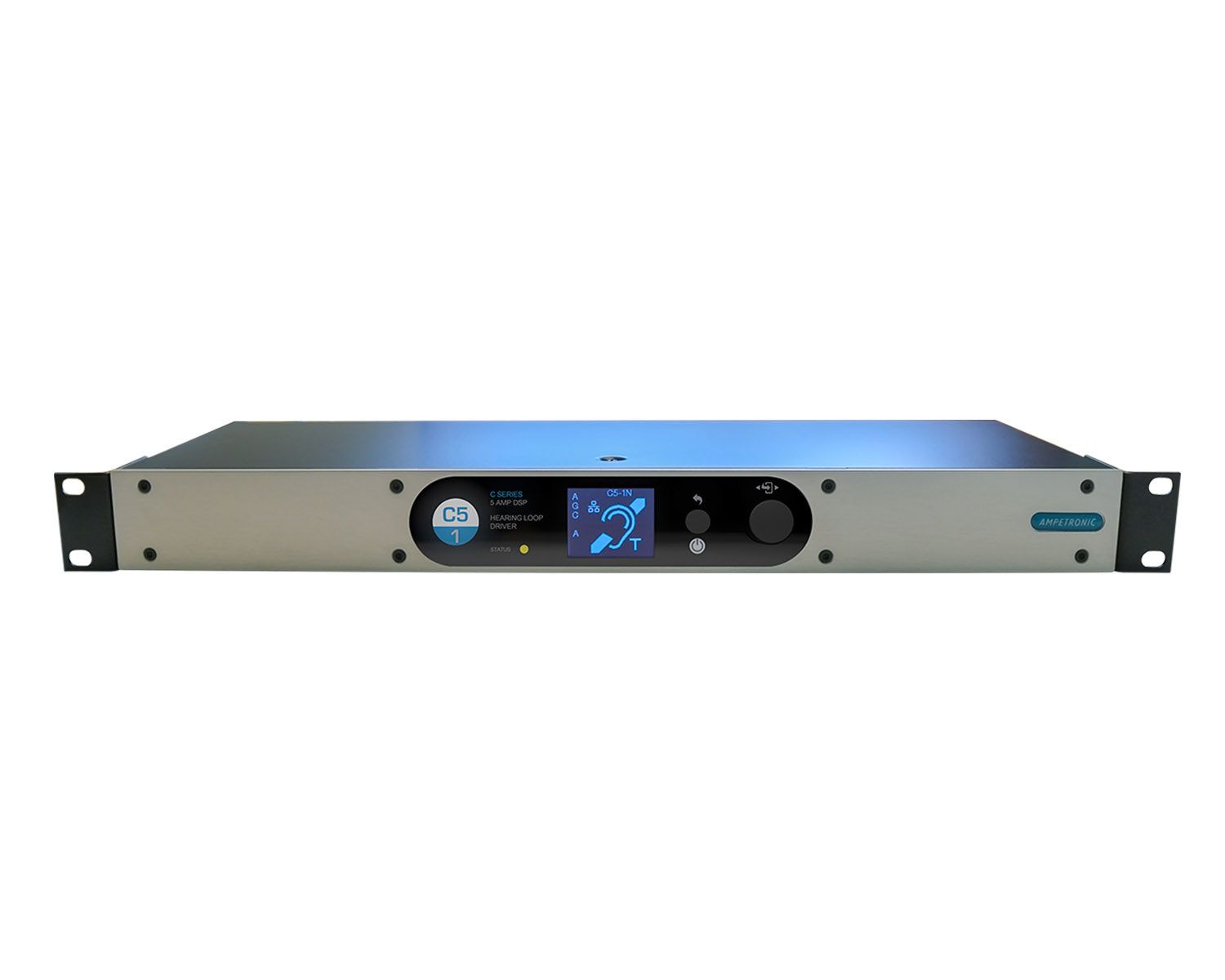

Ampetronic C5-1N Networked Perimeter Hearing Loop Driver 1x5A 1U

Product code: 191580

£659.00 inc VAT
£549.17 ex VAT

SKU: C5-1N

2 in stock (more available subject to additional lead time)

2 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

The Ampetronic C5-1N is the networked version of the C5-1 single-output perimeter hearing loop driver, delivering 5 A RMS of loop current from a 1U rack unit. Its Ethernet port gives remote adjustment, status and loop measurement monitoring, and email fault alerts. It suits meeting rooms, classrooms, places of worship, council chambers and lecture rooms where the loop needs to be checked without a site visit.

5 A RMS
Loop current
1U
Rack height
Network
Control and monitoring
2.5 kg
Weight
Metal loss correctionMLC corrects the frequency response tilt caused by metal in the building. It does not make up the overall signal loss, which can be large, so loops in steel-framed buildings still need a proper design.

Features

Single loop output, 5 A RMS (7.1 A peak) at 1 kHz
Ethernet control via hosted web server, Telnet and SNMP
Remote monitoring of driver status, loop resistance and induction, with fault alerts by email or Telnet
Priority input option and custom dual-slope metal loss correction
Two balanced mic/line inputs with switchable 24V phantom power, plus a 100V line input
Compatible with Loopworks Measure LoopLink for automated driver control
Built-in test tones and speech optimised AGC
Passive cooling, no fan

Specifications

Ampetronic C5-1N Networked Perimeter Hearing Loop Driver 1x5A 1U specifications
Loop output current 5 A RMS (7.1 A peak), 1 kHz sine; 2.4 A RMS pink noise
Output voltage 20V RMS (28.3V peak)
Loop outputs 1x 4-pin 5 mm Euroblock (supplied), for twisted pair or star-quad feed cable
Inputs 1 and 2 Balanced mic or line, 3-pin 3.5 mm Euroblock, selected by rear panel switch, switchable 250 Hz low cut
Mic input 200 to 600 ohm, sensitivity -67 dBu, switchable 24V phantom power
Line input sensitivity -42 dBu
100V line input (input 2) 2-pin 5 mm Euroblock, sensitivity +7 dBu
Network RJ45 Ethernet, hosted web server, Telnet and SNMP
Line output Balanced, post AGC, 3-pin 3.5 mm Euroblock
DC output 12V 0.1 A, resettable fuse protected, can follow amplifier status
USB Firmware updates, or 200 mA power for a wireless router
Frequency response 80 Hz to 6.5 kHz
Distortion THD+N <0.3% (1 kHz sine at full current)
Automatic gain control Speech optimised, dynamic range >36 dB
Metal loss correction 0 to 4 dB per octave in 0.25 dB steps, gain constant at 1 kHz
Power 230V / 120V nominal, 45 to 65 Hz, 35W
Dimensions (W x D x H) 430 x 190 x 44 mm, 1U 19 inch
Weight 2.5 kg
Mounting Freestanding or 1U rack (brackets fitted); wall brackets available separately
Cooling Passive
Environment IP20, 0 to 35°C, 20 to 90% relative humidity

Full features

  • Simple digital interface for accurate adjustment
  • Network and stand-alone options
  • Built-in test tones
  • Compatible with Loopworks Measure LoopLink for direct and automated driver control
  • Clear indicators and system diagnostics
  • Compact 1U rack mount unit with internal power supply
  • Optimised for speech frequencies with unmatched intelligibility and capable of high quality musical reproduction
  • Industry standard Phoenix connectors
  • Data compliant with IEC 62489-1 Standard
  • 100V line input

Applications

  • Lecture Theatres
  • Conference facilities
  • Stadia
  • Sports Halls
  • Cinemas
  • Theatres
  • Courtrooms
  • Airports
  • Railway Stations

Full specifications

GENERAL

  • Current
    • 5ARMS (7.1 Apk) 1kHz sine
    • 2.4ARMS pink
  • Voltage: 20VRMS (28.3Vpk)
  • Power Consumption 230V / 120V nominal 45-65Hz: 35W

INPUTS

  • Input 1 and 2: 3 way 3.5mm euroblock screw terminal input (supplied) with a balanced microphone and line level operation, selectable via rear panel switch. Switchable 250Hz low cut filter. Priority input option (network models only).
  • Microphone / Line
    • Microphone specification; 200 - 600Ω, sensitivity -67dBu. Selectable 24V phantom power on microphone only
    • Line sensitivity -42dBu.
    • Max line level 17Bu. Max mic level -8dBu.
  • 100V Line (Input 2 only)
    • 2 way 5mm euroblock screw terminal (supplied).
    • Sensitivity +7dBu
  • Dante (Optional - Input 3)
    • RJ45 Ethernet input (100MB/s), AES67 compliant.
    • 2x channels mono summed.
  • Network (Optional C5/C7)
    • RJ45 Ethernet, control and monitoring.
    • Hosted web server, Telnet & SNMP.

OUTPUTS

  • Loop Connectors: 4 way 5mm euroblock screw terminal (supplied) for each output, for twisted pair or star-quad configured feed cables
  • DC Output
    • 2 way 3.5mm euroblock screw terminal (supplied).
    • Re-settable, fuse protected 12V 0.1A.
    • Controllable to reflect amplifier status (network models only)
  • Status Relay (C10 and C14)
    • 2 way 3.5mm euroblock screw terminal (supplied).
    • Normally closed isolated relay contacts, open in fault conditions. Rated load 0.5A at 125VAC, 2A at 30VDC.
  • Line Output: 3 way 3.5mm euroblock screw terminal (supplied) post AGC balanced output
  • USB: Firmware updates or power for wireless router (200mA max)

AUDIO SYSTEM

  • Frequency Response: 80Hz to 6.5kHz
  • Distortion: THD+N <0.3% 1kHz sine at full current
  • Automatic Gain Control: The AGC is optimised for speech. Dynamic range >36dB
  • Metal Loss Correction
    • Corrects system frequency response issues due to metal structures in a building. Gain constant at 1kHz, adjustable gain slope from 0 to 4dB per octave in 0.25dB increments.
    • Custom dual slope MLC allows different slopes and knee frequency to be set via the menu (network models only). This does not compensate for signal loss from metal structures which can be significant.
  • Phase Shift: User selectable (network models only) at 0° or 90° between outputs

ADDITIONAL FUNCTIONS

  • Status
    • Tri-colour LED:
      • Solid Green = normal operation
      • Flashing Green = sleep mode
      • Flashing Amber = standby
      • Flashing Red = error
      • Fast Flashing Amber = firmware update

PHYSICAL

  • Size
    • Full width 1U 19" rack mount.
    • Width 430mm Depth 190mm Height 44mm
    • Depth inc. knob 190mm (C5/C7) 305mm (C10/C14)
  • Weight: 2.5kg
  • Mounting Options
    • Freestanding
    • 1U 19" rack mount (brackets fitted as standard)
    • Wall mounted, brackets available separately
  • Environment: IP20 rated; 20 to 90% relative humidity; 0 to 35ºC
  • Cooling
    • C5/C7 Passive
    • C10/14 variable speed fan, front inlet rear exhaust
