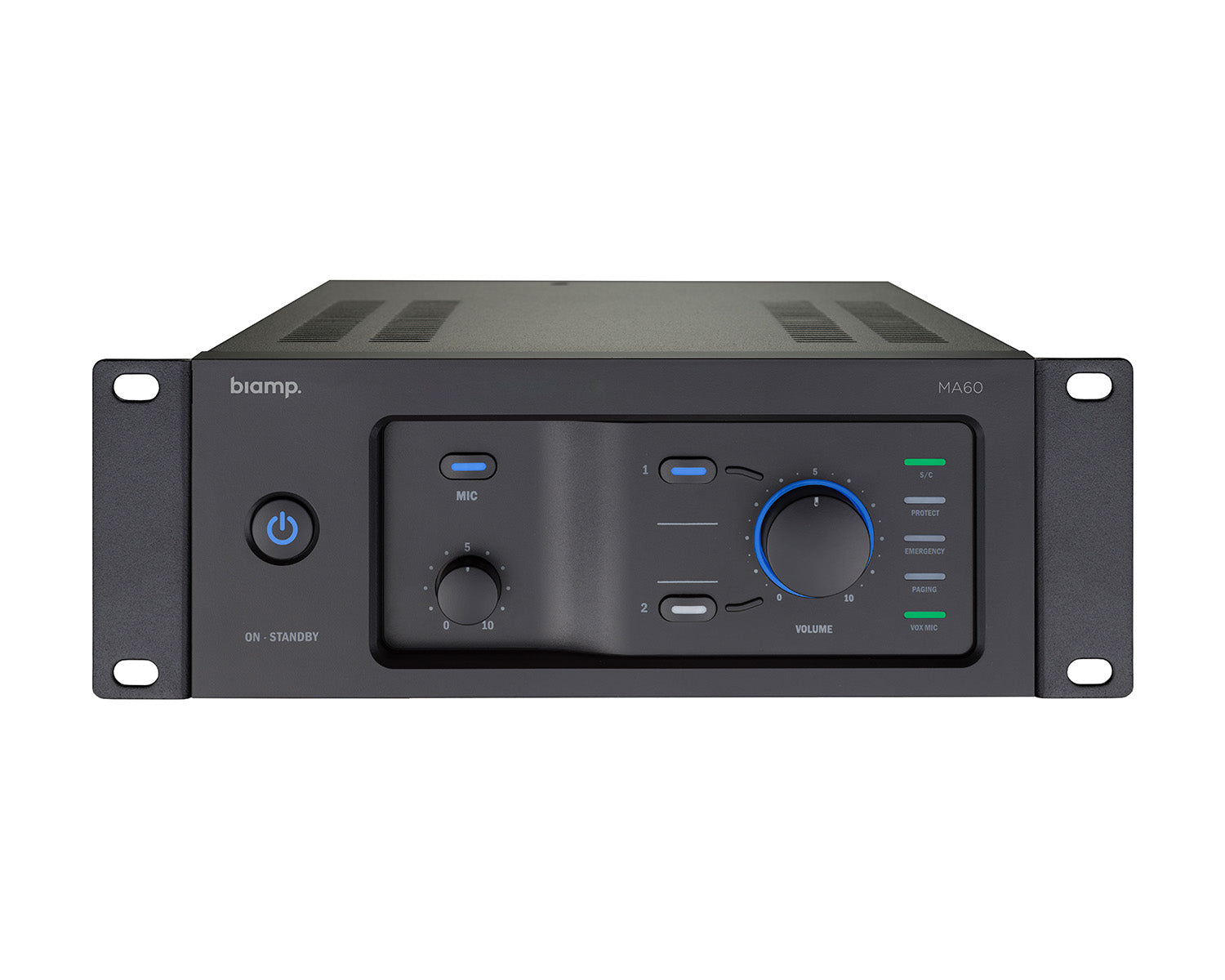

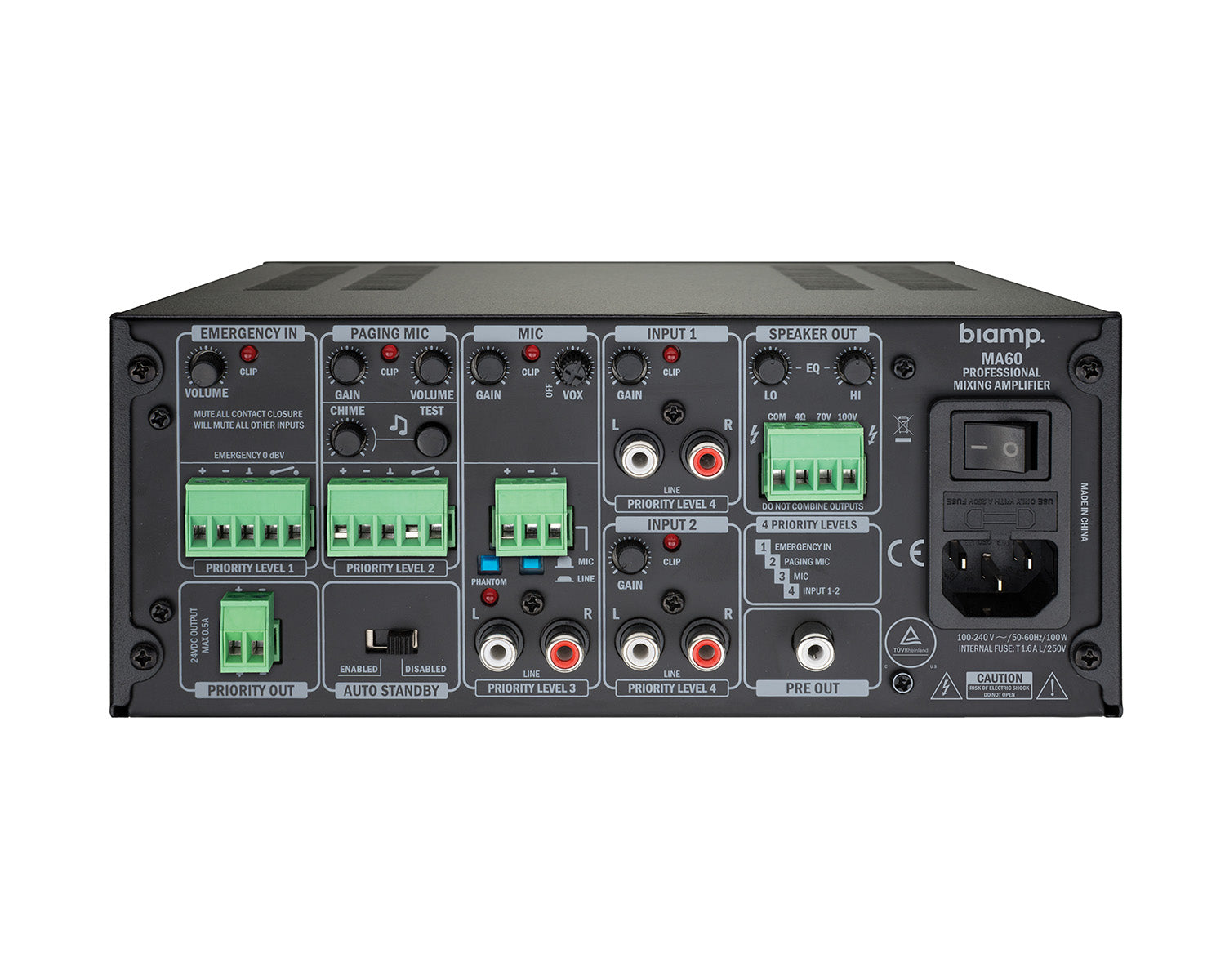

The Apart MA60 (SKU 920-00662-00003) is a compact half-rack 100V mixing amplifier delivering 60W RMS, with one mic/line input and two stereo line inputs summed to mono. It includes an emergency input, paging priority with chime, and a 24VDC override output, suited to background music and paging in small commercial zones.
Key Features
60W RMS output at 100V, 70V and 4 ohm low impedance
1 balanced mic/line input with phantom power
2 unbalanced stereo line inputs, summed to mono
4-level left-to-right priority routing system
Emergency input and 24VDC priority override output
Paging chime and VOX auto-mute
Bass and treble tone control
Class-D amplifier with convection cooling

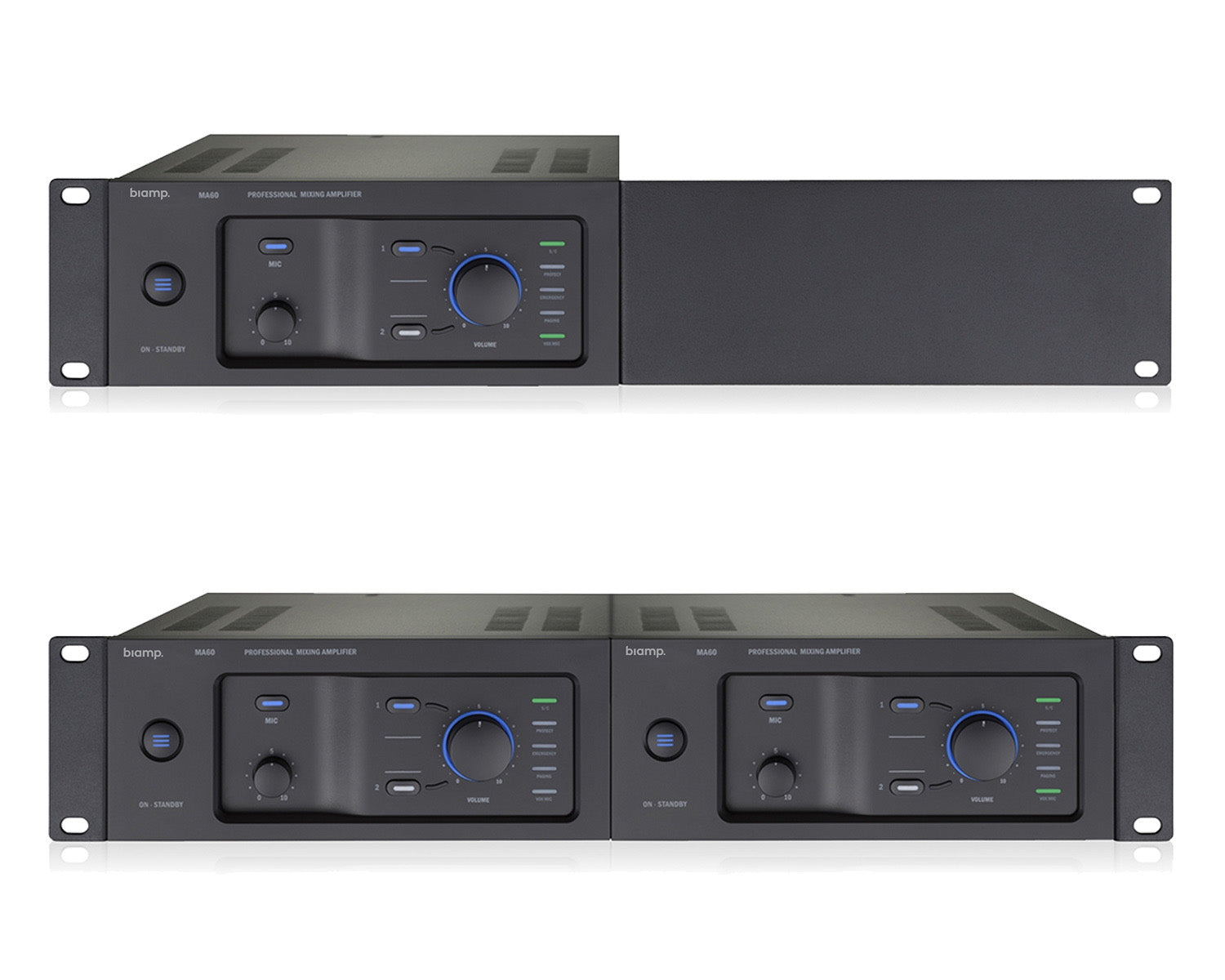

Half-rack 2U chassis
Specifications
| Output power (RMS) | 60W at 100V / 70V / 4 ohm |
| Power supply | 100-240 VAC |
| Power consumption (max) | 100W |
| Minimum impedance | 4 ohm |
| Mic inputs (balanced) | 2 |
| Inputs with phantom power | 1 |
| Line inputs (unbalanced) | 2 |
| Zone outputs | 1 |
| Priority levels | 4 |
| Amplifier topology | Class-D |
| Frequency response | 60 Hz – 20 kHz |
| Cooling | Convection |
| Rack height | 2U (half rack) |
| Depth (incl front) | 250 mm |
| Weight | 2.6 kg |
