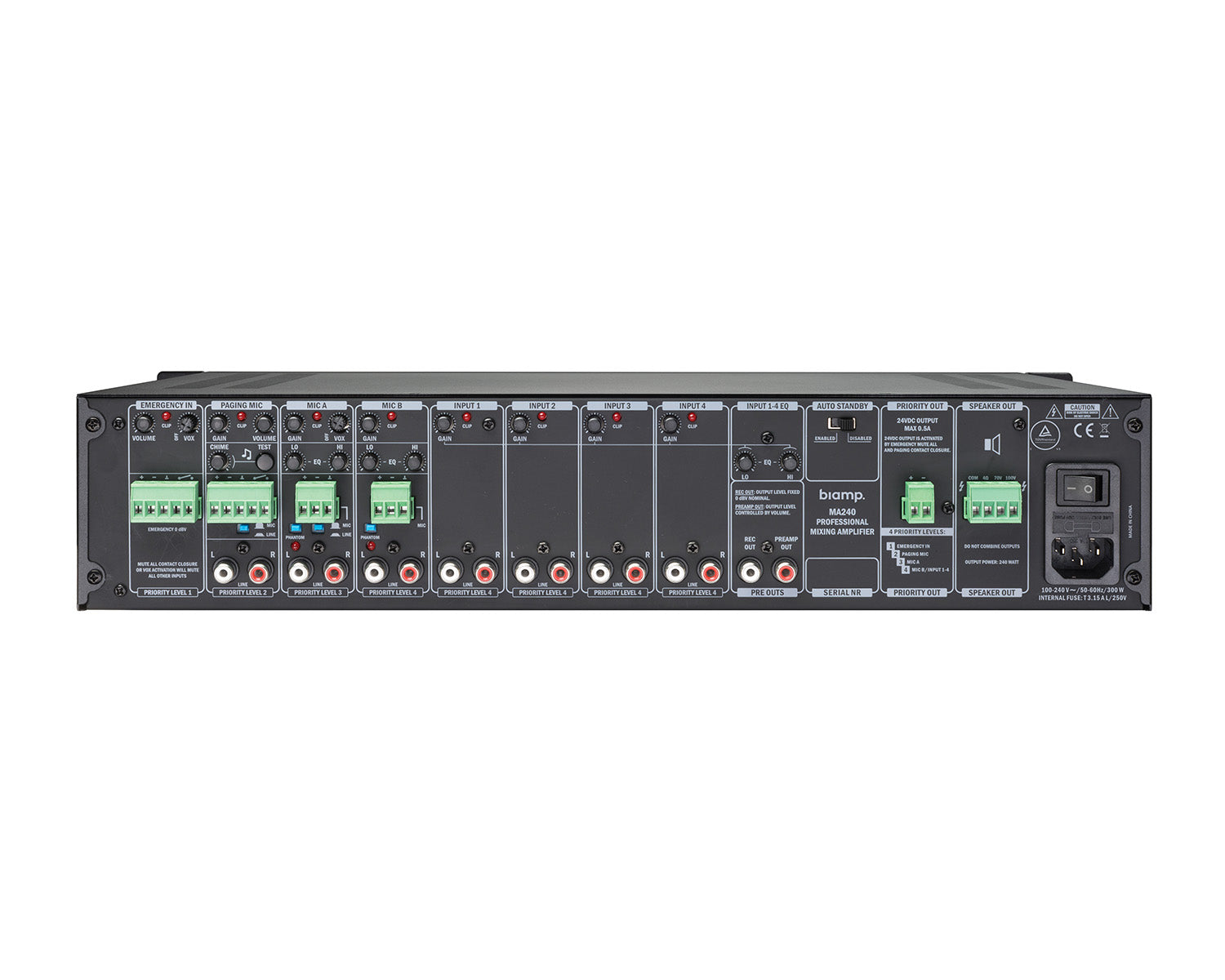

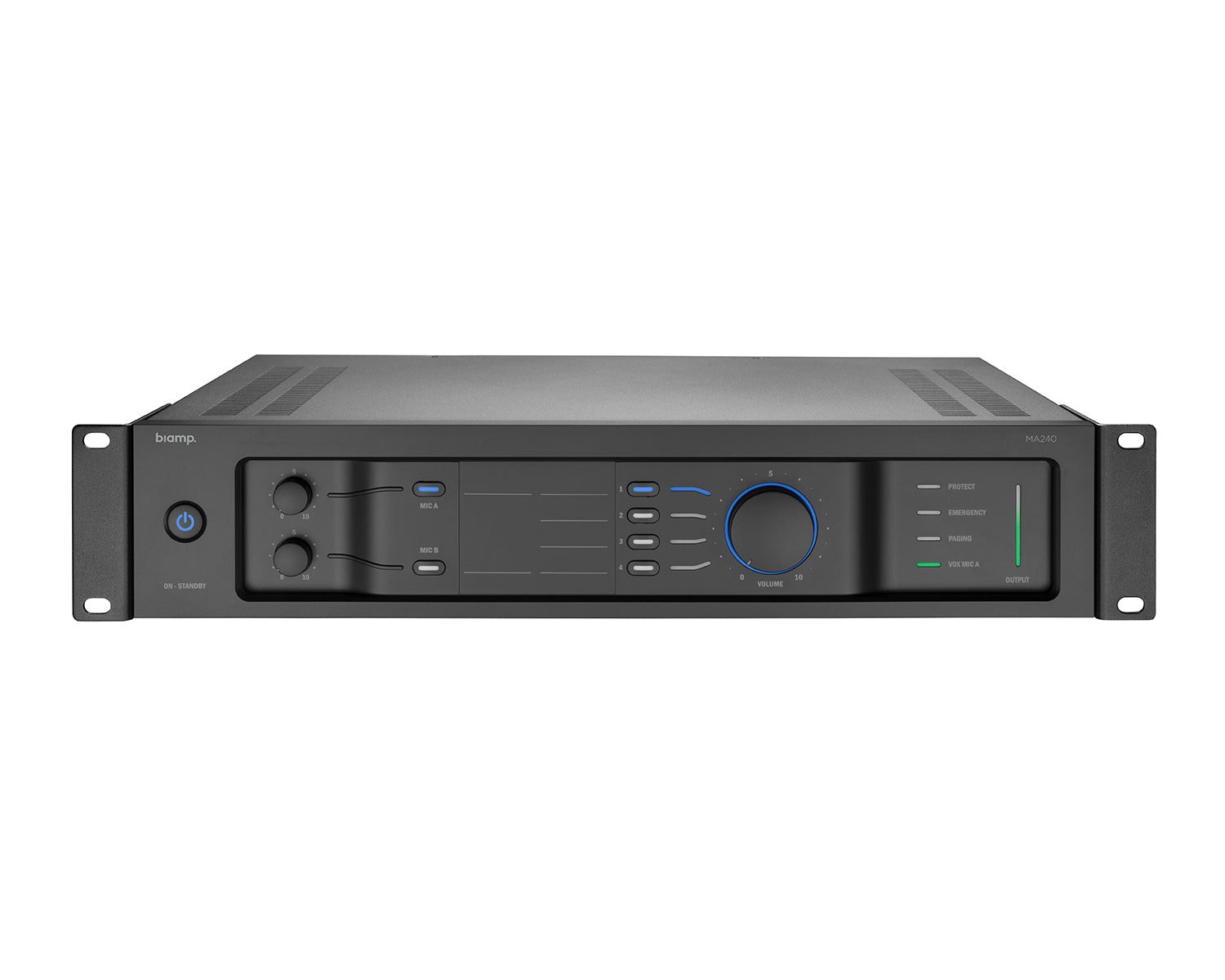

Biamp Apart MA240 100V Mixer Amp 240W 2-Mic/4-Line i/p 240W 2U

Product code: 155997

£619.00 inc VAT
£515.83 ex VAT

SKU: 920-00660-00003
8 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Output: 100V line or low impedance.

The Apart MA240 (920-00660-00003) is a 240W 100V line mixer amplifier in a 2U 19in rack chassis, with 2 mic/line inputs and 4 stereo line inputs summed to mono. It uses a Class-D output stage with convection cooling, a 4-level left-to-right priority system, VOX mute, chime, an emergency input and a 24VDC override output for paging and background music installs.

Key Features

240W output in 70V, 100V or 4 ohm low impedance modes
2 mic/line inputs with phantom power
4 stereo line inputs summed to mono
4-level left-to-right priority routing
VOX mute and built-in chime
Emergency input and 24VDC override output
Tone (EQ) adjustment on the rear panel
Class-D amplifier with convection cooling

Specifications

Biamp Apart MA240 100V Mixer Amp 240W 2-Mic/4-Line i/p 240W 2U specifications
Output power RMS (100V) 240 W
Output tappings 70V / 100V / 4 ohm
Minimum impedance 4 ohm
Mic/line inputs 2 (with phantom power)
Line inputs 4 stereo, summed to mono
Priority levels 4
Amplifier topology Class-D
Frequency response 60 Hz to 20 kHz
Power supply 100 to 240 VAC, 320 W max
Rack size 2U, 19in
Weight 6 kg

Full features

  • Revolutionary 19” mixing amplifier
  • Offers 240 watts in 70 or 100 volt mode
  • 2 mic/line inputs
  • 4 stereo line, mono summed inputs
  • Smart left-to-right 4 level priority system for audio routing
  • Comes with an emergency input, paging mic with chime and a 24VDC override output

Full specifications

General

  • 19" (483 mm wide) rack mounting: Yes
  • Power supply: 100 - 240 VAC
  • Power consumption (max): 320watts
  • Output power RMS 100 volts: 240watts
  • Output power RMS 4 ohms: 240watts
  • Dynamic output power: 280 watts
  • Minimum impedance load: 4ohms
  • Output power tappings: 70 - 100volts - 4ohms
  • Zone outputs: 1
  • MIC inputs balanced: 3
  • Inputs with Phantom power: 2
  • Line input unbalanced: 4
  • Tone control: Yes
  • Priority switch: 2
  • VOX mute: Yes
  • Chime: Yes
  • Emergency input: 1
  • Priority output: 1
  • Priority levels: 4
  • Power amp topology: Class-D
  • Frequency response (in Hz): 60 - 20 k
  • Cooling system: Convection
  • Applicable in 100V: Yes
  • Applicable low impedance: yes

Physical & Dimensions

  • Height - rack units (1U=44 mm): 2 U
  • Depth (build in): 290mm
  • Depth (incl front): 300mm
  • Weight: 6kg
Compare the Range
Apart MA240 100V Mixer Amp 240W 2-Mic/4-Line i/p 240W 2U
Biamp Apart MA240 100V Mixer Amp 240W 2-Mic/4-Line i/p 240W 2U
£619.00 inc VAT
£515.83 ex VAT
  • Minimum impedance: 4 ohm
  • Priority levels: 4
  • Frequency response: 60 Hz to 20 kHz
  • Power supply: 100 to 240 VAC, 320 W max
  • Weight: 6 kg
Viewing Now
Apart MA60 (APART) 100V Half Rack Mixer Amp 60W 1-Mic/2-Line 2U
£329.00 inc VAT
£274.17 ex VAT
  • Minimum impedance: 4 ohm
  • Priority levels: 4
  • Frequency response: 60 Hz - 20 kHz
  • Power supply: 100-240 VAC
  • Weight: 2.6 kg
View →

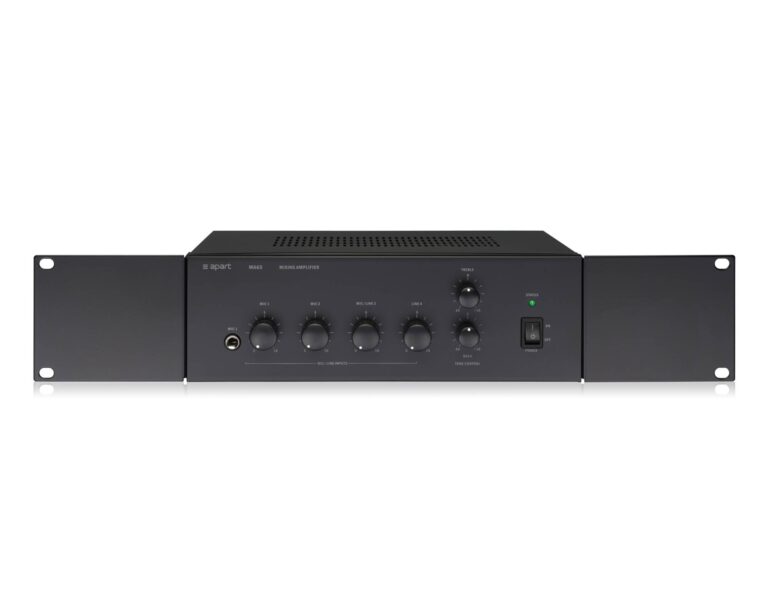

Apart MA65 100V Mixer Amp 65W 3-Mic/2-Line 230VAC 2U Exc Rack Ears
£353.00 inc VAT
£294.17 ex VAT
  • Minimum impedance: 8 ohm
  • Priority levels: 2
  • Frequency response: 60 Hz - 18 kHz
  • Power supply: 115-230 VAC
  • Weight: 6.4 kg
View →

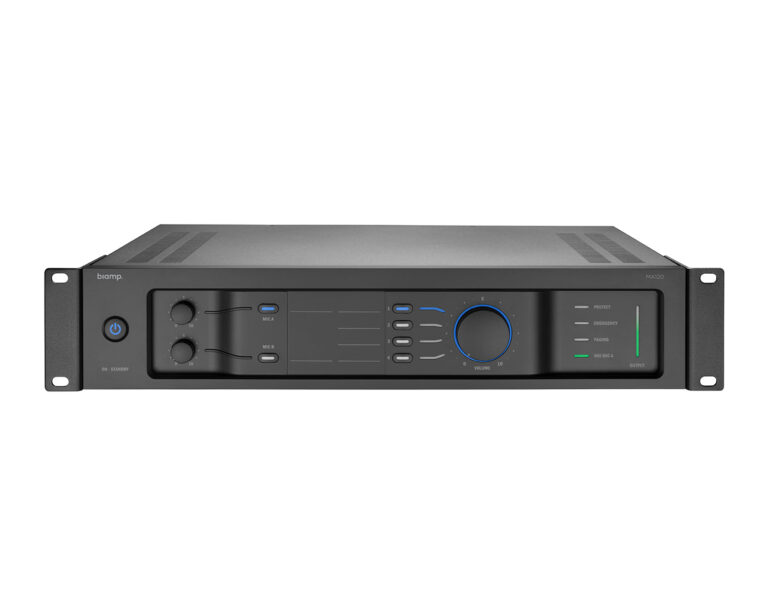

Apart MA120 100V Mixer Amp 120W 2-Mic/4-Line i/p 120W 2U
£418.00 inc VAT
£348.33 ex VAT
  • Minimum impedance: 4 ohm
  • Priority levels: 4
  • Frequency response: 60 Hz to 20 kHz
  • Power supply: 100 to 240 VAC, 160 W max
  • Weight: 5 kg
View →

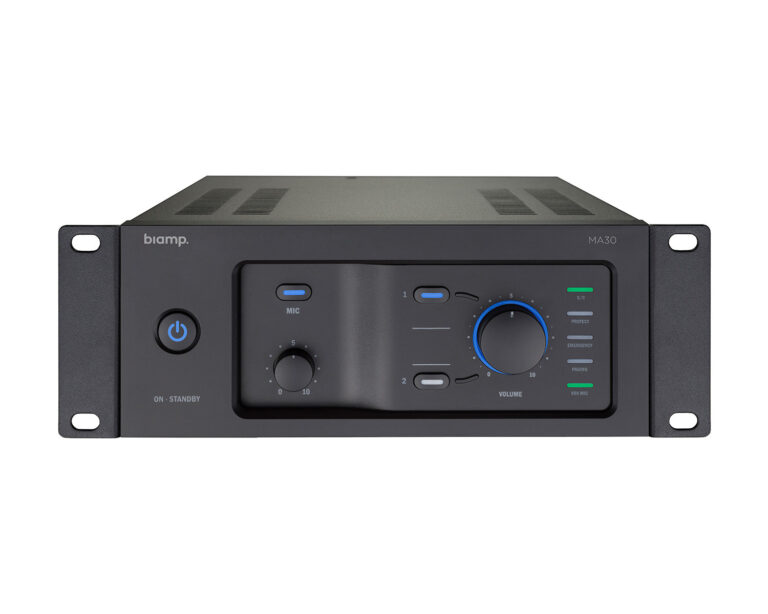

Apart MA30 100V Mixer Amp 30W 1-Mic/2-Line 240VAC 2U
