Biamp

Biamp Apart MA30 100V Mixer Amp 30W 1-Mic/2-Line 240VAC 2U

SKU: 920-00661-00003
Apart MA30 100V Mixer Amp 30W 1-Mic/2-Line 240VAC 2U
Apart MA30 100V Mixer Amp 30W 1-Mic/2-Line 240VAC 2U
Apart MA30 100V Mixer Amp 30W 1-Mic/2-Line 240VAC 2U
Click to enlarge

    £206.00 inc VAT
    £171.67 ex VAT

    11 available online
    More available from supplier in 1–3 weeks
    Delivered by MondayOrder by 3pm
    Click & Collect tomorrow ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp
    Optional Add-Ons

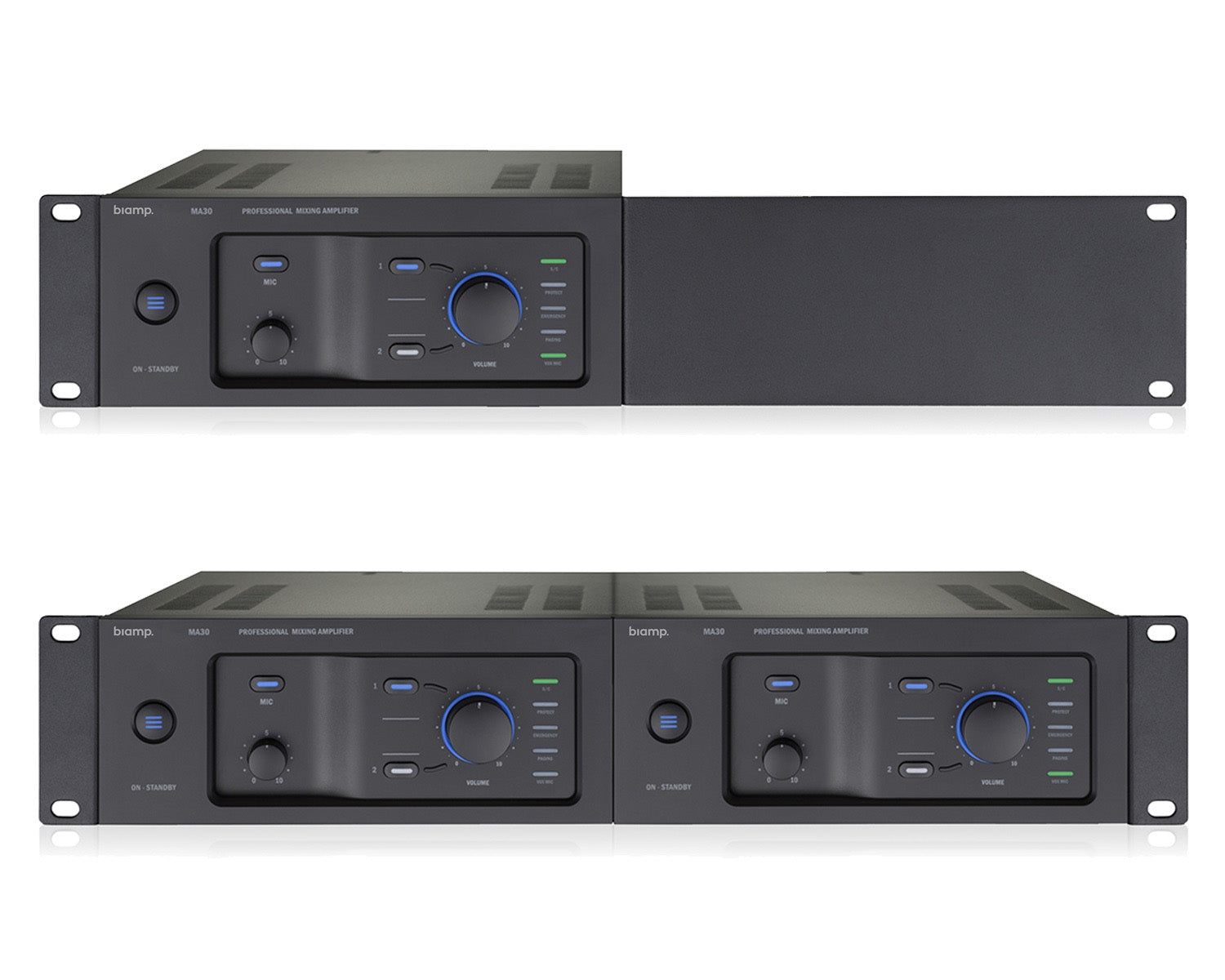

    Apart MA3060 Rack Mount Kit for MA30 and MA60 Mixer Amps Biamp Apart MA3060 Rack Mount Kit for MA30 and MA60 Mixer Amps
    £33.00 inc VAT
    £27.50 ex VAT
    Add to basket

    About this Product

    The Apart MA30 (920-00661-00003) is a 30W 100V line mixer amplifier in a compact 9.5in 2U housing, with 1 mic/line input and 2 stereo line inputs summed to mono. It uses a Class-D output stage with convection cooling and includes a 4-level priority system, VOX mute, chime, an emergency input and a 24VDC override output for small background music and paging installs.

    Key Features
    30W output in 70V, 100V or 4 ohm low impedance modes
    1 mic/line input with phantom power
    2 stereo line inputs summed to mono
    Compact 9.5in housing
    4-level left-to-right priority routing
    VOX mute and built-in chime
    Emergency input and 24VDC override output
    Class-D amplifier with convection cooling
    Specifications
    Output power RMS (100V) 30 W
    Output tappings 70V / 100V / 4 ohm
    Minimum impedance 4 ohm
    Mic/line inputs 1 (with phantom power)
    Line inputs 2 stereo, summed to mono
    Priority levels 4
    Amplifier topology Class-D
    Frequency response 60 Hz to 20 kHz
    Power supply 100 to 240 VAC, 60 W max
    Rack size 2U
    Weight 2.4 kg
    Compare the Range
    Apart MA30 100V Mixer Amp 30W 1-Mic/2-Line 240VAC 2U
    Biamp Apart MA30 100V Mixer Amp 30W 1-Mic/2-Line 240VAC 2U
    £206.00 inc VAT
    £171.67 ex VAT
    • Minimum impedance: 4 ohm
    • Priority levels: 4
    • Frequency response: 60 Hz to 20 kHz
    • Power supply: 100 to 240 VAC, 60 W max
    • Weight: 2.4 kg
    Viewing Now
    Apart MA60 (APART) 100V Half Rack Mixer Amp 60W 1-Mic/2-Line 2U
    Biamp Apart MA60 (APART) 100V Half Rack Mixer Amp 60W 1-Mic/2-Line 2U
    £329.00 inc VAT
    £274.17 ex VAT
    • Minimum impedance: 4 ohm
    • Priority levels: 4
    • Frequency response: 60 Hz - 20 kHz
    • Power supply: 100-240 VAC
    • Weight: 2.6 kg
    View →
    Apart MA65 100V Mixer Amp 65W 3-Mic/2-Line 230VAC 2U Exc Rack Ears
    Biamp Apart MA65 100V Mixer Amp 65W 3-Mic/2-Line 230VAC 2U Exc Rack Ears
    £353.00 inc VAT
    £294.17 ex VAT
    • Minimum impedance: 8 ohm
    • Priority levels: 2
    • Frequency response: 60 Hz - 18 kHz
    • Power supply: 115-230 VAC
    • Weight: 6.4 kg
    View →
    Apart MA120 100V Mixer Amp 120W 2-Mic/4-Line i/p 120W 2U
    Biamp Apart MA120 100V Mixer Amp 120W 2-Mic/4-Line i/p 120W 2U
    £418.00 inc VAT
    £348.33 ex VAT
    • Minimum impedance: 4 ohm
    • Priority levels: 4
    • Frequency response: 60 Hz to 20 kHz
    • Power supply: 100 to 240 VAC, 160 W max
    • Weight: 5 kg
    View →
    Apart MA240 100V Mixer Amp 240W 2-Mic/4-Line i/p 240W 2U
    Biamp Apart MA240 100V Mixer Amp 240W 2-Mic/4-Line i/p 240W 2U
    £619.00 inc VAT
    £515.83 ex VAT
    • Minimum impedance: 4 ohm
    • Priority levels: 4
    • Frequency response: 60 Hz to 20 kHz
    • Power supply: 100 to 240 VAC, 320 W max
    • Weight: 6 kg
    View →

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

    • Intuitive user interface
    • Prominent, illuminated front volume control
    • Compact 9.5” housing
    • Smart left-to-right 4 level priority and rear panel design
    • 1 mic/line input and 2 stereo line, mono summed inputs

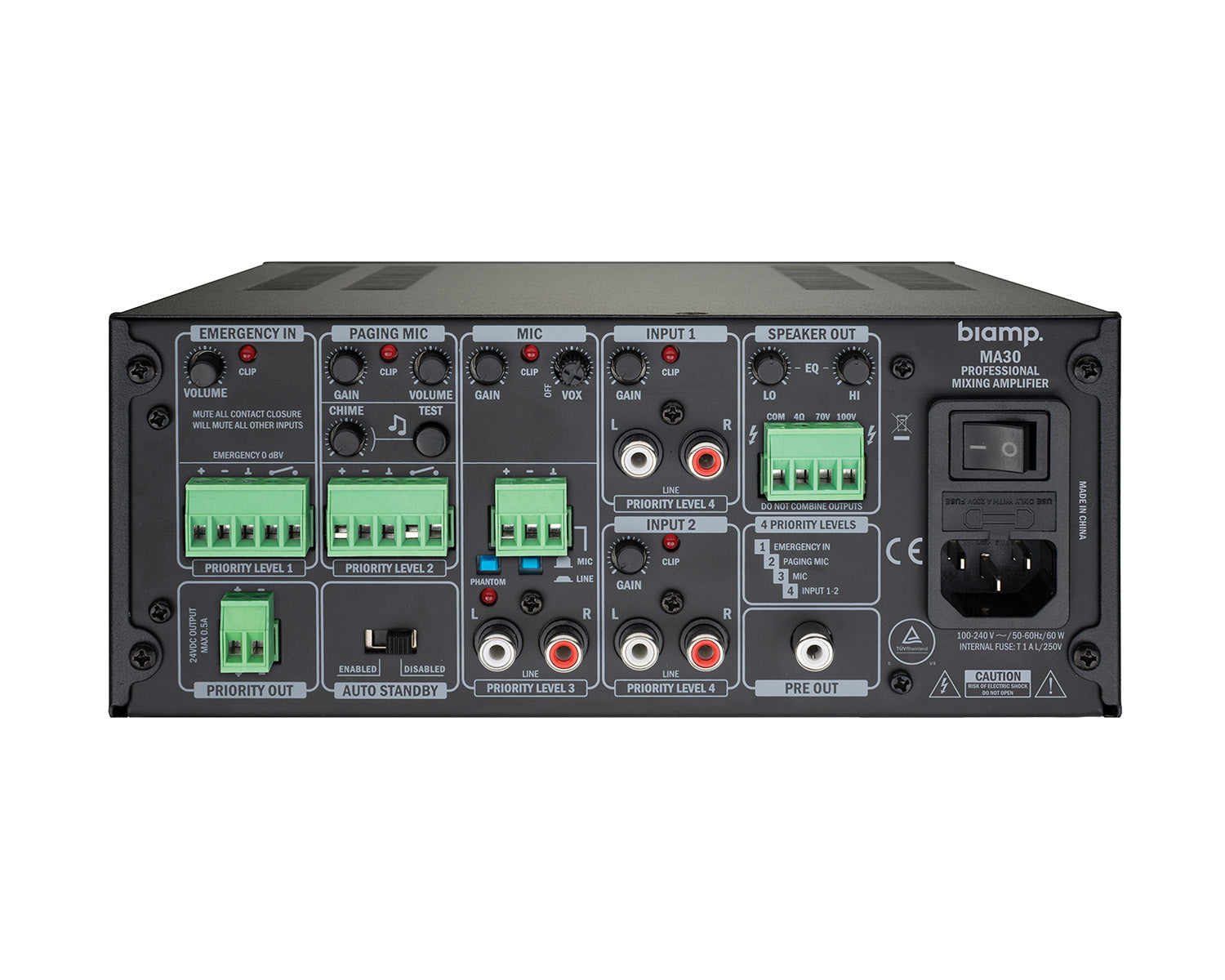

    • Emergency input, paging mic with chime and a 24VDC override output on rear panel

    Manuals & Downloads

    PDFDatasheetPDF
    PDFUser GuidePDF
