Biamp Apart ZONE4 4-Zone Stereo Mixer 1-Mic/Line 4-Line i/p 1U

Product code: 155829

£626.00 inc VAT
£521.67 ex VAT

SKU: 920-01513-00003
31 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included
Optional Add-Ons

About this Product

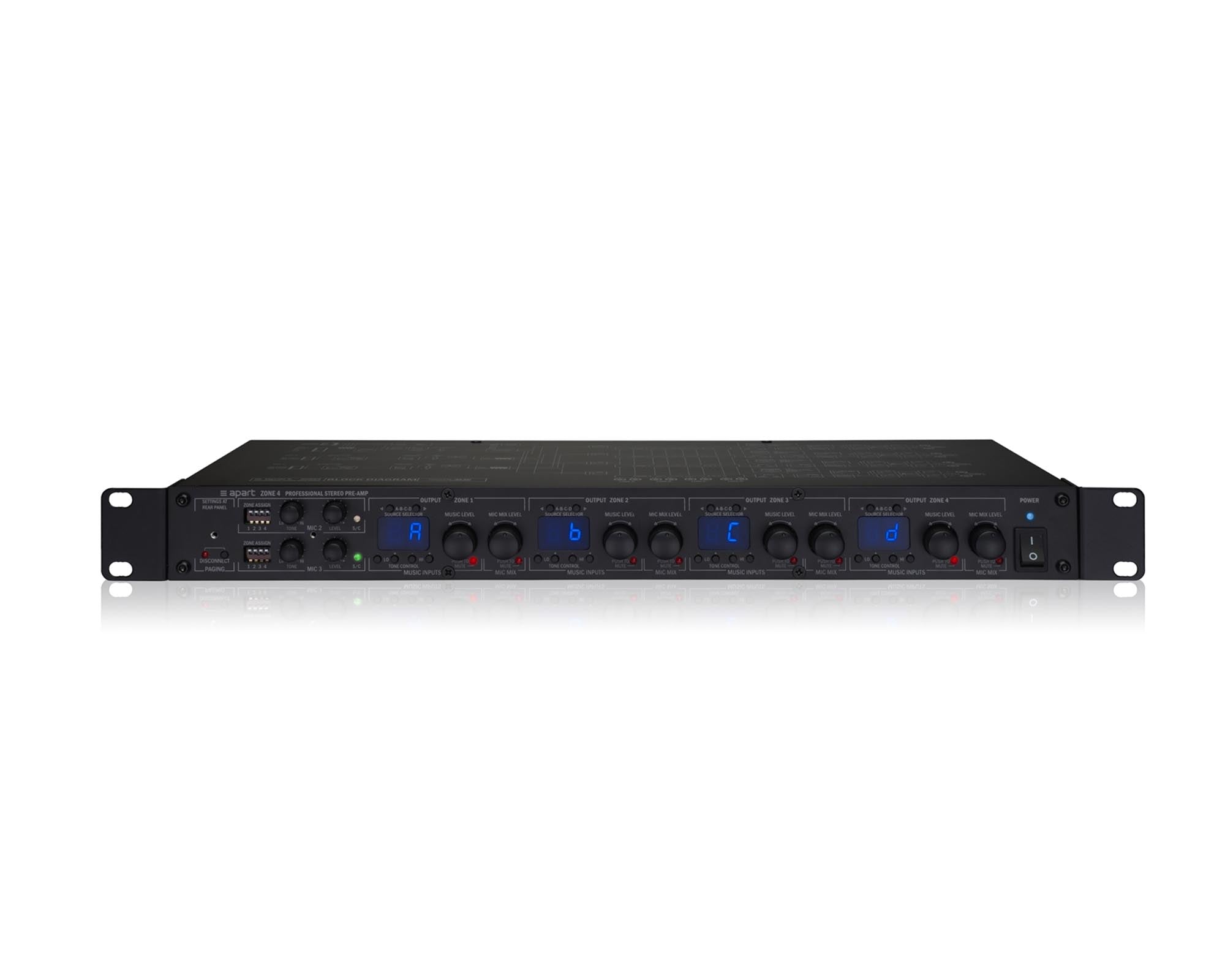

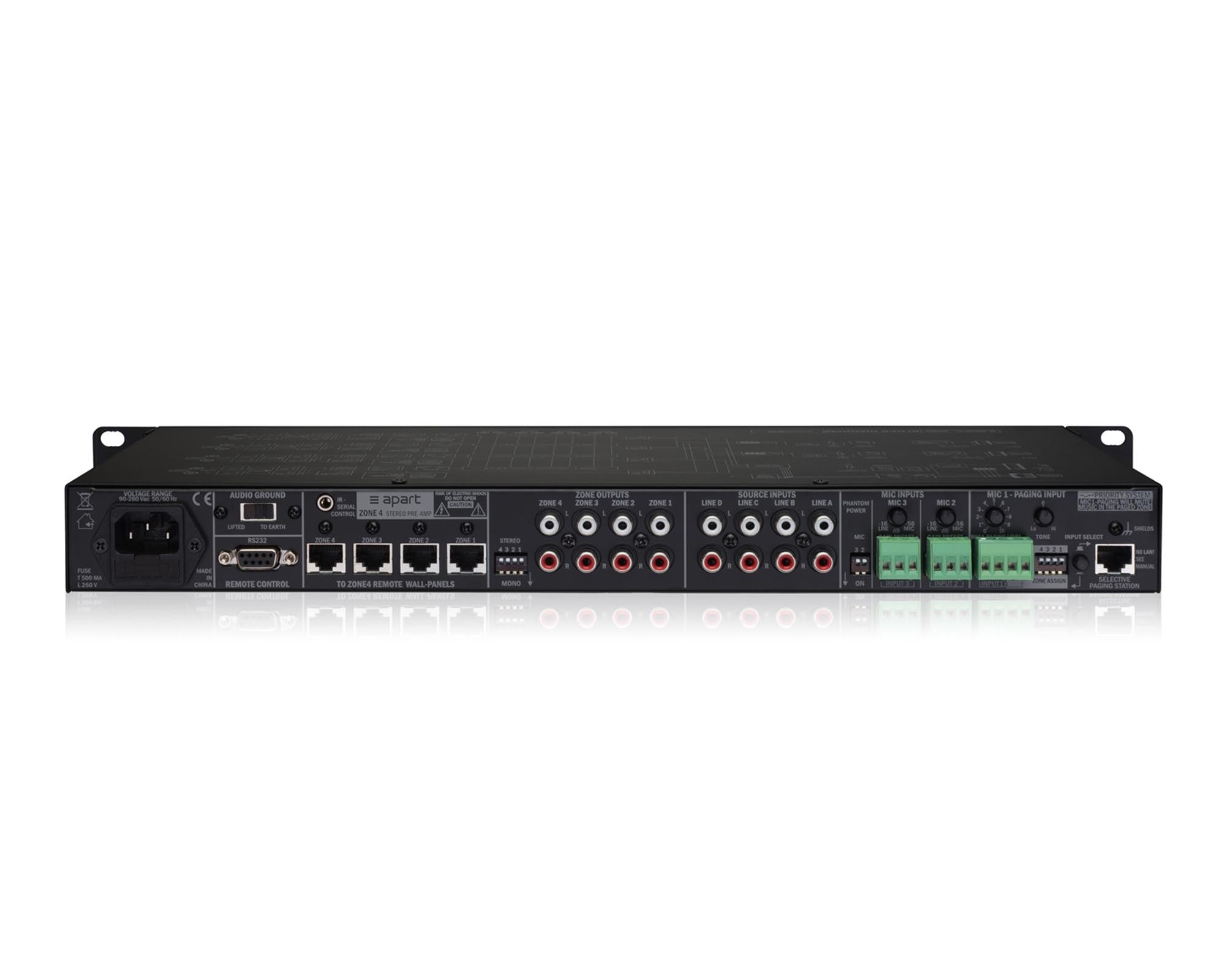

The Apart ZONE4 (920-01513-00003) is a 1U rack-mount 4-zone stereo pre-amplifier with three balanced mic inputs and four stereo line inputs. Any of the four sources can be routed to any of the four zones, each with independent music/mic level mixing and bass/treble control. With balanced mic inputs, phantom power and RS232 control, it suits multi-room background music and paging in retail, hospitality and leisure installations.

Key Features

Controls four stereo zones from one 1U unit
Any of four sources routable to any zone
Mic-mix level and bass/treble control per zone
Up to 3 microphones assignable per zone via dipswitches
3 balanced mic inputs, phantom power on MIC 1 and 2
4 stereo unbalanced line inputs
RS232 serial port and wall panel control support
Emergency input and priority input contact (2 priority levels)
Compatible with 100V and low impedance systems
Remote control via standard CAT5 cable

Specifications

Biamp Apart ZONE4 4-Zone Stereo Mixer 1-Mic/Line 4-Line i/p 1U specifications
Zone outputs 4 stereo
Line inputs 4 stereo unbalanced
Mic inputs 3 balanced (phantom on 2)
Phantom power voltage 18V
Frequency response 20Hz – 30kHz
Signal to noise ratio >90 dB
THD <0.02%
Crosstalk >75 dB
Power supply 115-230VAC, max 25W
Dimensions 1U, depth 205mm (incl front)
Weight 2.75 kg

Full features

  • Pre-amplifier allows control of four stereo zones with one unit
  • Play any one of four sources in any of the four available zones
  • MIC-MIX level control and bass-treble control per zone
  • Assign up to 3 microphones to each zone via dipswitches
  • Phantom power supply on MIC 1 & 2
  • The remote is wired with a normal CAT5 cable

Full specifications

General

  • 19" (483 mm wide) rack mounting: yes
  • Power supply: 115 - 230 VAC
  • Power consumption (max): 25 watts
  • Zone outputs: 4 stereo
  • Output level balanced (dB): 0
  • Output level unbalanced (dB): 0
  • S/PDIF output: no
  • Signal to noise level SNR (dB): >90
  • Total harmonic distortion TBH (%): <0.02
  • Crosstalk (dB): >75
  • Music level control: yes
  • MIC level control: yes
  • VCA level control: no
  • Source selection per zone: yes
  • MIC inputs balanced: 3
  • MIC inputs unbalanced: 0
  • Inputs with Phantom power: 2
  • Phantom power voltage: 18 volts
  • Noise gate on MIC: no
  • Selectable input dynamics: no
  • Selectable output dynamics: no
  • Line input balanced: 0
  • Line input unbalanced: 4 stereo
  • S/PDIF input: no
  • Tone control: yes
  • RS232 (serial communication port): yes
  • Wall panel controls: yes
  • Priority input contact: yes
  • Maximum qty paging Mics: 4
  • Chime: no
  • Emergency input: yes
  • Priority output contact: no
  • Priority levels: 2
  • Frequency response (in Hz): 20 - 30 k
  • Applicable in 100V: yes
  • Applicable low impedance: yes

Physical & Dimensions

  • Weight: 2.75kg
  • Height- rack units: 1U
  • Depth (build in): 196mm
  • Depth (incl front): 205mm
