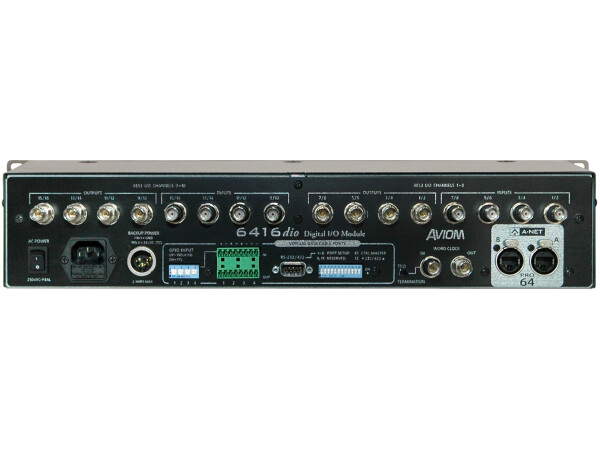

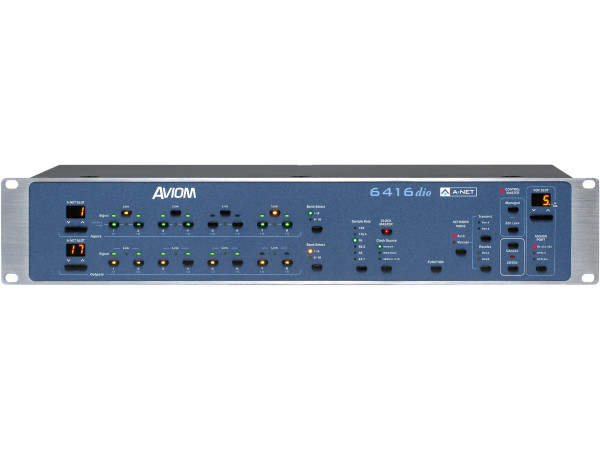

The Aviom 6416dio-BNC is a 2U Pro64 digital I/O module that puts 16 channels of AES3 audio onto a Pro64 A-Net network and takes 16 channels back off it. This version uses BNC connectors (AES3id) for the digital audio, and the unit can clock from AES3, word clock or the network without sample rate conversion. It is used to connect digital consoles and recording systems to Pro64 snakes and audio networks in broadcast, recording, theatre and houses of worship.
16 x 16
AES3 in / out
BNC
AES3id connectors
192 kHz
Max sample rate range
2U
Rack height
Pro64 systemThis is a Pro64 A-Net device. It works with other Pro64 products (6416 modules, AllFrame, MH10/MH10f, RCI/MCS). Pro16 personal mixers and Pro16 output modules connect to a Pro64 network through an ASI A-Net Systems Interface.
Connector versionThis is the BNC (AES3id) version. The 6416dio-DB25 carries the same I/O on DB25 multipins.
Features
16 AES3 digital inputs and 16 AES3 digital outputs on a Pro64 network
Supports all Pro64 sample rate ranges (1x, 2x and 4x) with no sample rate conversion
Clocks from its internal clock, the network clock, an AES3 input or external word clock
Word clock in and out on BNC; can act as Pro64 network clock master
Input and output sections set independently to a 16-channel slot range, or routed with the Pro64 Network Manager matrix
Virtual Data Cable ports for RS-232/RS-422 and GPIO control data over the network
Backup DC power inlet on 4-pin XLR
Two EtherCon A-Net ports, 2U rack chassis
Specifications
| Audio connectors | 16x BNC, AES3id |
| Digital audio I/O | 16 inputs, 16 outputs, AES3 |
| Clock sources | Internal, network, AES3 input or word clock |
| Word clock I/O | 2x BNC; input sensitivity 0.2 to 5 Vp-p; 75 ohm / 70 kohm |
| Sample rates | 1x: 39.7 to 52 kHz; 2x: 79.4 to 104 kHz; 4x: 158.8 to 208 kHz; 24-bit |
| Latency | <460 µs, digital input to digital output |
| A-Net | 2x EtherCon RJ45, Pro64 |
| A-Net cable length | 120 m (400 ft) between devices |
| Virtual Data Cables | RS-232/RS-422 (DB9); GPIO 4 in, 4 out (terminal block) |
| Power | 100 to 240 V AC, 50/60 Hz, 24 W, internal supply, IEC inlet |
| Backup DC power | 24 V DC, 0.8 A typical, 1.3 A max, 4-pin XLR |
| Maximum ambient temperature | 50°C |
| Dimensions (W x D x H) | 482.6 x 203 x 88 mm, 2U |
| Weight | 4.1 kg |
