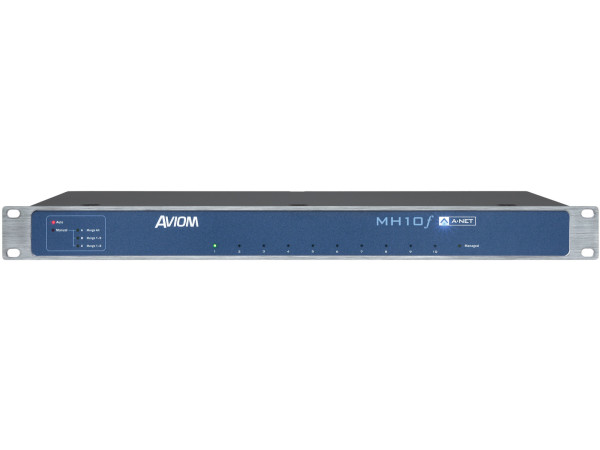

The Aviom MH10f is a 1U, 10-port merger hub for Pro64 A-Net networks, with eight EtherCon ports and two SFP slots for fibre. It merges the inputs from all ports and sends every active channel back out of each one, and the fibre ports allow links well beyond the 120 m Cat-5e limit. It is used for long Pro64 snake runs and distributed audio networks in arenas, theatres, campuses and touring.
8 + 2
EtherCon + SFP ports
64
Channels merged
100 Mbps
SFP slots
1U
Rack height
SFP not includedNo SFP transceivers are supplied. Use 100 Mbps Fast Ethernet SFPs with duplex LC connectors, single-mode or multi-mode to match the fibre.
Pro64 systemThis is a Pro64 A-Net device. It works with other Pro64 products (6416 modules, AllFrame, MH10/MH10f, RCI/MCS). Pro16 personal mixers and Pro16 output modules connect to a Pro64 network through an ASI A-Net Systems Interface.
Features

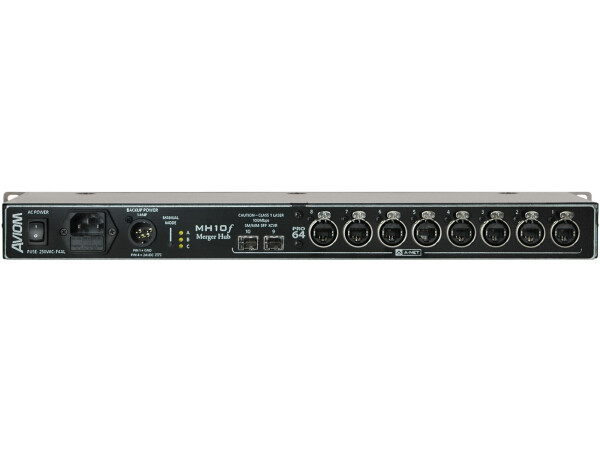

8 bidirectional Pro64 A-Net ports on EtherCon plus 2 SFP fibre slots
Accepts single-mode or multi-mode SFP transceivers
Merges inputs from all ports so every active channel (up to 64) is available on every port
Bidirectional parallel connections, unlike a daisy chain
Multiple hubs can be used in one system
Can be combined with MH10 hubs in the same network
Backup DC power inlet on 4-pin XLR
Specifications
| A-Net ports | 8x EtherCon RJ45; 2x SFP slots (100 Mbps Fast Ethernet) |
| SFP requirements | 100 Mbps, Class 1 laser, duplex LC, single or multi-mode |
| Cable length | 120 m (400 ft) on Cat-5e; fibre distance depends on the transceivers |
| Indicators | A-Net active, x10 |
| Power | 100 to 240 V AC, 50/60 Hz, 24 W, IEC inlet |
| Backup DC power | 24 V DC, 2 A max, 4-pin XLR |
| Dimensions (W x D x H) | 482.6 x 203 x 44 mm, 1U |
| Weight | 3.63 kg |
