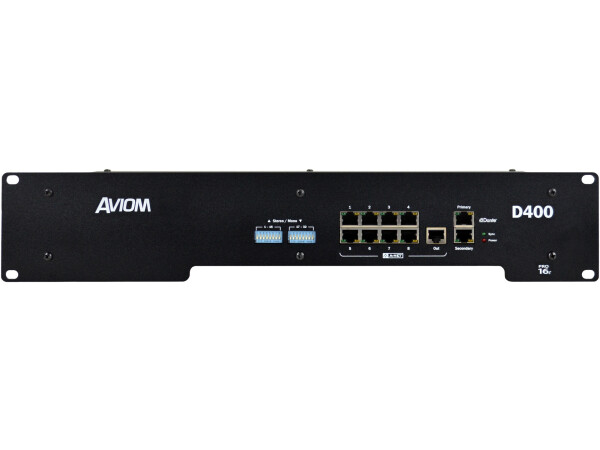

The Aviom D400-Dante is a 2U A-Net Distributor that takes up to 32 channels from a Dante network and sends audio and DC power to up to eight Aviom personal mixers over Cat-5e. Channels are picked in Dante Controller, and stereo links are set with front-panel DIP switches. It is used to add Aviom personal monitor mixing to Dante-equipped consoles and networks in houses of worship, live venues and theatre.
32
Dante channels
8
Powered mixer outputs
48 kHz
Dante rate
2U
Rack height
Dante input onlyThis is the Dante version: it has Dante primary and secondary ports instead of an A-Net input, and only runs at 44.1/48 kHz. The standard D400 has an A-Net input for AN-16 input modules and A-Net console cards.
CompatibilityWorks with A640, A360, A320 and A-16II personal mixers in any combination. Network Mix Back and higher sample rates are D800 features, not available on the D400.
Features
Up to 32 channels from a 44.1/48 kHz Dante network, routed in Dante Controller
Eight powered A-Net outputs for Aviom personal mixers
Unpowered A-Net output for linking further A-Net Distributors
Stereo links set with front-panel DIP switches
Dante primary and secondary ports; static IP and AES67 support
Internal mains power supply
Specifications
| Dante interface | 32 channels, 44.1/48 kHz only |
| Dante ports | Primary and secondary, RJ45 |
| Outputs to personal mixers | 8x RJ45, powered |
| A-Net out | 1x RJ45, Pro16e, unpowered |
| Power to mixers | 24 V DC, 0.5 A over Cat-5e |
| Stereo link | Two 8-position DIP switch blocks (1-16, 17-32) |
| AES67 / static IP | Supported |

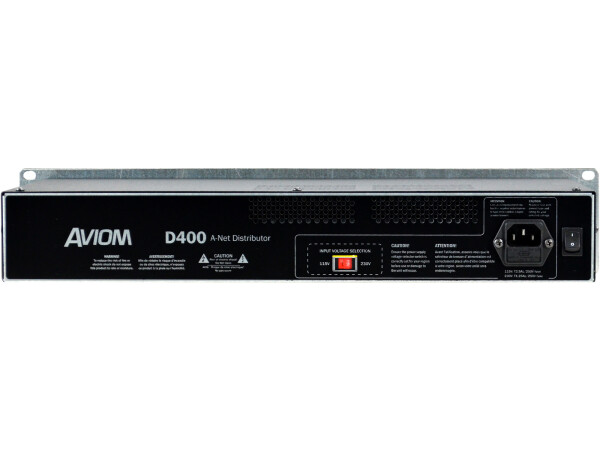

| Power | 100 to 120 V or 200 to 240 V AC (selector), 50/60 Hz, 220 W max, IEC inlet |
| Dimensions | 482.6 mm wide x 182 mm deep x 88.9 mm high, 2U |
| Weight | 5.44 kg |
