The Aviom D800 is a 2U A-Net Distributor that sends audio and DC power to up to eight Aviom personal mixers over Cat-5e. With an SB4 System Bridge and Pro16 A-Net console cards it can carry up to 64 channels to the mixers, and its Network Mix Back output returns stereo mixes from A360 mixers for wireless in-ear transmitters. It is used in personal monitor systems for houses of worship, touring, theatre and studios.
8
Powered mixer outputs
64
Channels via SB4
16
Mix Back channels
2U
Rack height
A-Net input versionThis is the D800 with an A-Net input (Pro16 or Pro16e), for AN-16 input modules and A-Net console cards. The D800-Dante, with a Dante input, is a separate model.
CompatibilityWorks with A640, A360, A320 and A-16II personal mixers in any combination. Aviom notes the A640 needs current D800 firmware for full functionality.
Features

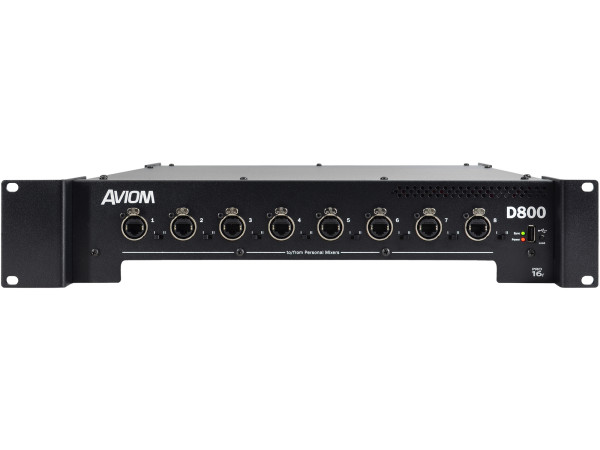

Eight powered locking RJ45 outputs for Aviom personal mixers
Front switch per output for A-16II/A320 or bidirectional A360 operation
Up to 64 channels when used with an SB4 System Bridge and Pro16 A-Net console cards
Network Mix Back: A-Net Mixes Out carries up to 8 stereo mixes from A360 mixers to an AN-16/o v.4
Ethernet port for the A360 Display iOS app
Unpowered A-Net out for linking further A-Net Distributors
USB port for firmware updates
Specifications

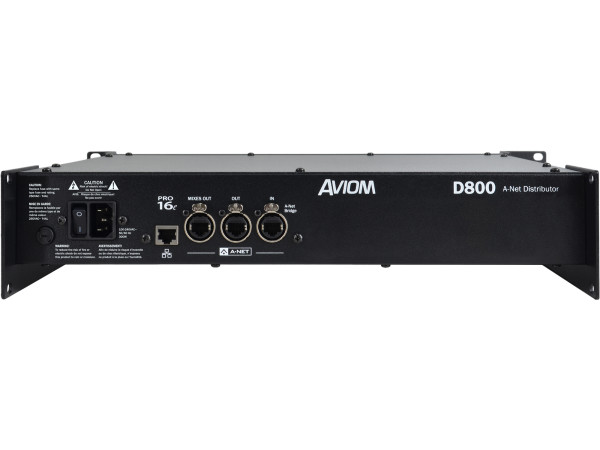

| Outputs to personal mixers | 8x locking RJ45, powered |
| A-Net in / bridge in | 1x locking RJ45, Pro16 or Pro16e |
| A-Net out | 1x locking RJ45, Pro16e, unpowered |
| A-Net Mixes Out | 1x locking RJ45, up to 16 channels (8 stereo pairs) of Network Mix Back |
| Ethernet | 1x RJ45, for A360 Display |
| USB | Firmware updates |
| Power to mixers | 24 V DC, 0.5 A over Cat-5e |
| Power | 100 to 240 V AC, 50/60 Hz, 300 W, IEC inlet |
| Dimensions | 482.6 mm wide x 362 mm deep x 88.9 mm high, 2U |
| Weight | 5.44 kg |
