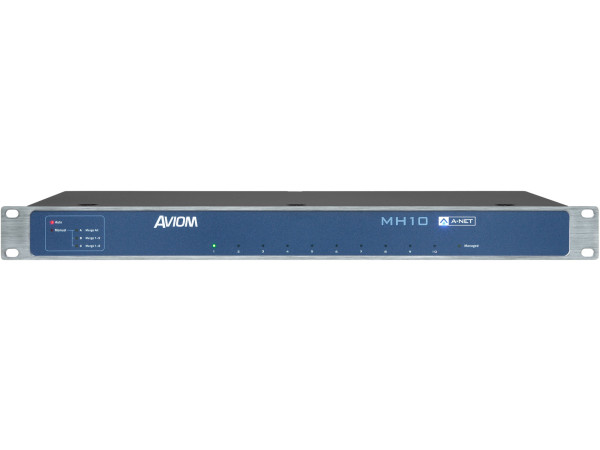

The Aviom MH10 is a 1U, 10-port merger hub for Pro64 A-Net networks. It merges the inputs arriving on all ten ports and sends every active channel back out of every port, so Pro64 devices can be connected in parallel rather than in a chain. It is used at stage and FOH racks in Pro64 digital snakes and in central equipment rooms for audio networks in theatres, houses of worship and installations.
10
Pro64 ports
64
Channels merged
120 m
Per Cat-5e run
1U
Rack height
Pro64 systemThis is a Pro64 A-Net device. It works with other Pro64 products (6416 modules, AllFrame, MH10/MH10f, RCI/MCS). Pro16 personal mixers and Pro16 output modules connect to a Pro64 network through an ASI A-Net Systems Interface.
Features

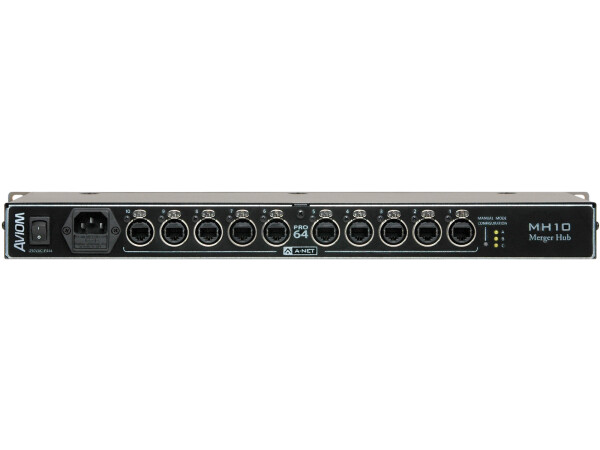

10 bidirectional Pro64 A-Net ports on Neutrik EtherCon
Merges inputs from all ports so every active channel (up to 64) is available on every port
Bidirectional parallel connections, unlike a daisy chain
Multiple hubs can be used in one system
A-Net activity LED per port
Internal universal power supply, IEC inlet
Specifications
| A-Net ports | 10x EtherCon RJ45, rear panel |
| Indicators | A-Net active, x10 |
| Cable length | 120 m (400 ft) between devices |
| Power | 100 to 240 V AC, 50/60 Hz, 24 W, IEC inlet |
| Dimensions (W x D x H) | 482.6 x 203 x 44 mm, 1U |
| Weight | 2.49 kg |
