Biamp EX-S10 10" IP54 2-Way Coaxial Speaker with ClickMount Pan-Tilt Bracket White

SKU: 920-01817-20000
Biamp EX-S10 10″ IP54 2-Way Coaxial Speaker with Tilt Bracket White
Click to enlarge

    £812.00 inc VAT
    £676.67 ex VAT

    2 available online
    More available from supplier in 1–3 weeks
    FREE delivery by MondayOrder by 3pm
    Click & Collect tomorrow ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    Other colours available
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

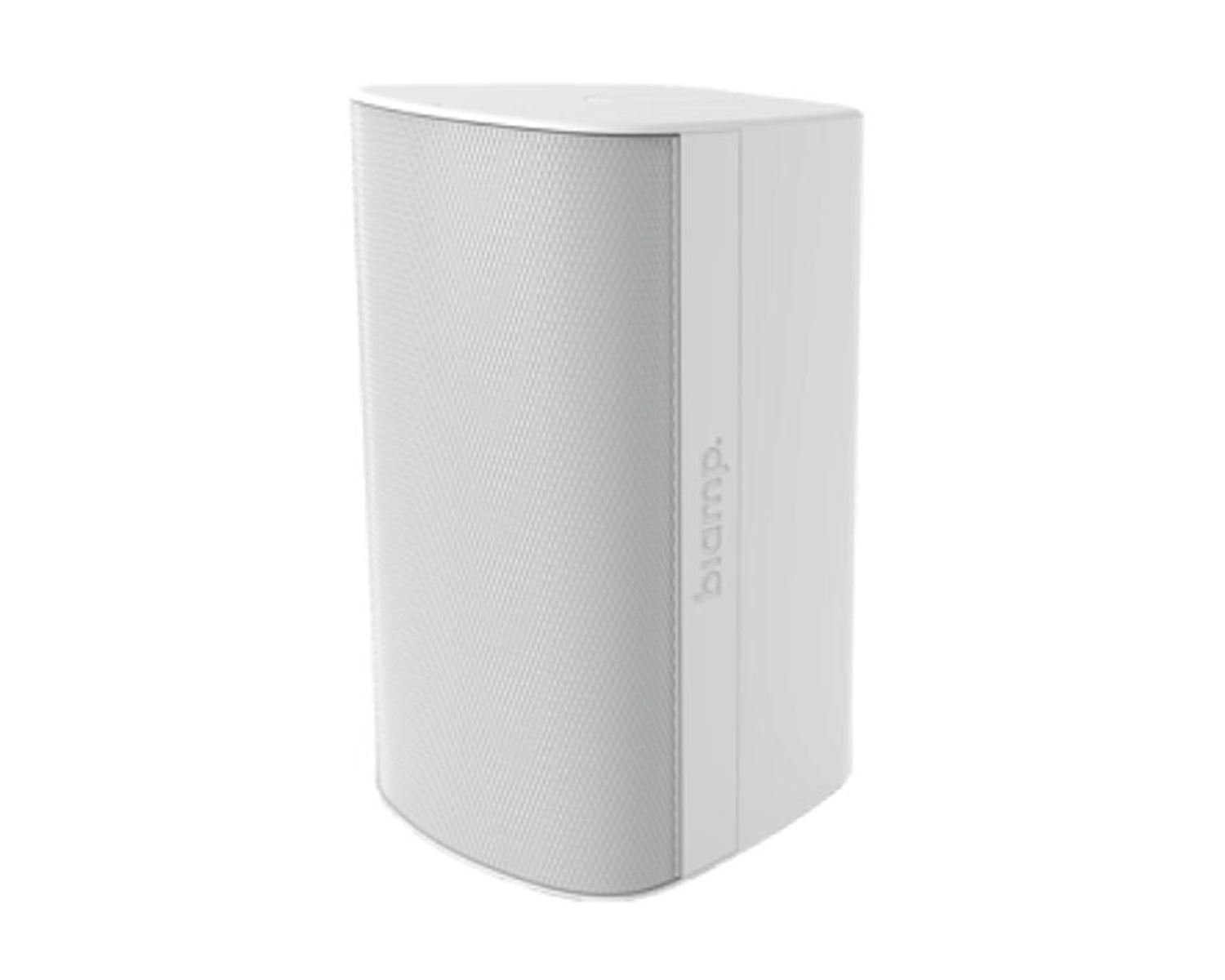

    The Biamp EX-S10 is a 10″ two-way coaxial passive loudspeaker rated IP54 for indoor and outdoor installation, supplied in White with a ClickMount pan-tilt bracket. It combines a 10″ treated paper cone LF driver with a 1.4″ voice coil compression driver on a coaxial axis, and a 6-position switch selects 70V/100V transformer taps or low-impedance bypass. EN54-24 and ISO 7240-24 certified for voice evacuation.

    Key Features
    Coaxial 10″ LF and 1.4″ HF compression driver
    IP54 rated for indoor and outdoor use
    6-position selector: 70V/100V taps or low-impedance bypass
    ClickMount pan-tilt bracket included
    100 x 100 degree nominal beamwidth
    Lever-actuated 4-position terminal block with pass-through
    Driver protection circuitry, 1.48kHz crossover
    EN54-24, ISO 7240-24, IEC 62368-1 compliant
    Specifications
    Type 2-way, 10-inch, coaxial, full-range, surface mount loudspeaker
    Operating Mode Passive with selectable low-impedance or 70 V/100 V operation
    Transducers LF 1 x 250 mm treated paper cone; HF 1 x 35 mm voice coil compression driver
    Power 300W continuous; 1200W peak
    Transformer 70V: 120W, 60W, 30W, 15W; 100V: 120W, 60W, 30W
    Impedance 8Ω
    Frequency range 48 Hz to 20 kHz
    Sensitivity 91 dB (1W/1m)
    Maximum Output 118 dB; 124 dB peak
    SPL Nominal Maximum SPL (Processed) @1m:; Continuous: 118 dB; Peak: 124 dB; Rated Maximum SPL(Processed) @1m:; Continuous: 114 dB; Peak: 126 dB
    Dispersion 100° x 100°
    Beamwidth 100° x 100°
    Recommended amplifier 300 W – 600 W, 8 Ω (49 V – 69 V)
    IP rating IP54 per IEC 60529; IEC 60068-2-5 (Solar Radiation); IEC 60068-2-11 (Salt Mist); IEC 60068-2-42 (SO2); IEC 60068-2-60 (Chlorine)
    Operating Environment Indoor/Outdoor
    Mounting ClickMount pan-tilt bracket or ClickMount U-Bracket
    Included Accessories CMX-LG [-B,-W] – Large ClickMount Pan-tilt Bracket Kit; EXUB-S10 [-B,-W] – EX-S10 ClickMount U-Bracket kit
    Required Accessories 48 Hz, 18 dB / oct. Butterworth high pass filter; DSP preset
    Material Grille: Powder-coated perforated Marine Grade aluminium backed with hydrophobic cloth; Enclosure: High-impact UL94 5VB rated polycarbonate/ABS blend, painted UV resistant matte finish; Bracket: Heavily reinforced glass-filled nylon with UV-resistant painted matte finish cover
    Finish White, RAL 9016
    Dimensions 529 x 309 x 439 mm (H x W x D)
    Weight 15.2 kg
    Certifications ETL listed to comply with UL 1480A; CSA STD C22.2# 62368-1; EN54-24; ISO 7240-24; IEC 62368-1
    Compare the Range
    Biamp EX-S10 10″ IP54 2-Way Coaxial Speaker with Tilt Bracket White
    Biamp EX-S10 10" IP54 2-Way Coaxial Speaker with ClickMount Pan-Tilt Bracket White
    £812.00 inc VAT
    £676.67 ex VAT
    • Sensitivity: 91 dB (1W, 8 Ohms)
    • Power handling: 300W, 8 Ohms nominal
    • Recommended amplifier: 300W - 600W, 8 Ohms
    • Dimensions (H x W x D): 529 x 310 x 312mm
    • Weight: 15.2 kg
    Viewing Now
    Biamp EX-S8 8″ IP54 2-Way Coaxial Speaker with Tilt Bracket White
    Biamp EX-S8 8" IP54 2-Way Coaxial Speaker with ClickMount Pan-Tilt Bracket White
    £620.00 inc VAT
    £516.67 ex VAT
    • Sensitivity: 90 dB (1W, 8 Ohms)
    • Power handling: 250W, 8 Ohms nominal
    • Recommended amplifier: 250W - 500W, 8 Ohms
    • Dimensions (H x W x D): 458 x 260 x 263mm
    • Weight: 11.2 kg
    View →
    Biamp EX-S8 8″ IP54 2-Way Coaxial Speaker with U-Bracket White
    Biamp EX-S8 8" IP54 2-Way Coaxial Speaker with U-Bracket White
    £620.00 inc VAT
    £516.67 ex VAT
    • Sensitivity: 90 dB (1 W, 8 ohm)
    • Power handling: 250 W (8 ohm nominal)
    • Recommended amplifier: 250 W to 500 W, 8 ohm
    • Dimensions (H x W x D): 458 x 260 x 263 mm
    • Weight: 11.2 kg
    View →
    Biamp EX-S6 6.5″ IP54 2-Way Coaxial Speaker with Tilt Bracket White
    Biamp EX-S6 6.5" IP54 2-Way Coaxial Speaker with ClickMount Pan-Tilt Bracket White
    £428.00 inc VAT
    £356.67 ex VAT
    • Sensitivity: 89 dB (1W, 8 Ohms)
    • Power handling: 200W, 8 Ohms nominal
    • Recommended amplifier: 200W - 400W, 8 Ohms
    • Dimensions (H x W x D): 349 x 217 x 220mm
    • Weight: 6.5 kg
    View →
    Biamp EX-S6 6.5″ IP54 2-Way Coaxial Speaker with U-Bracket White
    Biamp EX-S6 6.5" IP54 2-Way Coaxial Speaker with U-Bracket White
    £428.00 inc VAT
    £356.67 ex VAT
    • Sensitivity: 89 dB (1W, 8 Ohms)
    • Power handling: 200W, 8 Ohms nominal
    • Recommended amplifier: 200W - 400W, 8 Ohms
    • Dimensions (H x W x D): 349 x 217 x 220mm
    • Weight: 6.5 kg
    View →
    Biamp EX-S10 10″ IP54 2-Way Coaxial Speaker with U-Bracket White
    Biamp EX-S10 10" IP54 2-Way Coaxial Speaker with U-Bracket White
    £812.00 inc VAT
    £676.67 ex VAT
    • Sensitivity: 91 dB (1 W, 8 ohm)
    • Power handling: 300 W (8 ohm nominal)
    • Recommended amplifier: 300 W to 600 W, 8 ohm
    • Dimensions (H x W x D): 529 x 310 x 312 mm
    • Weight: 15.2 kg
    View →

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

    • Exceptional audio clarity with small footprint and attractive styling
    • Uniform coverage from coaxially mounted HF/LF drivers
    • Utilizes innovative ClickMount pan-tilt for mounting
    • 6-position switch selects 70 V/100 V taps or low impedance bypass
    • ETL listed to comply with UL 1480A, CSA 62368-1, CE marked, and RoHS compliant
    • EN54-24 and ISO 7240-24 certification

    Manuals & Downloads

    PDFDatasheetPDF
    PDFA&E SpecificationsPDF
    PDFDrawing: EX-S10-CMPDF
