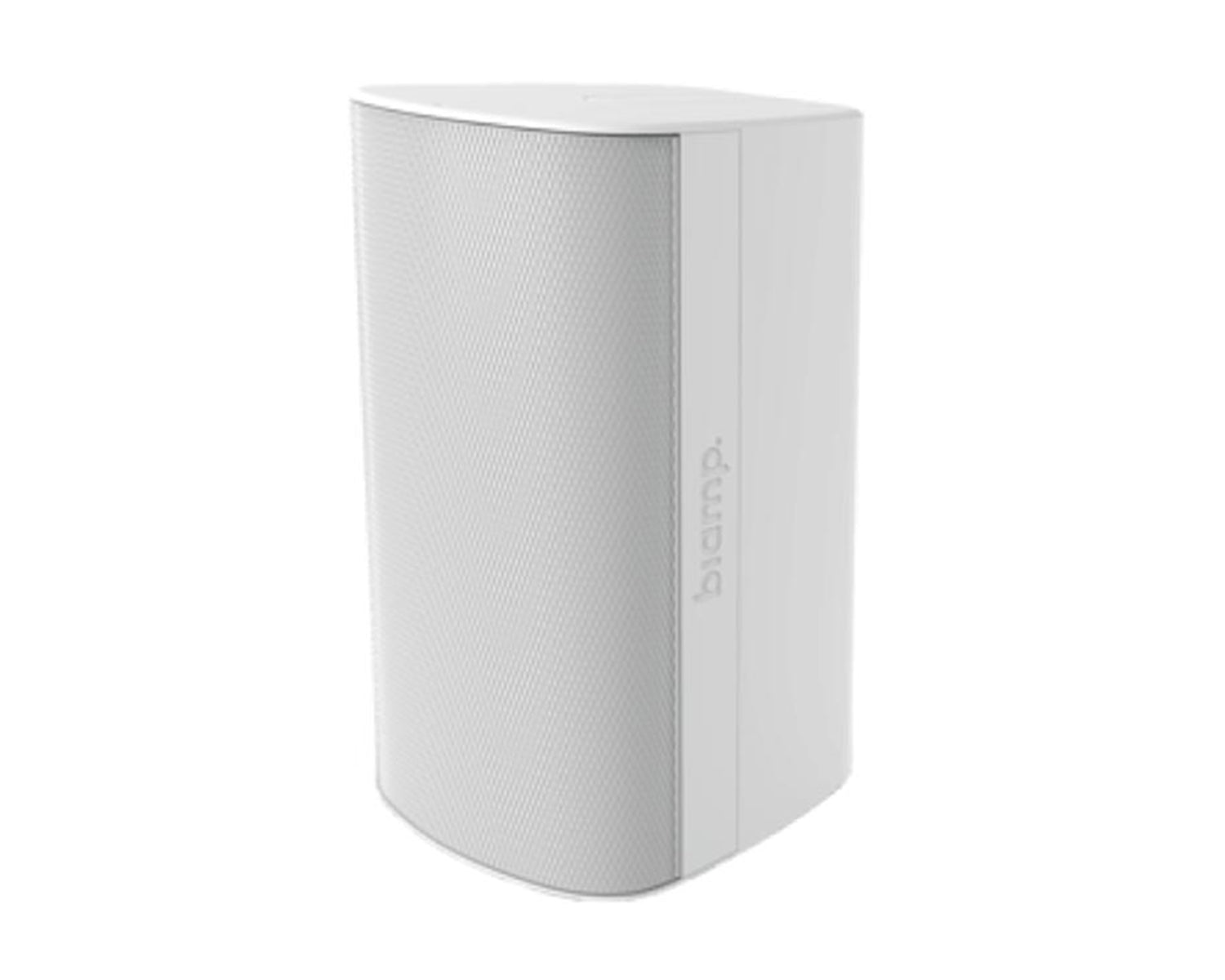

Biamp EX-S8 8" IP54 2-Way Coaxial Speaker with Tilt Bracket White

• Exceptional audio clarity with small footprint and attractive styling
• Uniform coverage from coaxially mounted HF/LF drivers
• Utilizes innovative ClickMount pan-tilt bracket for mounting
• 6-position switch selects 70 V/100 V taps or low impedance bypass
• ETL listed to comply with UL 1480A, CSA 62368-1, CE marked, and RoHS compliant
• EN54-24 and ISO 7240-24 certification

General

• Operating Mode: Passive with selectable low-impedance or 70 V/100 V operation
• Operating Environment: Indoor/Outdoor
• Operating Range: (-10dB)2 55 Hz to 20 kHz
• Nominal Beamwidth: (H x V) 105° x 105°
• Transducers:
  • LF 1 x 8" (200 mm) treated paper cone
  • HF 1 x 1.4" (35 mm) voice coil compression driver
• Sensitivity: @ 1 m 90 dB (2.83 V) 90 dB (1 W, 8 Ω)
• Nominal Continuous Power Handling: 45 V (250 W, 8 Ω Nominal Impedance)
• Nominal Maximum SPL (Processed):
  • @ 1 m
  • Continuous: 115 dB
  • Peak: 121 dB
• Rated Continuous Voltage: 39.8 V (32 dBV)
• Rated Maximum SPL (Processed):
  • @ 1 m
  • Continuous: 112 dB
  • Peak: 124 dB
• Transformer:
  • 70 V: 80 W, 40 W, 20 W, 10 W;
  • 100 V: 80 W, 40 W, 20 W
• Crossover / Protection: 1.55 kHz crossover, driver protection circuitry
• Required Accessories: 50 Hz, 12 dB / oct. Butterworth high pass filter; DSP preset
• Recommended Amplifiers: 250 W - 500 W, 8 Ω (45 V - 63 V)
• Input Connection: Lever-actuated wire clamping 4-position terminal block with pass-through
• Controls: Wattage / low impedance selector switch
• Mounting Provisions: ClickMount pan-tilt bracket
• Compliance:
  • ETL listed to comply with UL 1480A,
  • CSA STD C22.2# 62368-1
  • EN54-24, ISO 7240-24, IEC 62368-1
• Environmental Rating:
  • IP54 per IEC 60529, IEC 60068-2-5 (Solar Radiation),
  • IEC 60068-2-11 (Salt Mist), IEC 60068-2-42 (SO2),
  • IEC 60068-2-60 (Chlorine)

Physcial

• Dimensions H x W x D: 458 mm x 260 mm x 263 mm [18" x 10.2" x 10.4"]
• Weight (loudspeaker only): 11.2 kg [24.73 lbs]
• Finish: White
