Biamp

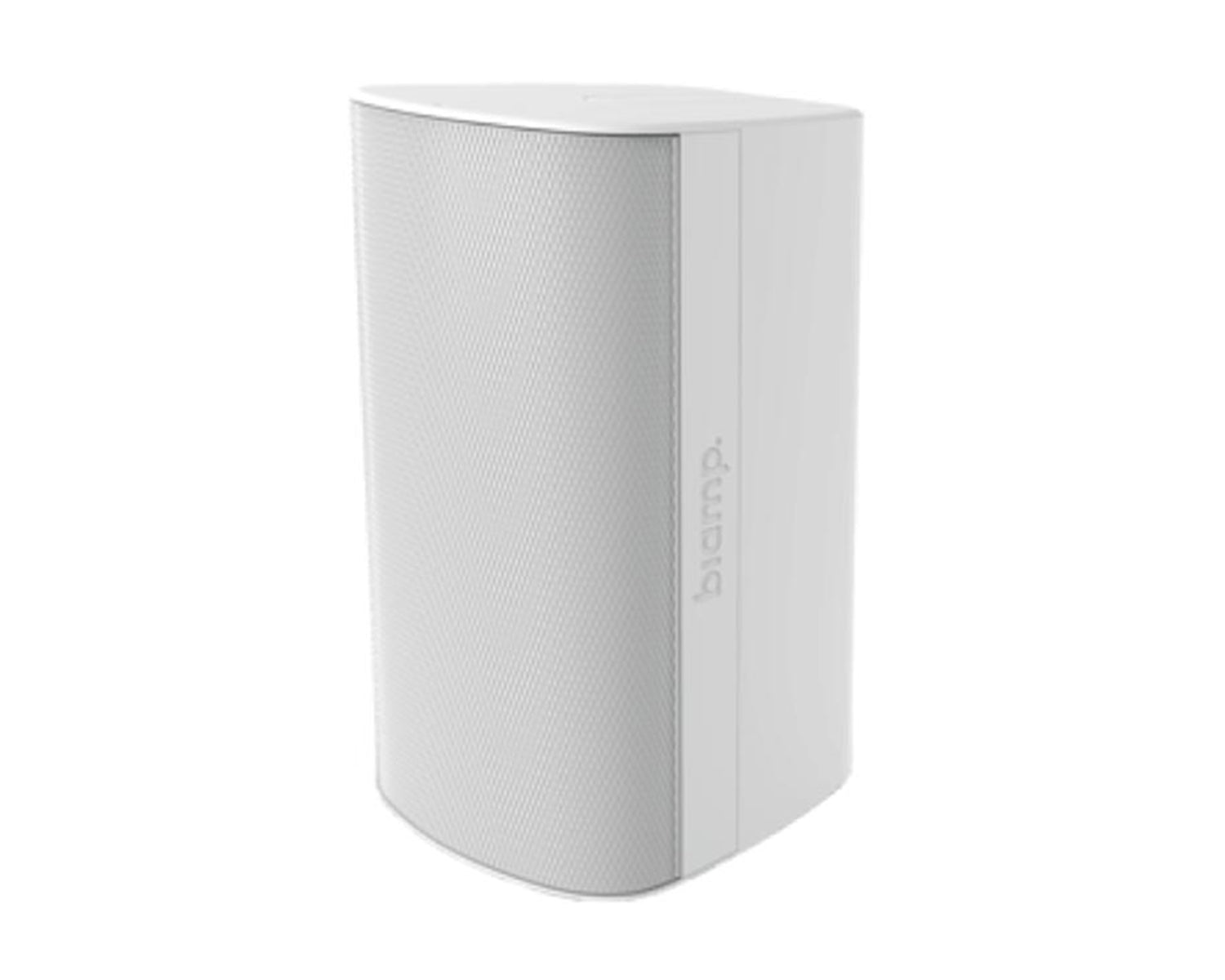

Biamp EX-S6 6.5" IP54 2-Way Coaxial Speaker with U-Bracket White

SKU: 920-01811-20000
Biamp EX-S6 6.5″ IP54 2-Way Coaxial Speaker with U-Bracket White
Click to enlarge

    £428.00 inc VAT
    £356.67 ex VAT

    4 available online
    More available from supplier in 1–3 weeks
    FREE delivery by MondayOrder by 3pm tomorrow
    Click & Collect Friday ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    Other colours available
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The Biamp EX-S6 is a 6.5″ two-way coaxial passive loudspeaker rated IP54 for indoor and outdoor installation, supplied in White with a ClickMount U-bracket bracket. It pairs a 6.5″ treated paper cone LF driver with a 1″ treated soft dome tweeter on a coaxial axis, and a 6-position switch selects 70V/100V transformer taps or low-impedance bypass. EN54-24 and ISO 7240-24 certified for voice evacuation.

    Key Features
    Coaxial 6.5″ LF and 1″ soft dome tweeter with waveguide
    IP54 rated for indoor and outdoor use
    6-position selector: 70V/100V taps or low-impedance bypass
    ClickMount U-bracket bracket included
    120 x 120 degree nominal beamwidth
    Lever-actuated 4-position terminal block with pass-through
    Driver protection circuitry, 1.58kHz crossover
    EN54-24, ISO 7240-24, IEC 62368-1 compliant
    Specifications
    Type 2-way, 6.5-inch, indoor/outdoor, coaxial, surface mount, white loudspeaker.
    Operating Mode Passive with selectable low-impedance or 70V/100V operation
    Transducers LF 1 x 165 mm treated paper cone; HF 1 x 25 mm treated soft dome tweeter w/ waveguide
    Power 200W continuous; 800W peak
    Transformer 70V: 80W, 40W, 20W, 10W; 100V: 80W, 40W, 20W
    Impedance 8Ω
    Frequency range 58 Hz to 20 kHz
    Sensitivity 89 dB (1W/1m)
    SPL Nominal Maximum SPL; Continuous: 112 dB; Peak: 118 dB; Rated Maximum SPL:; Continuous: 109 dB; Peak: 121 dB
    Dispersion 120° x 120°
    Recommended amplifier 200 W – 400 W, 8 Ω (40 V – 57 V)
    IP rating IP54 per IEC 60529; IEC 60068-2-5 (Solar Radiation); IEC 60068-2-11 (Salt Mist); IEC 60068-2-42 (SO2); IEC 60068-2-60 (Chlorine)
    Operating Environment Indoor/Outdoor
    Mounting ClickMount pan-tilt bracket or ClickMount U-Bracket
    Included Accessories CMX-SM [-B,-W] – Small ClickMount pan-tilt bracket kit; EXUB-S6 [-B,-W] – EX-S6 ClickMount U-Bracket kit
    Required Accessories 50 Hz, 12 dB / oct. Butterworth high pass filter; DSP preset
    Material Grille:; Powder-coated perforated Marine Grade aluminium backed with hydrophobic cloth.; Enclosure:; High-impact UL94 5VB rated polycarbonate/ABS blend, painted UV resistant matte finish; Bracket: Heavily reinforced glass-filled nylon with UV-resistant painted matte finish cover
    Finish White, RAL 9016
    Dimensions 349 x 217 x 253 mm (H x W x D)
    Weight 6.5 kg
    Certifications ETL listed to comply with UL 1480A; CSA STD C22.2# 62368-1; EN54-24; ISO 7240-24; IEC 62368-1
    Crossover 1.58 kHz crossover, driver protection circuitry
    Compare the Range
    Biamp EX-S6 6.5″ IP54 2-Way Coaxial Speaker with U-Bracket White
    Biamp EX-S6 6.5" IP54 2-Way Coaxial Speaker with U-Bracket White
    £428.00 inc VAT
    £356.67 ex VAT
    • Sensitivity: 89 dB (1W, 8 Ohms)
    • Power handling: 200W, 8 Ohms nominal
    • Recommended amplifier: 200W - 400W, 8 Ohms
    • Dimensions (H x W x D): 349 x 217 x 220mm
    • Weight: 6.5 kg
    Viewing Now
    Biamp EX-S6 6.5″ IP54 2-Way Coaxial Speaker with Tilt Bracket White
    Biamp EX-S6 6.5" IP54 2-Way Coaxial Speaker with ClickMount Pan-Tilt Bracket White
    £428.00 inc VAT
    £356.67 ex VAT
    • Sensitivity: 89 dB (1W, 8 Ohms)
    • Power handling: 200W, 8 Ohms nominal
    • Recommended amplifier: 200W - 400W, 8 Ohms
    • Dimensions (H x W x D): 349 x 217 x 220mm
    • Weight: 6.5 kg
    View →
    Biamp EX-S8 8″ IP54 2-Way Coaxial Speaker with Tilt Bracket White
    Biamp EX-S8 8" IP54 2-Way Coaxial Speaker with ClickMount Pan-Tilt Bracket White
    £620.00 inc VAT
    £516.67 ex VAT
    • Sensitivity: 90 dB (1W, 8 Ohms)
    • Power handling: 250W, 8 Ohms nominal
    • Recommended amplifier: 250W - 500W, 8 Ohms
    • Dimensions (H x W x D): 458 x 260 x 263mm
    • Weight: 11.2 kg
    View →
    Biamp EX-S10 10″ IP54 2-Way Coaxial Speaker with U-Bracket White
    Biamp EX-S10 10" IP54 2-Way Coaxial Speaker with U-Bracket White
    £812.00 inc VAT
    £676.67 ex VAT
    • Sensitivity: 91 dB (1 W, 8 ohm)
    • Power handling: 300 W (8 ohm nominal)
    • Recommended amplifier: 300 W to 600 W, 8 ohm
    • Dimensions (H x W x D): 529 x 310 x 312 mm
    • Weight: 15.2 kg
    View →
    Biamp EX-S8 8″ IP54 2-Way Coaxial Speaker with U-Bracket White
    Biamp EX-S8 8" IP54 2-Way Coaxial Speaker with U-Bracket White
    £620.00 inc VAT
    £516.67 ex VAT
    • Sensitivity: 90 dB (1 W, 8 ohm)
    • Power handling: 250 W (8 ohm nominal)
    • Recommended amplifier: 250 W to 500 W, 8 ohm
    • Dimensions (H x W x D): 458 x 260 x 263 mm
    • Weight: 11.2 kg
    View →
    Biamp EX-S10 10″ IP54 2-Way Coaxial Speaker with Tilt Bracket White
    Biamp EX-S10 10" IP54 2-Way Coaxial Speaker with ClickMount Pan-Tilt Bracket White
    £812.00 inc VAT
    £676.67 ex VAT
    • Sensitivity: 91 dB (1W, 8 Ohms)
    • Power handling: 300W, 8 Ohms nominal
    • Recommended amplifier: 300W - 600W, 8 Ohms
    • Dimensions (H x W x D): 529 x 310 x 312mm
    • Weight: 15.2 kg
    View →

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

    • Exceptional audio clarity with small footprint and attractive styling
    • Uniform coverage from coaxially mounted HF/LF drivers
    • 6-position switch selects 70 V/100 V taps or low impedance bypass
    • Utilizes innovative ClickMount U-Bracket for mounting
    • ETL listed to comply with UL 1480A, CSA 62368-1, CE marked, and RoHS compliant
    • EN54-24 and ISO 7240-24 certification

    Manuals & Downloads

    PDFDatasheetPDF
    PDFA&E SpecificationsPDF
