Biamp EX-S10SUB 10" IP54 Surface-Mount Sub with ClickMount Pan-Tilt Bracket, White

Product code: 151321

£730.00 inc VAT
£608.33 ex VAT

SKU: 920-01821-20000
2 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
Other colours available
1 Year Manufacturer Warranty Included

About this Product

Connection: Low impedance (8Ω).

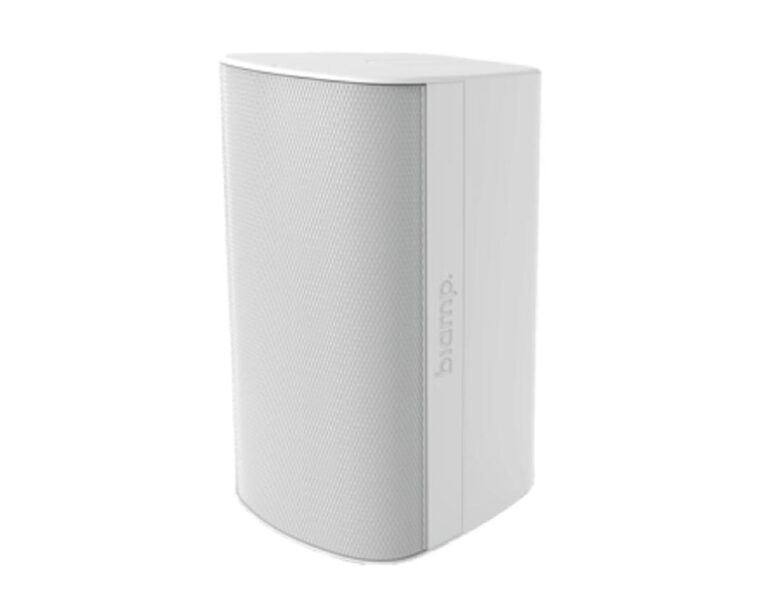

The Biamp EX-S10SUB is a 10″ IP54 weather-resistant surface-mount subwoofer for outdoor and exposed-environment install. Sealed cabinet construction with marine-grade components, suitable for stadiums, outdoor hospitality, themed environments and transport hubs. Supplied with tilt bracket for angled aiming.

10″
Driver · Sealed
IP54
IP Rating · Outdoor
Surface
Type · Bracket included
Outdoor
Use · Exposed install

Features

10″ weather-resistant subwoofer driver
IP54 rated, splash and dust protection
Sealed cabinet for outdoor environments
Marine-grade aluminium grille with hydrophobic cloth backing
Designed for stadiums, outdoor venues, themed install
White finish for outdoor visual integration
Designed and manufactured by Biamp
Tilt bracket included, angled aiming for room coverage

Specifications

Biamp EX-S10SUB 10″ IP54 Surface-Mount Sub with ClickMount Pan-Tilt Bracket, White specifications
Type 10-inch surface mount subwoofer
Operating Mode Passive, low impedance
Transducers LF 1 x 250 mm treated paper cone
Power 300W continuous; 1200W peak
Impedance 8Ω
Frequency range 38 Hz to 140 Hz
Sensitivity 89 dB (1W/1m)
Maximum Output 112 dB; 118 dB peak; (UXO 80 Hz)
Beamwidth Omnidirectional
Recommended amplifier 300 W – 600 W, 8 Ω (49 V – 69 V)
IP rating IP54 per IEC 60529; IEC 60068-2-5 (Solar Radiation); IEC 60068-2-11 (Salt Mist); IEC 60068-2-42 (SO2); IEC 60068-2-60 (Chlorine)
Operating Environment Indoor/Outdoor
Mounting ClickMount pan-tilt bracket or ClickMount U-Bracket
Included Accessories Large ClickMount pan-tilt bracket (this is the EX-S10SUB-CM). The EXUB-S10 U-Bracket kit is an optional extra
Material Grille:; Powder-coated perforated Marine Grade aluminium backed with hydrophobic cloth.; Enclosure:; High-impact UL94 5VB rated polycarbonate/ABS blend, painted UV resistant matte finish; Bracket: Heavily reinforced glass-filled nylon with UV-resistant painted matte finish cover
Finish White, RAL 9016
Dimensions 529 x 309 x 439 mm (H x W x D)
Weight 12.8 kg
Certifications ETL listed to comply with UL 1480A; CSA STD C22.2# 62368-1
Signal Processing 35 Hz, 18 dB high-pass filter; DSP preset

Full features

  • Exceptional audio clarity with discreet styling
  • Easy to install with two mounting options
  • Utilizes innovative ClickMount pan-tilt for mounting
  • Low frequency boost for distributed applications
  • ETL listed to comply with UL 1480A, CSA 62368-1, CE marked, and RoHS compliant
  • Finish: White

Full specifications

General

  • Operating Mode: Passive, low impedance
  • Operating Environment: Indoor/Outdoor
  • Operating Range (-10dB): 38 Hz to 140 Hz
  • Nominal Beamwidth (H x V): Omnidirectional
  • Transducer: LF 1 x 10" (250 mm) treated paper cone
  • Sensitivity: 89 dB (2.83 V) 89 dB (1 W, 8 Ω nominal impedance)
  • Nominal Continuous Power Handling: 49 V (300 W, 8 Ω)
  • Nominal Maximum SPL (Processed):
    • Crossover Presets: UXO 80 Hz
      • Continuous: 112 dB
      • Peak: 118 dB
    • Crossover Presets: UXO 125 Hz
      • Continuous: 113 dB
      • Peak: 119 dB
  • Rated Continuous Voltage: 39.8 V (32 dBV)
  • Rated Maximum SPL (Processed):
    • Crossover Presets: UXO 80 Hz
      • Continuous: 110 dB
      • Peak: 122 dB
    • Crossover Presets: UXO 125 Hz
      • Continuous: 111 dB
      • Peak: 123 dB
  • Required Processing: 35 Hz, 18 dB high-pass filter; DSP preset
  • Recommended Amplifiers: 300 W - 600 W, 8 Ω (49 V - 69 V)
  • Input Connection: Lever-actuated wire clamping 4-position terminal block with pass-through
  • Controls: None
  • Mounting Provisions: ClickMount pan-tilt bracket
  • Compliance:
    • ETL listed to comply with UL 1480A,
    • CSA STD C22.2# 62368-1
  • Environmental Rating:
    • IP54 per IEC 60529, IEC 60068-2-5 (Solar Radiation),
    • IEC 60068-2-11 (Salt Mist), IEC 60068-2-42 (SO2),
    • IEC 60068-2-60 (Chlorine)

Physical

  • Dimensions H x W x D: 529  mm x 310 mm x 312  mm [20.8" x 12.2" x 12.3"]
  • Weight (loudspeaker only): 12.8 kg [28.26 lbs]
  • Finish: White
