Ecler VICSB8X 8" Ceiling Subwoofer with Back Can and Tile Bridge 100V White Grille

Product code: 195169

£299.00 inc VAT
£249.17 ex VAT

SKU: ECL0052

2 in stock

2 available online
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Connection: 100V line (taps 60 / 30 / 15 / 7.5W) or low impedance (8Ω).

The Ecler VICSB8X is an 8 inch in-ceiling subwoofer, with a plastic back can and tile bridge included. It has a built-in crossover and a 70V/100V transformer with taps up to 60W, or runs at 8 ohms at 80W RMS, so it can be added to a 100V line alongside VIC ceiling speakers. It adds low-end to background music in restaurants, bars, hotel lounges, retail and gyms. Sold as a single unit.

8in
Ceiling subwoofer
60W
Max 100V tap
35 Hz
Low frequency (-10 dB)
246 mm
Cut-out

Features

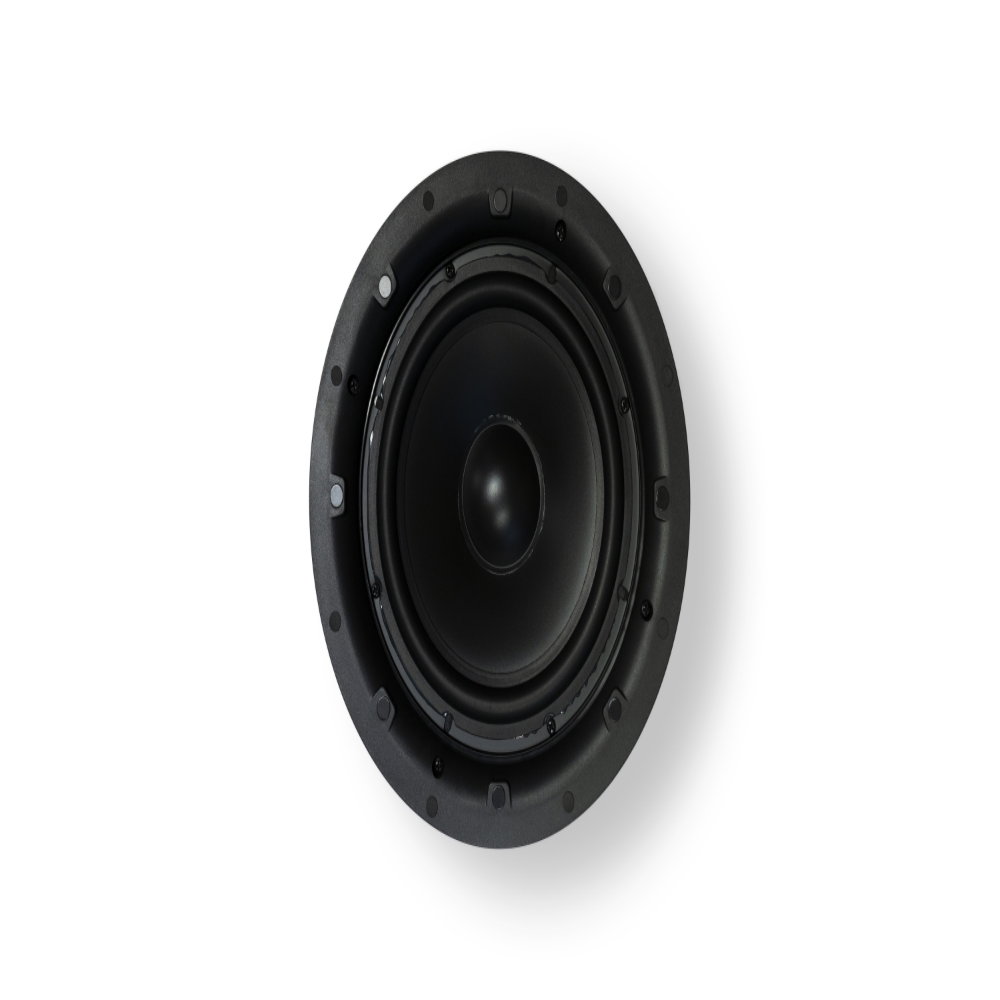

Single 8 inch polypropylene woofer
Built-in crossover
100V taps at 60W, 30W, 15W and 7.5W; 70V taps from 60W down to 3.75W
8 ohm low-impedance setting, 80W RMS

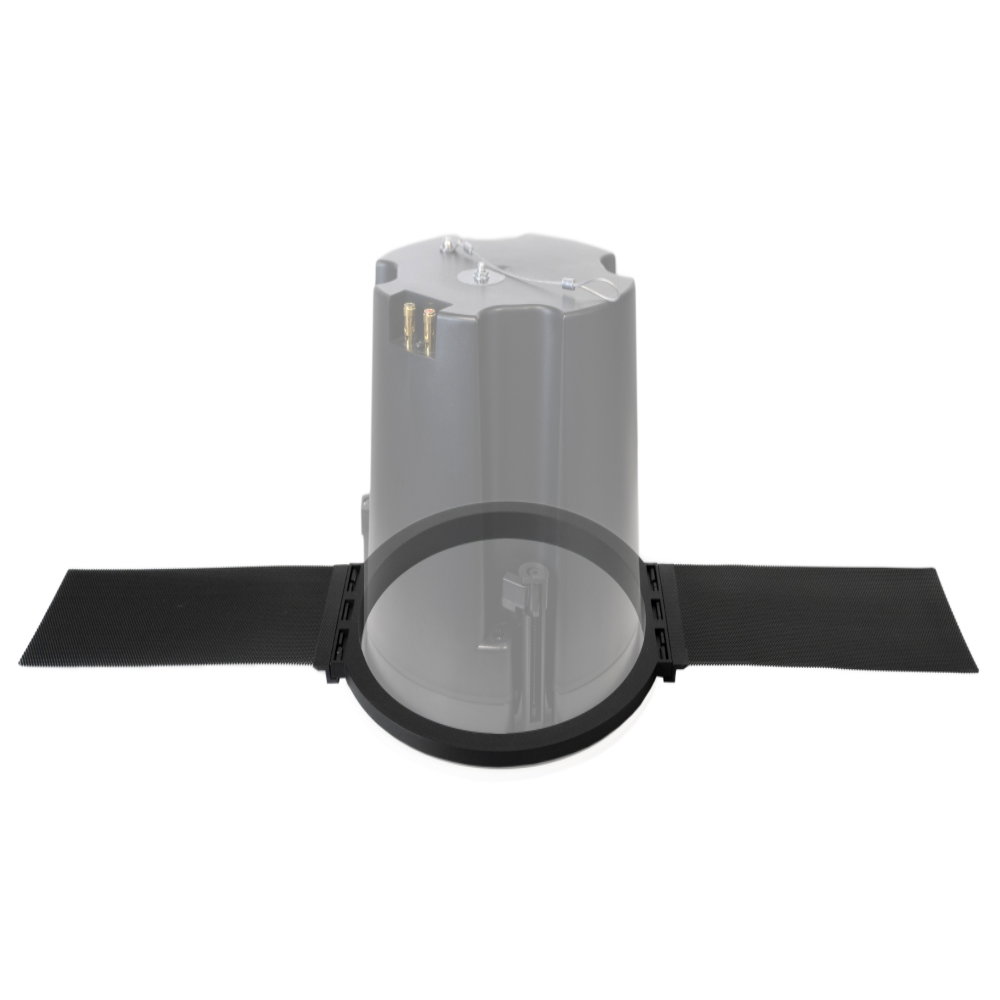

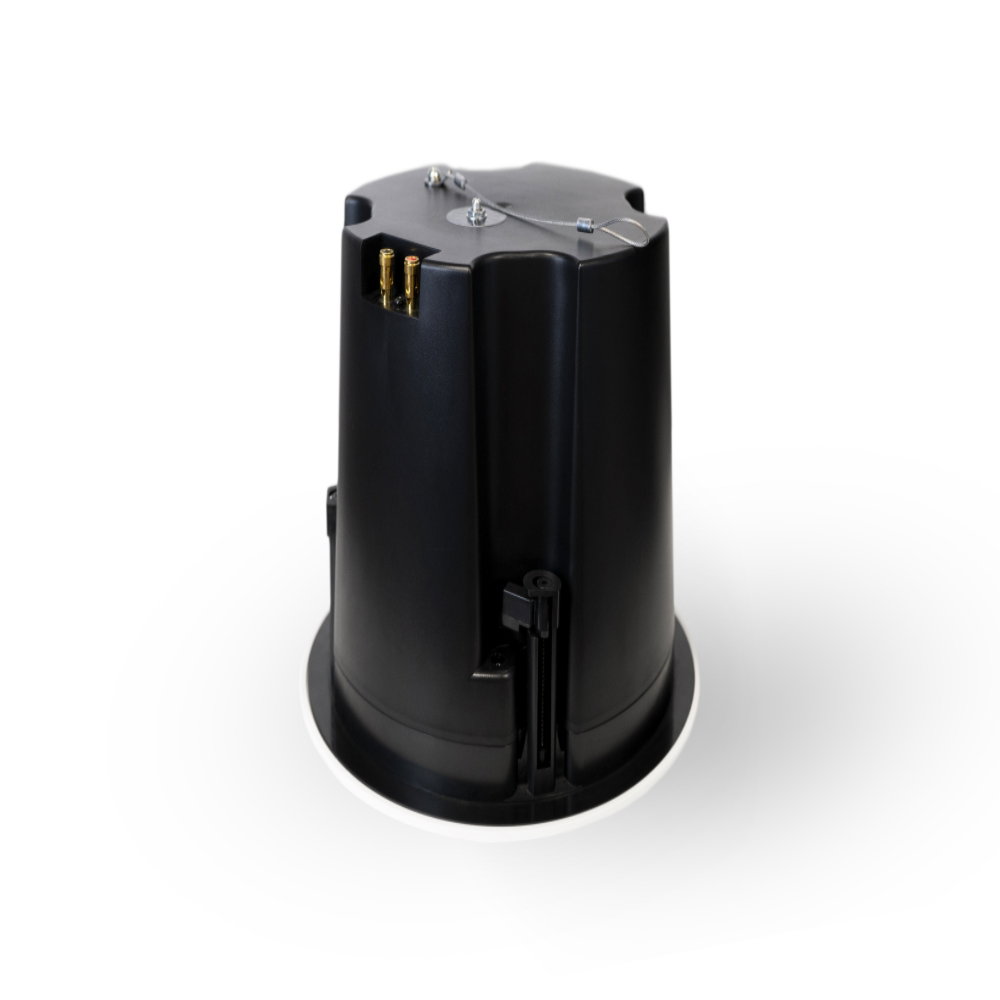

Plastic back can and tile bridge included for suspended ceilings

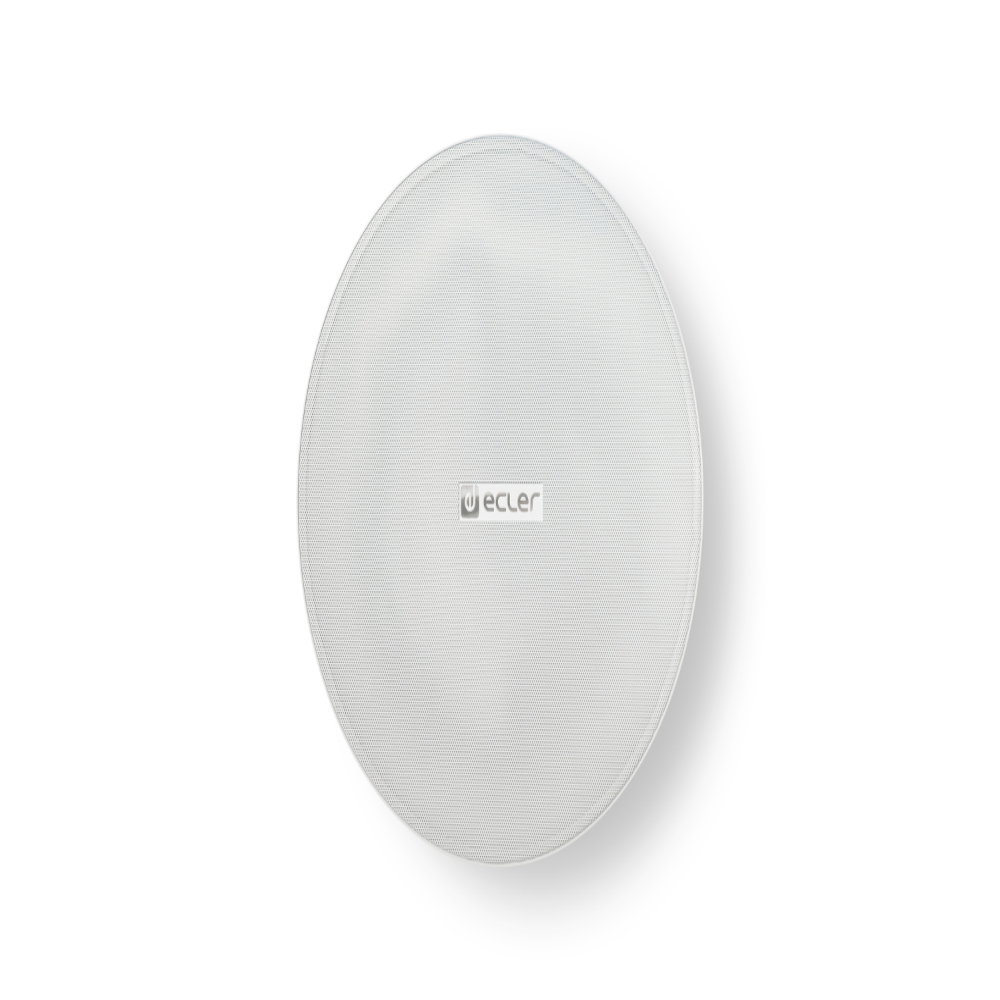

Magnetic, paintable metal alloy grille matching the VIC full-range models
IPX4 rated
White finish (RAL 9010)

Specifications

Ecler VICSB8X 8″ Ceiling Subwoofer with Back Can and Tile Bridge 100V White Grille specifications
Frequency range 35 Hz to 185 Hz (-10 dB)
Power handling 80W RMS, 320W peak (8 ohms)
Sensitivity 89 dB (1W/1m)
Maximum SPL 108 dB continuous, 114 dB peak
100V taps 60W, 30W, 15W, 7.5W, 8 ohms
70V taps 60W, 30W, 15W, 7.5W, 3.75W, 8 ohms
Recommended amplifier 160W RMS (8 ohm use)
Driver 8 in woofer
Environmental IPX4
Outer diameter 282 mm
Cut-out diameter 246 mm
Depth required 200 mm
Ceiling thickness 10 to 50 mm
Weight 3.9 kg
Included Back can and tile bridge
Operating temperature -20°C to 70°C
Colour White (RAL 9010)

Full features

  • False Ceiling Subwoofer Unit
  • 8” polypropylene woofer
  • 80WRMS @ 8 ohm
  • 100V/70V in-line connection: 60 / 30 / 15 / 7.5W @ 100V
  • Sensitivity (1W/1m): 89dB SPL
  • Crossover included
  • Paintable magnetic metal alloy grille
  • Plastic back cover (back can) included
  • Includes tile bridge anchors for false ceiling mounting
  • Dimensions (ØxD): 282x200mm
  • Available in white (RAL9010) finish
  • Weight: 3.9kg

System

  • Effective Freq. Range: 35Hz-185Hz (-10dB)
  • Power handling: 80W RMS / 320W Peak
  • Sensitivity: 89dB (1W/1m)
  • Maximum SPL: 108dB continuous / 114dB peak
  • Power options (Hi Z Multi-tap): 100V: 60W / 30W / 15W / 7.5W / 8Ω
    70V:  60W / 30W / 15W / 7.5W / 3.75W / 8Ω
  • Recommended amplifier power: 160W RMS

Transducers

  • Ways: 1-way subwoofer
  • Driver: LF 8" woofer
  • Nominal impedance: 8Ω

Physical

  • Installation options: Ceiling
  • Environmental: IPX4 rated
  • Grille material: Magnetic, paintable metal alloy
  • Operating temperature: Min: -20°C ; -4°F
    Max: 70°C ; 158°F
  • Operating humidity: <85% HR
  • Storage temperature: Min: -20°C ; -4°F
    Max: 70°C ; 158°F
  • Storage humidity: <90% HR
  • External diameter: 282mm / 11.10 in
  • Internal diameter: 245mm / 9.64 in
  • Recommended cut out diameter: 246mm/ 9.69"
  • Required depth: 200mm / 7.87 in
  • Ceiling thickness: 10mm / 0.39" min
    50mm / 1.97" max
  • Included accessories: Tile bridge and Back can
  • Finished colour: White (RAL 9010)
  • Dimensions: 282 x 200mm /11.1 x 7.9 in. (ØxD)
  • Weight: 3.9kg / 8.59 lb
  • Pieces per box: Unit
  • Shipping dimensions: 300 x 240 x 585mm / 11.81 x 9.45 x 23.03 in. (WxHxD)
  • Shipping weight: 8.5kg / 18.74 lb
