Global Truss F33 PL 2 Way 90 Degree Corner (4088-21PL)

SKU: 4088-21PL
Sold out
Global Truss F33 PL 2 Way 90 Degree Corner (4088-21PL)
Global Truss F33 PL 2 Way 90 Degree Corner (4088-21PL)
Global Truss F33 PL 2 Way 90 Degree Corner (4088-21PL)
Click to enlarge

    £187.00 inc VAT
    £155.83 ex VAT

    Out of stock

    Out of Stock
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

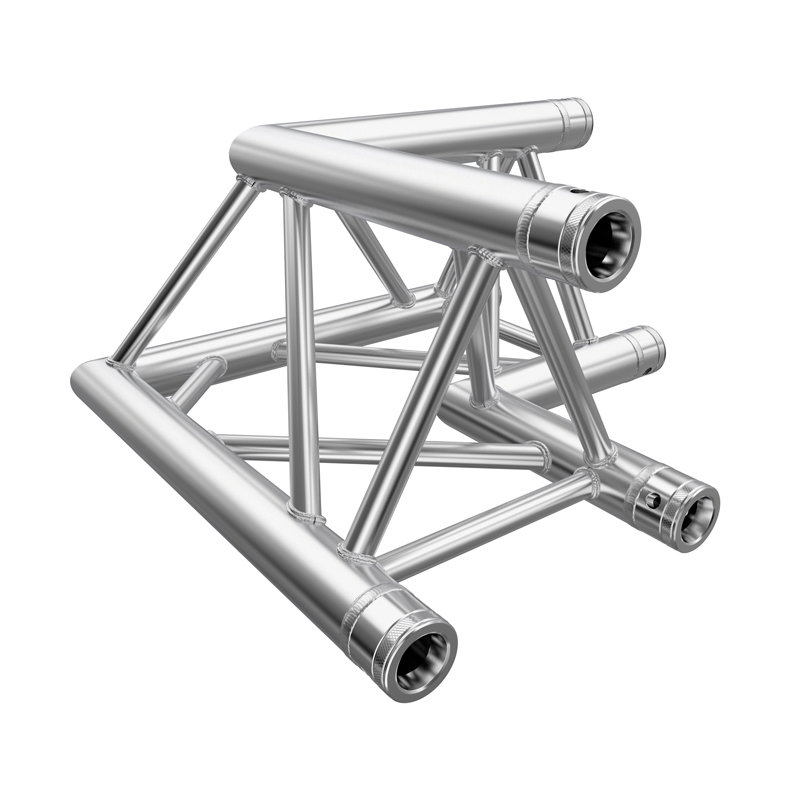

    The Global Truss F33 PL 2 Way 90 Degree Corner is a pre-fabricated right-angle junction for the F33 PL triangular truss system. It joins two lengths of truss at 90 degrees to form the corners of rectangular frames, goalposts and perimeter rigs. It is a core building block for fixed installations, shop fittings and rental structures.

    F33 PL
    Series · 290mm triangular
    2 Way
    Junction · right angle
    90°
    Angle · corner
    Conical
    Connection · PL spigot
    AssemblyConical connectors with pins and R-clips are supplied for quick assembly. The PL (conical) connection system is not cross-compatible with F33 spigoted truss, so keep mating parts within the PL range.
    Features
    Two-way 90-degree corner junction
    F33 PL 290mm triangular profile
    Welded aluminium construction
    3mm main-tube wall thickness
    Conical connectors with pins and R-clips supplied
    Builds rectangular and perimeter frames
    Cross-compatible within the F33 PL range
    Suited to fixed install, retail and rental
    Specifications
    Series Global Truss F33 PL

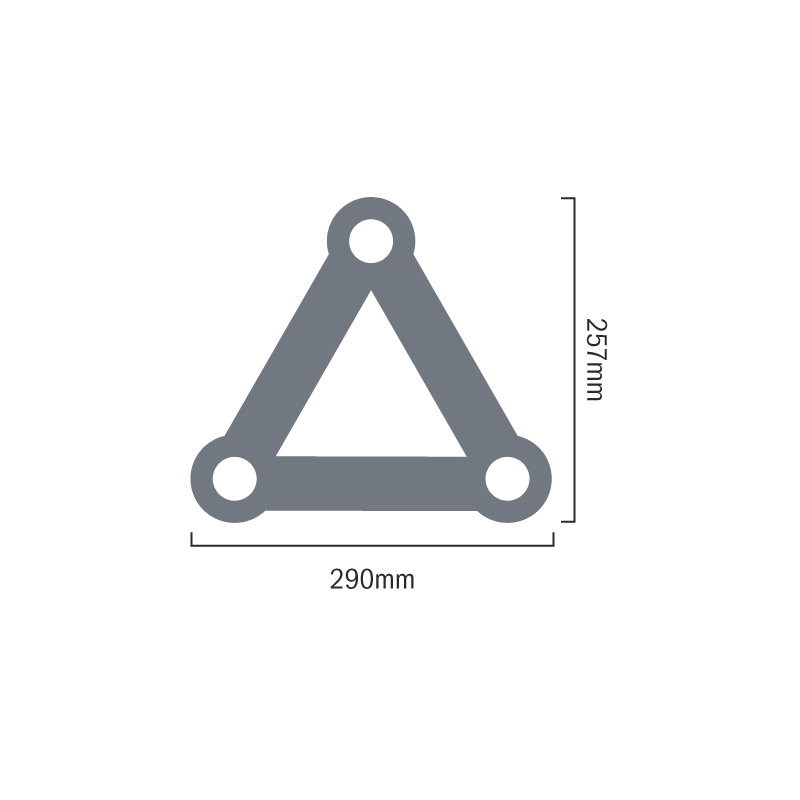

    Profile Triangular, 290mm
    Type 2-way 90° corner
    Manufacturer ref 4088-21PL
    Wall thickness 3mm
    Connection Conical (PL), pins & R-clips supplied
    SKU GL3310

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

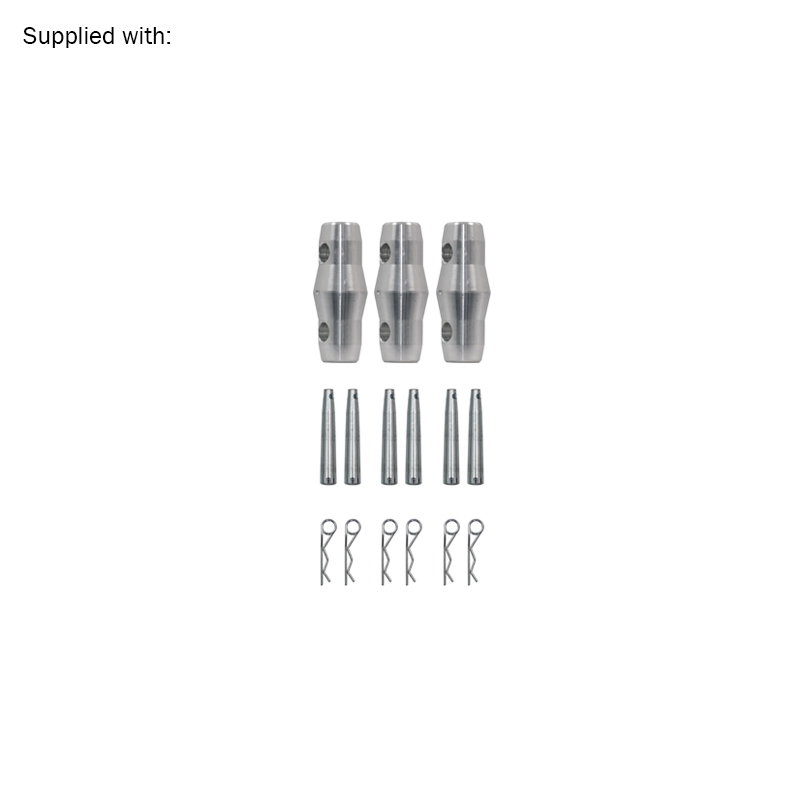

    • Supplied with 3 x Conicals, 6 x Pins and 6 x R-Clips
    • Prolyte H30 Truss compatible
    • Superior 3mm wall thickness aluminium

    Manuals & Downloads

    PDFDatasheets & Technical Docs: GL3310_LTPDF
    PDFDatasheets & Technical Docs: F33PL_Structural_ReportPDF
    PDFDatasheets & Technical Docs: F33PL_TUV_CertificatePDF
    PDFDatasheets & Technical Docs: GL3310_TD01PDF
