Global Truss F33 PL Horizontal T Piece (4096-36PL)

SKU: 4096-36PL
Sold out
Global Truss F33 PL Horizontal T Piece (4096-36PL)
Global Truss F33 PL Horizontal T Piece (4096-36PL)
Global Truss F33 PL Horizontal T Piece (4096-36PL)
Click to enlarge

    £168.00 inc VAT
    £140.00 ex VAT

    Out of stock

    Out of Stock
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

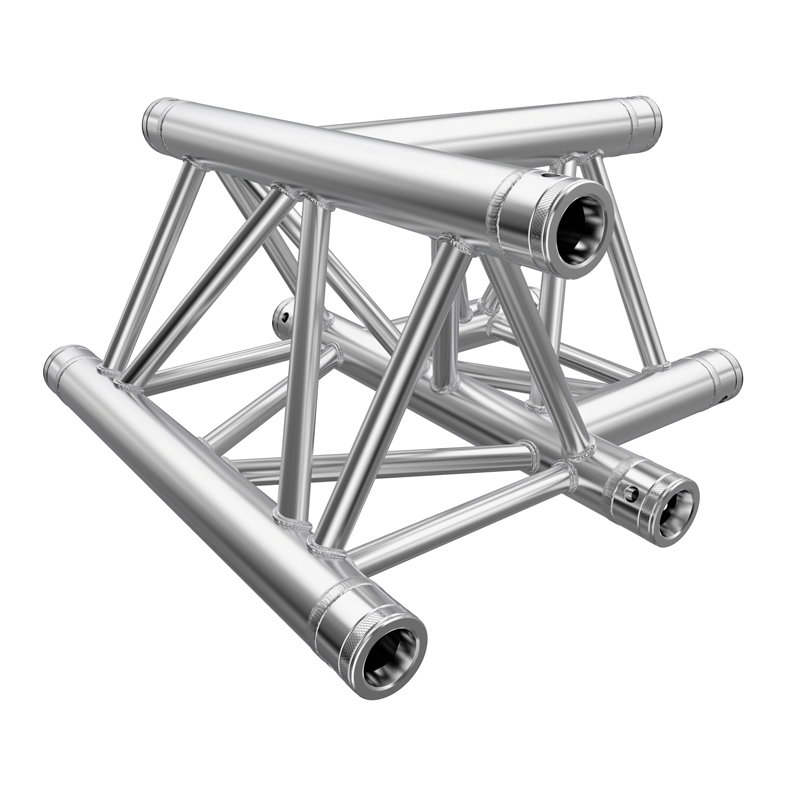

    The Global Truss F33 PL Horizontal T Piece is a pre-fabricated three-way T-junction for the F33 PL triangular truss system. It branches a run of truss horizontally at 90 degrees, letting you tap a spur off a main span for cross-bracing, feature bars or mid-span pick-ups. It is a core building block for fixed installations, shop fittings and rental structures.

    F33 PL
    Series · 290mm triangular
    T Piece
    Junction · 3-way
    Horizontal
    Plane · 90° branch
    Conical
    Connection · PL spigot
    AssemblyConical connectors with pins and R-clips are supplied for quick assembly. The PL (conical) connection system is not cross-compatible with F33 spigoted truss, so keep mating parts within the PL range.
    Features
    Three-way horizontal T-junction
    Branches a main span at 90 degrees
    F33 PL 290mm triangular profile
    Welded aluminium construction
    3mm main-tube wall thickness
    Conical connectors with pins and R-clips supplied
    Cross-compatible within the F33 PL range
    Suited to fixed install, retail and rental
    Specifications
    Series Global Truss F33 PL

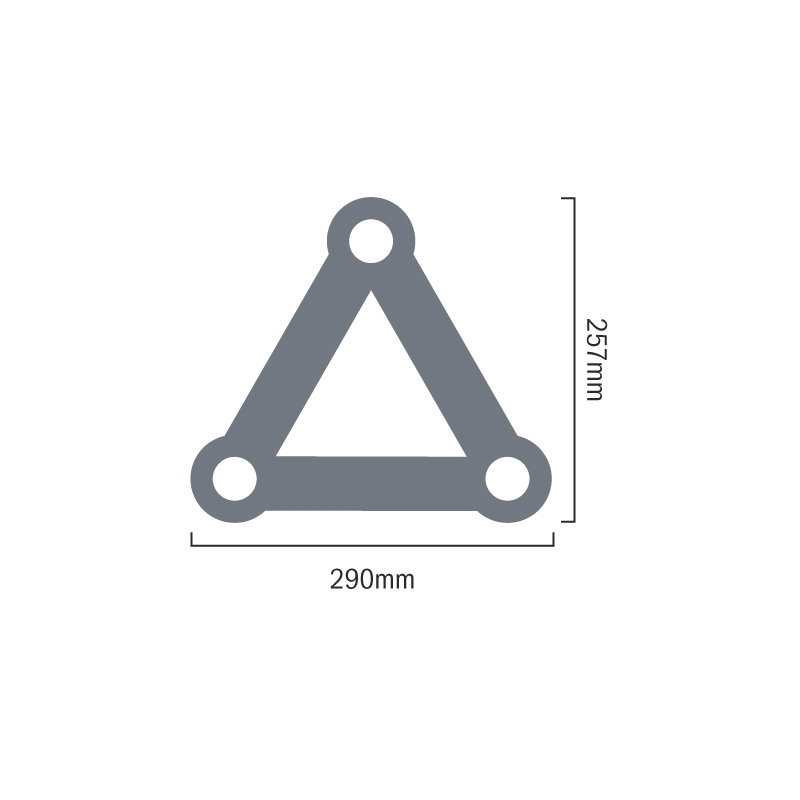

    Profile Triangular, 290mm
    Type Horizontal T-piece (3-way)
    Manufacturer ref 4096-36PL
    Wall thickness 3mm
    Connection Conical (PL), pins & R-clips supplied
    SKU GL3323

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

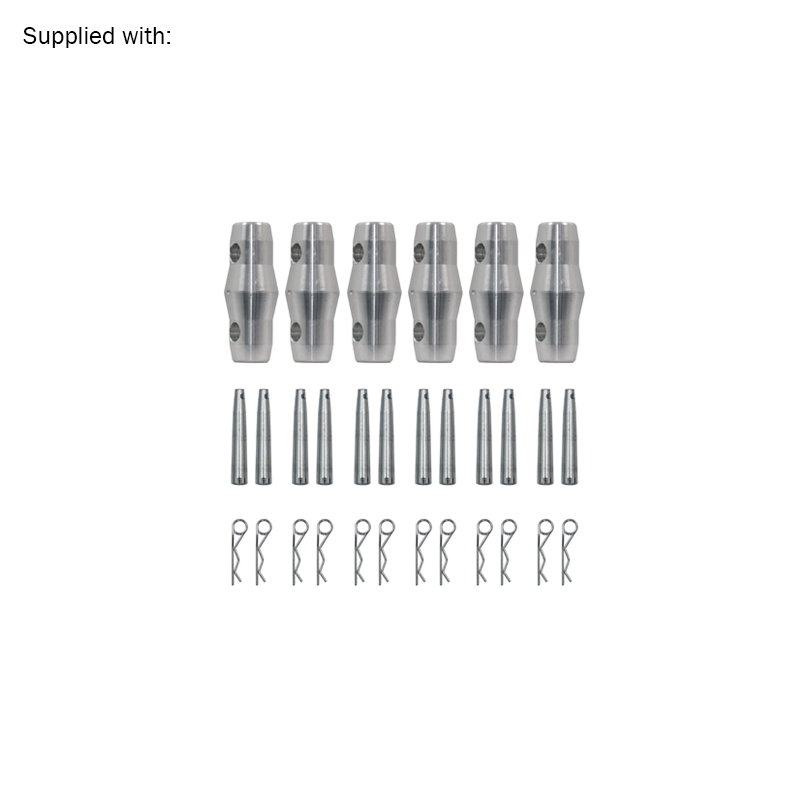

    • Supplied with 6 x Conicals, 12 x Pins and 12 x R-Clips
    • Prolyte H30 Truss compatible
    • Superior 3mm wall thickness aluminium

    Manuals & Downloads

    PDFDatasheets & Technical Docs: GL3323_LTPDF
    PDFDatasheets & Technical Docs: F33PL_Structural_ReportPDF
    PDFDatasheets & Technical Docs: F33PL_TUV_CertificatePDF
    PDFDatasheets & Technical Docs: GL3323_TD01PDF
