Global Truss F33 PL 2 Way 90 Degree Corner Apex In (F33 C25PL)

SKU: F33 C25PL
Sold out
Global Truss F33 PL 2 Way 90 Degree Corner Apex In (F33 C25PL)
Global Truss F33 PL 2 Way 90 Degree Corner Apex In (F33 C25PL)
Global Truss F33 PL 2 Way 90 Degree Corner Apex In (F33 C25PL)
Click to enlarge

    £78.00 inc VAT
    £65.00 ex VAT

    Out of stock

    Out of Stock
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

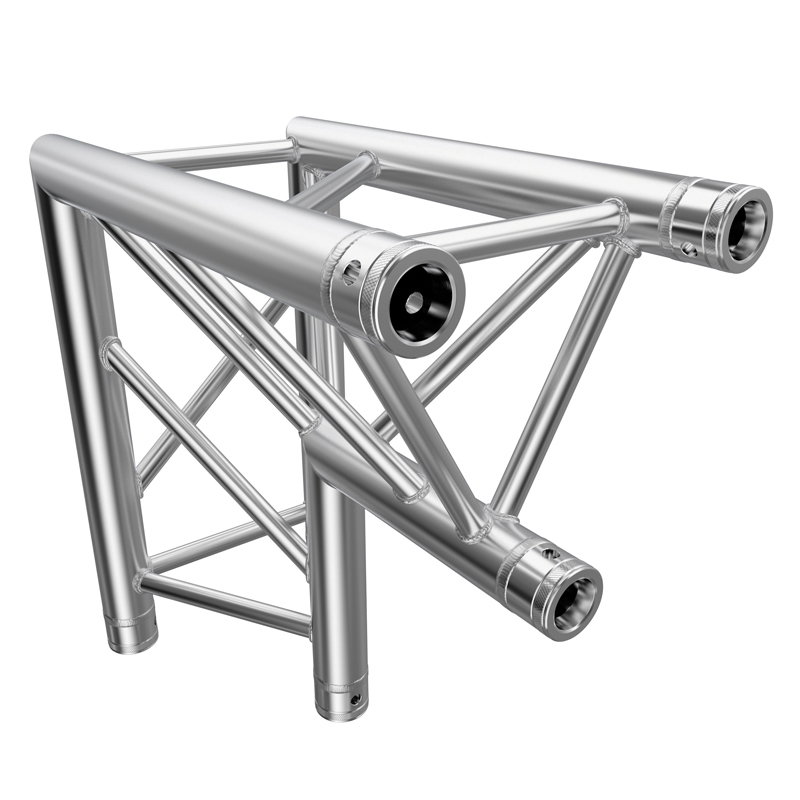

    The Global Truss F33 PL 2 Way 90 Degree Corner (apex in) is a pre-fabricated flat L-corner for the F33 PL triangular truss system. It joins two lengths of truss at a right angle in a single plane, with the triangular apex facing inward toward the corner. It is the standard block for forming rectangular frames, goalposts and perimeter rigs in fixed installations and rental work.

    F33 PL
    Series · 290mm triangular
    2 Way
    Junction · 90° corner
    Apex In
    Orientation · flat L-corner
    Conical
    Connection · PL spigot
    Apex orientationThis is the apex-in variant, with the triangular point facing the inside of the corner. Conical connectors with pins and R-clips are supplied for quick assembly. The PL (conical) connection is not cross-compatible with F33 spigoted truss, so keep mating parts within the PL range.
    Features
    Two-way 90-degree flat L-corner
    Apex-in orientation
    F33 PL 290mm triangular profile
    TUV-certified aluminium welding
    3mm main-tube wall thickness
    Conical connectors with pins and R-clips supplied
    Builds rectangular and perimeter frames
    Suited to fixed install and rental
    Specifications
    Series Global Truss F33 PL

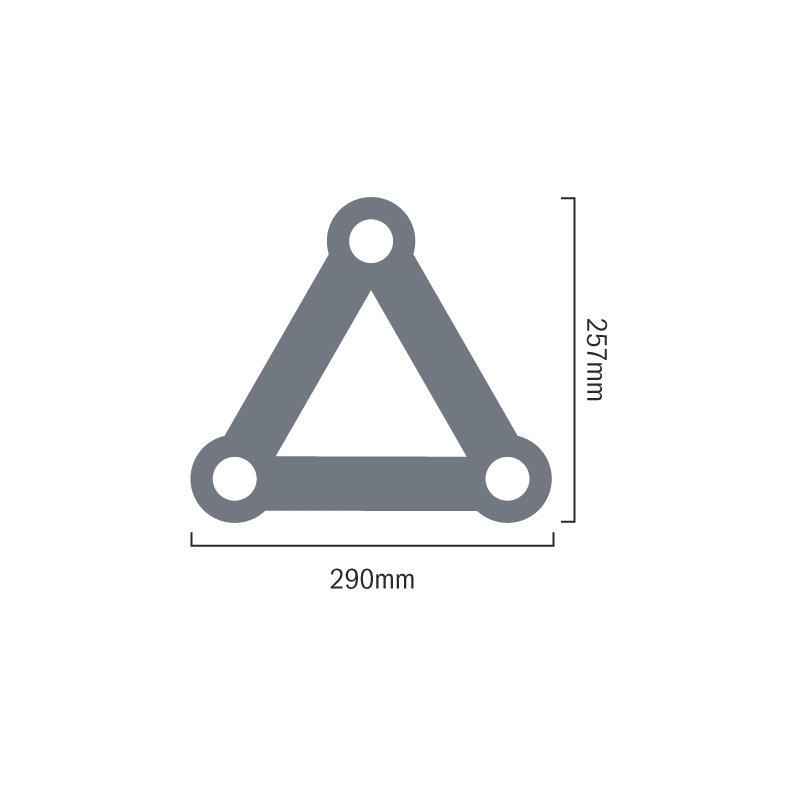

    Profile Triangular, 290mm
    Type 2-way 90° corner, apex in
    Manufacturer ref F33 C25PL
    Wall thickness 3mm
    Connection Conical (PL), pins & R-clips supplied
    SKU GL3311

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

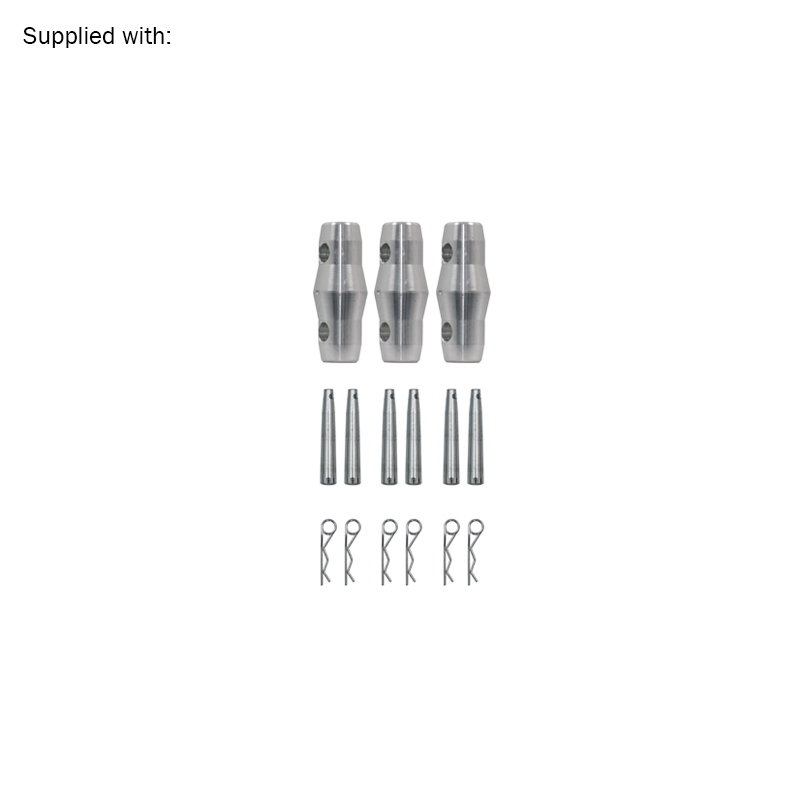

    • Supplied with 3 x Conicals, 6 x Pins and 6 x R-Clips
    • Prolyte H30 Truss compatible
    • Superior 3mm wall thickness aluminium

    Manuals & Downloads

    PDFDatasheets & Technical Docs: GL3311_LTPDF
    PDFDatasheets & Technical Docs: F33PL_Structural_ReportPDF
    PDFDatasheets & Technical Docs: F33PL_TUV_CertificatePDF
    PDFDatasheets & Technical Docs: GL3311_TD01PDF
