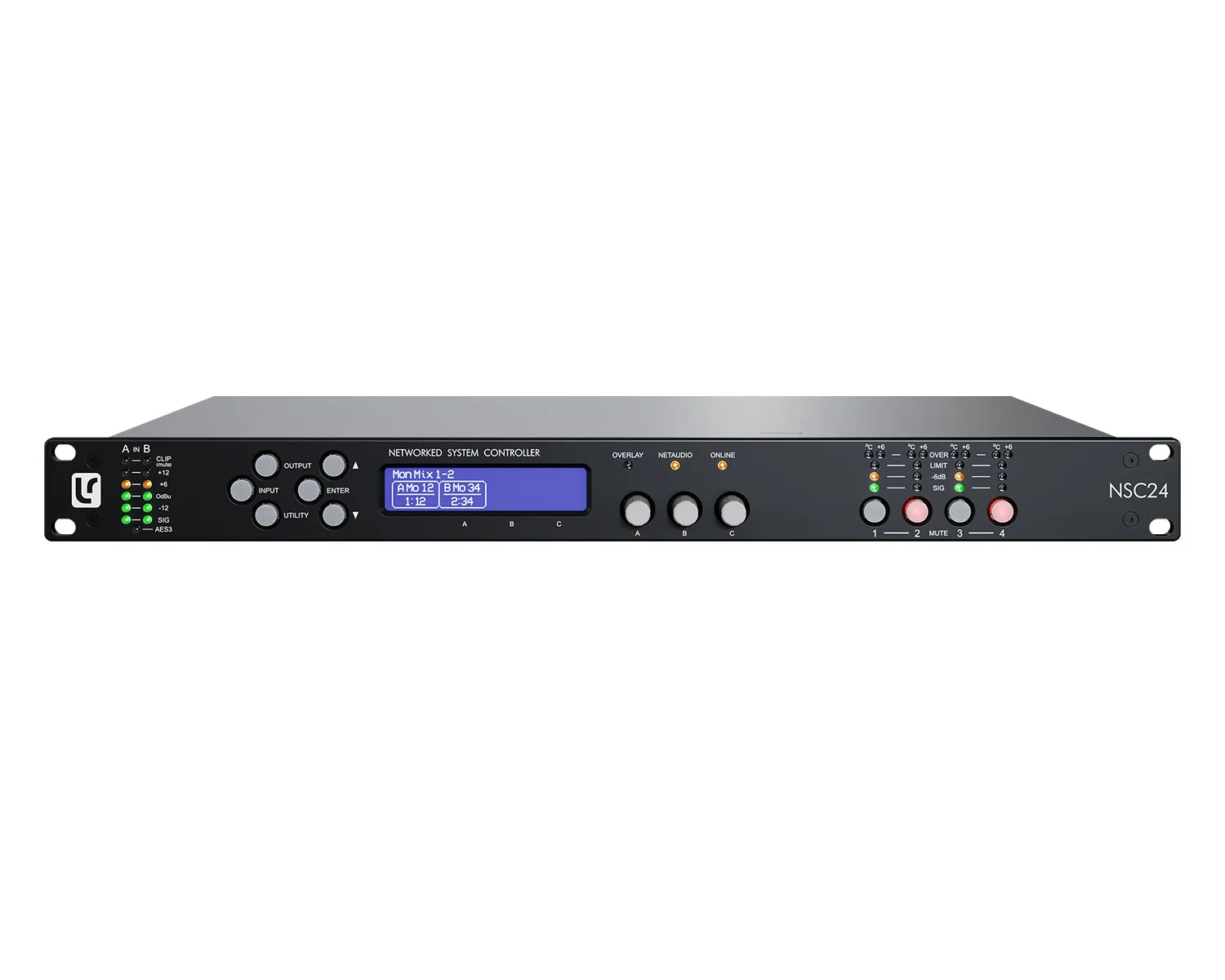

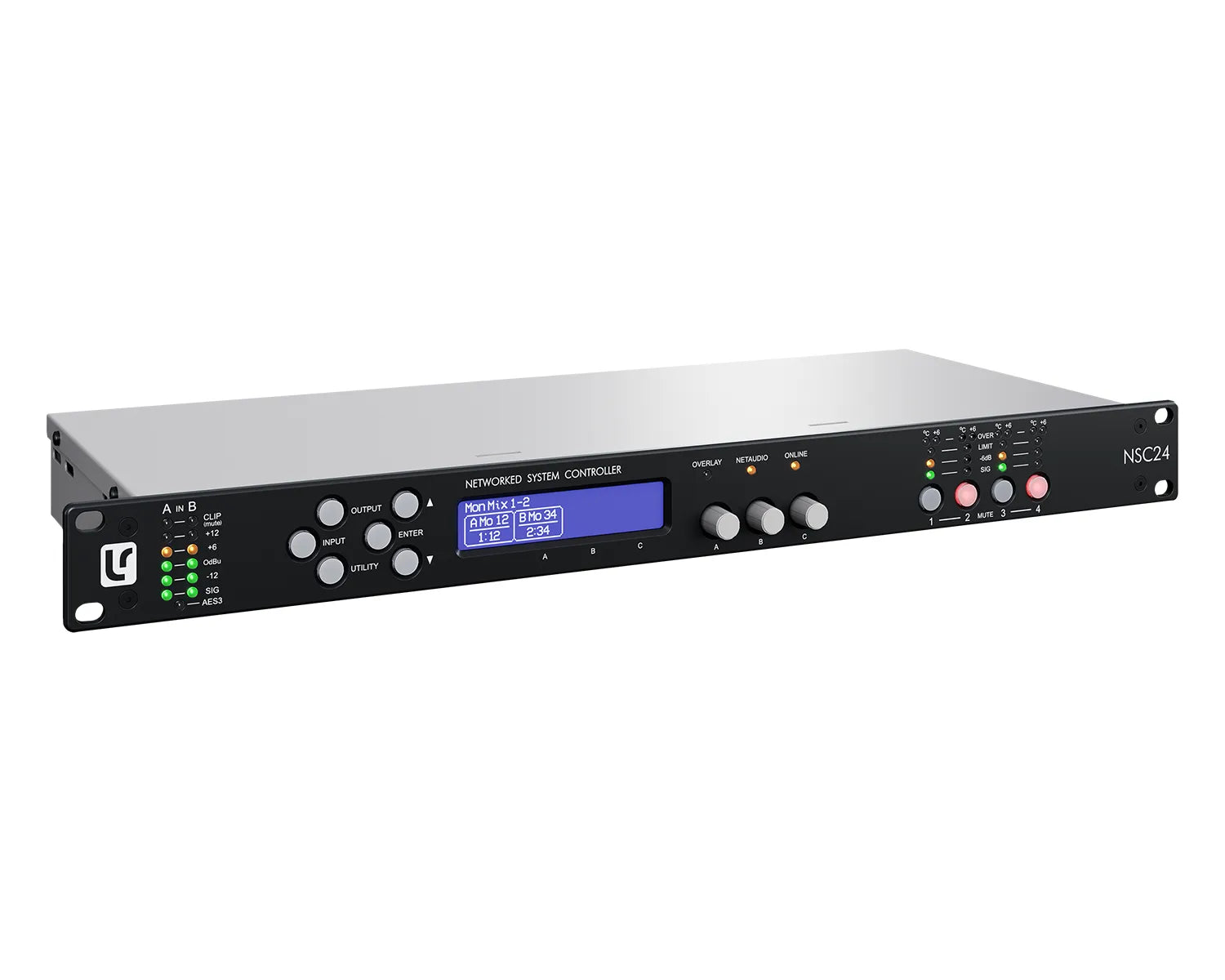

The Linea Research NSC24 is a 2-input, 4-output networked system controller built on ASC48-derived architecture with 96kHz DSP processing. Designed for loudspeaker management, digital crossover, and system control duties, the NSC24 provides LIR linear phase crossover filters and VX limiter protection in a compact 1U rack format with both analogue and AES3 connectivity.
2
Inputs · Analogue + AES3
4
Outputs · Analogue
96 kHz
DSP Sample Rate · Internal processing
1U
Form Factor · Rack mount
Features
96kHz DSP engine derived from ASC48 architecture
LIR linear phase crossover filters for phase-coherent system alignment
VX limiter suite – peak, RMS, and multiband limiting

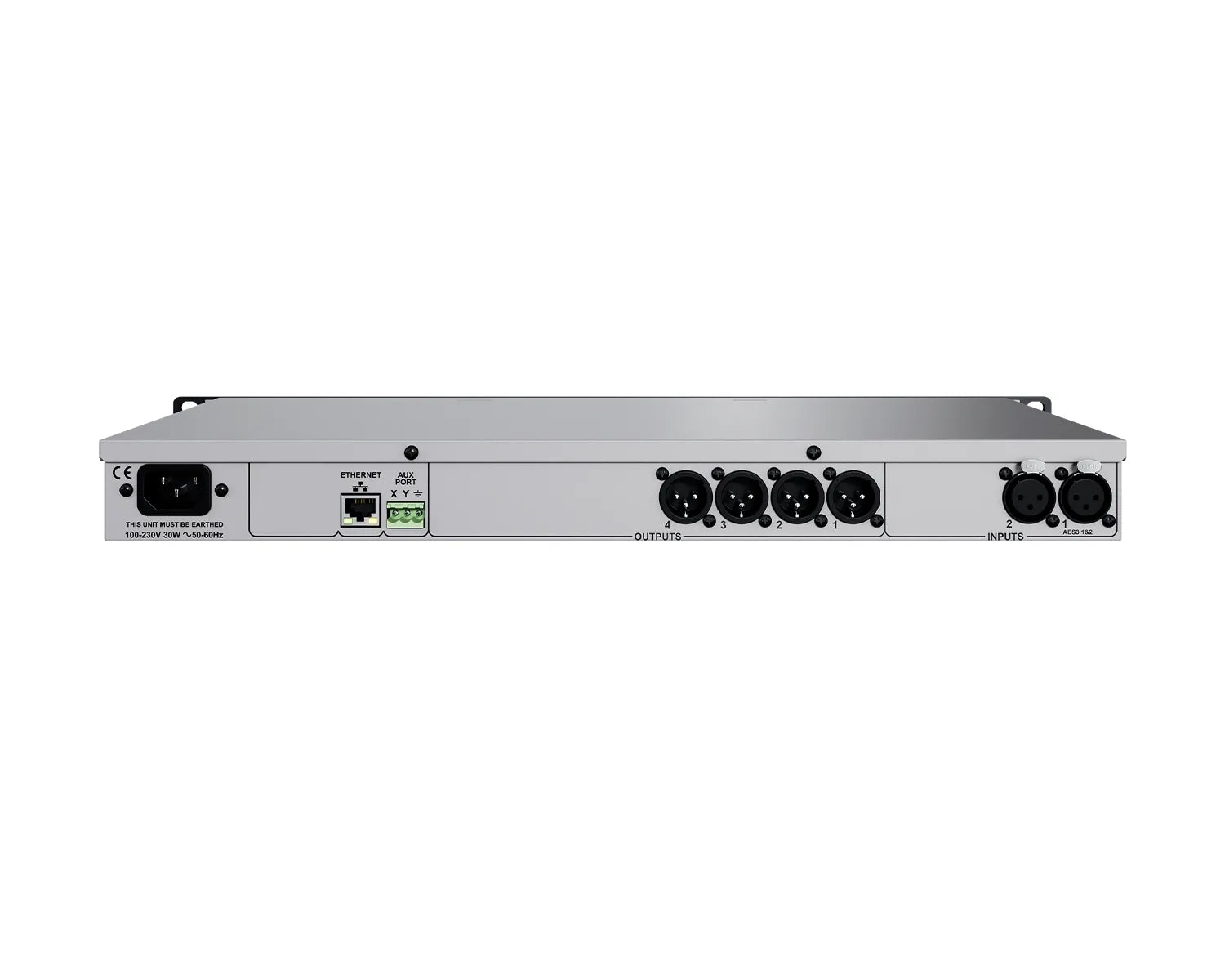

Analogue and AES3 inputs for flexible signal routing
Ethernet remote control via System Engineer software
Optimised front panel for local operation without a laptop
Audio can be received, processed, and transmitted entirely in the digital domain
Compact 1U rack-mount format
NoteThis is the non-Dante variant. For Dante I/O capability, see the NSC24 Dante.
Specifications
| SKU | ZL1457 |
| Inputs | 2 (Analogue + AES3) |
| Outputs | 4 (Analogue) |
| DSP Sample Rate | 96 kHz |
| Crossover Filters | LIR (Linear Phase) |
| Limiter | VX Limiter Suite (Peak, RMS, Multiband) |
| Dante | No |
| Remote Control | Ethernet |
| Software | System Engineer |
| Form Factor | 1U rack mount |
