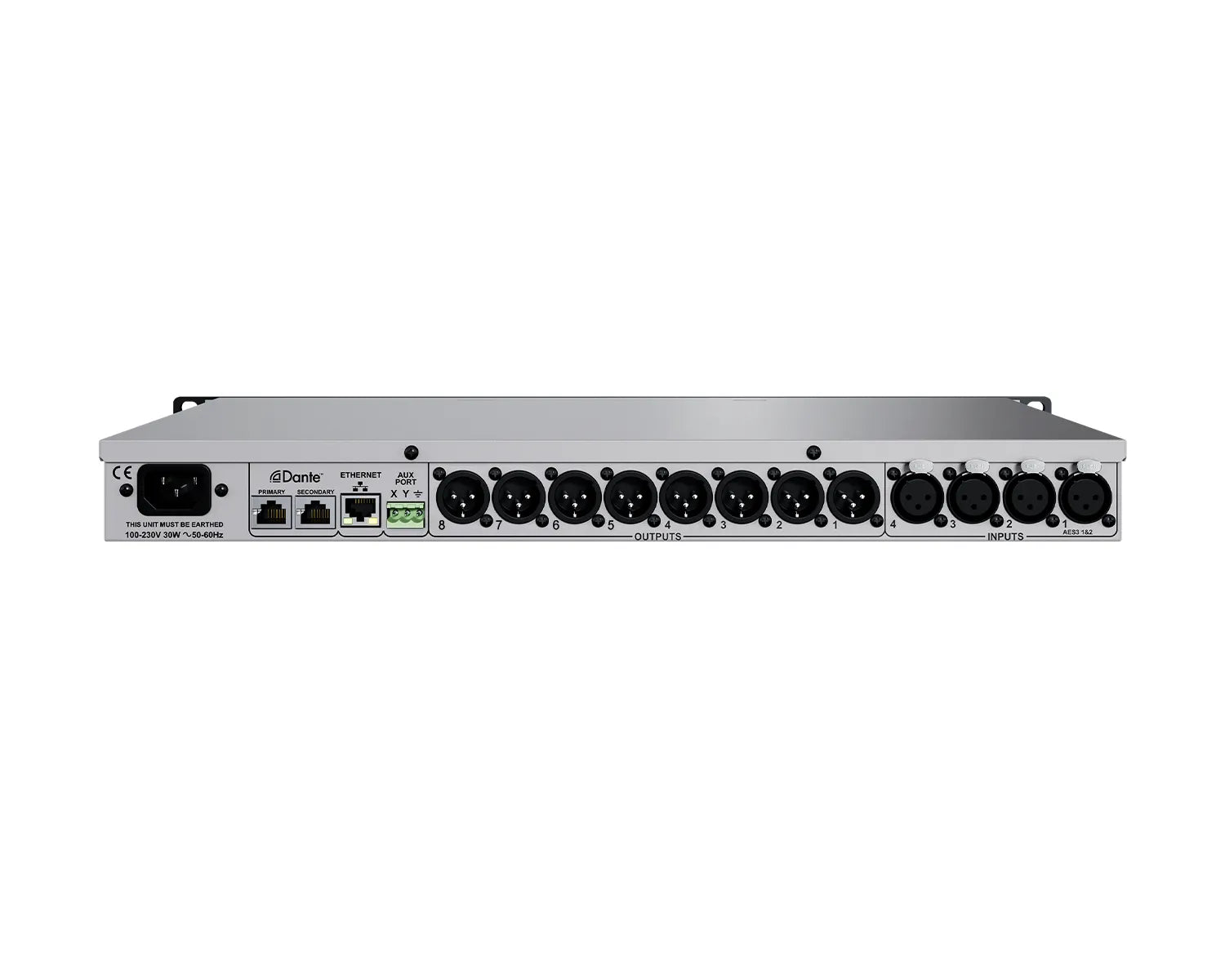

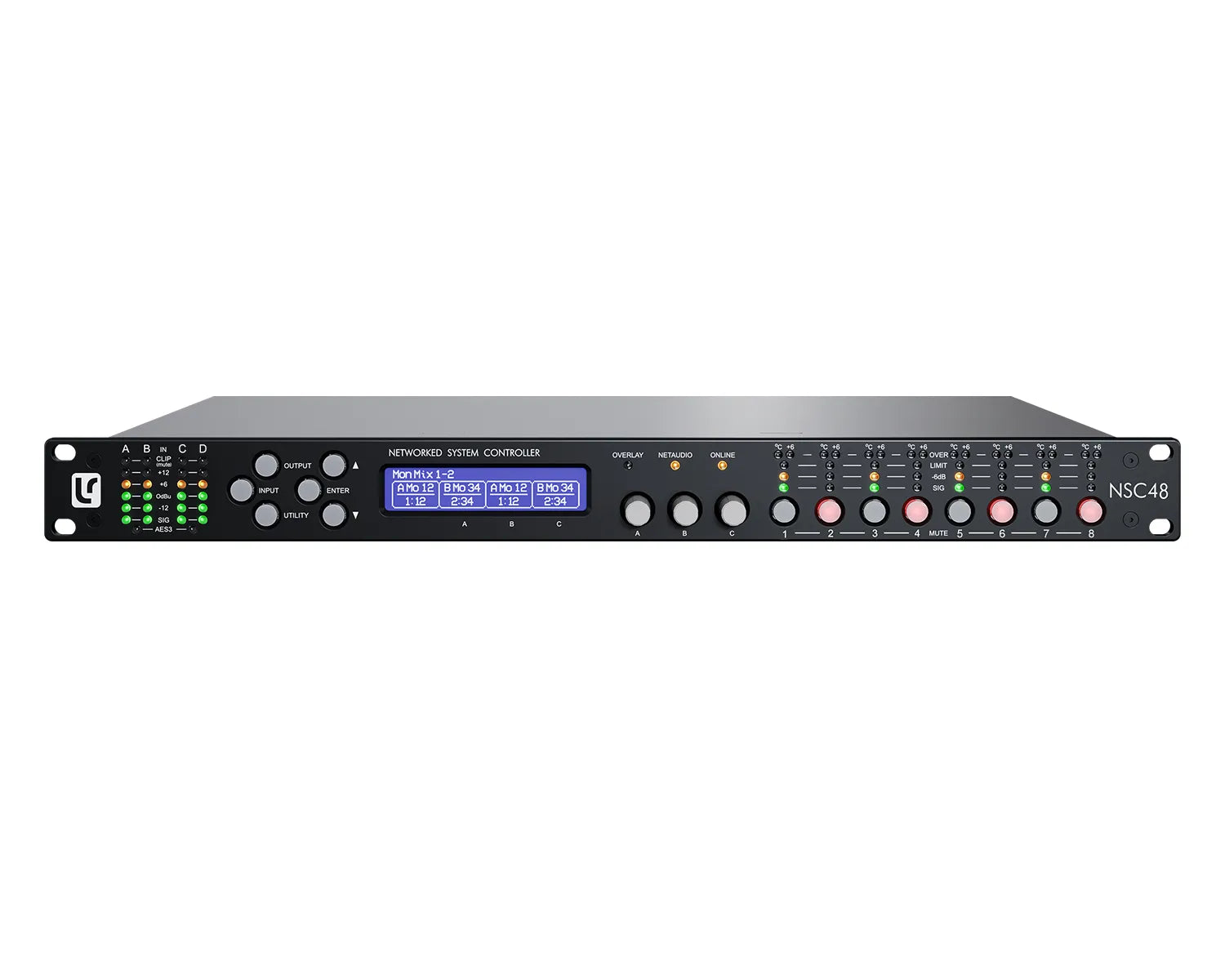

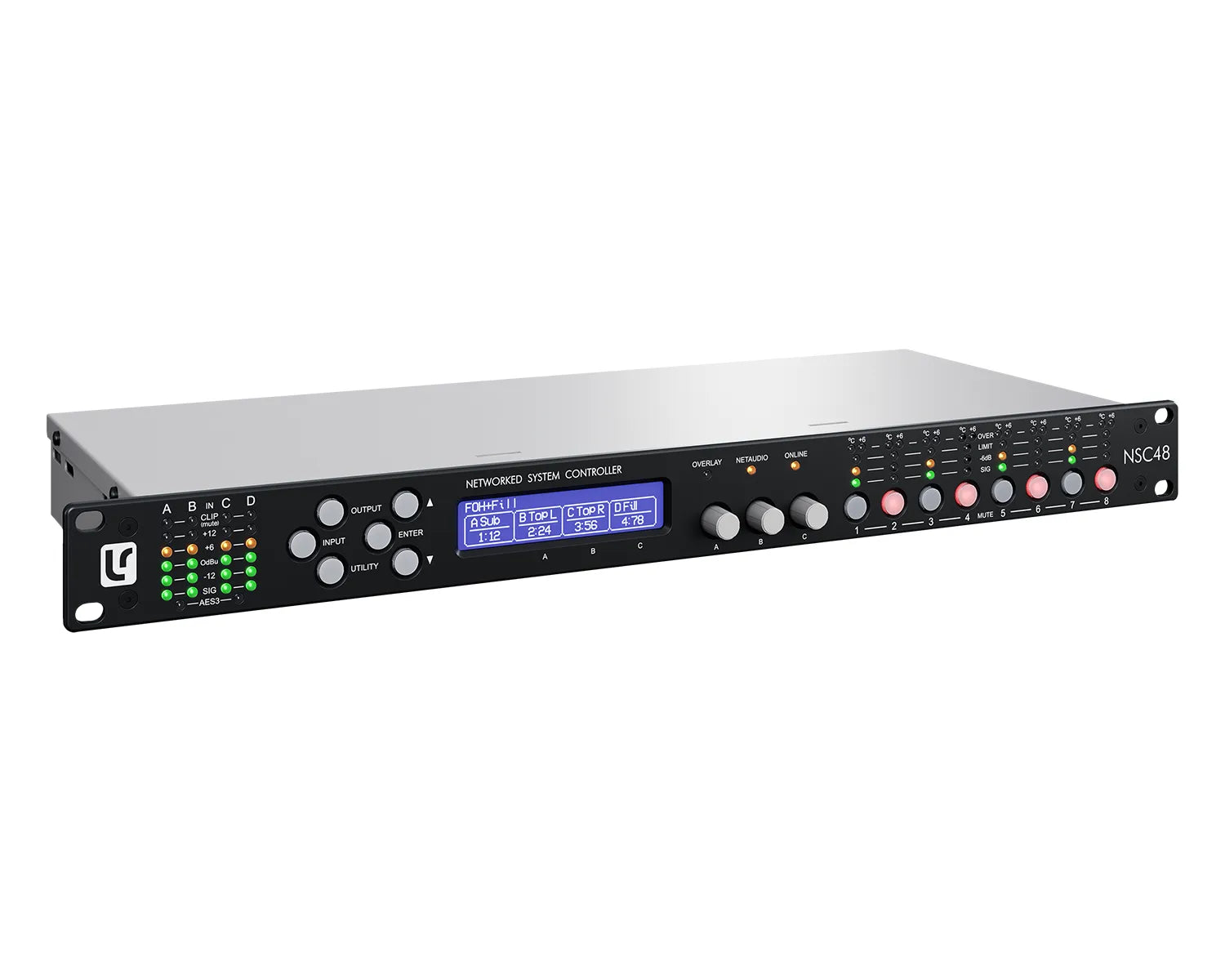

The Linea Research NSC48 Dante is the flagship of the NSC range – a 4-input, 8-output networked system controller with integrated Dante audio networking and 96kHz DSP processing. With eight outputs and Dante connectivity, it handles the most demanding multi-way and multi-zone loudspeaker configurations while keeping the entire signal chain in the digital domain from console to processor output.
Inputs
4
Analogue + AES3 + Dante
Outputs
8
Analogue + Dante
DSP Sample Rate
96 kHz
Internal processing
Networking
Dante
Integrated
Features
✓
96kHz DSP engine derived from ASC48 architecture
96kHz DSP engine derived from ASC48 architecture
✓
LIR linear phase crossover filters for phase-coherent system alignment
LIR linear phase crossover filters for phase-coherent system alignment
✓
VX limiter suite – peak, RMS, and multiband limiting
VX limiter suite – peak, RMS, and multiband limiting
✓
Integrated Dante I/O for networked audio transport
Integrated Dante I/O for networked audio transport
✓
8 outputs – the most in the NSC range for demanding system configurations
8 outputs – the most in the NSC range for demanding system configurations
✓
Analogue and AES3 inputs alongside Dante connectivity
Analogue and AES3 inputs alongside Dante connectivity
✓
Ethernet remote control via System Engineer software
Ethernet remote control via System Engineer software
✓
Optimised front panel for local operation without a laptop
Optimised front panel for local operation without a laptop
Specifications
| SKU | ZL1455D |
| Inputs | 4 (Analogue + AES3 + Dante) |
| Outputs | 8 (Analogue + Dante) |
| DSP Sample Rate | 96 kHz |
| Crossover Filters | LIR (Linear Phase) |
| Limiter | VX Limiter Suite (Peak, RMS, Multiband) |
| Dante | Yes – integrated I/O |
| Remote Control | Ethernet |
| Software | System Engineer |
| Form Factor | 1U rack mount |
