Mennekes

Mennekes 63A 415V 3 Phase Commando 3P+N+E Panel Mount Inlet (3658)

SKU: 3658
Mennekes 63A 415V 3P+N+E Panel Mount Inlet (3658)
Mennekes 63A 415V 3P+N+E Panel Mount Inlet (3658)
Click to enlarge

    £75.00 inc VAT
    £62.50 ex VAT

    10 available online
    Delivered by MondayOrder by 3pm
    Click & Collect tomorrow ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

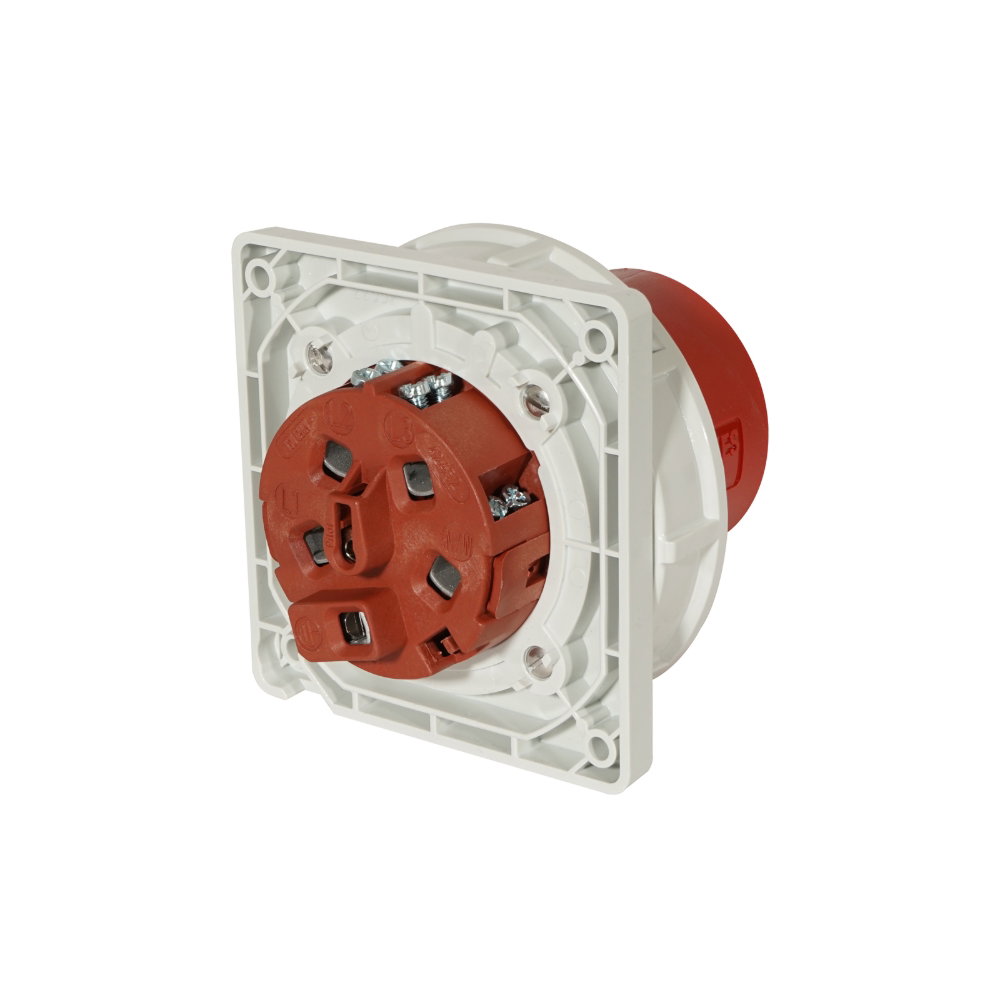

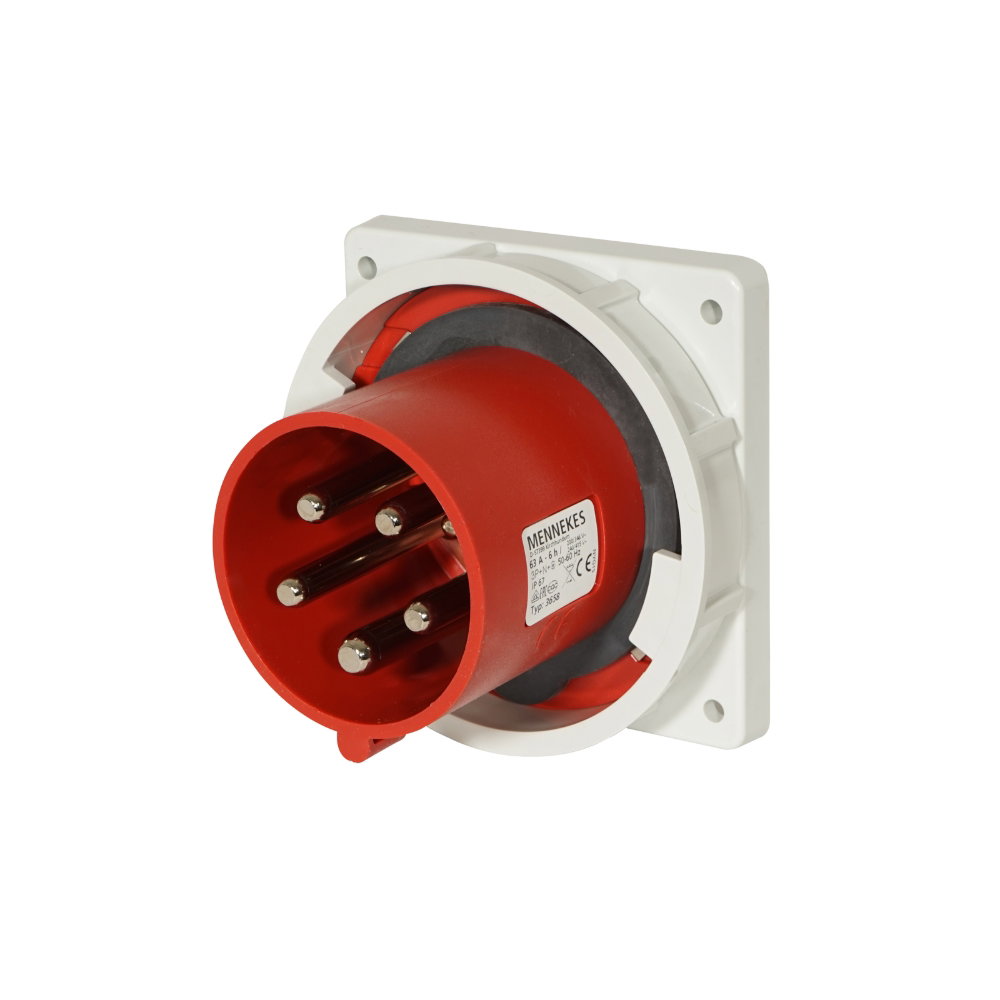

    The Mennekes 63A 415V 3P+N+E panel mount inlet (part 3658) is an IP67-rated CEE-type flanged appliance inlet for three-phase power connections in the event and rental industry. It uses screw terminals and nickel-plated contacts in a highly heat-resistant carrier, and mounts to a panel with a 88.5mm cut-out.

    Key Features
    63A 415V three-phase panel mount inlet
    3P+N+E configuration
    IP67 rated, CEE-type flanged inlet
    Screw terminals
    Heat-resistant contact carrier, nickel-plated contacts
    88.5mm panel cut-out, 90 x 90mm fixing centres
    Specifications
    Current rating 63A
    Voltage 415V three-phase
    Configuration 3P+N+E
    IP rating IP67
    Panel cut-out 88.5mm diameter
    Fixing centres 90 x 90mm
    Flange 110 x 106mm
    Dimensions (H x W x D) 110 x 106 x 86mm
    Weight 590g

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

    • Screw terminals
    • Highly heat resistant contact carrier
    • Nickel plated contacts
    • Retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking

    Manuals & Downloads

    PDFDatasheets & Technical Docs: CONN478_DatasheetPDF
    PDFDatasheets & Technical Docs: CONN478_CertificationPDF
