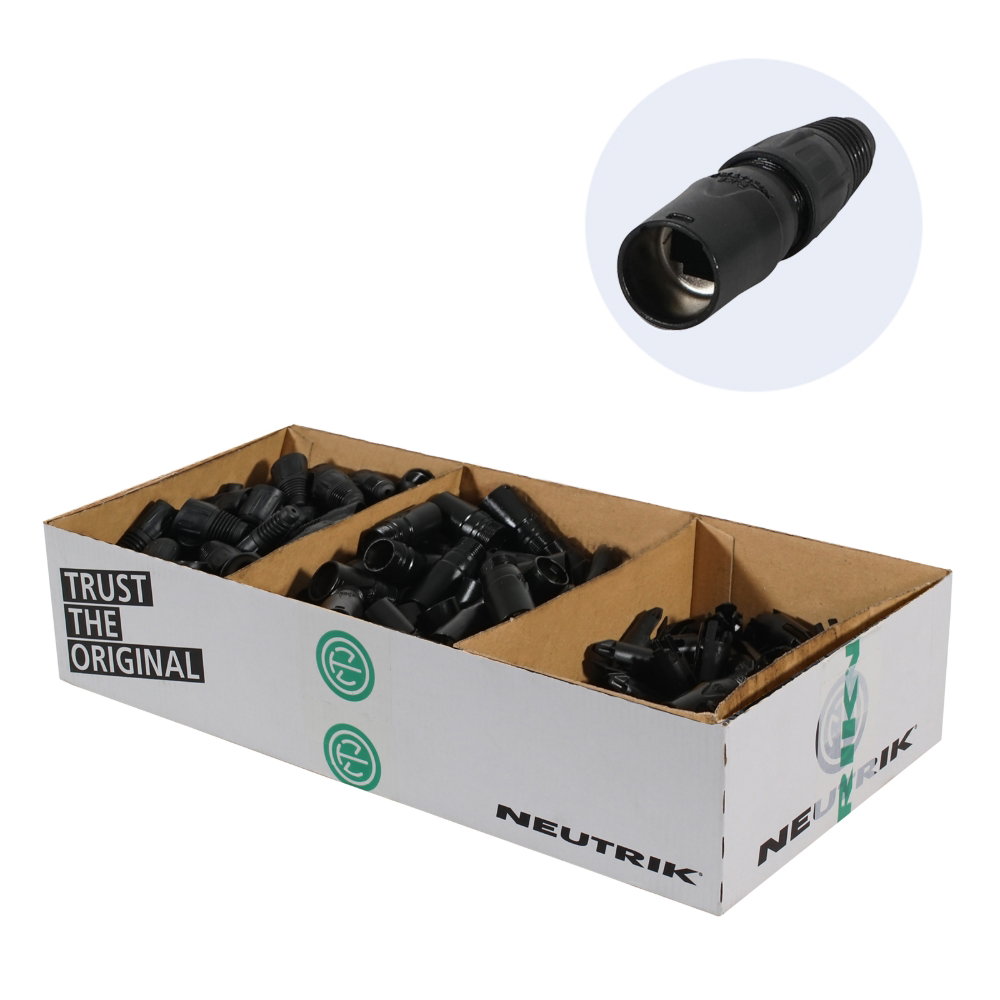

The Neutrik NE8MX-B-1-D is the cable carrier element of the etherCON RJ45 system, supplied here as a bulk pack of 100. Each carrier is the rugged metal shell that a standard RJ45 patch plug slides into, converting a fragile network lead into a locking, road-ready etherCON cable end suited to touring, broadcast and permanent AV installation.
100
Pack Size · carriers
RJ45
Interface · cable carrier
Black
Finish · etherCON series
Carrier OnlyThis is the cable carrier shell that houses a customer-crimped RJ45 plug. It is for non pre-assembled cable, so slide it onto the cable before crimping the plug. It mates with etherCON panel receptacles to give a locking, latched connection that resists pull-out and strain on cable-to-cable and cable-to-panel links.
Features
Rugged metal shell protects the RJ45 plug in the field
Push-pull locking latch resists accidental disconnection
For non pre-assembled cable, 3.5 to 8 mm OD
Mates with etherCON receptacles (not Cat6 NE8FDY-C6 types)
Black finish for discreet touring and install use
Bulk pack of 100 for cable assembly runs
NoteThe RJ45 patch plug is not supplied. This carrier houses a customer-fitted plug. For outdoor IP65 use see the NE8MXR-B-TOP, which also takes a customer-fitted plug.
Specifications
| Model | NE8MX-B-1-D |
| Type | etherCON RJ45 cable carrier |
| Colour | Black |
| Pack quantity | 100 |
| Series | Neutrik etherCON |
