NEXO DTDIU Digital Controller

SKU: 01DTD-IU
NEXO DTDIU Digital Controller
NEXO DTDIU Digital Controller
NEXO DTDIU Digital Controller
Click to enlarge

    £780.00 inc VAT
    £650.00 ex VAT

    4 available online
    More available from supplier in 1–3 weeks
    FREE delivery by ThursdayOrder by 3pm Tuesday
    Click & Collect Wednesday ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    3 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The NEXO DTDIU is a dedicated digital speaker controller in the install-optimised DTD-I form factor, delivering advanced crossover, EQ, time-alignment, and speaker protection processing derived from NEXO’s NXAMP technology. Purpose-built for permanent installations, all connectors (except the mini-USB configuration port) sit on a rear barrier strip, and settings can be locked to prevent accidental changes, making it well suited to venues, houses of worship, and corporate AV environments where the system should stay exactly as the integrator configured it.

    64-bit / 96kHz
    Processing · High-resolution DSP
    >112 dB
    Dynamic Range · Analogue in to analogue out
    <0.001%
    Distortion · THD
    Rear Panel
    Connectivity · Barrier strip connections
    Features
    All connectors on rear barrier strip, clean, tamper-resistant installation
    Lockable settings prevent accidental changes after commissioning
    Configuration via PC or Mac over USB, no front-panel controls to interfere with
    Speaker processing algorithms derived from NEXO NXAMP technology
    Crossover, EQ, time-alignment, and speaker protection in a single unit
    Linear Acoustic Phase algorithms, phase-compatible with NEXO PS, LS, and other cabinets
    Stereo balanced analogue inputs, AES input, and driverless USB audio playback
    Automatic amplifier sensing for streamlined system setup
    NoteThis is a speaker processor, not an amplifier, it requires external amplification to drive NEXO cabinets. The DTD-I has no front-panel controls; all configuration is performed via the mini-USB port using PC/Mac software. For the Dante-enabled install variant, see the DTDIN.
    Specifications
    SKU 01DTD-IU
    Form Factor Install (DTD-I), compact rack-mount
    Processing Resolution 64-bit / 96 kHz
    Dynamic Range >112 dB (analogue in to analogue out)
    Distortion <0.001% THD
    Analogue Inputs Stereo balanced (rear barrier strip)
    Digital Inputs AES, USB (driverless audio playback)
    Analogue Outputs Balanced, PS (stereo), LS (mono sum)
    Configuration PC/Mac via mini-USB (lockable settings)
    Dante No
    Processing Crossover, EQ, time-alignment, speaker protection
    Compare the Range
    NEXO DTDIU Digital Controller
    NEXO DTDIU Digital Controller
    £780.00 inc VAT
    £650.00 ex VAT
    • Install Version
    • No Network
    Viewing Now

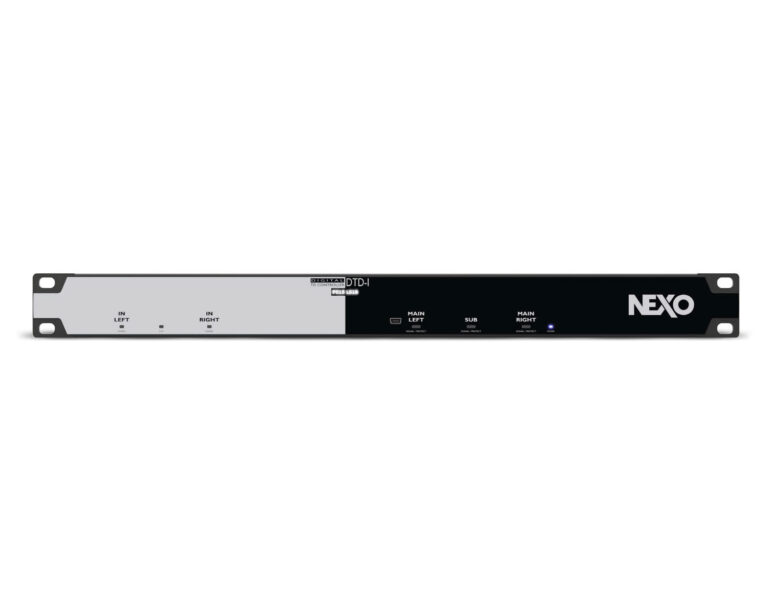

    NEXO DTDIN Dante Digital Controller
    NEXO DTDIN Dante Digital Controller
    £829.00 inc VAT
    £690.83 ex VAT
    • Install Version
    • Dante Network
    View →
    NEXO DTDTU Standard Digital Controller
    NEXO DTDTU Standard Digital Controller
    £829.00 inc VAT
    £690.83 ex VAT
    • Touring Version
    • No Network
    View →

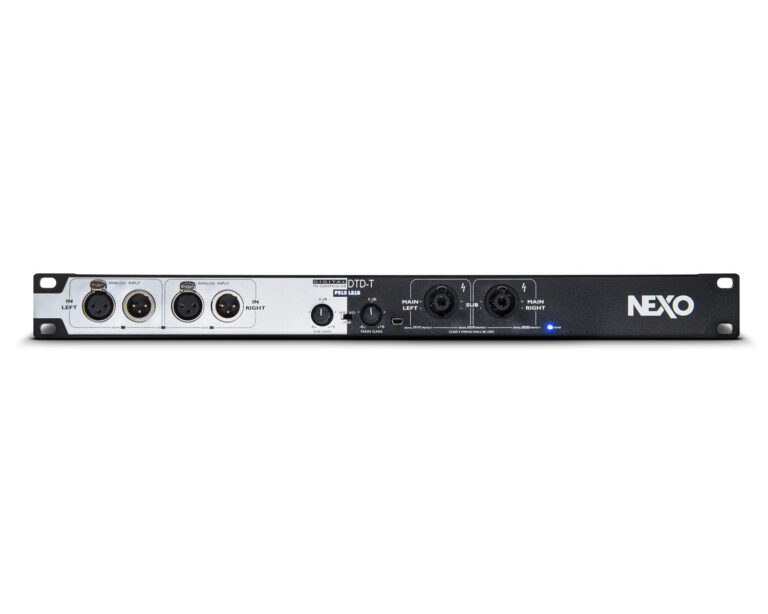

    NEXO DTDTN Dante Digital Controller
    NEXO DTDTN Dante Digital Controller
    £918.00 inc VAT
    £765.00 ex VAT
    • Touring Version
    • Dante Network
    View →

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

    General

    • Sampling Frequency and Resolution: 48/96 KHz, 64 bits internal processing precision
    • Signal Delay: Less than 1 ms (analogue into out) on flat setup, compatible with NXAMP latency
    • Frequency Response: 20 Hz to 20 KHz, +/-0.5 dB (mains out) 20 Hz to 2 KHz +/-0.5 dB (sub out)
    • Total Harmonic Distortion: Less than 0.001% (mains out) less than 0.02% (sub out)
    • Dynamic Range: 112 dB (unweighted, mains out) 107 dB (unweighted, sub out)
    • Crosstalk / Channel Separation: -100 dB (1KHz)
    • Indicators: Input signal/peak (green/red), amp in signal (green), speaker protect (yellow)
    • Display: White backlight graphical OLED display 96 x 16 pixels
    • Switch and Rotary Knobs: 3 position switch + 2 x rotary knobs
    • Power Supply Voltage: 90 V - 240 V 50/60 Hz
    • Power Consumption: 20 W max
    • Heat Dissipation (per hour): 20 Kcal max
    • Operating Temperature Range: 0°C - 40 °C
    • Storage Temperature Range: -20 °C - 60 °C

    Analog Input Characteristics

    • Number of channels: 2 electronically balanced analog inputs
    • Connectors: 2 x terminal block (3-pin / 2.54 mm pitch)
    • Sampling frequency and resolution: 96 KHz / 24 bits
    • Max. input level / Input impedance: +22 dBU / 20 KOhms

    Amplifier Sensing Inputs

    • Number of channels: 4 floating electronically balanced high voltage analog inputs
    • Connectors: 1 x terminal block (8-pin / 5.08 mm pitch)
    • Sampling frequency and resolution: 48/96 KHz, 24 bits
    • Max. input level / Input impedance: +50 dBU (8000 Watts / 8 Ohms) / 364 KOhms

    AES Input Characteristics

    • Number of channels: 1 AES/EBU stereo digital input
    • Connectors: 1 x terminal block (3-pin / 2.54 mm pitch)
    • Sampling frequency and resolution: 44.1 to 96 KHz / 16, 20 or 24 bits

    USB Input Characteristics

    • Type: 2 channels of USB audio
    • Connector: Female mini USB connector type B
    • Sampling frequency and resolution: 48 KHz / 16 bits
    • Remote Control Connector (DTD-I-U): Mini USB
    • Remote Control Connector (DTD-I-N): Mini USB + RJ45

    Physical & Dimensions

    • Width: 480mm
    • Height: 44mm
    • Diameter: 65mm
    • Weight: 1.3kg
