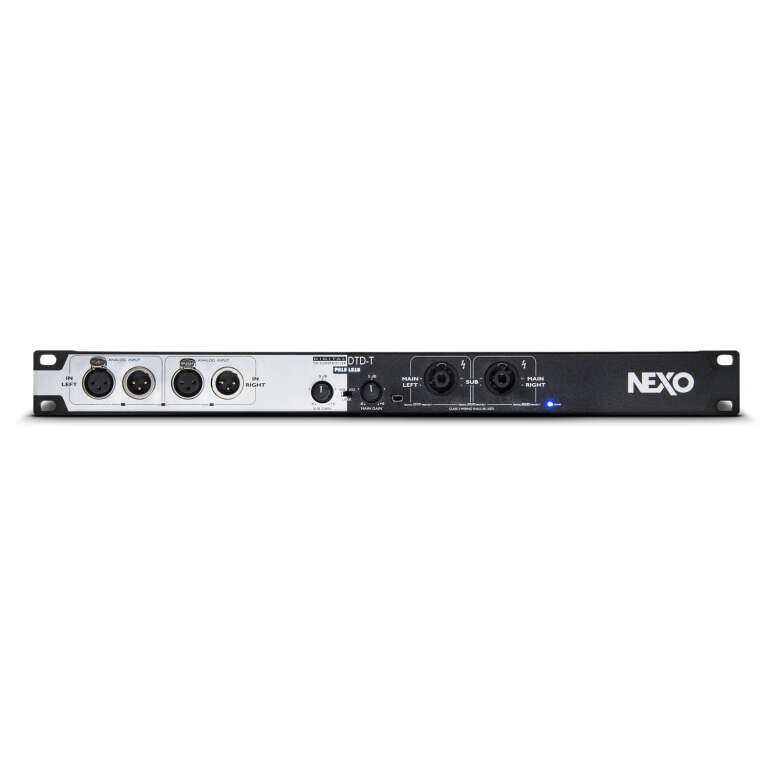

The NEXO DTDTU is a dedicated digital speaker controller in the touring-optimised DTD-T form factor, delivering advanced crossover, EQ, time-alignment, and speaker protection processing derived from NEXO’s NXAMP technology. Designed for use with external amplifiers driving NEXO PS and LS speaker systems, it provides front-panel hardware controls for rapid adjustments during live production — ideal for touring engineers who need hands-on access without reaching for a laptop.
Processing
64-bit / 96kHz
High-resolution DSP
Dynamic Range
>112 dB
Analogue in to analogue out
Distortion
<0.001%
THD
Format
Rack-Mount
Compact touring chassis
Features
✓
Front-panel Sub Gain, Main Gain, and Crossover Mode controls for hands-on adjustment
Front-panel Sub Gain, Main Gain, and Crossover Mode controls for hands-on adjustment
✓
Speaker processing algorithms derived from NEXO NXAMP technology
Speaker processing algorithms derived from NEXO NXAMP technology
✓
Crossover, EQ, time-alignment, and speaker protection in a single unit
Crossover, EQ, time-alignment, and speaker protection in a single unit
✓
Linear Acoustic Phase algorithms — phase-compatible with NEXO PS, LS, and other cabinets
Linear Acoustic Phase algorithms — phase-compatible with NEXO PS, LS, and other cabinets
✓
Stereo balanced analogue inputs, AES input, and driverless USB audio playback
Stereo balanced analogue inputs, AES input, and driverless USB audio playback
✓
Balanced analogue outputs for PS (stereo) and LS (mono sum)
Balanced analogue outputs for PS (stereo) and LS (mono sum)
✓
Automatic amplifier sensing for streamlined system setup
Automatic amplifier sensing for streamlined system setup
✓
64-bit/96kHz processing with >112 dB dynamic range
64-bit/96kHz processing with >112 dB dynamic range
Note
This is the standard (non-Dante) touring variant. For Dante networking capability, see the DTDTN. This is a speaker processor, not an amplifier — it requires external amplification to drive NEXO cabinets.
Specifications
| SKU | 01DTD-TU |
| Form Factor | Touring (DTD-T) — compact rack-mount |
| Processing Resolution | 64-bit / 96 kHz |
| Dynamic Range | >112 dB (analogue in to analogue out) |
| Distortion | <0.001% THD |
| Analogue Inputs | Stereo balanced |
| Digital Inputs | AES, USB (driverless audio playback) |
| Analogue Outputs | Balanced — PS (stereo), LS (mono sum) |
| Front Panel Controls | Sub Gain, Main Gain, Crossover Mode |
| Dante | No |
| Processing | Crossover, EQ, time-alignment, speaker protection |
