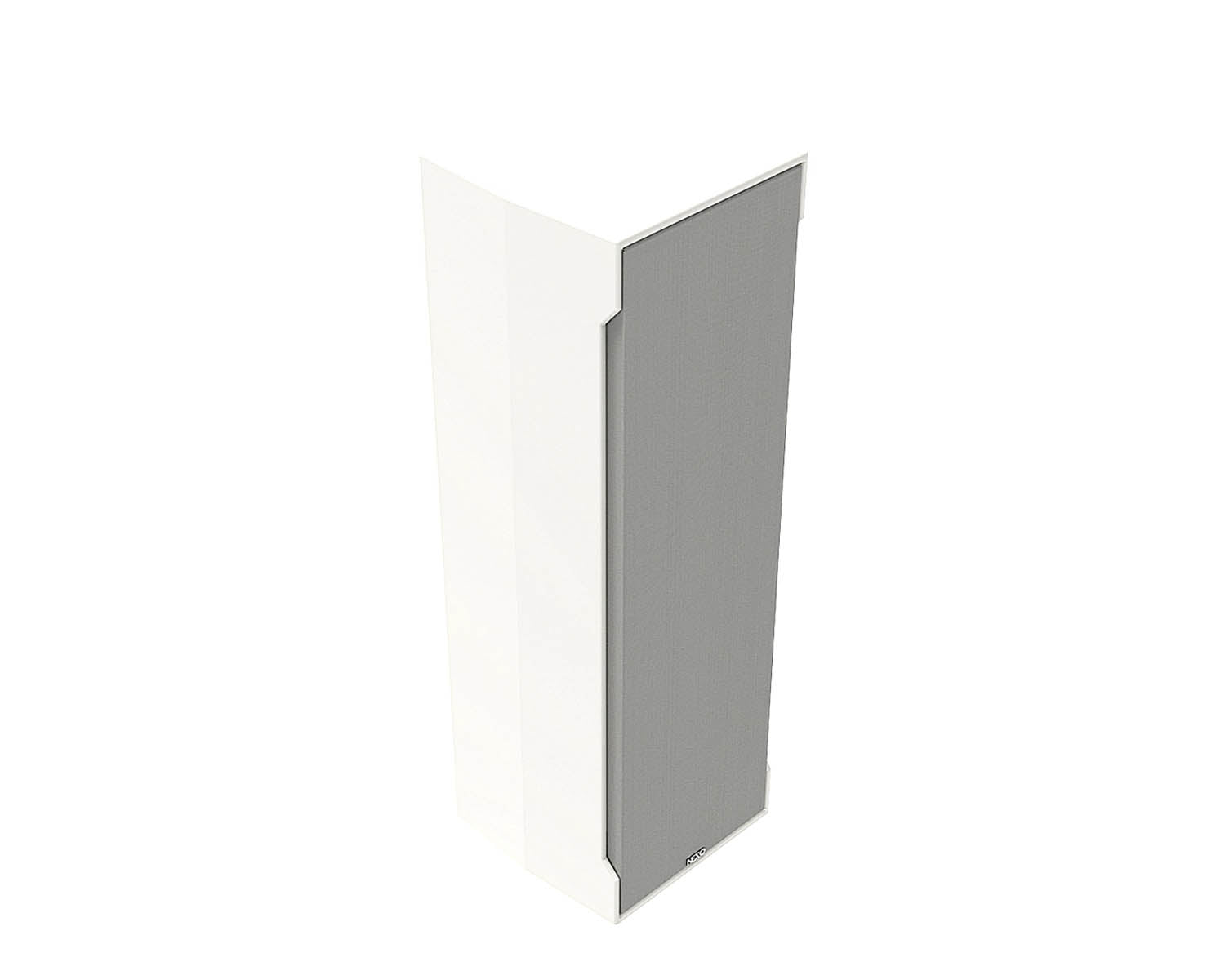

The NEXO IDS312 is a compact column subwoofer sharing the aesthetic and sonic signature of the wider ID Series, with NEXO’s characteristic size-to-power ratio. This is the Installation (I) version in a white finish, designed for permanent integration with its Magnelis grille covered by acoustic cloth and IP54-rated captive cabling.
Drivers
3 x Neodymium
High-excursion
Dimensions
1160 x 380 x 350
H x W x D (mm)
Weight
31 kg
Per enclosure
Finish
White
Install (I), IP54
ID84 companion
When the ID84 is fitted onto the IDS312 the assembly reaches an ideal height for audience coverage, with the crossover designed to extend both the frequency response and directivity of the main speaker, behaving as a homogeneous two-metre sound source. Note: the Install version does not include the Quick Connect system found on the Touring version.
Features
✓Three high-excursion Neodymium drivers in a bass-reflex enclosure
✓Elegant column format with NEXO size-to-power ratio
✓Purpose-designed crossover to the ID84 main speaker
✓Front Magnelis grille covered by acoustic cloth
✓IP54 rating via cable gland and captive two-core cabling
✓Shared phase response with the NEXO catalogue for easy mixing
✓Supplied with two rubber mats for horizontal installation
✓White finish (black or custom RAL also available on request)
Note
This is the white Installation (I) version: acoustic-cloth-covered grille, IP54 captive cabling and no Quick Connect system. The Touring version instead uses two NL4 connectors plus a top-cover Quick Connect for cableless coupling to the ID84.
Specifications
| Model | NEXO IDS312-I (White) |
| Type | Column subwoofer (install) |
| Drivers | Three high-excursion Neodymium |
| Enclosure | Bass-reflex |
| Dimensions (H x W x D) | 1160 x 380 x 350 mm |
| Weight | 31 kg |
| Protection | IP54 |
| Companion speaker | NEXO ID84 |
| Finish | White (black / custom RAL on request) |
