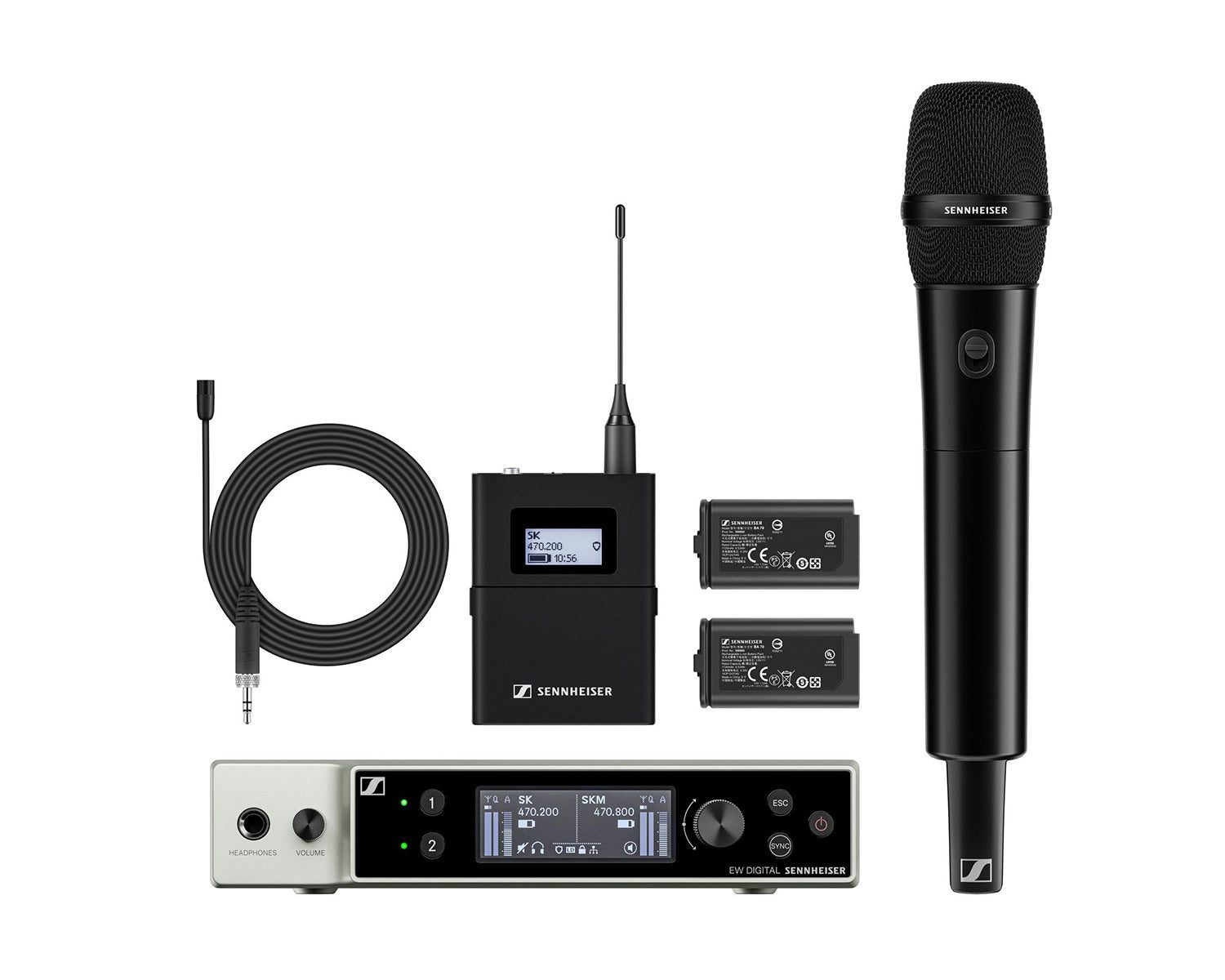

Sennheiser EW-DX Combo (S1-10) Wireless Set with MKE2 Lavalier and MMD 835 Handheld

EW-DX EM 2

• 2 channel half rack (9.5')
• Up to 88 MHz switching bandwidth
• PoE IEEE 802.3af Class 0
• Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
• Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
• Clear and easy focused user interface with OLED display
• Ethernet connectivity (IPv4 and IPv6)
• Secure AES 256 encryption
• External PSU 12V/1A
• All-metal housing

EW-Dx SKM-S

• 10mW RF power with up to 100m/328ft working range
• Charging contacts for in-device charging with CHG 70N
• Persistent eInk display - parameters visible on screen even when device is not powered on
• Programmable mute switch on EW-DX SKM-S - customize the device depending on your professional needs
• Function buttons - control all the transmitter settings directly from handheld microphone
• Extended runtime with lithium-ion batteries - up to 12 hours operation time
• Standard capsule interface - compatible with a wide range of Sennheiser and Neumann capsules
• Mic input trim control
• Metal housing

EW-DX SK

• 3.5 mm jack input (3-pin version is the separate EW-DX SK 3-PIN)
• 10mW RF power with up to 100m/328ft working range
• Charging contacts for in-device charging with CHG 70N
• Persistent eInk display - parameters visible on screen even when device is not powered on
• Programmable mute switch - customize the device depending on your professional needs
• Extended runtime with lithium ion batteries - up to 12 hours operation time
• Mic input trim control
• Metal housing

System

• Audio link frequency ranges:
  • Q1-9: 470.2 - 550 MHz
  • R1-9: 520 - 607.8 MHz
  • S1-10: 606.2 - 693.8 MHz
  • S2-10: 614.2 - 693.8 MHz
  • S4-10: 630 - 693.8 MHz
  • U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
  • V3-4: 925.2 - 937.3 MHz
  • V5-7: 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65 MHz
  • X1-6: 1350.2 - 1398.8 MHz
  • X9-18: 1435.2 - 1524.8 MHz
  • Y1-3: 1785.2 - 1799.8 MHz
• Bluetooth Low Energy (BLE) frequency range: 2402 - 2480 MHz
• Audio frequency response: 20 Hz - 20 kHz (-3 dB)
• Audio THD:
  • ‚⧠-60 dB for 1 kHz
  • @ -3 dBfs input level
• Dynamic range: 134 dB
• System latency: 1.9 ms
• Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
• Relative humidity: 5 - 95 % (non-condensing)

EW-DX EM 2 (Rack Receiver)

• Input voltage: 11 - 13 V ‚éì or PoE IEEE 802.3af Class 0 (CAT5e or higher)
• Input current: ‚⧠1 A
• Transmit power (radiated): BLE: max. 10 mW EIRP
• Audio output power: 18 dBu max.
• Headphone output: 2x 70 mW @ 32 Ω
• Ethernet:
  • RJ-45 socket, IEEE802.3
  • 100Base-TX (half+full duplex)
  • 10Base-T (half+full duplex)
  • (CAT5e or higher)
• Dimensions: 212 x 44 x 189 mm (8.35" x 1.73" x 7.44")
• Weight: approx. 1000 g (2.2 lbs) (without antennas and power supply)

MMD 835 (Microphone Module)

• Transducer principle: dynamic
• Sensitivity: 2.1 mV/Pa
• Sound pressure level: 154 dB SPL
• Pick-up pattern: cardioid

EW-DX SKM-S (Handheld Transmitter)

• Input voltage: 2.0 - 4.35 V
• Input current: < 300 mA
• Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
• Occupied bandwidth: 200 kHz
• Transmit power (radiated):
  • Audio link: 10 mW ERP
  • (Range Y1-3: 12 mW ERP)
  • LD mode: 10 mW ERP
  • BLE: max. 10 mW EIRP
• Dimensions (√∏ x l)
  • (incl. MMD 835 microphone module): 50 x 268 mm (1.97" x 10.55")
  • (without microphone module): 40 x 200 mm (1.57" x 7.87")
• Weight (without batteries)
  • (incl. MMD 835 microphone module): approx. 304 g (0.67 lbs)
  • (without microphone module): approx. 195 g (7.14 lbs)

EW-DX SK (Bodypack Transmitter)

• Input voltage: 2.0 - 4.35 V
• Input current: < 300 mA
• Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
• Occupied bandwidth: 200 kHz
• Transmit power (radiated):
  • Audio link: 10 mW ERP
  • (Range Y1-3: 12 mW ERP)
  • LD mode: 10 mW ERP
  • BLE: max. 10 mW EIRP
• Dimensions (without antenna): 63.5 x 85 x 20 mm (2.5" x 3.35" x 0.79")
• Weight (without batteries): approx. 115-120 g (0.26- 0,27 - lbs)

MKE 2

• Frequency response (Microphone): 20 - 20000 Hz +- 3 dB
• Transducer principle (Microphone): pre-polarised condenser microphone
• Connection cable: 3.5mm Jack
• Pick-up pattern: omni-directional
• Sensitivity in free field, no load (1kHz): 5 mV/Pa +- 3 dB
• Nominal impedance: 1000 Ω
• Min. terminating impedance: 4700 Ω
• Equivalent noise level: 26 dB
• Equivalent noise level weighted as per CCIR 468-3: 39 dB
• Maximum sound pressure level (passiv): 142 dB
• Current consumption: ca. 250 ¬µA
• Operating voltage (stand alone): 7,5 V
