Sennheiser XSW1 Dual (GB) Wireless Handheld Set with 2 x e835 Capsules

Product code: 3329

£569.00 inc VAT
£474.17 ex VAT

SKU: 508275
11 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
2 Year Manufacturer Warranty Included

About this Product

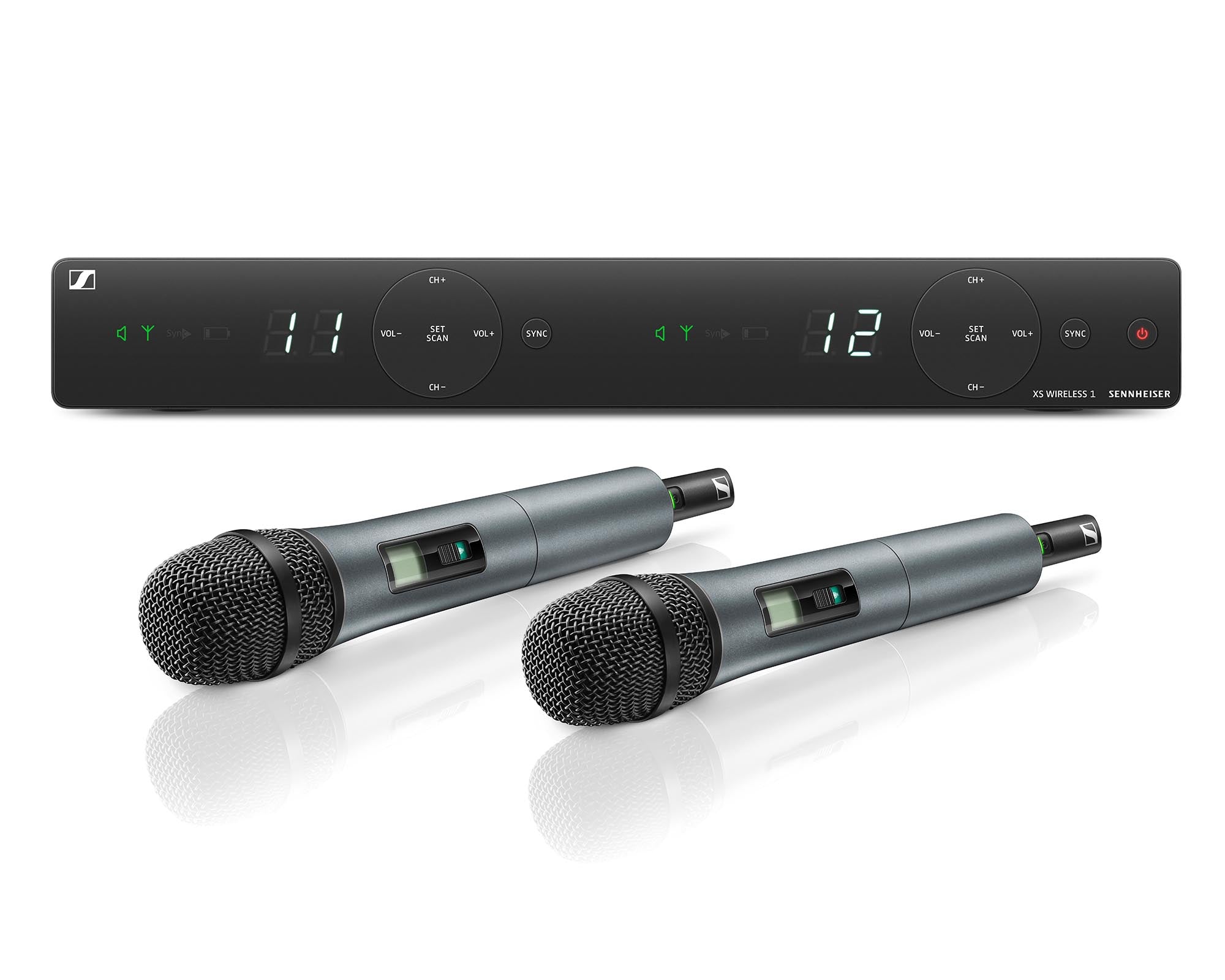

The Sennheiser XSW 1-835 Dual handheld set is a twin-channel UHF wireless vocal system in the GB band (606-630 MHz, UK CH38). It is supplied with two SKM-XSW handheld transmitters fitted with the e835 cardioid dynamic capsule and the EM-XSW 1 Dual twin-channel receiver with integrated antennas, aimed at small venue live sound, AV hire, education and houses of worship.

Key Features

Twin-channel UHF wireless handheld set
Two SKM-XSW handheld transmitters
Two Sennheiser e835 cardioid dynamic capsules
EM-XSW 1 Dual twin receiver with XLR and jack outputs
GB 606-630 MHz (UK CH38)
Automatic frequency setup
Up to 10 compatible channels
Operates under Ofcom Shared PMSE licence in the UK
UK LicensingThe GB variant operates in 606-630 MHz covering UK CH38, available under the Ofcom Shared PMSE licence.

Specifications

Sennheiser XSW1 Dual (GB) Wireless Handheld Set with 2 x e835 Capsules specifications
Family XS Wireless 1
Set XSW 1-835 Dual-GB
Sennheiser article 508275
Frequency band GB (606-630 MHz)
Transmitters 2 x SKM-XSW handheld
Capsules 2 x e835 cardioid dynamic

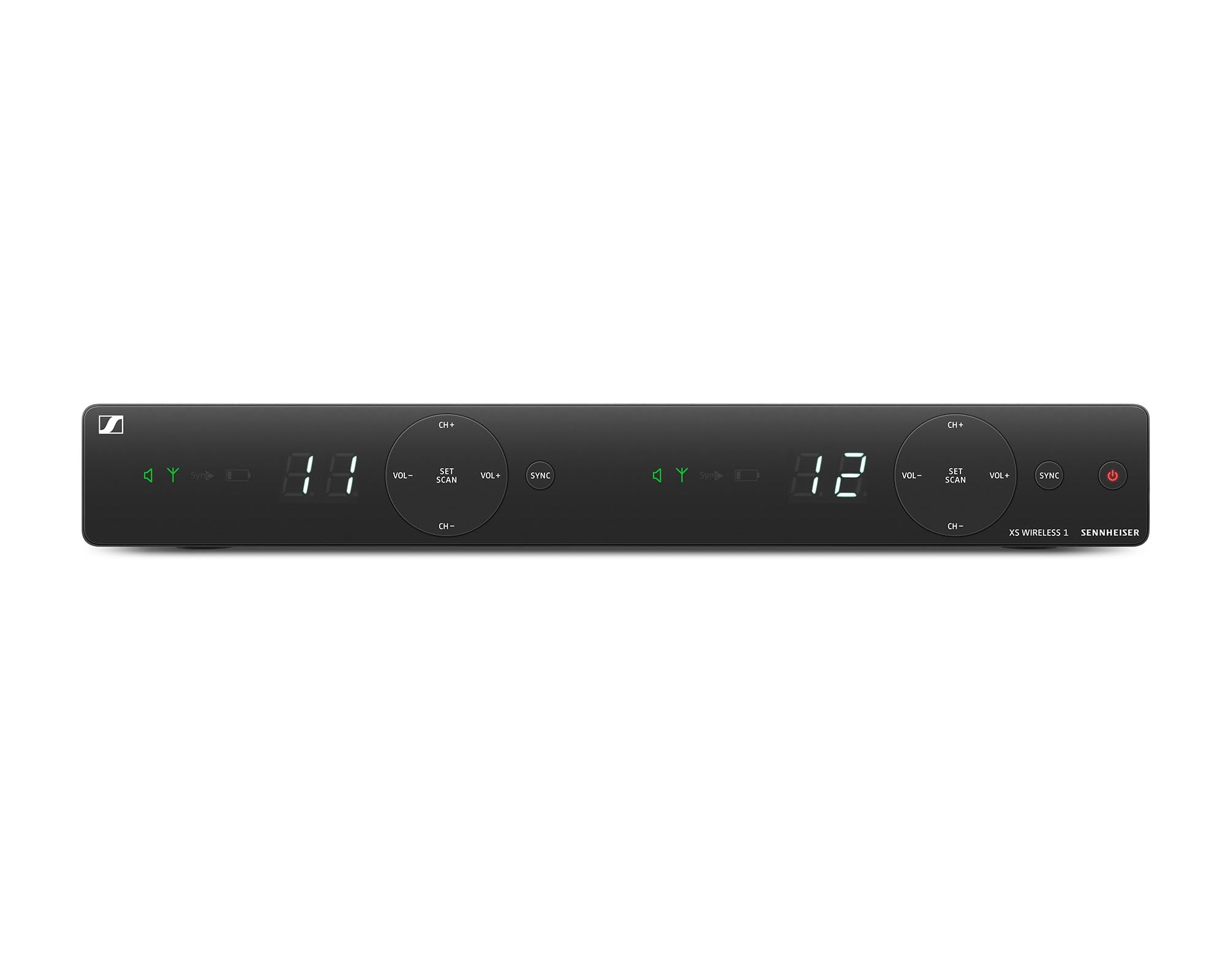

Receiver EM-XSW 1 Dual twin channel

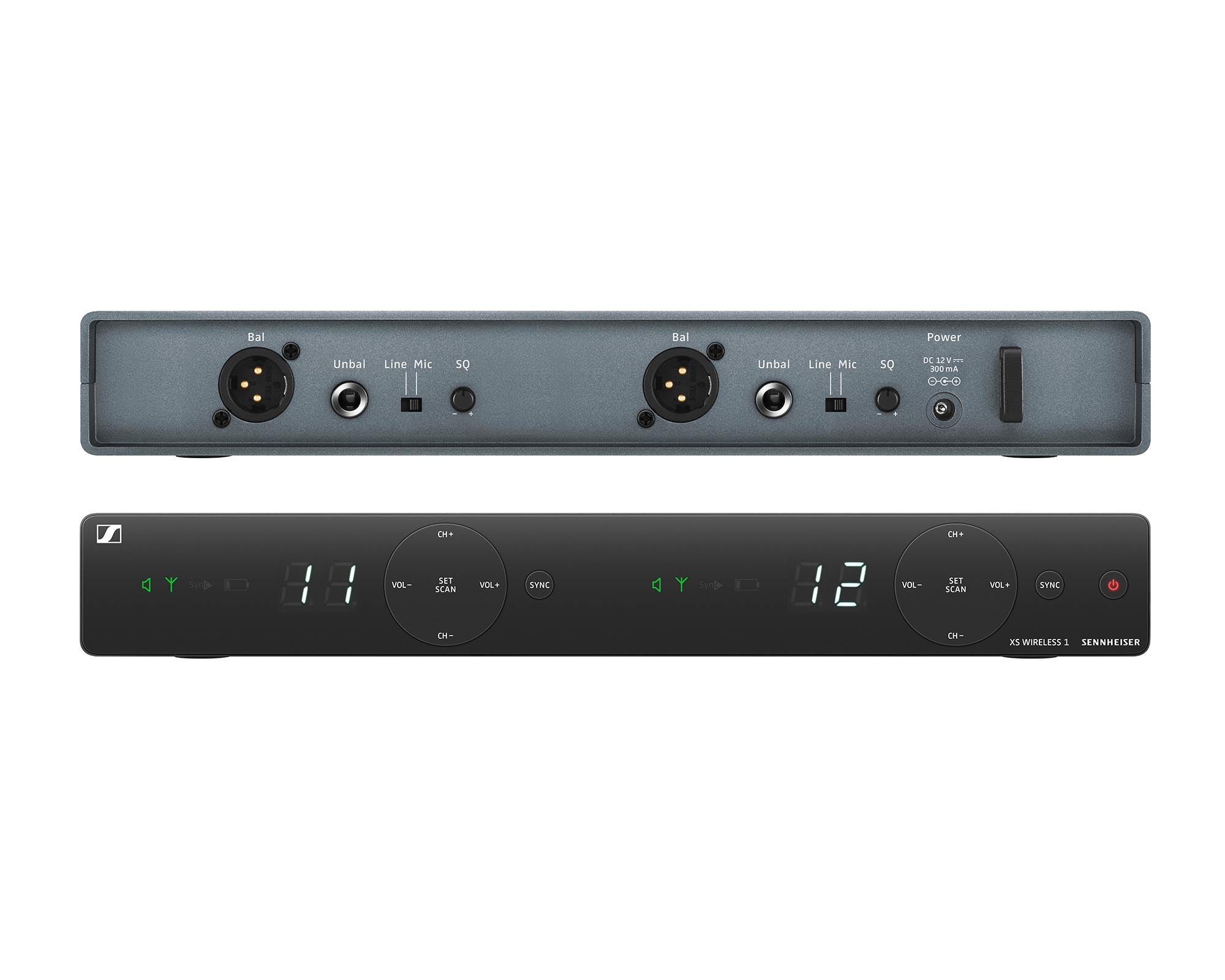

Receiver outputs 2 x XLR-3 balanced (+12 dBu max) and 2 x 6.3 mm jack unbalanced (+6 dBu max), one of each per channel; Line/Mic switchable (20 dB)
Diversity Antenna switching diversity via internal antennas
Switching bandwidth Up to 24 MHz
Channel presets 8 frequency banks, each with up to 10 factory-preset channels
Receiver power 12 V DC nom. / 500 mA, NT 12-5CW power supply
Receiver dimensions Approx. 320 x 42 x 127 mm, approx. 610 g
Transmitter RF power 10 mW
Transmitter power 2 x AA batteries (1.5 V), approx. 10 hours operating time
Transmitter dimensions Approx. 260 x 50 mm, approx. 245 g
In the box 1 x EM-XSW 1 DUAL receiver, 2 x SKM 835-XSW handheld transmitters, 2 x MZQ 1 microphone clips, 1 x NT 12-5CW power supply with country adapters, 4 x AA batteries

Full features

  • Excellent live sound featuring Sennheiser renowned evolution microphone capsules
  • Antenna-switching 2-channel diversity reception
  • Integrated antennas
  • Automatic frequency management and synchronisation via remote channel for easy setup
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels

Full specifications

System

  • Frequency range:
    • 548-572 MHz
    • 614-638 MHz
    • 766-790 MHz
    • 794-804 MHz
    • 821-832 / 863-865 MHz
    • 606-630 MHz
    • 925-937.5 MHz
  • Frequency response
    • 766-790 MHz
    • 794-804 MHz
    • 821-832 / 863-865 MHz
    • 925-937.5 MHz
  • Connector: XLR-3
  • Frequency response: 55 - 16,000 Hz
  • THD, total harmonic distortion: ‚â§ 0.9%
  • Transducer principle: Dynamic
  • Pick-up pattern: Cardioid
  • Nominal impedance: 300 Ω (at 1 kHz)
  • Min. terminating impedance: 1 kΩ
  • Storage temperature: -20°C to +70°C
  • Operating temperature: 0°C to +40°C
  • Signal-to-noise ratio: ≥ 103 dBA
  • Switching bandwidth: Up to 24 MHz
  • Modulation: Wideband FM
  • Frequency: 80 factory presets (8 banks of 10 channels each)
  • Sensitivity: 1.8 mV/Pa (free field, no load at 1 kHz)
  • Synchronisation Transmitter: 2.4 GHz, low power OQPSK (only active during synchronisation)
  • Temperature Range: 0 °C ... +40 °C (+32 °F ... +104 °F)

Physical & Dimensions

  • Dimensions Ø 48 x L 180 mm
  • Weight: 330 g (0.73 lbs)

Product Specifications - EM-XSW 1 Dual

General

  • Power supply: 12 V DC nom. / 300 mA
  • Output voltage: (at peak deviation, 1 kHz AF) 1/4" (6.3 mm) socket (unbalanced): +6 dBu
  • Housing: Rugged ABS housing
  • Sensitivity: < 3 μV at 52 dB(A) rms S/N (at peak deviation)
  • Squelch: Adjustable from 3 dBμV to 28 dBμV
  • AF frequency response: 50 to 16,000 Hz (-3 dB)
  • Audio adjustment range: 45 dB, adjustable in 5 dB steps
  • Line / Mic level: 20 dB, switchable
  • Receiver Principle: Double superheterodyne
  • Diversity principle: Antenna switching diversity via internal antennas

Physical & Dimensions

  • Dimensions: Approx. 320 x 126.5 x 42 mm
  • Weight: Approx. 620 g

Product Specifications - SKM 825-XSW / SKM 835-XSW

General

  • Microphone: Dynamic
  • Pick-up pattern: Cardioid
  • RF output power: 10 mW
  • Operating time: Approx. 10 hrs
  • Power supply: 2 AA size batteries, 1.5 V
  • Housing: Rugged ABS housing
  • Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
  • Input sensitivity: 1.5 mV / Pa
  • AF frequency response: 80-16,000 Hz

Physical & Dimensions

  • Dimensions: Approx. 260 x 50 mm
  • Weight: Approx. 245 g
