Shure SLXD15 Portable Wireless Bodypack System K59 (606-650 MHz)

Product code: 65618

£625.00 inc VAT
£520.83 ex VAT

SKU: SLXD15-K59
3 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
2 Year Manufacturer Warranty Included

About this Product

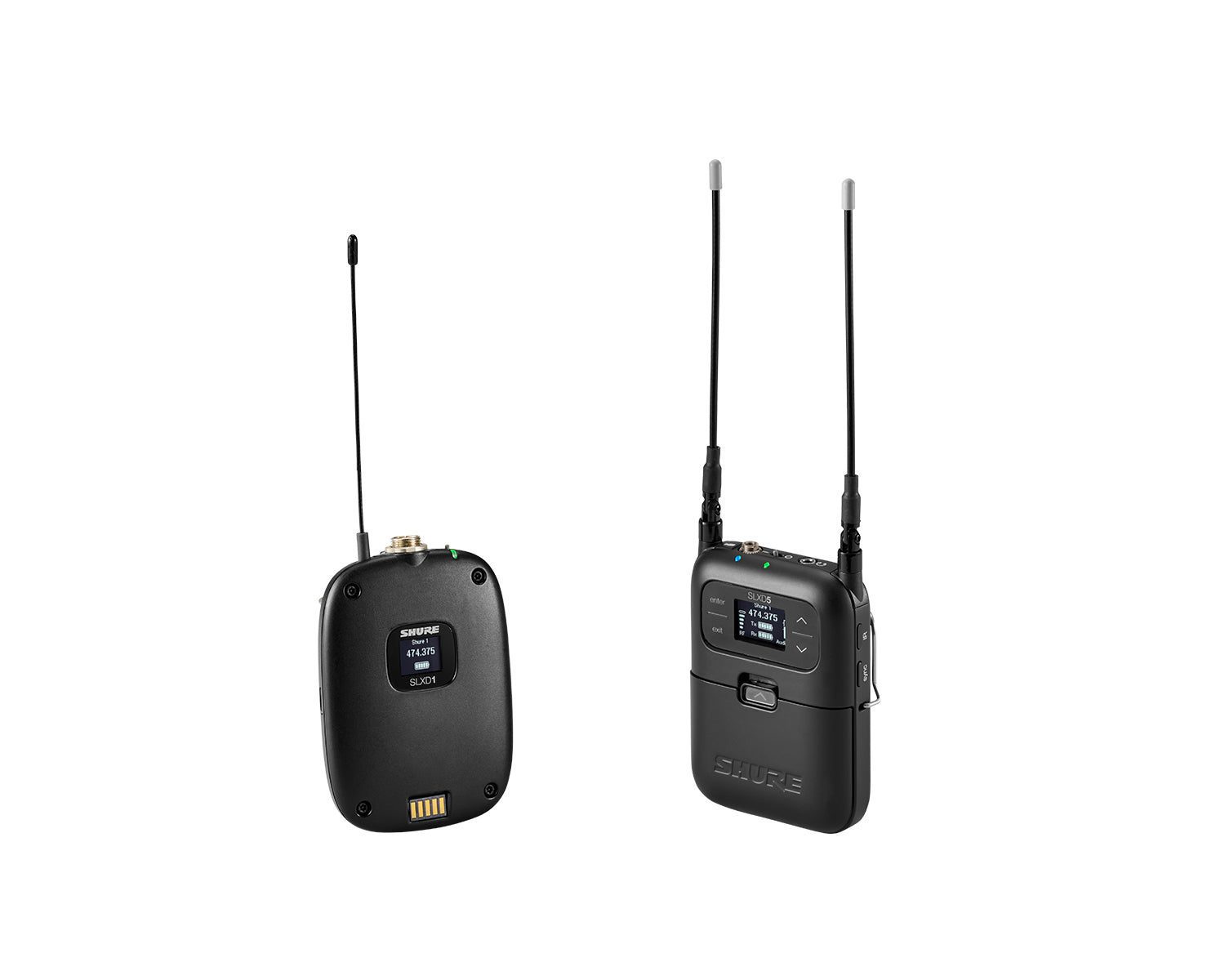

SLX-D digital wireless portable bodypack system built around the SLXD1 transmitter. The platform delivers transparent 24-bit digital audio with the RF stability that makes it a default choice for videography, ENG, field production, film and location sound. Up to 32 compatible systems run per 44 MHz band. Ships with SLXD5 portable receiver and SLXD1 bodypack transmitter.

24-bit
Audio

K59
Band

606–650
MHz

32
Per band

UK licensing, check the band before you buyK59 covers 606–650 MHz. In the UK, Channel 38 (606.5–613.5 MHz) needs an Ofcom UK Wireless Microphone Licence (shared Channel 38 access, one or two year terms; it is not licence-exempt), while the rest of the range needs a coordinated Ofcom PMSE licence. Buy the band you are licensed for, and coordinate frequencies with anyone else working the same site.

Features

Transparent 24-bit digital audio
Up to 32 compatible systems per 44 MHz band
Optional rechargeable accessories
K59 band: 606–650 MHz
Ships with SLXD5 portable receiver and SLXD1 bodypack transmitter
Suits videography, ENG, field production, film and location sound

Specifications

Shure SLXD15 Portable Wireless Bodypack System K59 (606-650 MHz) specifications
Brand Shure
Manufacturer part number SLXD15-K59
Type Digital wireless system
Series SLX-D
Audio 24-bit digital
Frequency band K59, 606–650 MHz
Systems per band Up to 32 per 44 MHz
Supplied with SLXD5 portable receiver and SLXD1 bodypack transmitter

Full features

  • Powerful, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
  • Dual 1/8” outputs including a headphone monitor out and switchable line/mic output
  • Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
  • Bright OLED display screen for key system function readouts and remaining battery life on transmitter and receiver
  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over scan and IR sync
  • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
  • Charging contacts for use with optional SBC203 docking charger
  • TQG connectivity offers a variety of microphone options
  • Rugged metal construction portable receiver design
  • Ergonomic, durable plastic construction bodypack transmitter

Full specifications

System Specifications

  • RF

    • RF Carrier Frequency Range: K59 (606 - 650MHz)
    • Working Range: 100 m (328 ft)
    • RF Tuning Step Size:
      • JB Band: 125 kHz
      • All Other Bands: 25 kHz
      • Varies by region.
    • Image Rejection: >70 dB typical
    • RF Sensitivity: −97 dBm at 10-5 BER
  • Audio

    • Latency: 3.2 ms
    • High-Pass/Low Cut Filter: 150 Hz, –12 dB/octave Note: factory default is for the HPF to be off
    • Audio Frequency Response: 20 Hz–20 kHz (+1, −2 dB)
    • Audio Dynamic Range, A-weighted, 20 Hz–20 kHz, typical: 118 dB @1% THD
    • Total Harmonic Distortion: <0.02%
    • System Audio Polarity:
      • XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
      • TRS: Postive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35 mm (1/4-inch) with respect to the ring of the 6.35 mm output.
    • Mic Offset Range: 0 to 21 dB (in 3 dB steps)
  • Temperature Range

    • Operating Temperature Range: 0 °F to 122 °F (−18 °C to 50 °C)
    • Storage Temperature Range: −20 °F to 165 °F (−29 °C to 74 °C)

SLXD5 Portable Receiver Specifications

  • Dimensions (H × W × D): 4.21 × 2.68 × 1.0 in (107 × 68 × 25.3 mm)
  • Weight: 182 g (6.4 oz)
  • Housing: Aluminium
  • Power Requirements
  • Battery: Rechargeable Li-Ion or
  • 1.5 V AA batteries
  • Power Supply: SBC-DC-903 Battery
  • Eliminator, or 5 VDC via USB-C
  • RF Input

    • Spurious Rejection: >75 dB Typical
    • Impedance: 50 Ω
    • Phantom Power Protection: Yes
    • Antenna Type: 1/4 Wave Whip
  • Audio Output

    • Audio Frequency Response: 20 Hz – 20 kHz (+1, -3 dB)
    • Connector Type: 1/8" (3.5 mm), ×2
    • Configuration:
    • Balanced (Mono): Tip=audio +, Ring=audio –, Sleeve=ground
    • Dual Mono: Tip = left, Ring = Right, Sleeve = Ground
    • Impedance (Camera):
      • Balanced (Mono) Line: 450 Ω
      • Balanced (Mono) Mic: 240 Ω
      • Dual Mono Line: 400 Ω
      • Dual Mono Mic: 200 Ω
    • Full Scale Output:
    • Camera (Balanced Line): 15 dBV
    • Headphone: 13 mW @ 64 Ω Load

SLXD1 Bodypack Specifications

  • Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
  • Dimensions (H × W × D): 3.86 × 2.68 × 1.0 in (98 × 68 × 25.5 mm)
  • Weight: 3.1 oz (89 g)
  • Housing: PC/ABS
  • Audio Input

    • Connector: 4-Pin male mini connector (TA4M)
    • Configuration: Unbalanced
    • Impedance: 1 MΩ
    • Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
    • Preamplifier Equivalent Input Noise (EIN): –118 dBV
  • RF Output

    • Antenna Type: 1/4 Wave
    • Occupied Bandwidth: <200 kHz
    • Modulation Type: Shure Proprietary Digital
    • Power: 1 mW/10 mW

Product Reviews

No reviews yet — be the first to review this product.

Bought this? It takes a minute.
Review this product

Reviews are checked by our team before they appear.
