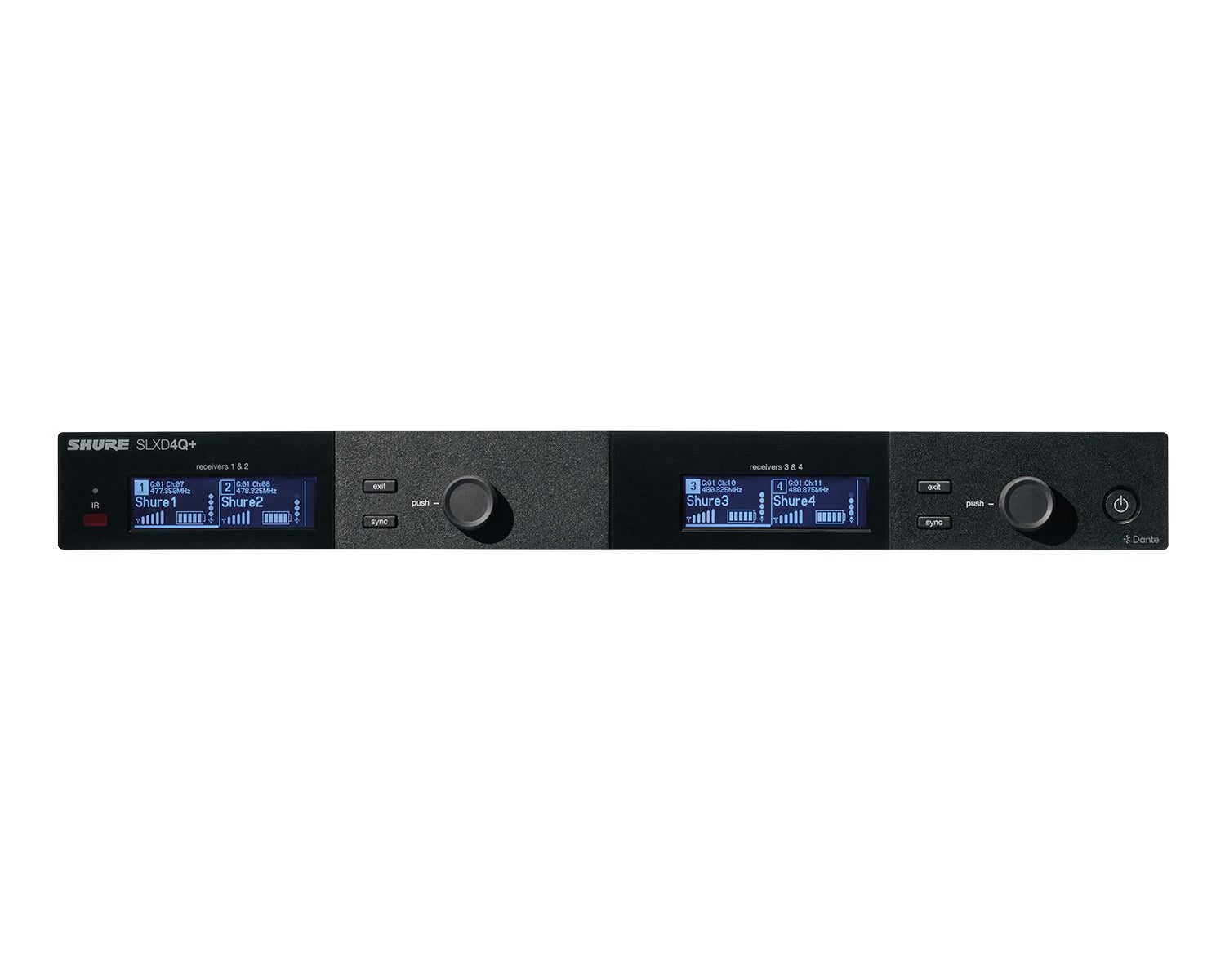

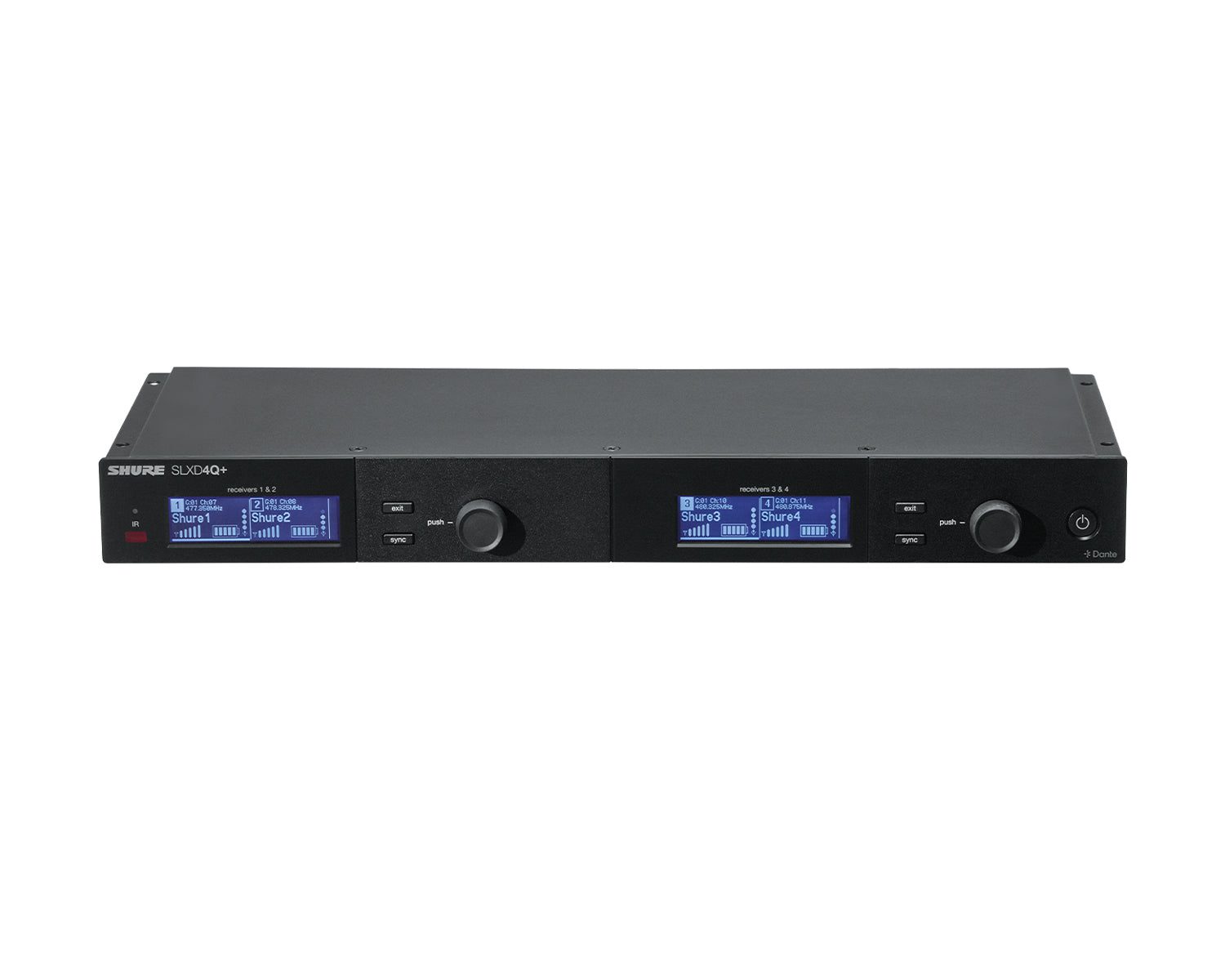

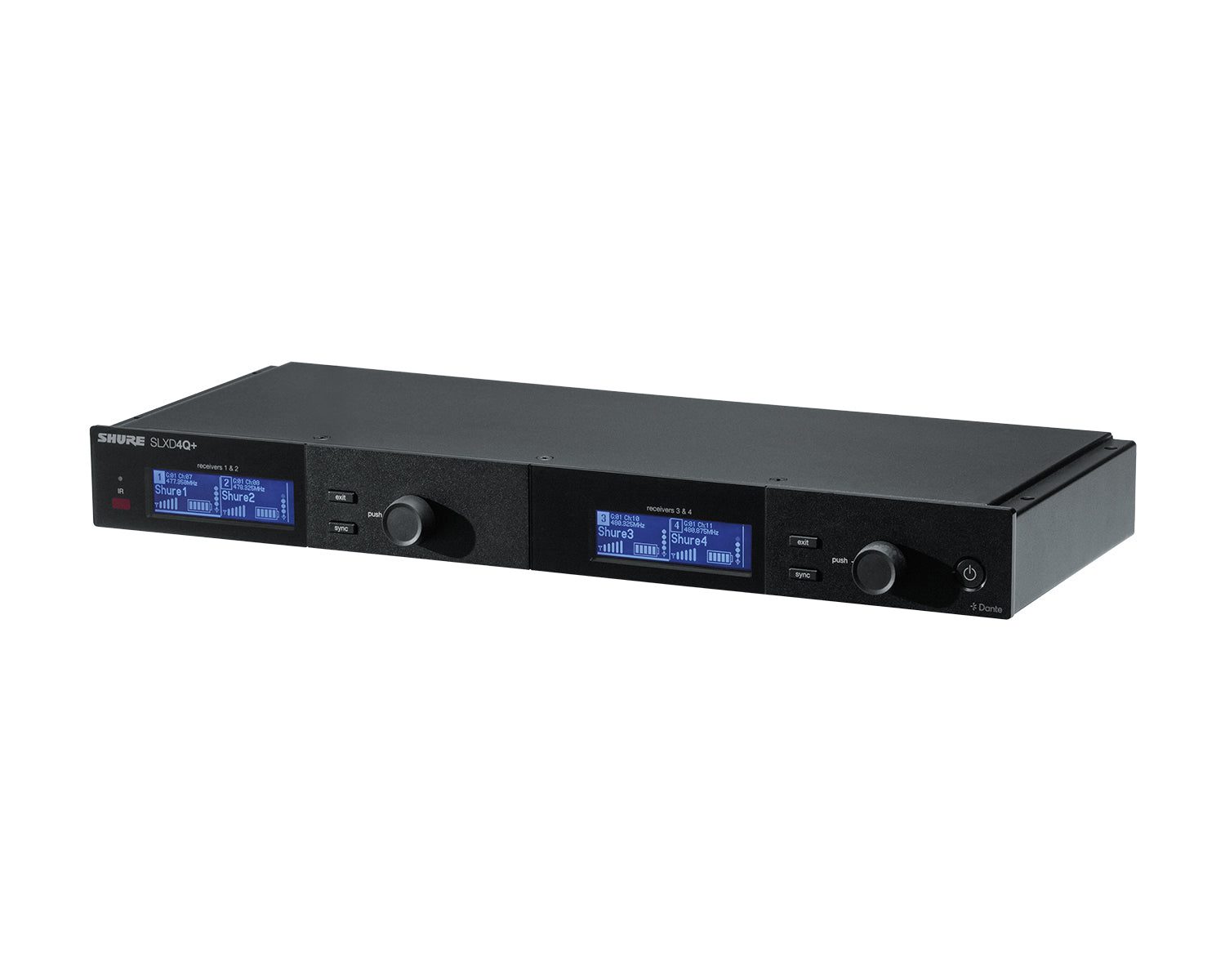

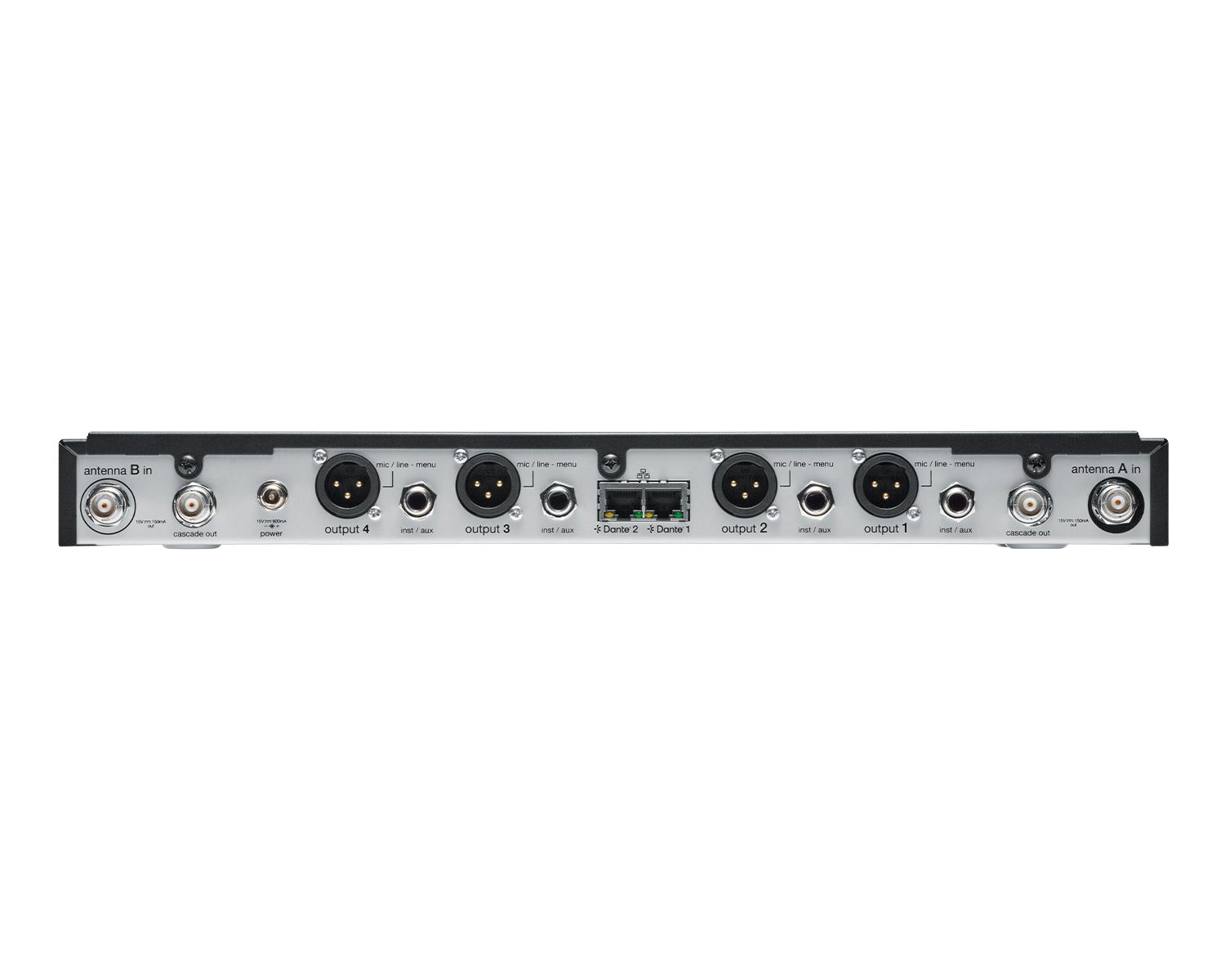

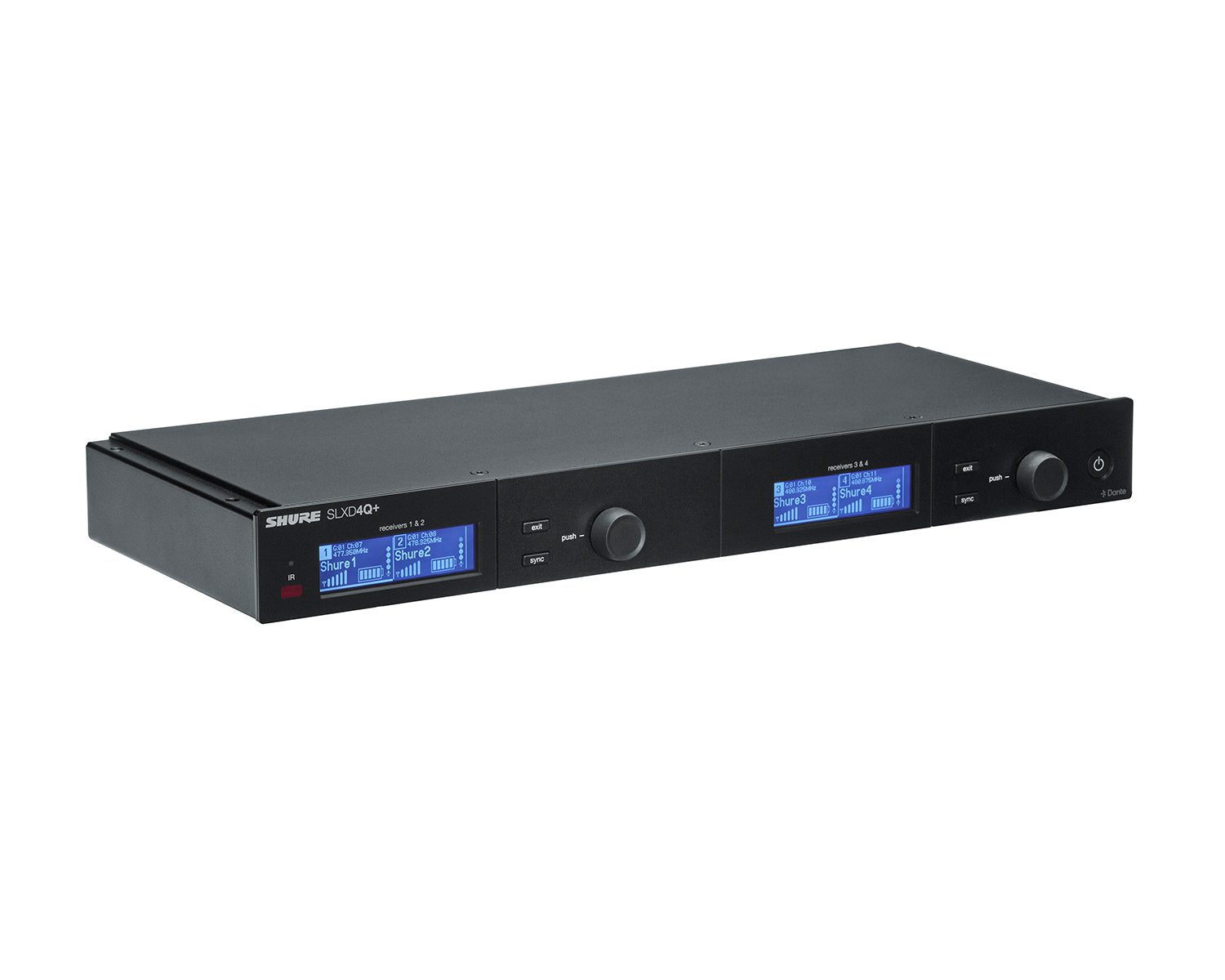

Shure SLX-D four-channel 1U rack-mount diversity receiver with onboard Dante digital networked audio. Four independent wireless channels are routed out as Dante streams alongside the analogue outputs. Operates in the K55 band (606 to 694 MHz). UK Ch38 PMSE plus coordinated UHF. Requires an Ofcom licence; Ch38 (606 to 614 MHz) is covered by the JFMG shared PMSE licence and the upper range requires a coordinated PMSE licence. Aimed at networked AV and theatre installations running Dante infrastructure.
Key Features
✓Transparent 24-bit / 48 kHz digital audio
✓System latency of 3.2 ms
✓Dynamic range 120 dB (A-weighted)
✓AES-256 encryption for secure transmission
✓Switchable RF power (1 mW or 10 mW, selectable)
✓Tuning bandwidth: 44 MHz
✓Four independent wireless channels in 1U
✓Dante digital networked audio output
✓Ethernet networked control and monitoring
✓Cascade antenna ports for linking receivers
Specifications
| Platform | SLX-D |
| Frequency band | K55 (606 to 694 MHz) |
| Audio frequency response | 20 Hz to 20 kHz (microphone dependent) |
| Audio bit depth | 24-bit / 48 kHz |
| System latency | 3.2 ms |
| Dynamic range | 120 dB (A-weighted) |
| Encryption | AES-256 |
| RF power | 1 mW or 10 mW, selectable |
| Tuning bandwidth | 44 MHz |
| Form factor | 1U rack-mount |
| Channels | 4 |
| Networked audio | Dante |
| Antenna connectors | BNC (cascade ports) |
| Control | Ethernet, Wireless Workbench / ShurePlus Channels |
