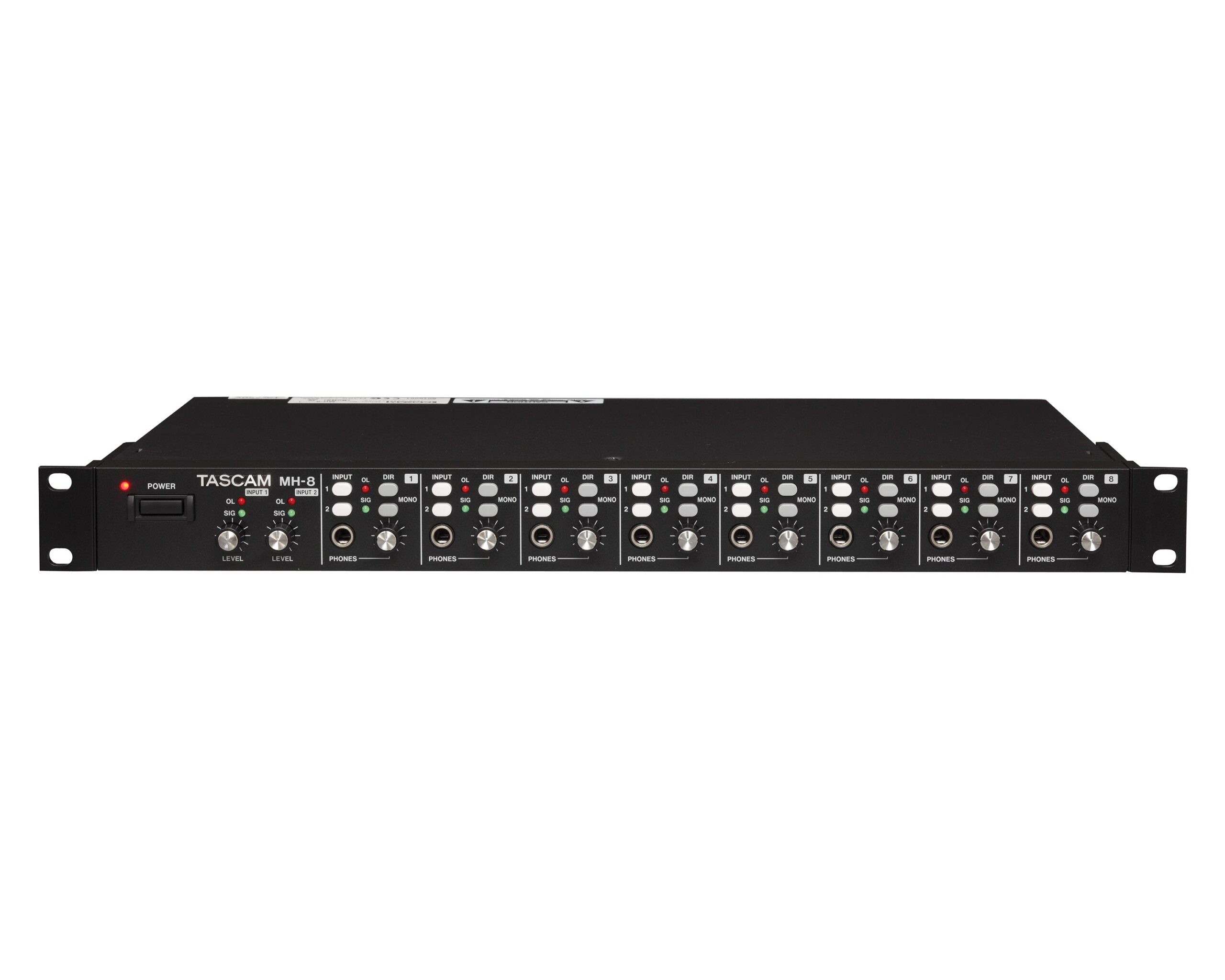

An eight-channel stereo headphone amplifier for studio, stage and installation, delivering 250 mW per side on each of the eight outputs, enough to drive a set of studio cans properly rather than just adequately. Each channel can select from three sources: either of two shared stereo inputs or its own individual direct input, which is what makes it usable for personal monitoring where each performer needs something different.
8
Stereo outputs
250mW
Per side
3
Selectable sources
1U
Rack height
Individual mixes without a personal monitor systemThe two shared stereo inputs cover the common cases, a main cue mix and an alternate, while the eight individual direct inputs let specific performers receive their own feed from a console’s aux sends. Foldback outputs chain further MH-8s, so an eight-way system scales to sixteen or twenty-four without rethinking the wiring.
Features
Eight stereo headphone outputs
250 mW per side on each output
Three switchable sources per output
Two stereo inputs shareable to any output
Individual stereo direct input for each of the eight channels
Headphone out can select any input or mix several together
Foldback outputs for chaining multiple units
1U rack-mount chassis
Suited to studio, stage and installation use
Specifications
| Type | Multi-channel stereo headphone amplifier |
| Rack height | 1U |
| Outputs | 8 stereo headphone outputs |
| Output power | 250 mW per side |

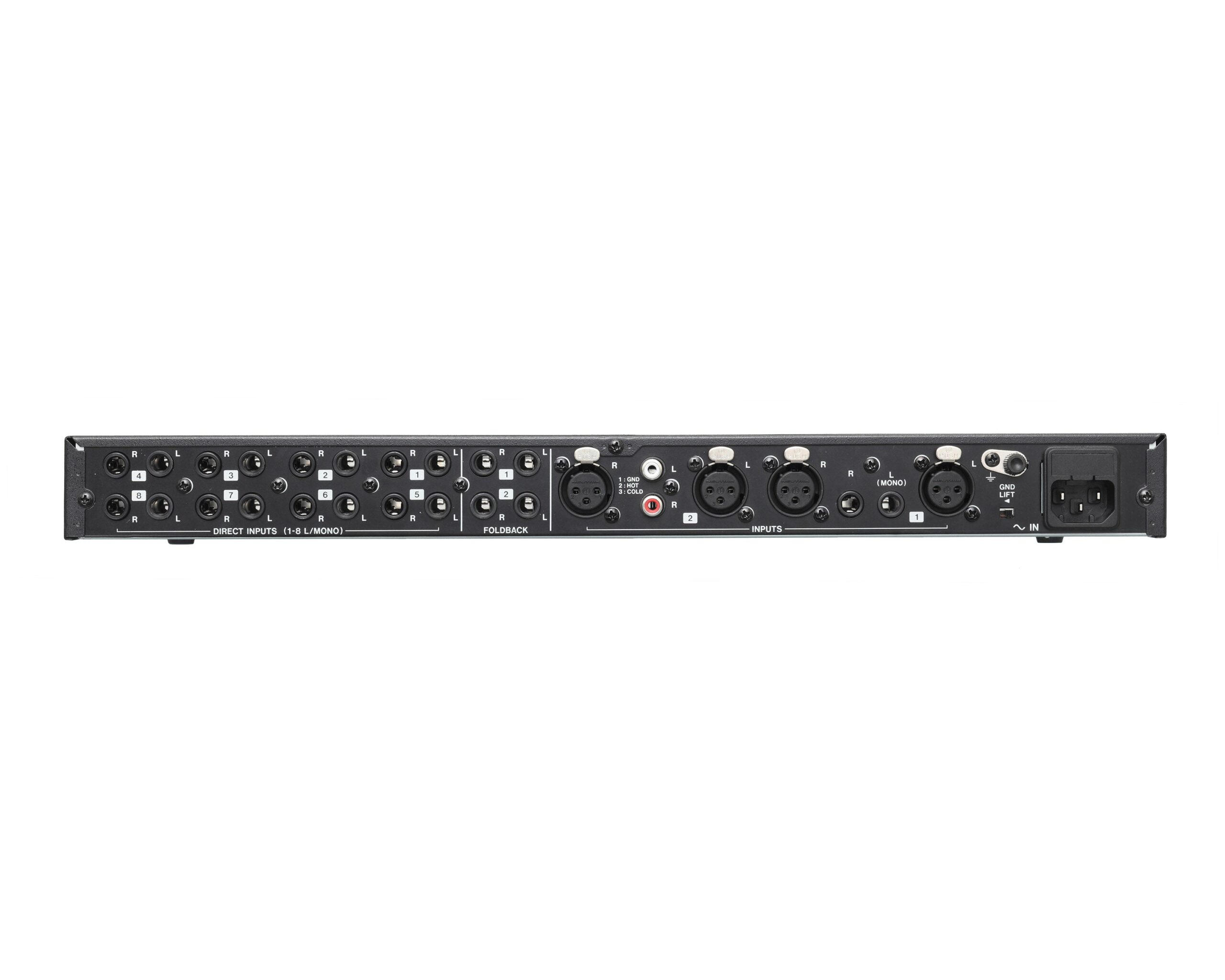

| Inputs | 2 stereo shared inputs, 8 individual stereo direct inputs |
| Source selection | 3 switchable sources per output |
| Chaining | Foldback outputs for linking further MH-8 units |
