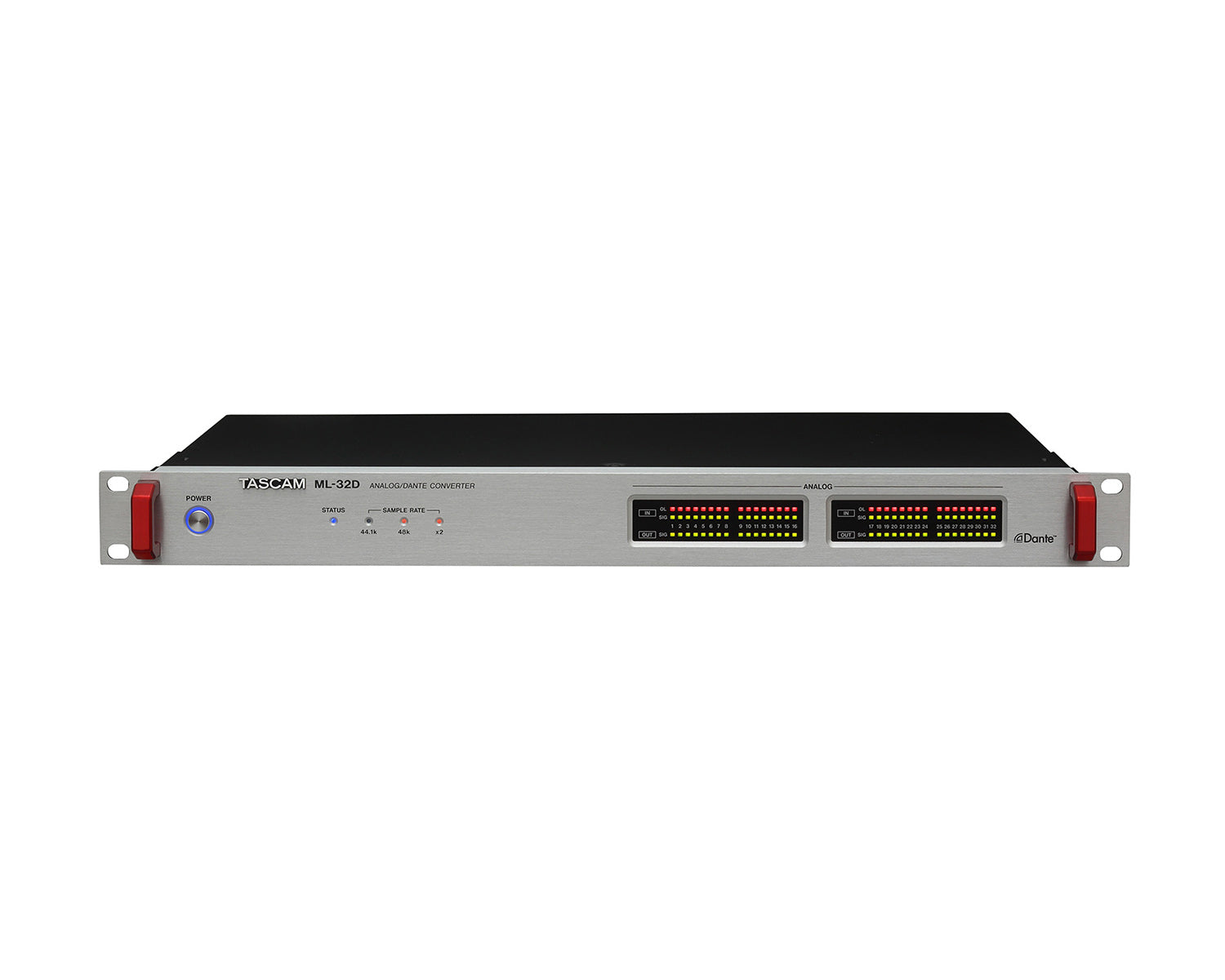

A 1U converter moving 32 channels of analogue audio onto a Dante network and 32 channels back off it, in both directions simultaneously. Analogue I/O is on space-saving 25-pin D-sub connectors for use with breakout looms, which is the only sensible way to get that many channels into one rackspace. Two Ethernet ports support redundant Dante operation across two separate networks.
32
Channels each way
1U
Rack height
D-sub
25-pin analogue I/O
Redundant
Dual Dante ports

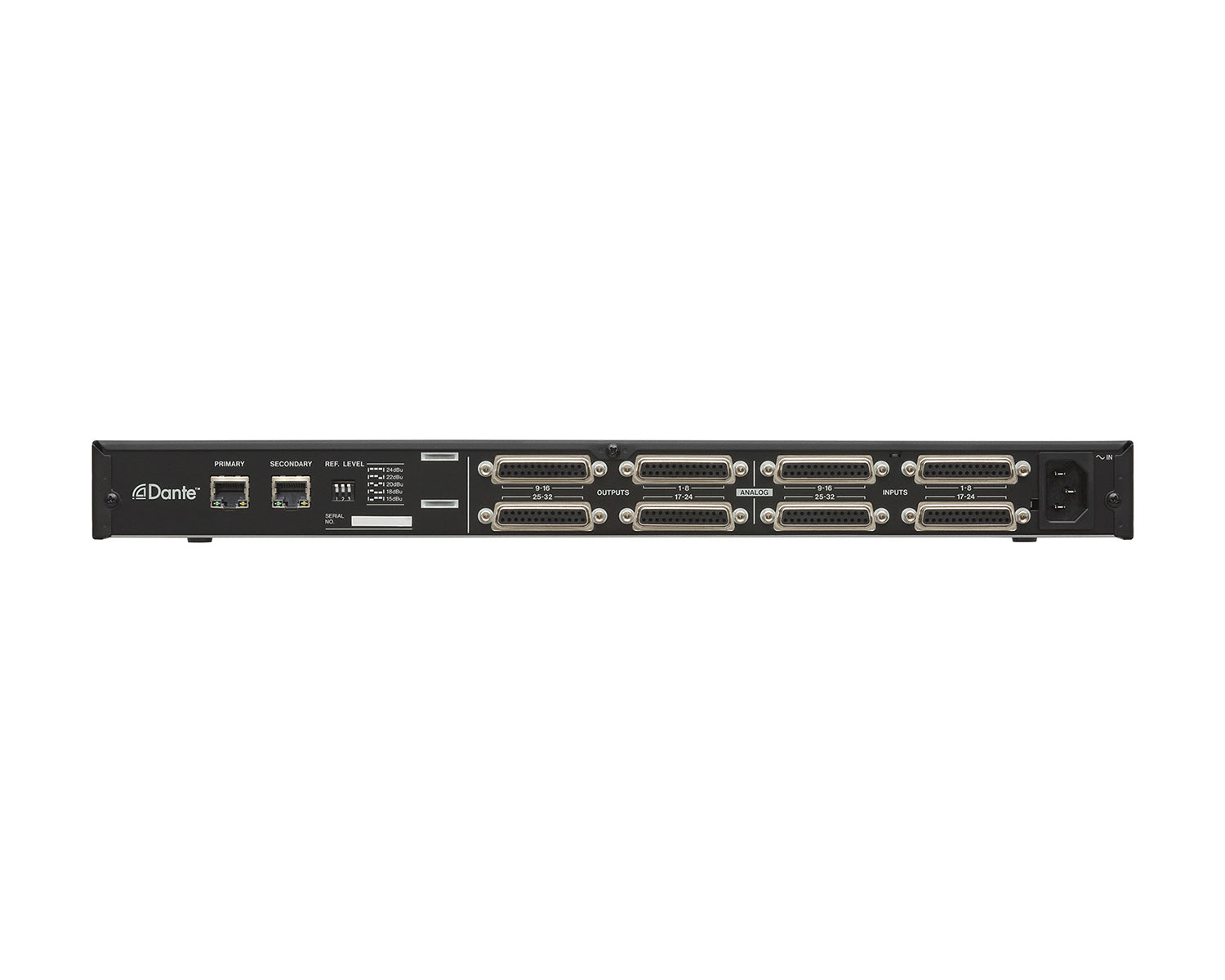

Redundant Dante and where it belongsThe Primary and Secondary Ethernet ports let the ML-32D run on two physically separate networks at once, so a switch or cable failure on one does not take the audio down. It is worth the extra infrastructure on broadcast, corporate and theatre systems; on a small install a single network is usually the sensible choice. Configuration is done in Audinate’s free Dante Controller.
Features
32 analogue channels to Dante and 32 from Dante
Bidirectional simultaneous operation
25-pin D-sub connectors for analogue I/O
Balanced line-level analogue signals
Compatible with optional breakout boxes
Dante Primary and Secondary Ethernet ports for redundancy
Operation status and sample rate indicators
Overload LEDs on every input
Signal LEDs on every input and output
Rear-panel maximum input/output level switches
Configured via the free Dante Controller application
1U rack-mount chassis
Specifications
| Type | Analogue, Dante, analogue converter |
| Rack height | 1U |
| Channel count | 32 analogue to Dante, 32 Dante to analogue |
| Analogue connectors | 25-pin D-sub, balanced line level |
| Network connectors | 2 x Ethernet (Dante Primary / Secondary) |
| Redundancy | Dual independent network operation |
| Indicators | Status, sample rate, per-input overload, per-channel signal |
| Level setting | Rear-panel maximum input/output level switches |
| Configuration | Audinate Dante Controller (free download) |
