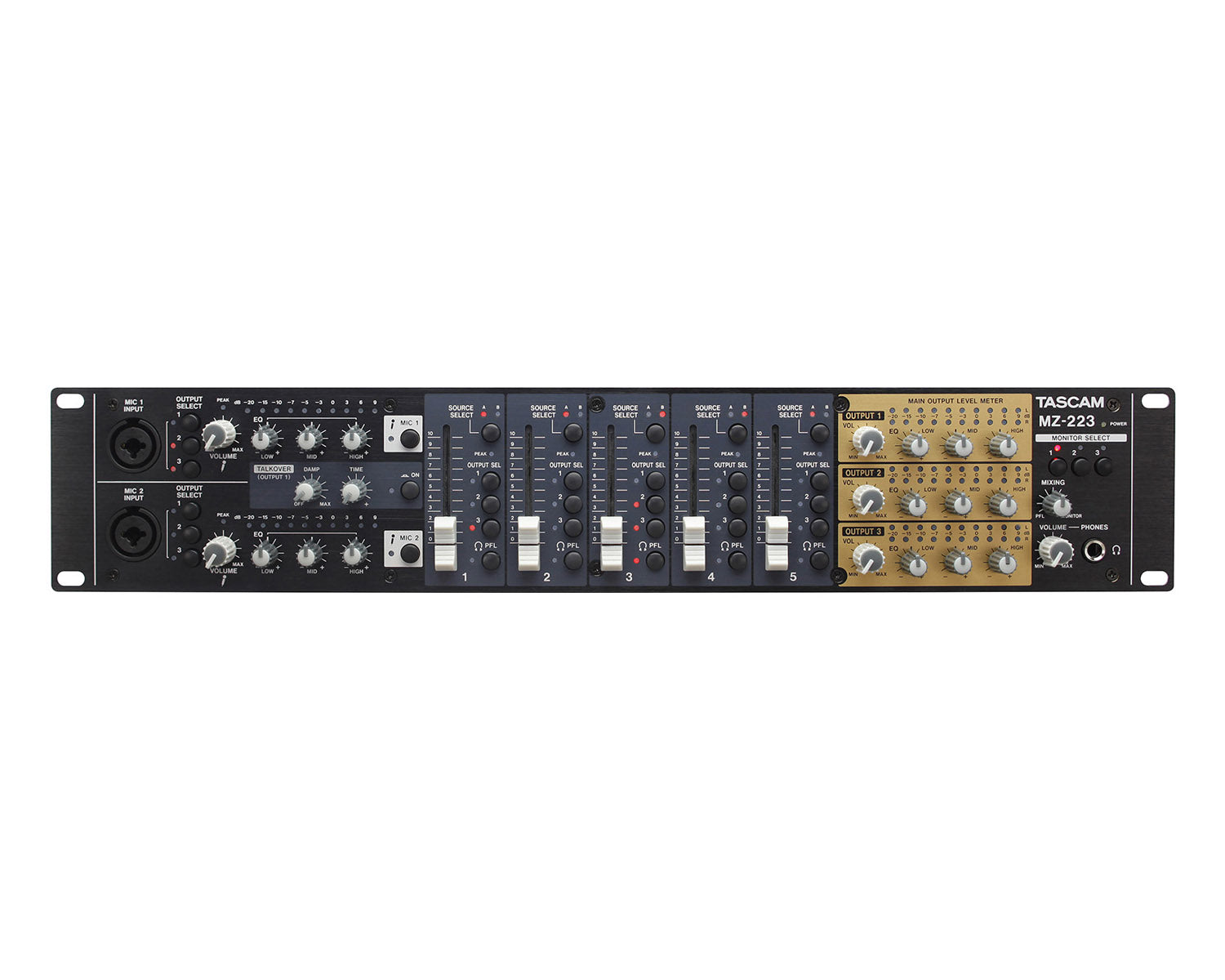

Tascam MZ-223 3-Zone Install Mixer 2U-5 Stereo Line, 2 Mic Inputs & Talkover

Product code: 179594

£417.00 inc VAT
£347.50 ex VAT

SKU: MZ-223

5 in stock (more available subject to additional lead time)

4 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

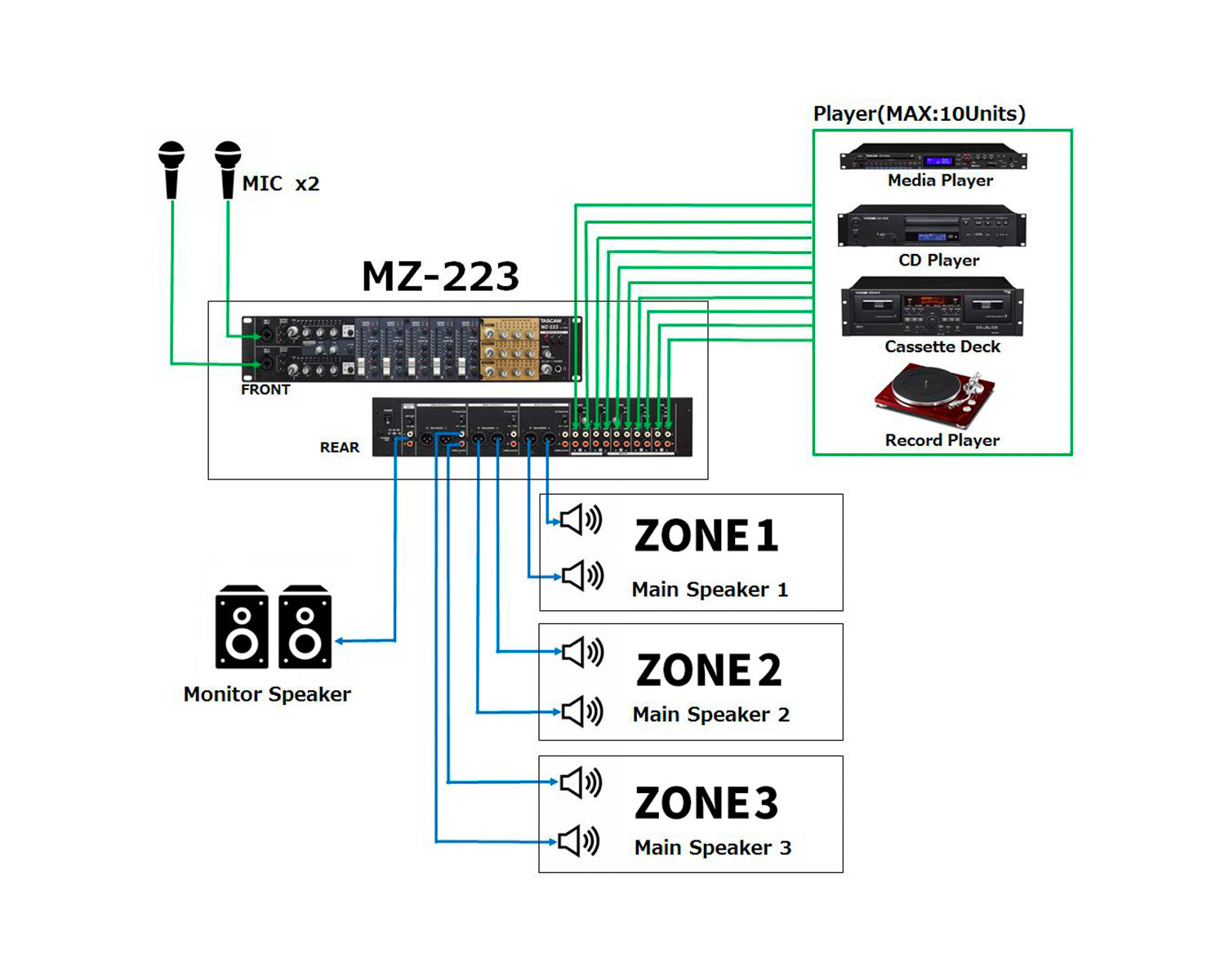

A 2U rackmount zone mixer for fixed installations, shops, hotels, restaurants, bars, theme parks and public facilities. Seven input channels can each be routed to any or all of three output zones, so background music and announcements can be distributed differently around a building from one unit. Two of the stereo line channels switch to phono for turntables, and each zone output has its own level, metering and three-band EQ.

2U
Rack height

3
Output zones

5 + 2
Line + mic channels

Talkover
Automatic ducking

Per-zone EQ earns its keepA bar, a dining room and a corridor rarely want the same tonal balance from the same source. Each of the MZ-223’s three zone outputs has its own three-band EQ and level control, so you can tune each space once during commissioning rather than compromising on a single master setting.

Features

Three independent output zones
Seven input channels, each routable to any or all zones
Five stereo line-level input channels
Two channels switchable to phono for turntables
Gain control, peak LED and level fader per line channel
Two microphone input channels for dynamic mics
Level control, LED metering and 3-band EQ per mic channel
Talkover function automatically ducks background music
Level control, LED meter and 3-band EQ per zone output
Independent control room monitoring output
Headphone output with level control
Pre-fader monitoring of input channels and zone outputs
2U rack-mount chassis

Specifications

Tascam MZ-223 3-Zone Install Mixer 2U-5 Stereo Line, 2 Mic Inputs & Talkover specifications
Type Multi-zone install mixer
Rack height 2U
Output zones 3
Line inputs 5 stereo, 2 switchable to phono
Microphone inputs 2, for dynamic microphones
Mic channel EQ 3-band
Zone output EQ 3-band per zone
Ducking Talkover, mic-level dependent
Monitoring Control room output, headphone output with level control
Routing Any input channel to any or all zones
Typical applications Shops, public facilities, restaurants, bars, theme parks, hotels

Full features

  • Rackmount mixer that enables input channels to be routed to multiple outputs as desired
  • Five stereo input channels for line signals (two switchable to phono) with gain controls, peak LEDs, and faders
  • Two additional mic input channels with level controls, LED level meters and 3-band equalisers
  • Mic and line inputs can be mixed for output
  • Talkover function automatically lowers background music volume according to mic volume
  • Three zone main outputs with level controls, LED level meters and 3-band equalizers
  • Monitoring output, independent from main outputs
  • Headphones output with level control can be used for pre-fader monitoring of selected input channels and the main output
  • 2U rackmount size

Full specifications

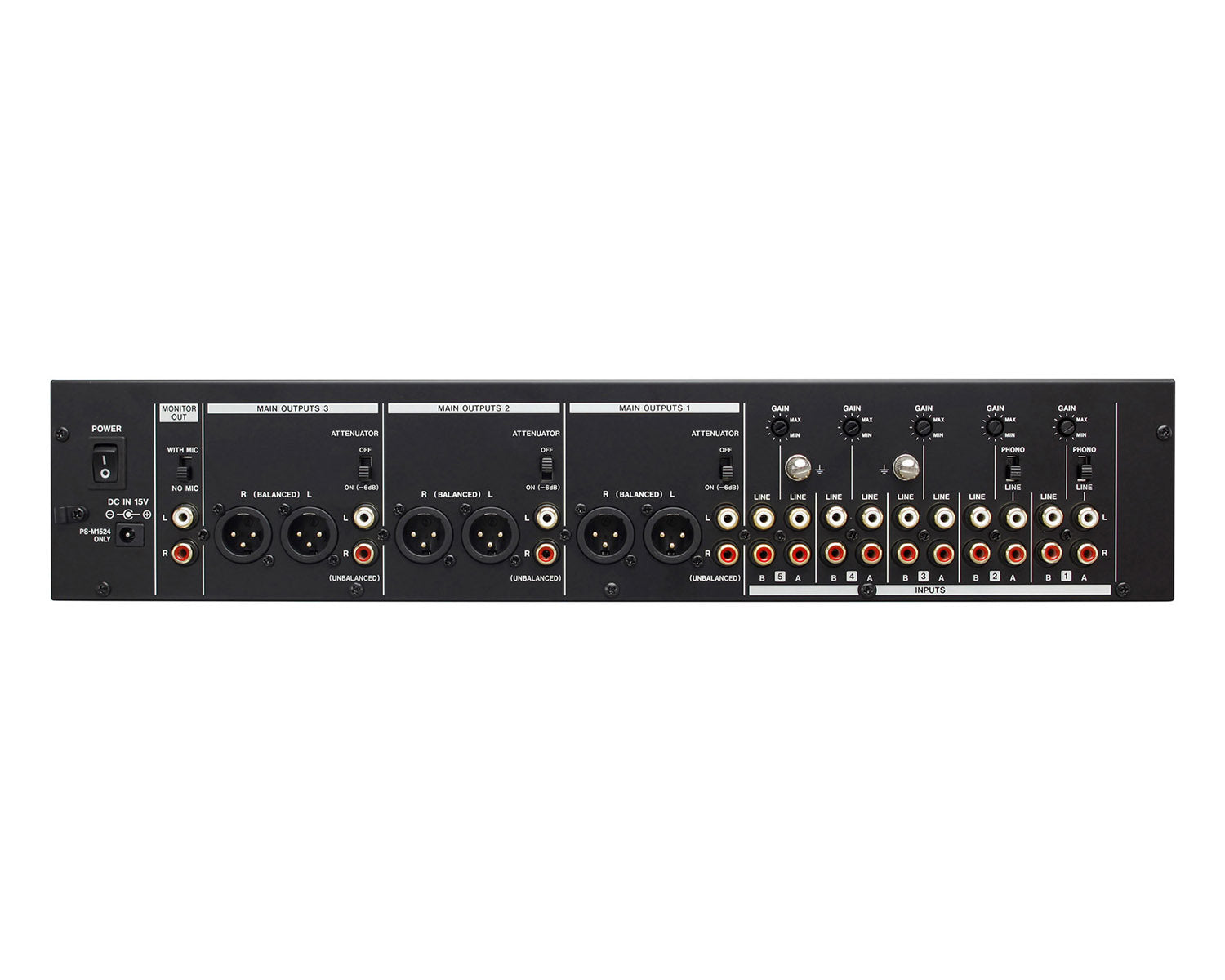

Audio inputs

  • Microphone inputs 1–2:
    • Balanced: XLR-3-31 (1: GND, 2: HOT, 3: COLD)
    • Unbalanced: 6.3-mm TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
    • Input impedance: 33 kΩ
    • Nominal input level:
      • –65 dBu (VOLUME knob at MAX)
      • Unbalanced: –30 dBu (VOLUME knob at MIN)
  • Line inputs (unbalanced): RCA pin jacks
    • Nominal input level: –10 dBV
    • Maximum input level: 10 dBV
    • Input impedance: 22 kΩ

Audio outputs

  • Main outputs (unbalanced): RCA pin jacks
    • Nominal output level: –10 dBV
    • Maximum output level: 6 dBV
    • Output impedance: 200 Ω
  • Main outputs (balanced): XLR-3-32 (1: GND, 2: HOT, 3: COLD)
    • Nominal output level: 4 dBu
    • Maximum output level: 24 dBu
    • Output impedance: 200 Ω
  • Monitor outputs: RCA pin jacks
    • Nominal output level: –16 dBV
    • Maximum output level: 0 dBV
    • Output impedance: 200 Ω
  • Headphones output: 6.3-mm stereo jack
    • Maximum output power: 50 mW + 50 mW (into 32 Ω load)

Audio performance

  • Frequency response: 20 Hz – 20 kHz
  • Distortion: ≤0.03%
  • Crosstalk: 65 dB

Power supply and other specifications

  • Power supply: Dedicated AC adapter (PS-M1524)
    • Input voltage: AC 100–240 V, 50/60 Hz
    • Output voltage: DC 15 V
    • Output current: 2.4 A
  • Power consumption: 35 W
  • Overall dimensions (width × height × depth): 482 mm × 88 mm × 93 mm
  • Weight: 2.5 kg
  • Permissible operating temperature: 5–35 °C
