Tascam MZ-372 Install Mixer 3U-6 Mic/Line Channels, 2 Stereo Outputs & Talkover

Product code: 179618

£510.00 inc VAT
£425.00 ex VAT

SKU: MZ-372

2 in stock (more available subject to additional lead time)

2 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

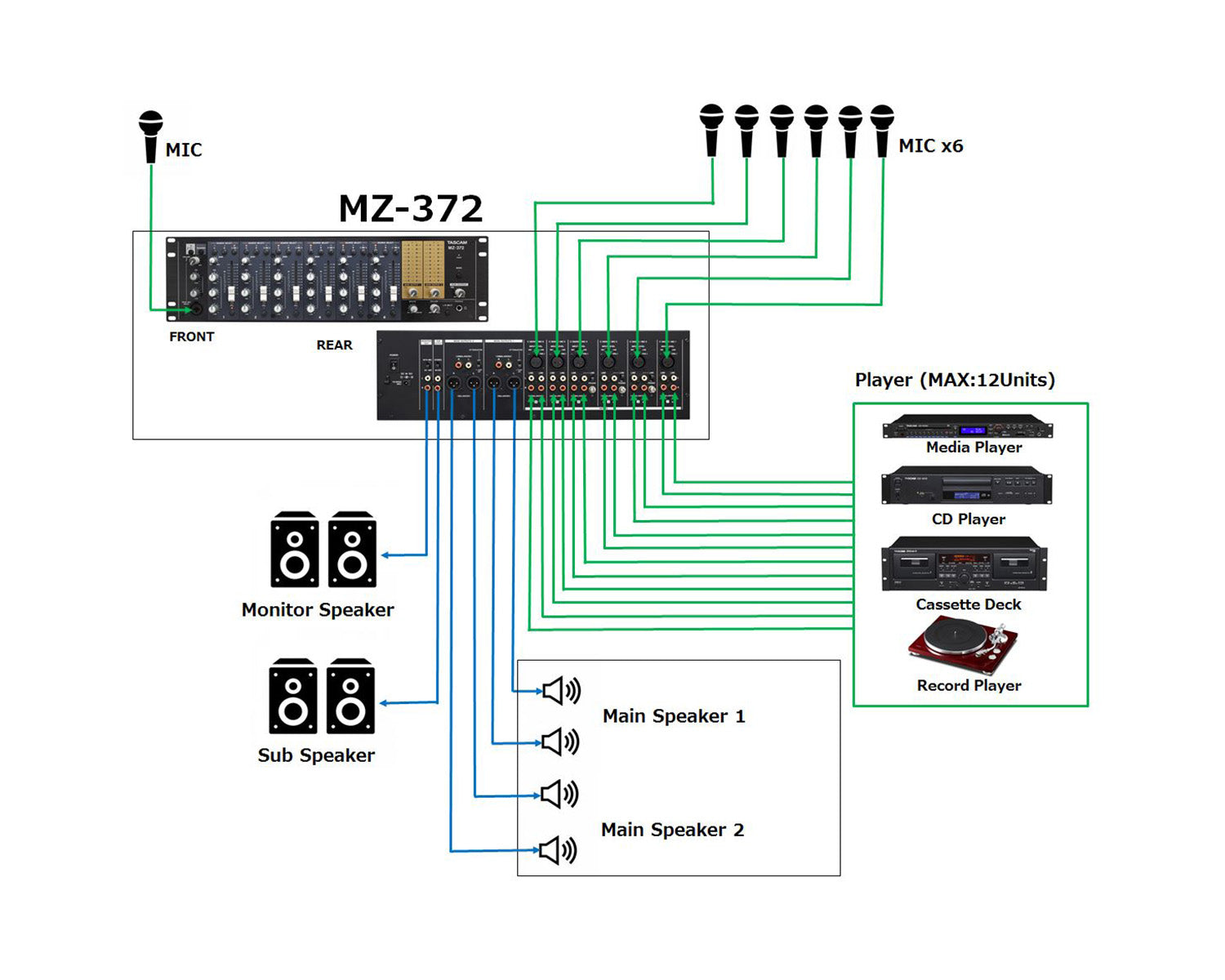

A 3U rackmount installation mixer for hotels, conference centres, public facilities, theme parks and bars. Six channels take microphones or line sources with gain, LED metering, three-band EQ and 100 mm faders, and up to three switch to phono for turntables. A seventh mic input on the front panel handles announcements, with Talkover ducking the music automatically. Two main output pairs plus a sub output cover a main room and an overflow or recorder feed.

3U
Rack height

7
Input channels

100mm
Channel faders

2 + sub
Output pairs

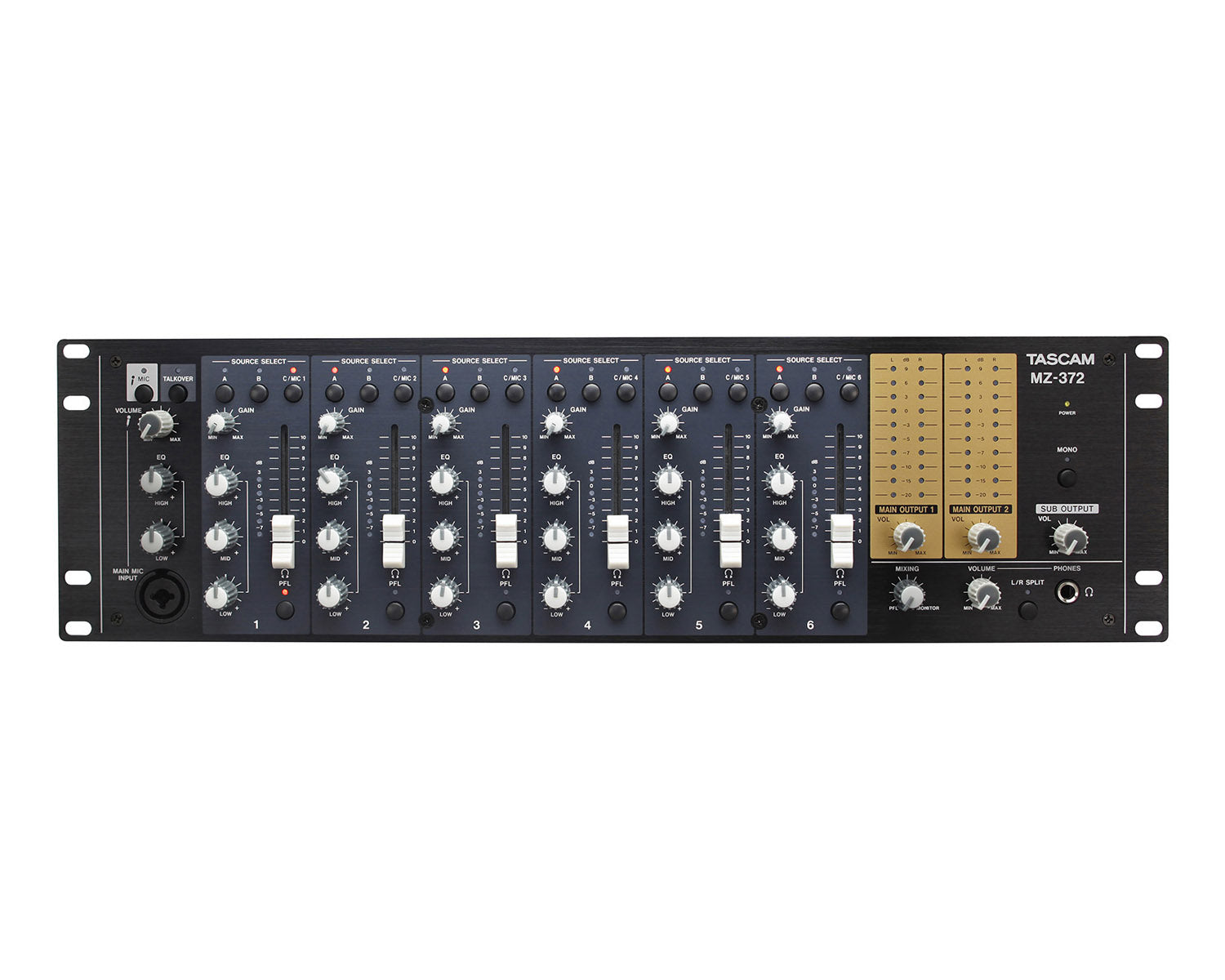

The front-panel mic is the one staff will useRear-panel connections get commissioned once and left alone. The MZ-372’s front-panel mic input with its own level control and two-band EQ is there for the announcement nobody planned, and Talkover pulls the background music down automatically while it is in use, so the message is intelligible without anyone touching a fader.

Features

Seven input channels
Six mic/line channels with gain control and LED metering
Three-band EQ and 100 mm fader per main channel
Up to three channels switchable to phono for turntables
Front-panel mic input with level control and two-band EQ
Talkover function automatically ducks background music
Two main output pairs, each with level control and stereo LED metering
Independent sub output with level control
Mono/stereo selection on the sub output
Headphone output with level control
Pre-fader monitoring of input channels and main output
3U rack-mount chassis

Specifications

Tascam MZ-372 Install Mixer 3U-6 Mic/Line Channels, 2 Stereo Outputs & Talkover specifications
Type Rackmount installation mixer
Rack height 3U
Input channels 7 total
Mic/line channels 6, with 3-band EQ and 100 mm faders
Phono capability Up to 3 channels switchable
Front-panel mic input 1, with level control and 2-band EQ
Main outputs 2 pairs, each with level control and stereo LED meter
Sub output 1, with level control and mono/stereo selection
Ducking Talkover, mic-level dependent
Monitoring Headphone output with level control, pre-fader
Typical applications Hotels, conference centres, public facilities, theme parks, bars

Full features

  • Rackmount mixer with seven input channels and two pairs of main outputs
  • Six mic/line input channels are equipped with gain controls, LED level meters, three-band equalizers and faders

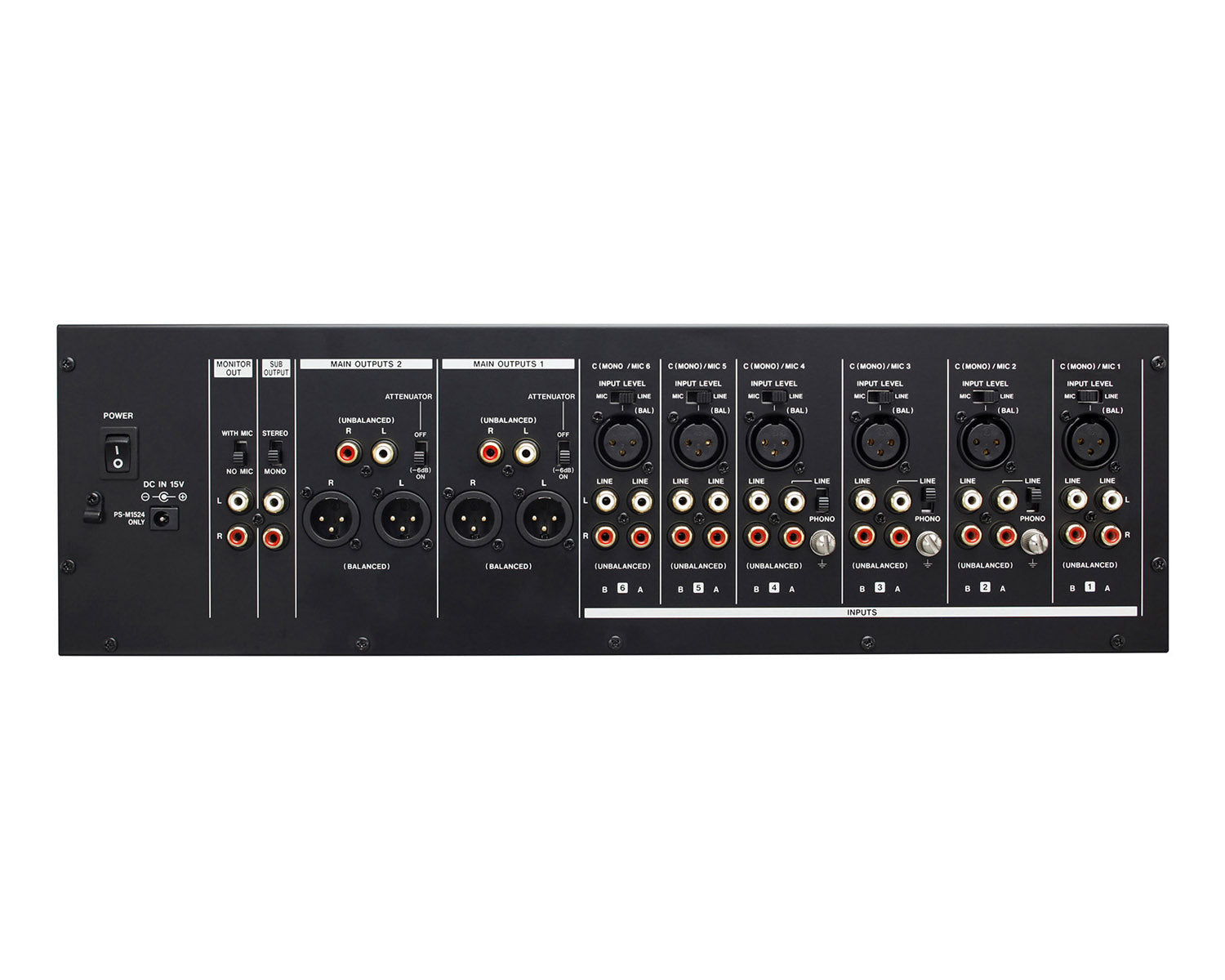

  • Each channel can be set to use one of two RCA unbalanced input pairs or an XLR balanced input
  • XLR inputs are switchable between mic and line level
  • Three channels can be switched to phono for record players
  • Independent front mic input with level control and two-band equaliser
  • Talkover function automatically lowers background music volume according to mic volume
  • Two main outputs with level control and stereo LED level meters
  • Sub output with level control and mono/stereo selection
  • Headphones output with level control can be used for pre-fader monitoring of selected input channels and the main output
  • 19-inch rack-mountable size (3U)

Full specifications

Audio inputs

  • Main microphone input:
    • Balanced: XLR-3-31 (1: GND, 2: HOT, 3: COLD)
    • Unbalanced: 6.3-mm TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
    • Input impedance: 33 kΩ
    • Nominal input level:
      • –65 dBu (VOLUME knob at MAX)
      • –30 dBu (VOLUME knob at MIN)
  • Mic/Line inputs (balanced): XLR-3-31 (1: GND, 2: HOT, 3: COLD)
    • Set to Mic
      • Maximum input level: –30 dBu
      • Minimum input level: –65 dBu
      • Input impedance: 33 kΩ
    • Set to Line
      • Nominal input level: –1 dBu
      • Maximum input level: 20 dBu
      • Input impedance: 22 kΩ
    • Line inputs (unbalanced): RCA pin jacks
      • Nominal input level: –10 dBV
      • Maximum input level: 10 dBV
      • Input impedance: 22 kΩ

Audio outputs

  • Main outputs (unbalanced): RCA pin jacks
    • Nominal output level: –10 dBV
    • Maximum output level: 6 dBV
    • Output impedance: 200 Ω
  • Main outputs (balanced): XLR-3-32 (1: GND, 2: HOT, 3: COLD)
    • Nominal output level: 4 dBu
    • Maximum output level: 24 dBu
    • Output impedance: 200 Ω
  • Sub outputs: RCA pin jacks
    • Nominal output level: –16 dBV
    • Maximum output level: 0 dBV
    • Output impedance: 200 Ω
  • Monitor outputs: RCA pin jacks
    • Nominal output level: –16 dBV
    • Maximum output level: 0 dBV
    • Output impedance: 200 Ω
  • Headphones output: 6.3-mm stereo jack
    • Maximum output power: 50 mW + 50 mW (into 32 Ω load)

Audio performance

  • Frequency response: 20 Hz – 20 kHz
  • Distortion: ≤0.03%
  • Crosstalk: 65 dB

Power supply and other specifications

  • Power supply: Dedicated AC adapter (PS-M1524)
    • Input voltage: AC 100–240 V, 50/60 Hz
    • Output voltage: DC 15 V
    • Output current: 2.4 A
  • Power consumption: 35 W
  • Overall dimensions (width × height × depth): 482 mm × 132 mm × 93 mm
  • Weight: 3.2 kg
  • Permissible operating temperature: 5–35 °C
