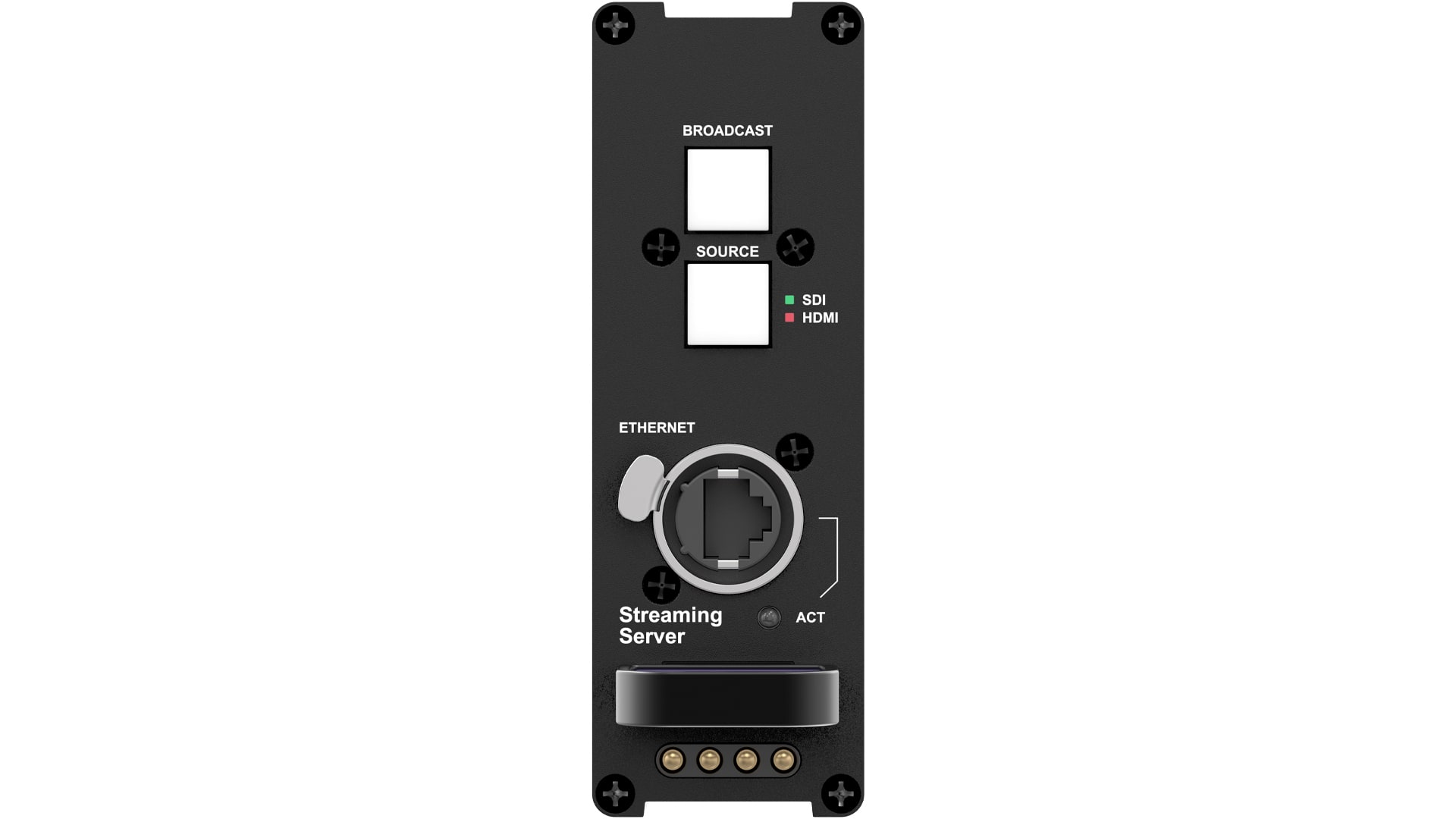

The Theatrixx xVision Reversible Streaming Server module encodes HDMI 1.2 or 3G-SDI video into H.264 for IP-based streaming – directly from a module slot in the xVision Reversible frame. Ideal for adding a live stream output to an existing production rig without introducing standalone encoders, extra power supplies, or network configuration headaches at the last minute.
HDMI / SDI
Input · HDMI 1.2 or 3G-SDI
H.264
Encoding · IP streaming
1080p60
Max Resolution · Full HD
IP Stream
Output · Via Ethernet
Streaming EncoderThis module functions as a hardware H.264 encoder, taking video from HDMI or SDI and delivering it as an IP stream. Connect the frame’s Ethernet port to your network and configure the stream destination – no additional encoding hardware needed.
Features
Hardware H.264 encoding from HDMI 1.2 or 3G-SDI input
Encodes and streams video over IP up to 1080p60
Accepts both HDMI and SDI sources – dual input flexibility
Reversible design – insert from front or rear of frame
Hot-swappable – swap modules without powering down
Fully enclosed housing – no exposed PCBs, protected against static and dust
Gold-plated redundant spring pins with magnetic retention for DC power
No external power supplies or additional cabling required
NoteRequires a Theatrixx 2-Bay (RF2) or 8-Bay (RF8) Reversible Rackmount Converter frame (sold separately).
Specifications
| SKU | XVVRMVDO2IP |
| Video Input | HDMI 1.2 (Type A) or 3G-SDI (BNC) |
| Encoding | H.264 |
| Output | IP stream (via frame Ethernet) |
| Maximum Resolution | 1920 x 1080p @ 60Hz |
| Module Size | Single-width |
| Compatible Frames | xVision RF2 (2-Bay), RF8 (8-Bay) |
