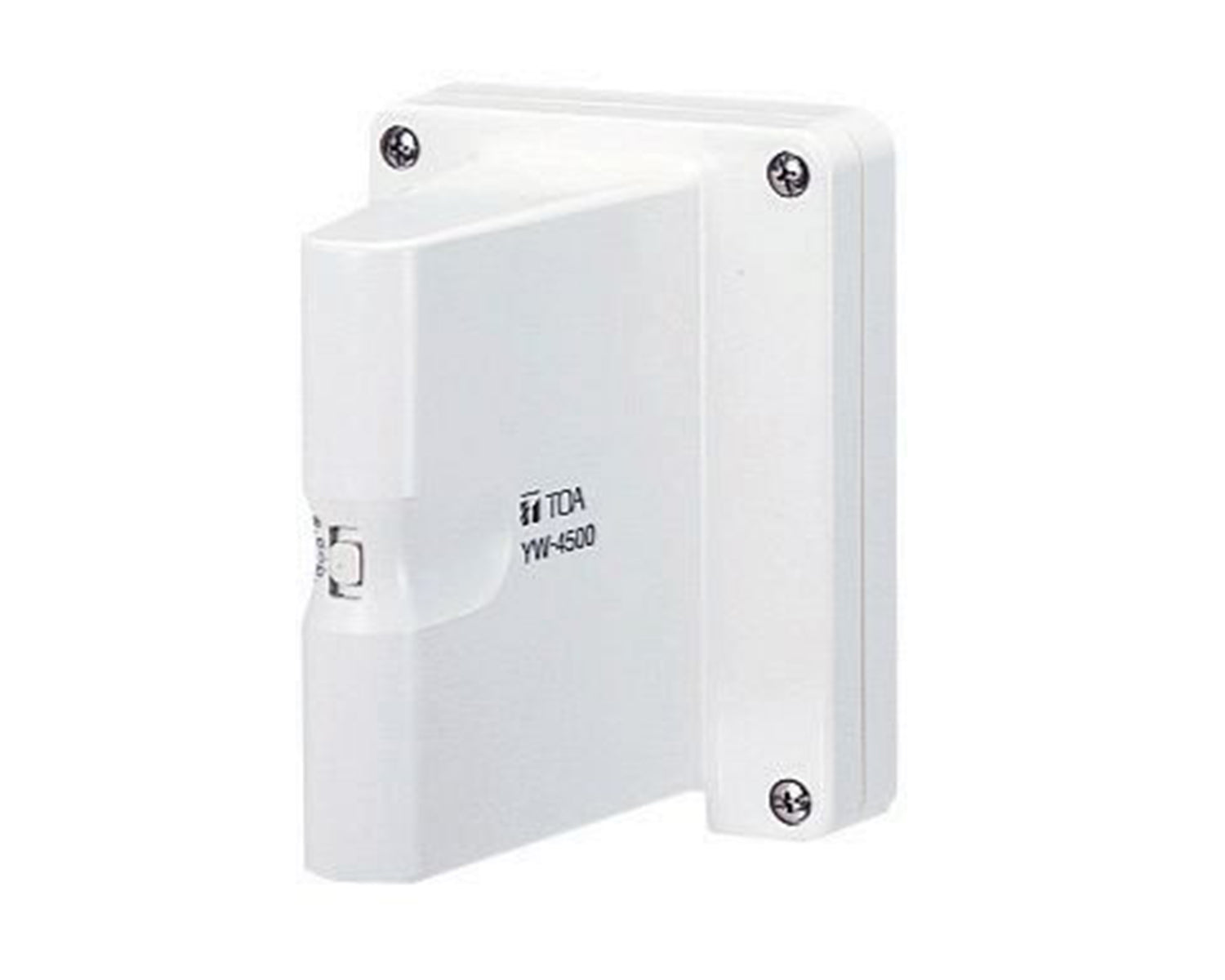

The TOA YW-4500 is an indoor UHF dipole antenna for TOA wireless microphone systems, mounted on a wall or ceiling. A built-in RF booster makes up for losses on long coaxial runs back to the receiver, and it is powered from the receiver or tuner over the 75 ohm coax. It is used where receivers sit in a rack room away from the stage, such as halls, churches, conference rooms and school theatres.
550 – 932 MHz
UHF
8 dB
Gain
75 Ω
Output
7 – 12V DC
Phantom fed
Indoor use, 75 ohm cableThe YW-4500 is an indoor antenna and needs 75 ohm coaxial cable. It takes its DC power from the receiver or tuner, so check that your receiver supplies antenna power.
Features
Omnidirectional UHF dipole antenna for wall or ceiling mounting
Built-in RF amplifier compensates for long cable runs
Receives 550 to 932 MHz
8 dB or more gain relative to a dipole (780 MHz)
75 ohm output, use 75 ohm coaxial cable (RG-6/U or RG-11/U)
Powered from the connected amplifier or tuner, 7 to 12V DC
Fixes to a wiring box at 83.5 mm hole pitch
Specifications
| Receiving frequency | 550 to 932 MHz (UHF) |
| Gain | 8 dB or more relative to dipole (780 MHz) |
| VSWR | 3.0 or less |
| Output impedance | 75 Ω |
| Power source | 7 to 12V DC from amplifier or tuner |
| Current consumption | 15 mA or less |
| Mounting hole pitch | 83.5 mm (wiring box) |
| Operating temperature | -10 to +50°C |
| Operating humidity | 30 to 85% RH, non-condensing |
| Finish | AES resin, off-white |
| Dimensions (W x H x D) | 105 x 140 x 126 mm |
| Weight | 270 g |
| Supplied | 2 x M3.5 wiring box screws, 2 x M4 wood screws, RG-6/U or RG-11/U sleeve |
