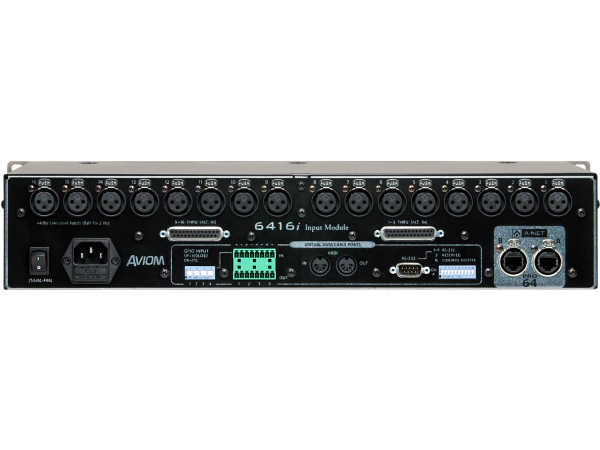

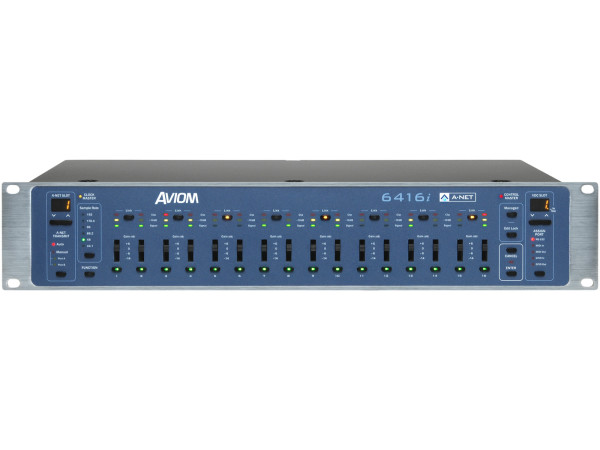

The Aviom 6416i is a 2U Pro64 input module with 16 balanced line-level analogue inputs on XLR. Each channel has a four-position gain switch and LED metering, and DB25 connectors provide analogue thru outputs. Typical uses are FOH returns to stage in a Pro64 digital snake, and feeding playback, computers and outboard preamps into Pro64 audio networks in theatres, houses of worship and installations.
16
Line inputs (XLR)
+18 dBu
Max input level
<800 µs
Analogue to analogue
2U
Rack height
Pro64 systemThis is a Pro64 A-Net device. It works with other Pro64 products (6416 modules, AllFrame, MH10/MH10f, RCI/MCS). Pro16 personal mixers and Pro16 output modules connect to a Pro64 network through an ASI A-Net Systems Interface.
Features
16 balanced line-level analogue inputs on XLR
16 analogue thru outputs on two DB25 multipins
Four-position gain switch per channel: +6, 0, -6 and -14 dB
Three-segment LED metering and a network activation switch per channel
Adjacent channels can be linked as stereo pairs
Assign to one of four 16-channel slot ranges, or route with Pro64 Network Manager
All 16 channels available at 1x, 2x and 4x sample rates, 24-bit
Virtual Data Cable ports for MIDI, RS-232 and GPIO
Specifications
| Inputs | 16, balanced line level, XLR |
| Audio thru | 2x DB25 multipin |
| Input impedance | 3 kohm |
| Input gain | +6, 0, -6, -14 dB (4-position switch) |
| Maximum input level | +18 dBu |
| Sample rates | 1x: 39.7 to 52 kHz; 2x: 79.4 to 104 kHz; 4x: 158.8 to 208 kHz; 24-bit |
| Frequency response | 3 Hz to 22 kHz ±0.5 dB (1x sample rate) |
| THD+N | <0.002% at -10 dBFS |
| Signal-to-noise (A/D) | 111 dB unweighted |
| Latency | <800 µs, analogue input to analogue output |
| A-Net | 2x EtherCon RJ45, Pro64; 120 m (400 ft) between devices |
| Virtual Data Cables | MIDI in/out (5-pin DIN), RS-232 (DB9), GPIO 4 in / 4 out |
| Power | 100 to 240 V AC, 50/60 Hz, 24 W, IEC inlet |
| Dimensions (W x D x H) | 482.6 x 203 x 88 mm, 2U |
| Weight | 4.1 kg |
