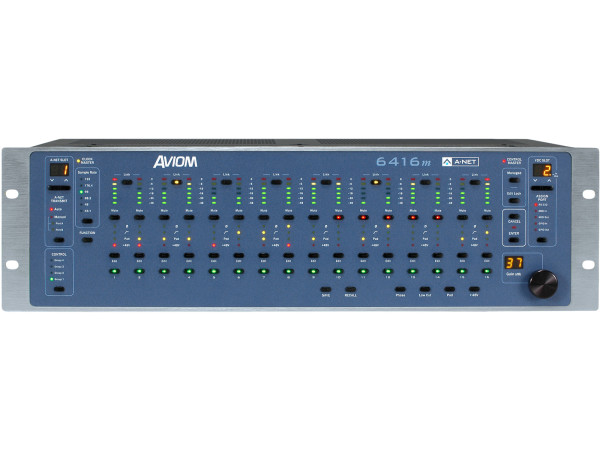

The Aviom 6416m is a 3U Pro64 mic input module with 16 remote-controllable mic preamps on XLR, with a -24 dB pad per channel so it also takes line-level sources. Gain, phantom power, low cut, phase, pad and mute can be adjusted from the front panel, from an RCI and MCS, from Yamaha consoles via m-control, or from Pro64 Network Manager. It is used as the stage end of Pro64 digital snakes and audio networks in touring, theatre, houses of worship and broadcast.
16
Mic/line inputs
0 to 55 dB
Gain, 1 dB steps
-127 dBu
EIN
3U
Rack height
Pro64 systemThis is a Pro64 A-Net device. It works with other Pro64 products (6416 modules, AllFrame, MH10/MH10f, RCI/MCS). Pro16 personal mixers and Pro16 output modules connect to a Pro64 network through an ASI A-Net Systems Interface.
Remote controlHardware remote control needs an RCI Remote Control Interface plus MCS Mic Control Surface (sold separately). Yamaha m-control requires a 6416Y2 A-Net card in the console.
Features

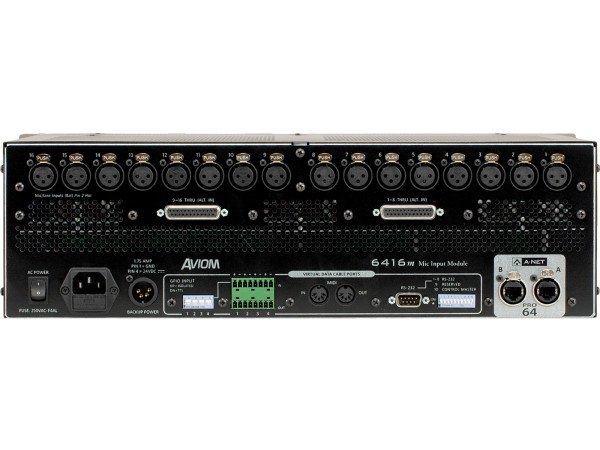

16 mic preamps on XLR, with passive split / alternate inputs on two DB25 multipins
Per channel: variable gain in 1 dB steps, +48V phantom power, 85 Hz low cut, phase, -24 dB pad, mute and network activation
16 preset memories for all channel strip settings
Remote control from RCI/MCS, Yamaha consoles (m-control) or Pro64 Network Manager
All 16 channels available at 1x, 2x and 4x sample rates, 24-bit
Virtual Data Cable ports for MIDI, RS-232 and GPIO
Two EtherCon A-Net ports
Backup DC power inlet on 4-pin XLR
Specifications
| Inputs | 16, XLR, mic or line level |
| Passive split / alternate inputs | 2x DB25 multipin |
| Input impedance | 3.6 kohm differential |
| Gain range | 0 to 55 dB, 1 dB steps |
| Maximum input level | +24 dBu (0 dB gain, pad on); 0 dBu (0 dB gain, pad off) |
| Pad | -24 dB per channel |
| Low cut filter | -3 dB at 85 Hz, 18 dB per octave |
| Phantom power | +48V per channel |
| Frequency response | 20 Hz to 23 kHz ±0.3 dB at 48 kHz |
| THD+N | 0.0015% at 1 kHz, -10 dBFS |
| Dynamic range | 112 dB |
| EIN | -127 dBu |
| CMRR | 78 dB at 1 kHz |
| Latency | <800 µs, analogue input to analogue output |
| A-Net | 2x EtherCon RJ45, Pro64; 120 m (400 ft) between devices |
| Power | 100 to 240 V AC, 50/60 Hz, 55 W, IEC inlet |
| Backup DC power | 24 V DC, 4-pin XLR |
| Dimensions (W x D x H) | 482.6 x 304.8 x 133.3 mm, 3U |
| Weight | 6.8 kg |
