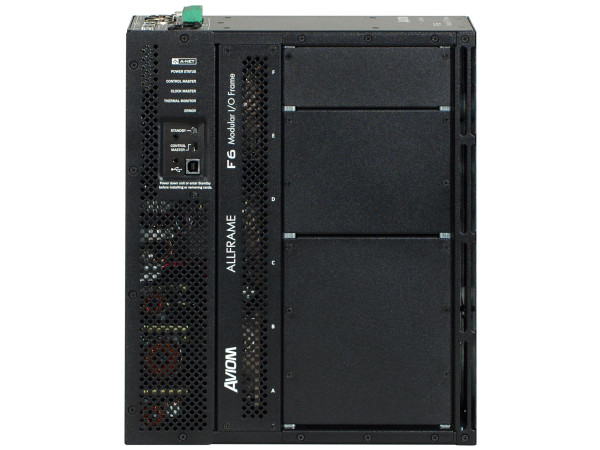

The Aviom F6 is the host frame of the AllFrame modular I/O system for Pro64 networks, holding up to six user-changeable I/O cards for a maximum of 24 inputs and 24 outputs. It connects to Pro64 over Cat-5e or fibre and can be built into a wall box, rack-mounted or used as a stage box with optional kits. Typical uses are permanent theatre, school and conference centre installations, and touring stage I/O.
6
Card slots
24 x 24
Max I/O
2 + 2
Cat-5e + SFP ports
6.35 kg
Weight
What is not includedI/O cards (C4m, C4o, C4dio), SFP fibre transceivers and a power supply are not included. Power comes over A-Net from an approved PoA supply such as the POA80, or from a 30 to 60 V DC supply on Euroblock or 4-pin XLR.

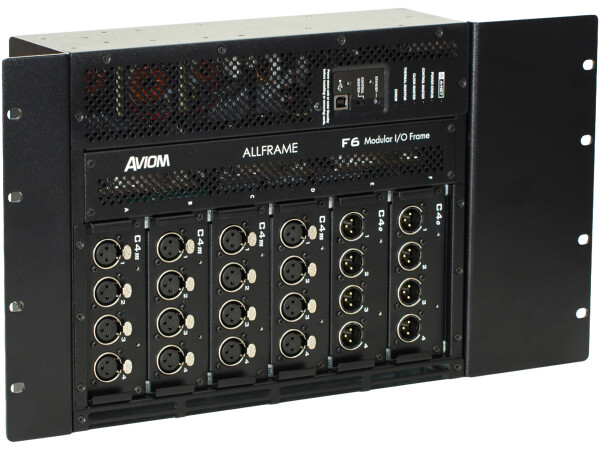

MountingRack mounting needs the optional RK6 kit (6U); the SK6 Stage Kit makes it a stage box. For wall mounting, a backing box of at least 305 x 356 x 102 mm is suggested.
Pro64 systemThis is a Pro64 A-Net device. It works with other Pro64 products (6416 modules, AllFrame, MH10/MH10f, RCI/MCS). Pro16 personal mixers and Pro16 output modules connect to a Pro64 network through an ASI A-Net Systems Interface.
Features

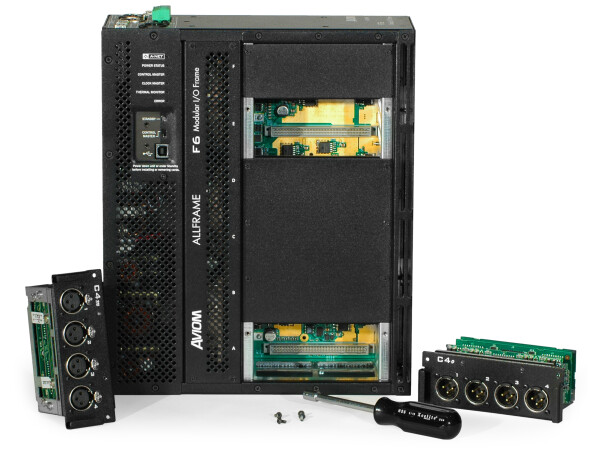

Six slots for AllFrame I/O cards, up to 24 inputs and 24 outputs

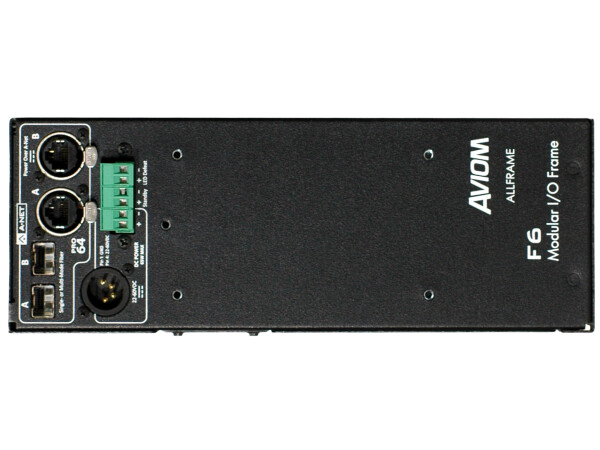

Two EtherCon A-Net ports and two SFP fibre slots; up to two ports active at once
Configured with Pro64 Network Manager software; USB computer port
Mic preamps controllable from RCI/MCS or Yamaha consoles via m-control
Power over A-Net, Euroblock or 4-pin XLR DC input
Three low-speed fans with temperature and fan-failure monitoring
Standby and LED defeat control inputs
Specifications
| I/O card slots | 6, user configurable |
| Channels | Up to 24 in, 24 out |
| A-Net | 2x EtherCon RJ45, 2x 100 Mbps SFP slots (max two active) |
| Cable length | 120 m (400 ft) Cat-5e; fibre distance depends on the transceivers |
| Sample rates | 1x: 39.7 to 52 kHz; 2x: 79.4 to 104 kHz; 24-bit |
| Latency | <800 µs, analogue input to analogue output |
| Computer interface | USB type B |
| Power input | 22 to 60 V DC at the frame; PoA on port B, or 30 to 60 V DC on Euroblock / 4-pin XLR |
| Operating temperature | 0 to 50°C |
| Dimensions | 269.2 x 320 x 97.8 mm |
| Rack mounting | 6U with optional RK6 kit |
| Weight | 6.35 kg |
