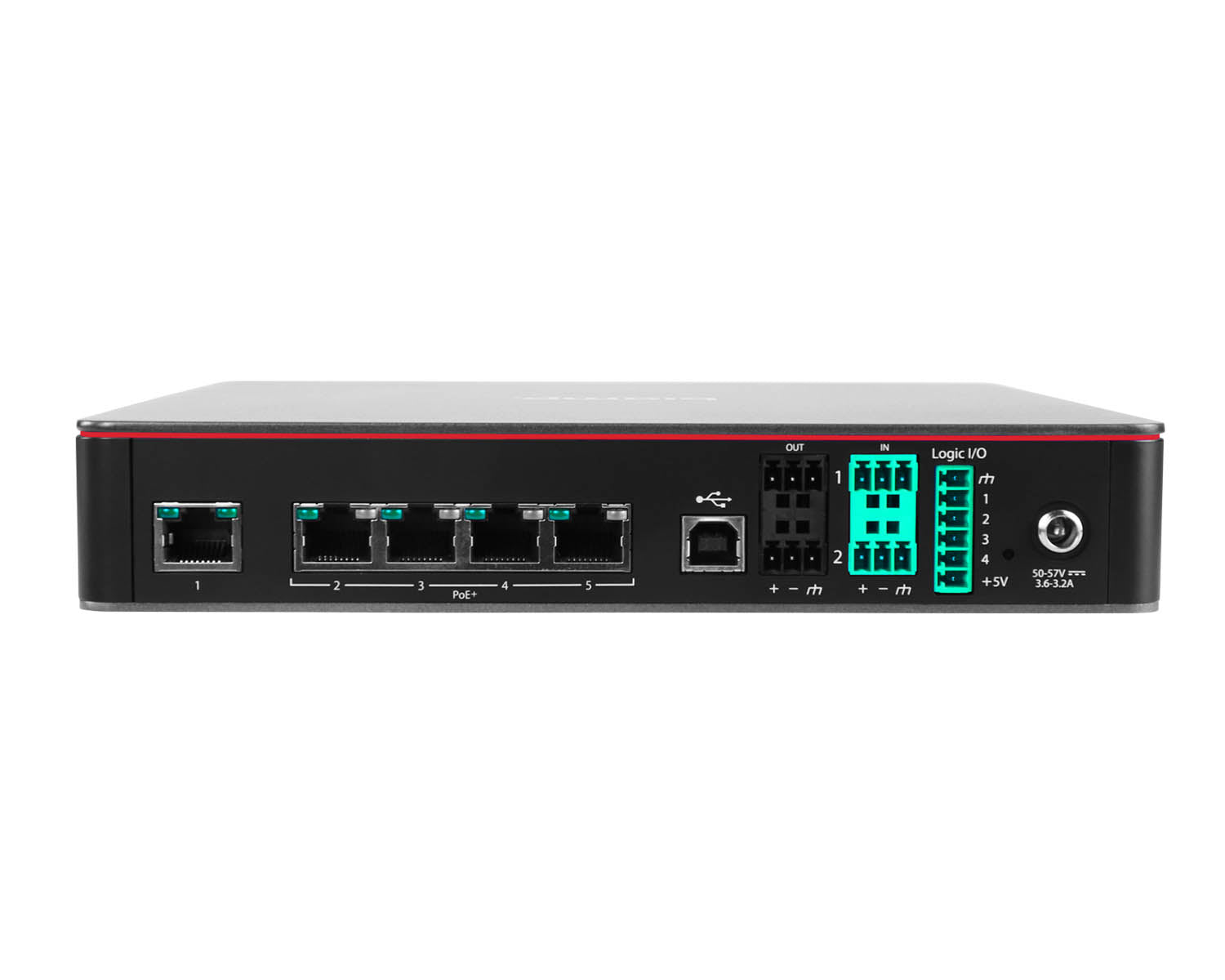

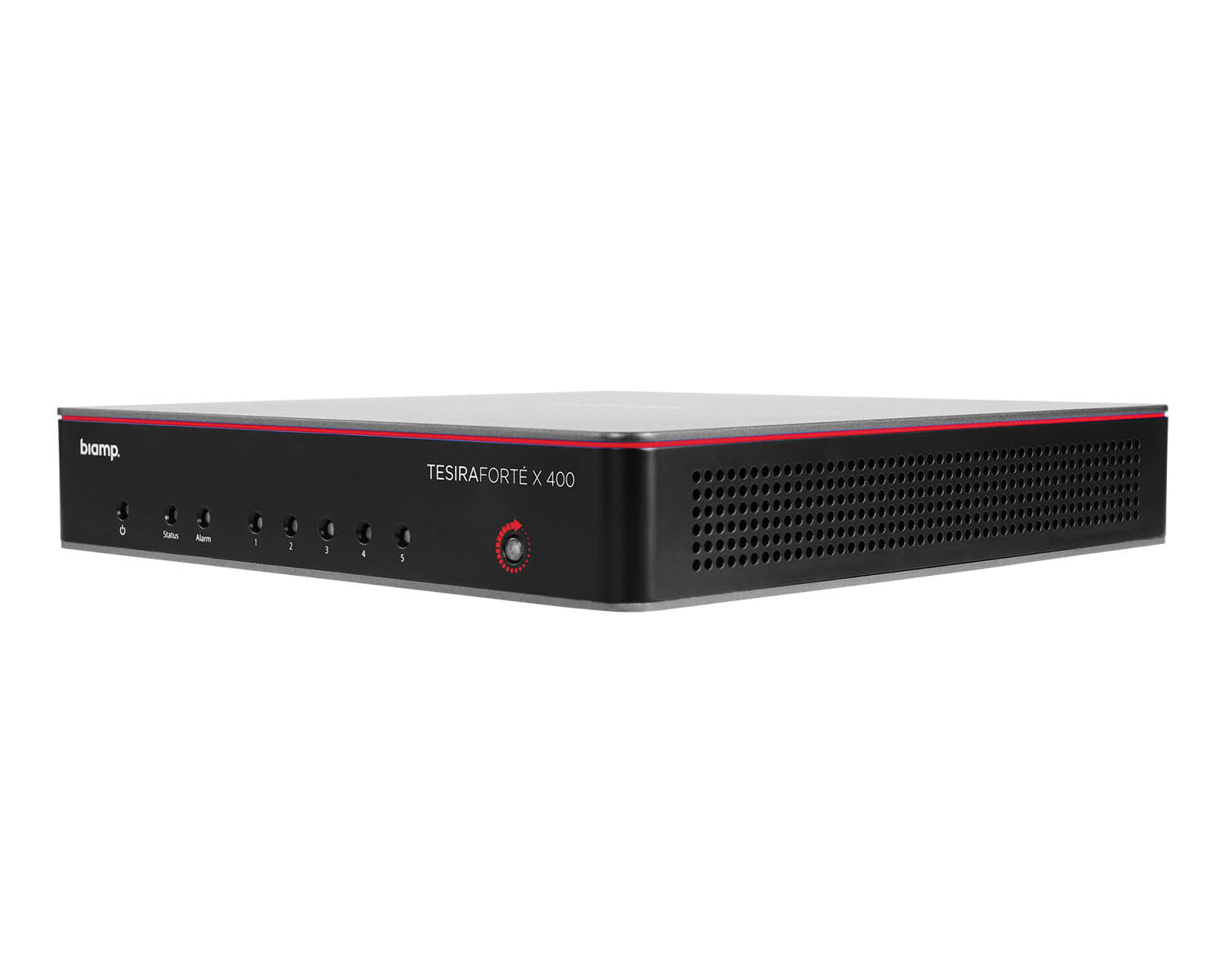

The Biamp TesiraFORTE X 400 (920-00091-00003) is a meeting room DSP with 2 mic/line inputs, 2 mic/line outputs and four assignable AEC channels. It carries five Gigabit Ethernet ports, four of which supply PoE+ (IEEE 802.3at Class 4, 30W), and handles both AVB and Dante networked audio plus SIP VoIP, making it suited to networked conferencing rooms powering PoE peripherals directly.
Key Features
2 mic/line inputs, 2 mic/line outputs
4 AEC channels assignable to any input
Up to 128 x 128 channels / 64 x 64 streams AVB
32 x 32 channels Dante, AES67-enabled endpoint
Five 1 Gigabit Ethernet ports, four with PoE+ (30W)
SIP VoIP via Gigabit Ethernet
Up to 2 x 2 channels of configurable USB audio
Port authentication via IEEE 802.1X, 4-pin GPIO
Surface mountable with included bracket
Covered by Biamp 5-year warranty
Specifications
| Inputs / Outputs | 2 mic/line in / 2 mic/line out |
| AEC channels | 4, assignable to any input |
| AVB | 128 x 128 channels, 64 x 64 streams |
| Dante | 32 x 32 channels / flows |
| Ethernet ports | 5 x 1 Gigabit, 4 with PoE+ 30W |
| Frequency response | 20Hz to 20kHz, +0.25/-0.5 dB |
| Phantom power | +48VDC (7mA/input) |
| Conversion / sample rate | 24-bit, 48kHz |
| Power | 100-240VAC 50/60Hz, <150W |
| Dimensions (HxWxD) | 37.3 x 206 x 206 mm |
| Weight | 0.86 kg |
