BSS BLUGPX Soundweb London GPIO Expander - Network Controlled, 1U

SKU: BSSBLUGPX-EUFX
BSS BLUGPX Soundweb London GPIO Expander - Network Controlled, 1U
BSS BLUGPX Soundweb London GPIO Expander - Network Controlled, 1U
Click to enlarge

    £2,277.00 inc VAT
    £1,897.50 ex VAT

    Ordered from supplier, allow 1–3 weeks
    Order in 3h 52m 12s for FREE delivery by Tue 22nd SepClick & Collect available Mon 21st Sep from us in London ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The BSS BLUGPX is a network-controlled GPIO expander for Soundweb London systems, adding a large bank of control inputs, logic outputs and relays for projects that need extra analogue control and interfacing capability. It features the same rich palette of Logic Objects as other Soundweb London devices, dual PoE Ethernet ports, an RS-232 port and configurable front-panel indication, all in a 1U chassis.

    36
    Control Inputs · Contact / ladder / pot
    23
    Logic Outputs · Voltage-controlled
    8
    Relay Outputs · NO / NC terminals
    2x PoE
    Ethernet · Comms + power

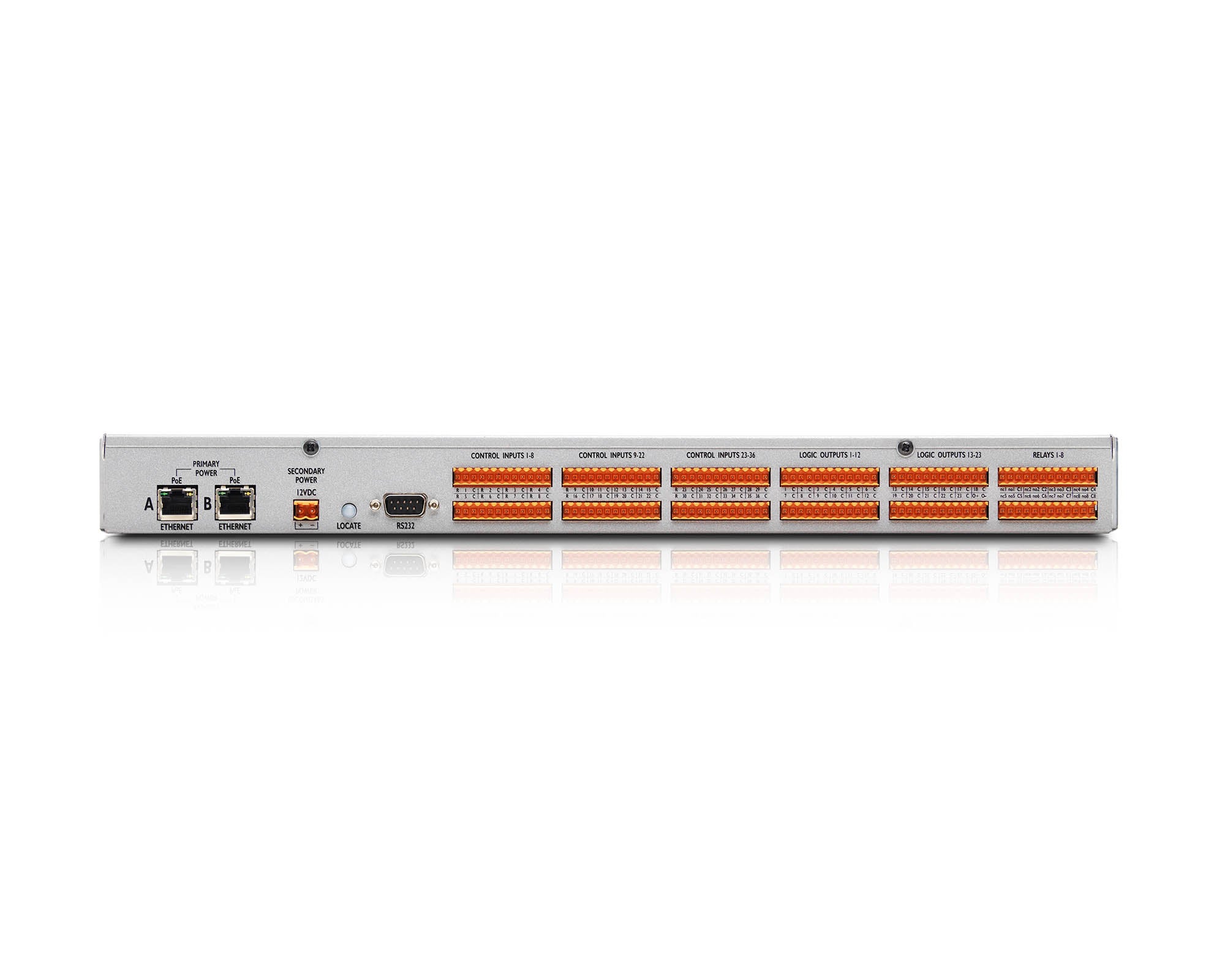

    Powering & ControlThe BLUGPX is configured, controlled, monitored and powered via either of its two PoE-enabled Ethernet ports, and can also be controlled and monitored over the RS-232 serial port. A 12VDC connector provides secondary power for backup, with a front-panel Power Supply LED indicating status.
    Features
    36 control inputs for contact closures, resistor ladders or potentiometers
    23 logic outputs for LEDs, relays and voltage-controlled components
    8 integrated relay outputs, each with NO and NC terminals
    47 Common (ground) and 12 Reference connections for simplified wiring
    Two PoE-enabled Ethernet ports for communications and primary power
    12VDC connector for secondary / backup power
    RS-232 port for serial control and monitoring

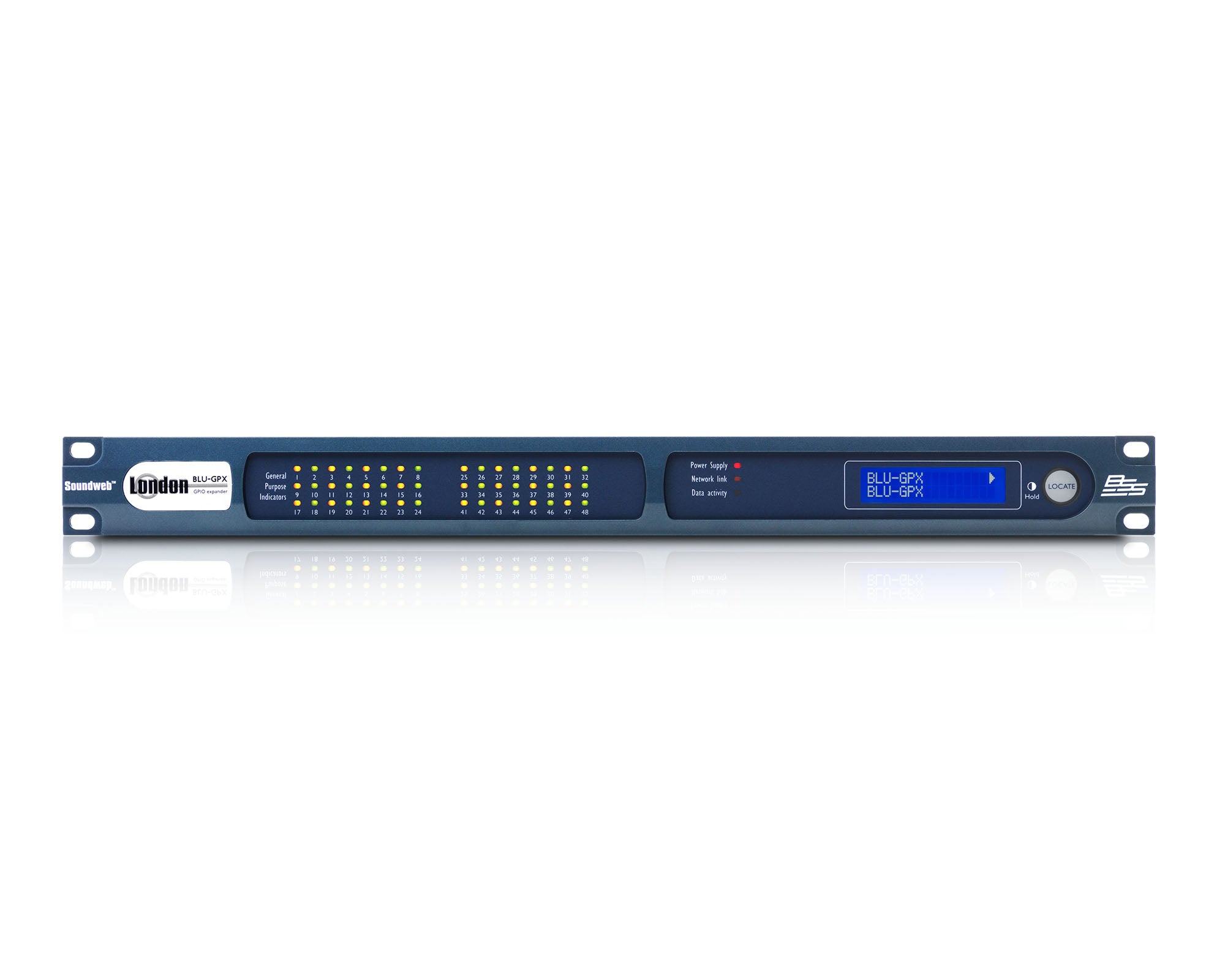

    48 software-programmable multi-colour (red / green / yellow) LEDs
    Programmable 80×16 monochrome LCD and 4 kHz piezo buzzer
    Open architecture, configured in HiQnet London Architect
    NoteThe BLUGPX is a GPIO expander – it adds control and logic interfacing to a Soundweb London system but does not process audio itself.
    Specifications
    Control inputs 36 (contact closure, resistor ladder or potentiometer)
    Logic outputs 23 (voltage-controlled)
    Relay outputs 8, each with Normally Open and Normally Closed terminals
    Common / Reference 47 Common (ground), 12 Reference (3-wire mode)
    Ethernet 2x PoE-enabled (comms and primary power)
    Secondary power 12VDC connector
    Serial RS-232
    Front-panel indication 48 programmable multi-colour LEDs, 80×16 monochrome LCD, 4 kHz piezo buzzer
    Configuration software HiQnet London Architect
    Rack size 1U

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

    • 36 Control Inputs (GPI)
    • 23 Logic Outputs (GPO)
    • 8 NC/NO Relay Outputs
    • 47 Commons for Simple Wiring
    • 12 Reference Connections for 3-Wire Mode
    • 2-Wire or 3-Wire Mode Specifiable per Input Bank
    • 1 Opto-Isolator for Fault Monitoring
    • Rich Palette of Logic Objects
    • 2 PoE-Enabled Ethernet Ports for Configuration, Control, Monitoring, Primary Power, and Redundant Comms
    • 12VDC Secondary Power Connector for Power Source Backup
    • 48 User-Configurable LEDs (Front Panel)
    • User-Configurable LCD (Front Panel)
    • 4kHz Piezo Buzzer for Audible Indication
    • Bi-Directional Locate Functionality
    • EN 54-16 Compliant for life safety
