The BSS BLU100 is a fixed-configuration Soundweb London signal processor offering 12 analogue inputs and 8 analogue outputs with configurable DSP and a fault-tolerant digital audio bus. It is the cost-effective processing building block of a Soundweb London system for fixed-install AV, delivering flexible signal processing and GPIO control in a single 1U chassis.
Analogue I/O
12 in / 8 out
Fixed configuration
Digital Audio Bus
48 channels
Ch 1-48 of 256
GPIO
12 in / 6 out
Control / logic
Form Factor
1U
Rack mount
Networked Audio Bus
The 48-channel low-latency, fault-tolerant digital audio bus runs over standard Cat5e for up to 100m between compatible devices; fibre media converters extend this to over 40km. These 48 channels map to channels 1-48 of the larger 256-channel bus when integrated with BLU-800, BLU-320, BLU-160, BLU-120 and BLU-BOB devices.
Features
✓Fixed 12 analogue in / 8 analogue out configuration
✓Configurable signal processing with open architecture
✓Configured via HiQnet London Architect with drag-and-drop objects
✓48-channel low-latency, fault-tolerant digital audio bus
✓Software-configurable gain in 6dB steps up to +48dB per channel
✓Software-selectable phantom power per input channel
✓12 control inputs and 6 logic outputs for GPIO integration

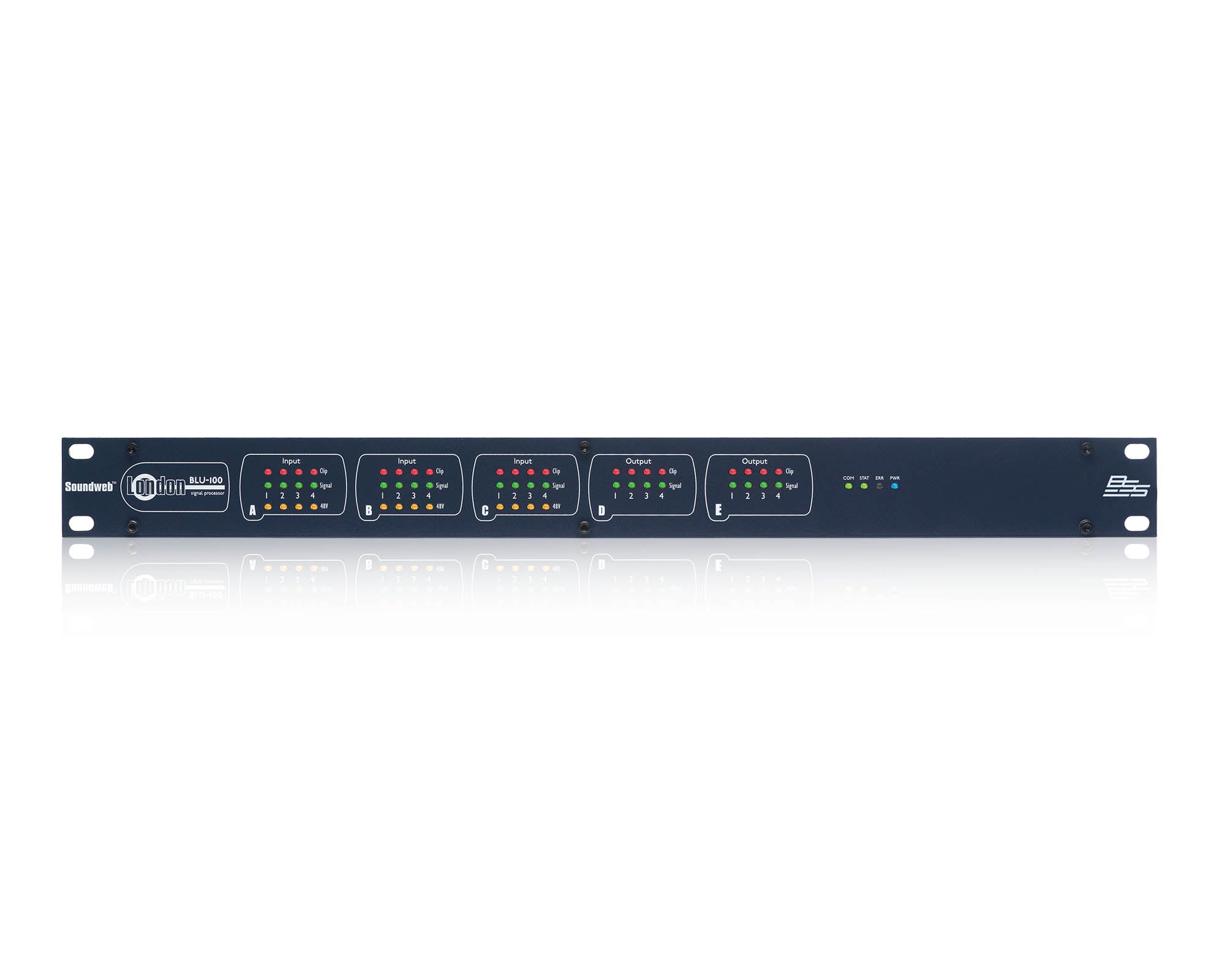

✓Front-panel LED indication of phantom power, signal and clip
✓Bi-directional locate function within London Architect
✓Compatible with the entire Soundweb London family
Note
The BLU100 does not include the dedicated AEC processing found on the BLU-101. For conferencing applications that need acoustic echo cancellation, choose the BLU-101, BLU-102 or BLU-103.
Specifications
| Analogue inputs | 12 (fixed) |
| Analogue outputs | 8 (fixed) |
| Digital audio bus | 48 channels (ch 1-48 of 256), low latency, fault tolerant |
| Cabling / distance | Cat5e, 100m device-to-device; over 40km via fibre media converters |
| Input gain | Software configurable in 6dB steps up to +48dB per channel |
| Phantom power | Software selectable per channel |
| GPIO | 12 control inputs, 6 logic outputs |
| Configuration software | HiQnet London Architect |
| Rack size | 1U |
