The BSS BLU101 is a fixed-configuration Soundweb London signal processor offering 12 analogue inputs and 8 analogue outputs, with dedicated acoustic echo cancellation (AEC) for conferencing applications. Built for fixed-install AV integrators, it combines configurable DSP, GPIO control and a fault-tolerant digital audio bus in a single 1U chassis.
Analogue I/O
12 in / 8 out
Fixed configuration
AEC
12 algorithms
Independent references
Digital Audio Bus
48 channels
Ch 1-48 of 256
Form Factor
1U
Rack mount
Networked Audio Bus
The 48-channel low-latency, fault-tolerant digital audio bus runs over standard Cat5e for up to 100m between compatible devices; fibre media converters extend this to over 40km. These 48 channels map to channels 1-48 of the larger 256-channel bus when integrated with BLU-800, BLU-320, BLU-160, BLU-120, BLU-BIB and BLU-BOB devices.
Features
✓Fixed 12 analogue in / 8 analogue out configuration
✓Dedicated AEC for up to 12 independent algorithms
✓Automatic Gain Control and Noise Cancellation per algorithm
✓Open architecture, configured in HiQnet London Architect
✓Software-configurable gain in 6dB steps up to +48dB per channel
✓Software-selectable phantom power per input channel

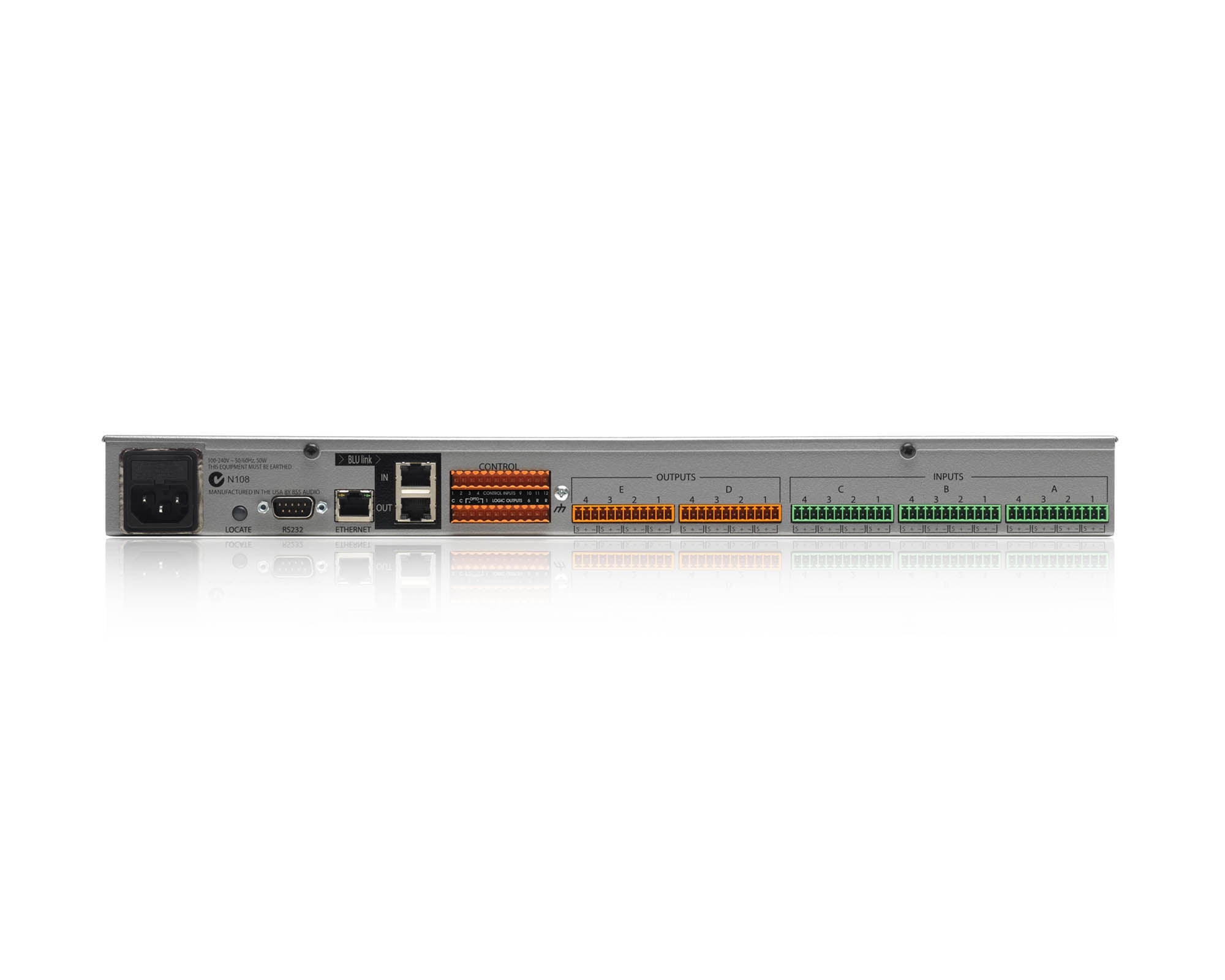

✓12 control inputs and 6 logic outputs for GPIO integration

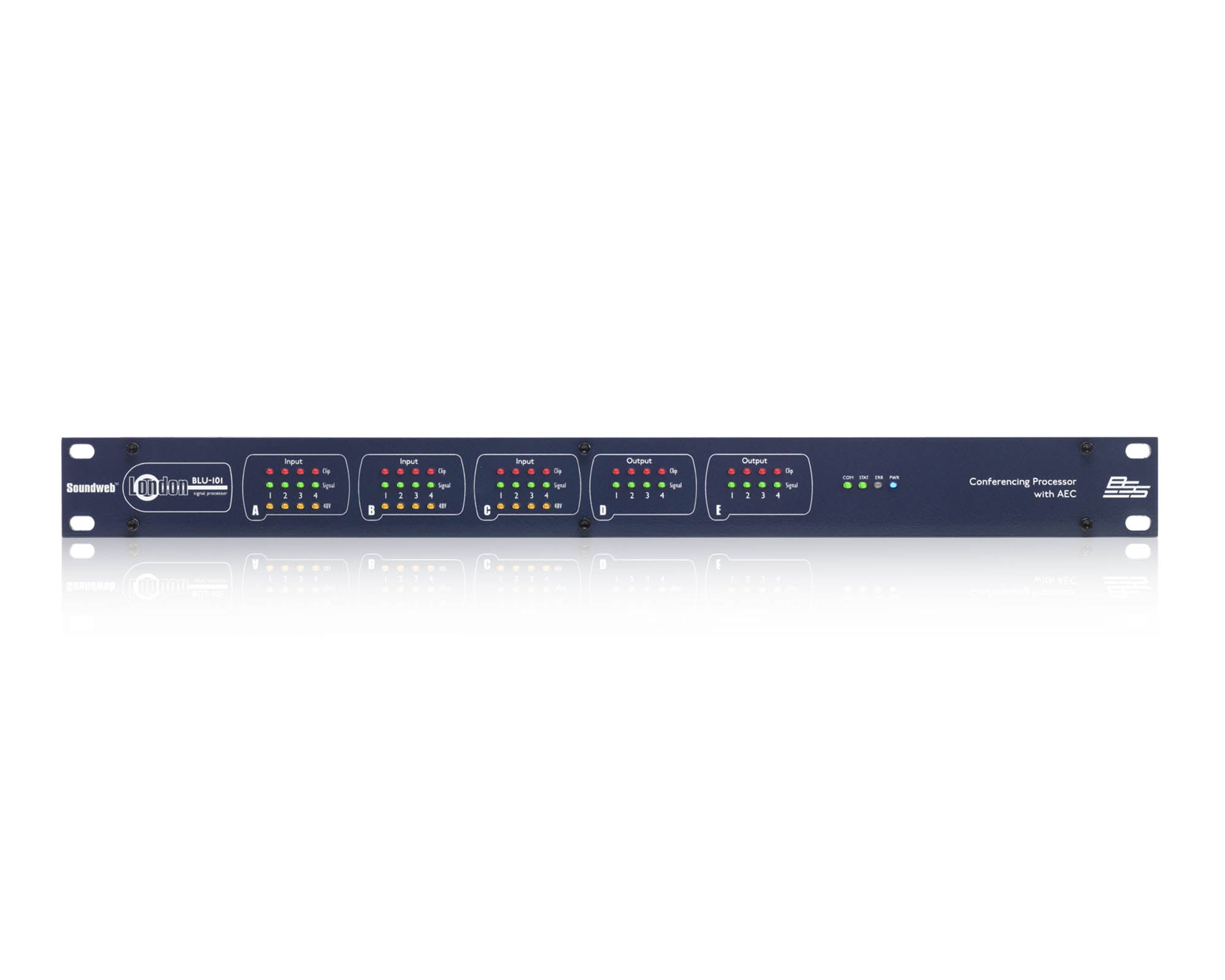

✓Front-panel LED indication of phantom power, signal and clip
✓Bi-directional locate function within London Architect
✓Compatible with the entire Soundweb London family
Note
The BLU101 is a fixed-I/O device. If you need modular card-slot I/O, look to the BLU-160 or BLU-120 chassis. If you require a telephone or VoIP interface for conferencing, see the BLU-102 (POTS) or BLU-103 (VoIP).
Specifications
| Analogue inputs | 12 (fixed) |
| Analogue outputs | 8 (fixed) |
| AEC | Up to 12 independent algorithms with per-algorithm AGC and Noise Cancellation |
| Digital audio bus | 48 channels (ch 1-48 of 256), low latency, fault tolerant |
| Cabling / distance | Cat5e, 100m device-to-device; over 40km via fibre media converters |
| Input gain | Software configurable in 6dB steps up to +48dB per channel |
| Phantom power | Software selectable per channel |
| GPIO | 12 control inputs, 6 logic outputs |
| Configuration software | HiQnet London Architect |
| Rack size | 1U |
