Ecler eMCONTROL1 Digital Wall Controller for HUB Series

SKU: ECL0070
Ecler eMCONTROL1 Digital Wall Controller for HUB Series - Image 1
Ecler eMCONTROL1 Digital Wall Controller for HUB Series - Image 2
Ecler eMCONTROL1 Digital Wall Controller for HUB Series - Image 3
Click to enlarge

    £166.00 inc VAT
    £138.33 ex VAT

    4 in stock

    4 available online
    Delivered by MondayOrder by 3pm tomorrow
    Click & Collect Friday ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

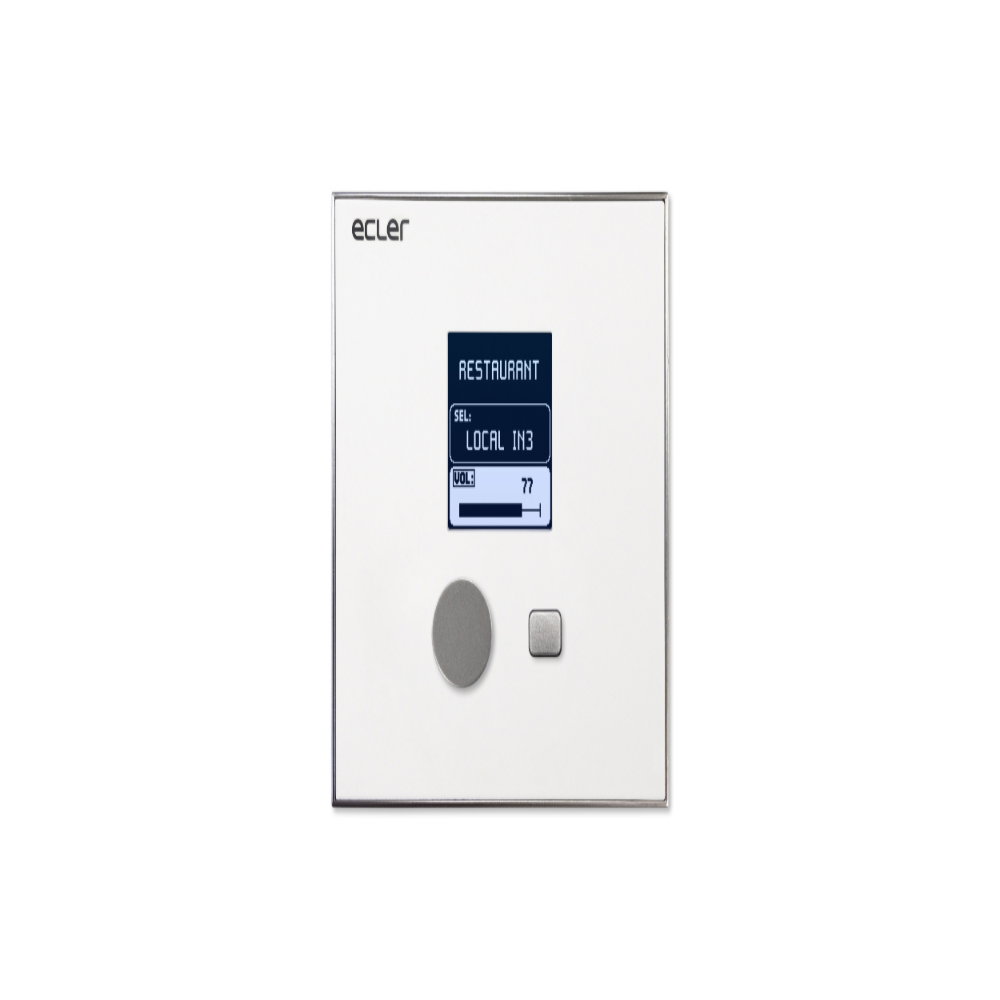

    The Ecler eMCONTROL1 is a digital wall controller for the HUB series zone mixers and eMIMO1616, giving source selection, volume and EQ for one zone. It connects to the HUB over a single Cat-5 cable, which also carries power and, when paired with a WPa audio panel, a balanced mono audio signal back to the mixer. It is used in bars, restaurants, hotels, gyms and offices for zone control by staff.

    HUB
    Series compatible
    128 x 128
    LCD
    Cat-5
    Single cable
    86 x 86
    mm
    CompatibilityWorks with Ecler HUB series zone mixers and eMIMO1616 only. A HUB1408 or HUB1616 accepts up to 8 eMCONTROL1 units.
    Features
    Source selection, volume and EQ for one zone; functions enabled as required
    Set up through the HUB’s HANGAR web application
    LCD display with rotary encoder and select key

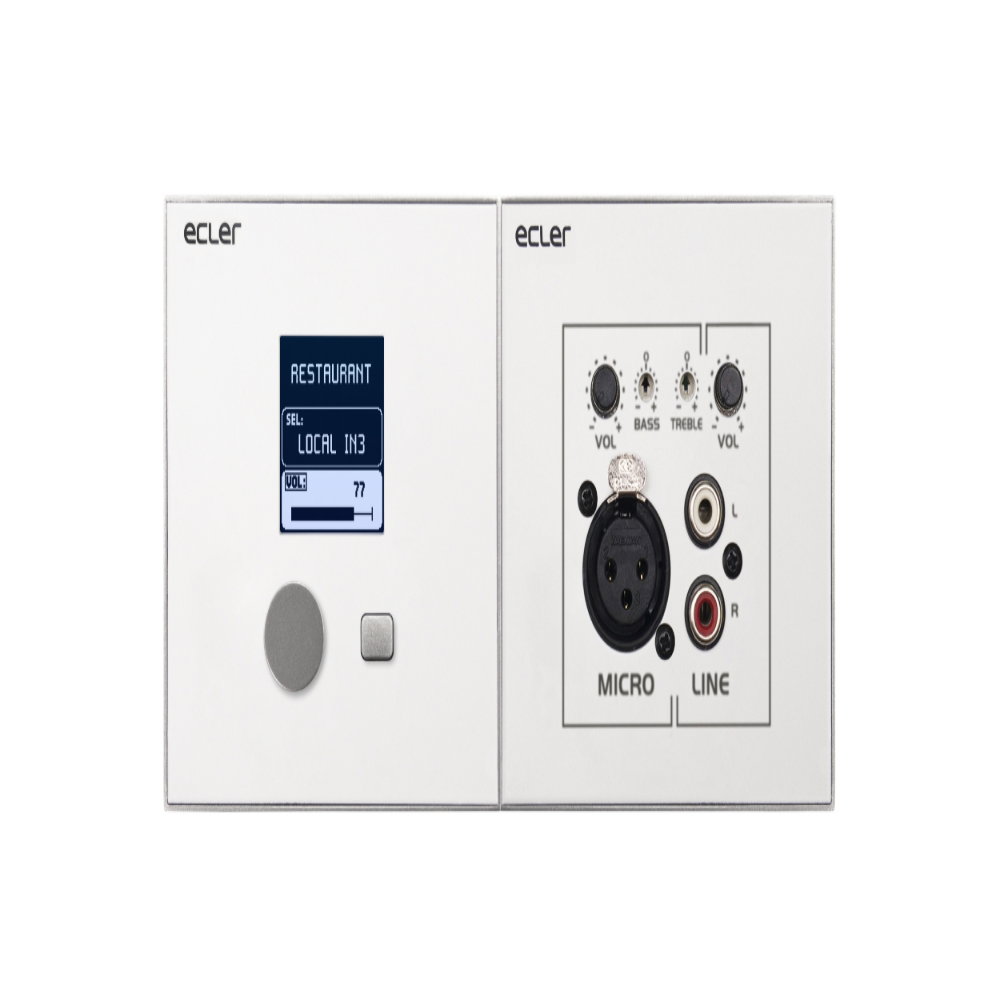

    Pairs with WPa audio panels (such as WPaMIX-T or WPa-BT) as a remote audio input to the HUB
    Audio, control and DC power over one Cat-5 cable from the HUB
    Specifications
    Display LCD, 128 x 128 pixels
    Connection RJ-45, Cat-5e or better; RS-485
    Power From the HUB, or optional 24V DC (min 30 mA), WP24-PSU recommended
    Dimensions (W x H x D) 86 x 86 x 45 mm
    Weight 0.15 kg

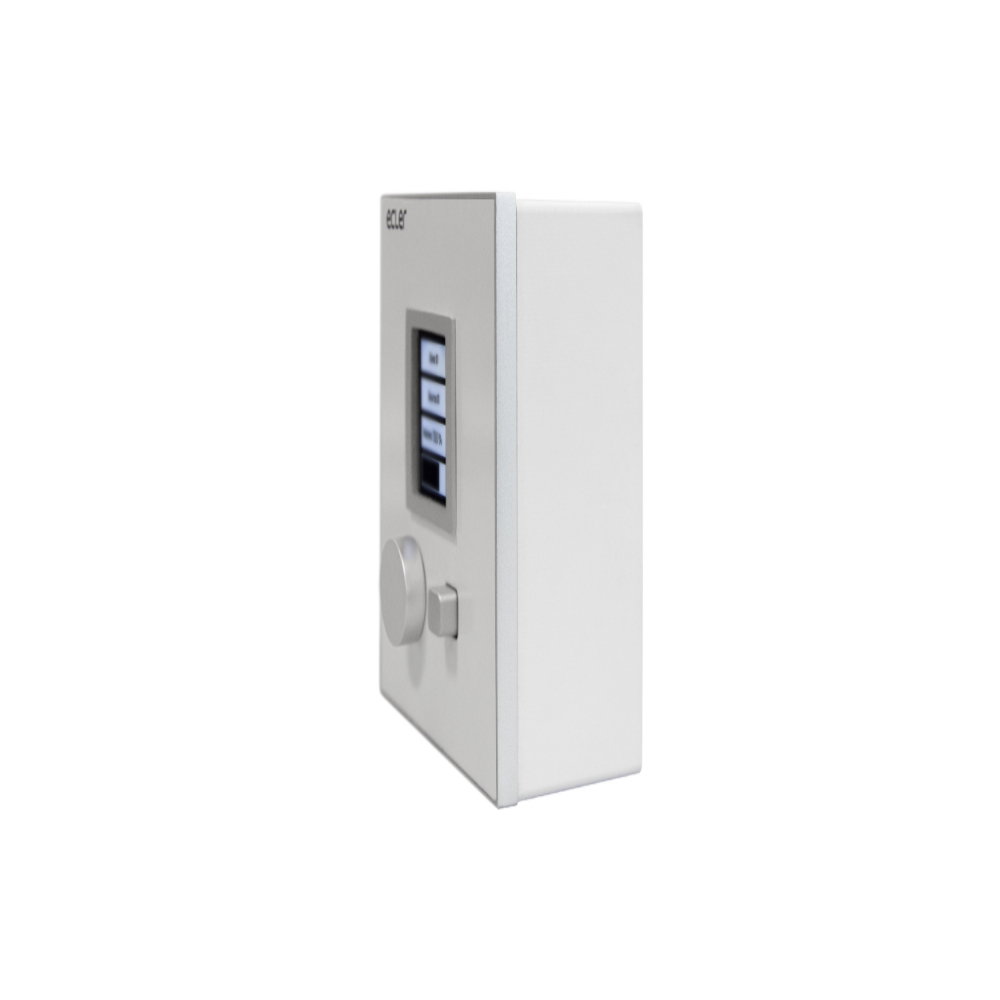

    Included WPaMIX-T interconnect cable, surface mount box, screws, cover removal magnet

    Product Reviews

    No reviews yet — be the first to review this product.

    More Information

    • Digital control panel compatible with HUB Series and eMIMO1616
    • Volume adjustment, source selection and EQ (programmable)
    • Compatible with WPa series panels with audio connector, for sending audio and control signals over a single CAT5 cable or better
    • Styling designed in collaboration with Italdesign Giugiaro

    Manuals & Downloads

    PDFManuals & Instructions: emcontrol1_Ecler_eMCONTROL1_User_Manual_EN.pdfPDF
    PDFManuals & Instructions: emcontrol1_Ecler_eMCONTROL1_Data_Sheet.pdfPDF
    PDFManuals & Instructions: emcontrol1_Ecler_eMCONTROL1_CE_Declaration_of_Conformity.pdfPDF
    PDFManuals & Instructions: emcontrol1_Ecler_eMCONTROL1_RCM_Certificate.pdfPDF
    PDFManuals & Instructions: wpamix-t_Ecler_eMCONTROL1_WPaMIX-T_EMC_Certificate.PDFPDF
    PDFManuals & Instructions: wpamix-t_Ecler_eMCONTROL1_WPaMIX-T_FCC_Certificate.PDFPDF
    ZIPManuals & Instructions: emcontrol1_Ecler_eMCONTROL1_Mechanical_Diagram.zipZIP
