Biamp TesiraFORTE AVB VT Fixed I/O DSP 12 AEC Inputs / 8 Outputs / VoIP (920-00450-00003)

Product code: 180335

£4,048.00 inc VAT
£3,373.33 ex VAT

SKU: 920-00450-00003

1 in stock (more available subject to additional lead time)

1 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

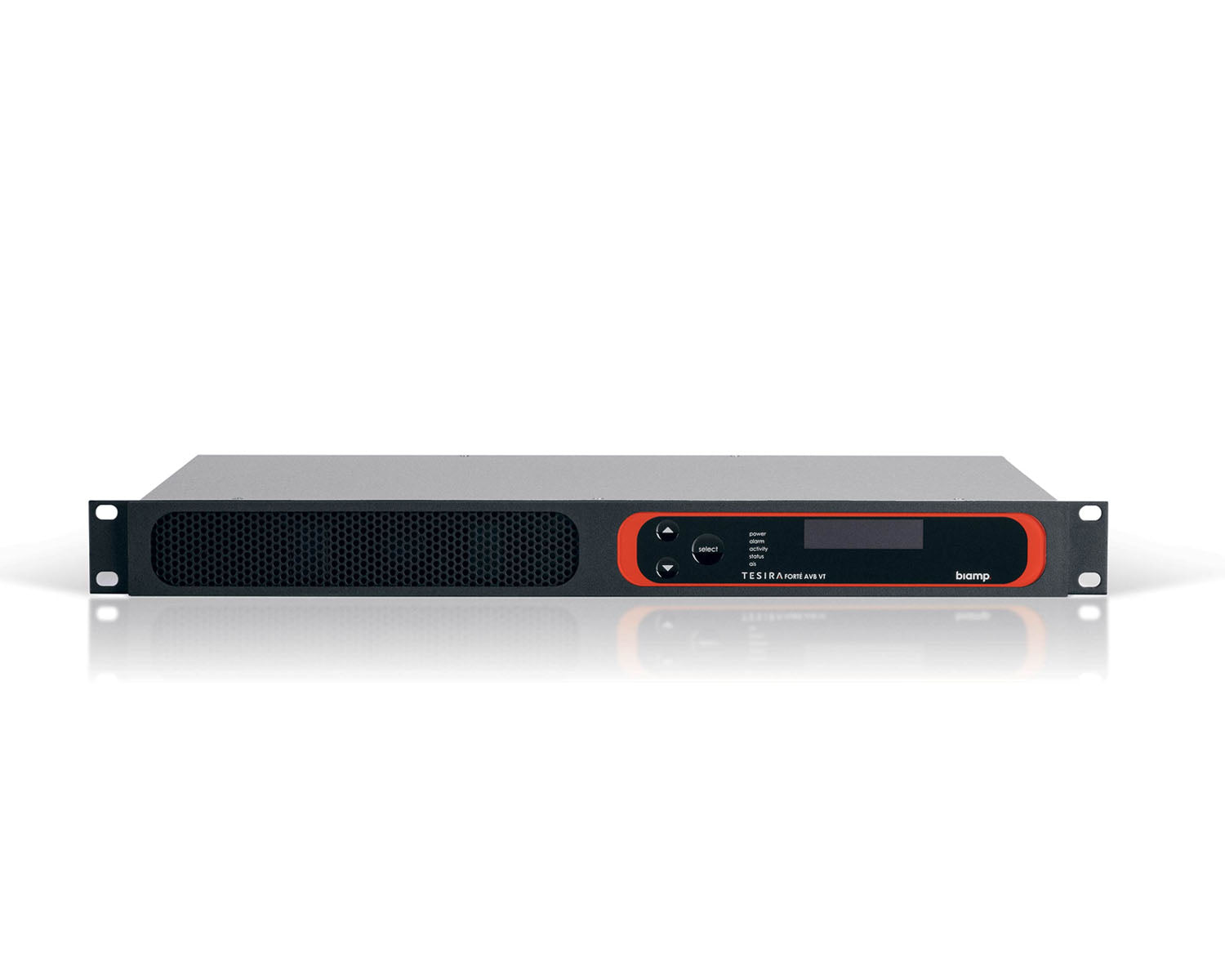

The Biamp TesiraFORTE AVB VT is a 1RU fixed I/O digital audio server with 12 mic/line inputs, all carrying Acoustic Echo Cancellation, and 8 mic/line outputs. Telephony is covered twice over with a 2-channel SIP VoIP interface and a standard FXO analogue line, plus up to 8 channels of configurable USB audio for soft-codec conferencing. It runs standalone or alongside other TesiraFORTE AVB devices, Tesira servers, expanders and controllers over 128×128 channels of AVB/TSN networking.

12
Inputs with AEC
8
Mic/line outputs
128×128
AVB channels
VoIP + FXO
Telephony interfaces

Features

12 mic/line inputs with AEC, 8 mic/line outputs
128×128 channels of AVB
SIP VoIP interface via RJ-45 and standard FXO telephone interface via RJ-11
Up to 8 channels of USB audio at 48 kHz
Signal routing, mixing, equalisation, filtering and delay configured in Tesira software
Gigabit Ethernet port; configuration and control via Ethernet
RS-232 serial port and 4-pin GPIO
2-line OLED display with capacitive-touch navigation
Rack mountable (1RU) with internal universal power supply
CE marked, UL listed and RoHS compliant
Covered by Biamp’s five-year warranty

Specifications

Biamp TesiraFORTE AVB VT Fixed I/O DSP 12 AEC Inputs / 8 Outputs / VoIP (920-00450-00003) specifications
Frequency response (20 Hz to 20 kHz, +4 dBu out) +0.25/-0.5 dB
THD+N (22 Hz to 22 kHz, 0 dB gain, +4 dBu in) <0.006%
EIN (22 Hz to 22 kHz, unweighted) <-125 dBu
Dynamic range (22 Hz to 22 kHz, 0 dB gain) >108 dB
Input impedance (balanced) 8 kΩ
Maximum input +24 dBu
Maximum output (selectable) +24, +18, +12, +6, 0 or -31 dBu
Input gain range 0-66 dB in 6 dB steps
Phantom power +48 V DC (7 mA per input)
Sampling rate / converters 48 kHz, 24-bit A/D and D/A
USB audio Up to 8 channels, 16- or 24-bit, 48 kHz
Power consumption (100-240 V AC, 50/60 Hz) <35 W
Dimensions (H × W × D) 44 × 483 × 267 mm (1RU)
Weight 3.63 kg

Full features

  • 128 x 128 channels of AVB
  • 12 mic/line level inputs with AEC, 8 mic/line level outputs
  • Gigabit Ethernet port
  • RS-232 serial port
  • 4-pin GPIO
  • 2-line OLED display with capacitive-touch navigation
  • Rack mountable (1RU)
  • System configuration and control via Ethernet
  • Internal universal power supply
  • SIP VoIP interface via RJ-45 connector
  • Standard FXO telephone interface via RJ-11 connector
  • Signal processing via intuitive software allows configuration and control for signal routing, mixing, equalisation, filtering, and delay
  • CE marked, UL listed, and RoHS compliant
  • Covered by Biamp Systems’ five-year warranty

Full specifications

General

  • Frequency Response:
    • 20Hz to 20kHz, +4dBu output: +0.25 dB/-0.5 dB
  • THD+N (22Hz to 22kHz):
    • 0dB gain, +4dBu input: < 0.006%
    • 54dB gain, -50dBu input: < 0.040%
  • EIN (no weighting, 22Hz to 22kHz): < -125dBu
  • Dynamic Range (in presence of signal)
    • 22Hz to 22kHz, 0dB gain: > 108dB
  • Input Impedance (balanced): 8kΩ
  • Output Impedance (balanced): 207Ω
  • Maximum Input: +24dBu
  • Maximum Output (selectable): +24dBu, +18dBu, +12dBu, +6dBu, 0dBu, -31dBu
  • Input Gain Range (6dB steps): 0-66dB
  • Phantom Power: +48VDC (7mA/input)
  • Crosstalk, channel to channel, 1 kHz:
    • 0dB gain, +4dBu input: < -85dB
    • 54dB gain, -50dBu input: < -75dB
  • Sampling Rate: 48kHz
  • A/D - D/A Converters: 24-bit
  • Power Consumption:
    • 100-240VAC 50/60Hz: < 35W
  • USB:
    • Bit Depth: 16- or 24-bit
    • Number of Channels: up to 8
    • Sample Rate: 48kHz
  • Environment:
    • Ambient Operating
    • Temperature Range: 32-104° F (0–40° C)
    • Humidity: 0–98%, non-condensing
    • Altitude: 0-6,600 feet (0–2000 Meters) MSL

Overall Dimensions

  • Height: 1.75 inches (44 mm)
  • Width: 19.0 inches (483 mm)
  • Depth: 10.5 inches (267 mm)
  • Weight: 8 lbs (3.63 kg)

Compliance

  • FCC Part 15B (USA)
  • CE marked (Europe)
  • UL und C-UL listed (USA and Canada)
  • RCM (Australia)
  • RoHS Directive (Europe)
